1985-1986 Volkswagen VW Electrical Wiring Diagrams - Vanagon
Price $64.95 $51.96
DetailsW: 9 x H: 11 x D: 0.625
Weight1.56 lbs.
Page Count240
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberWD-56336
OEM NumberW42 001 137 1 Printed 11/86
In Stock
Flat US shipping rate$8.95
Flat International shipping rate$48.95
Description
1985-1986 Volkswagen VW Electrical Wiring Diagrams. Original.

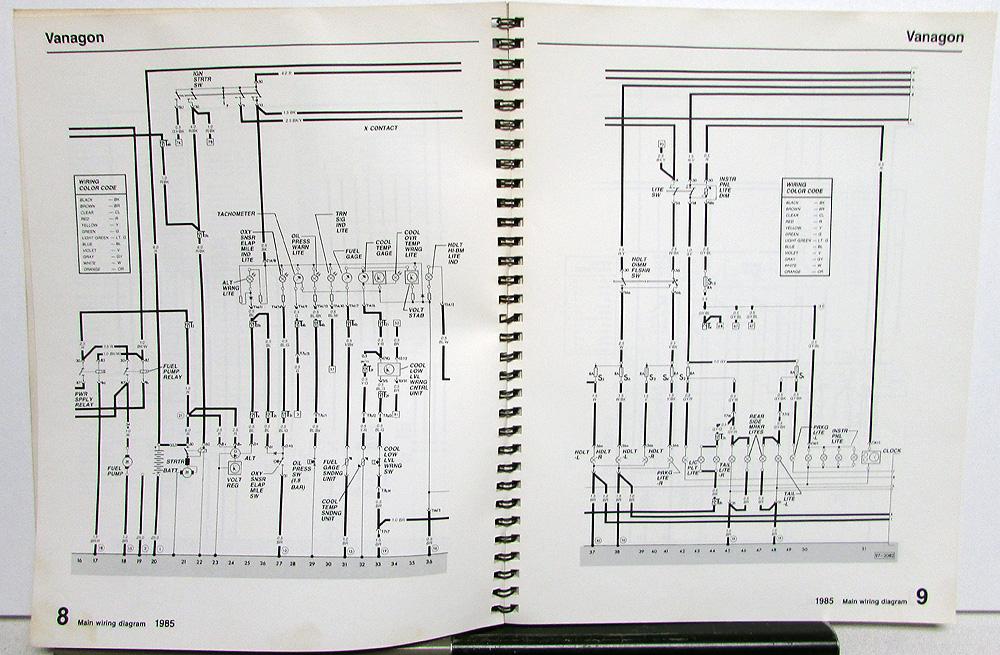

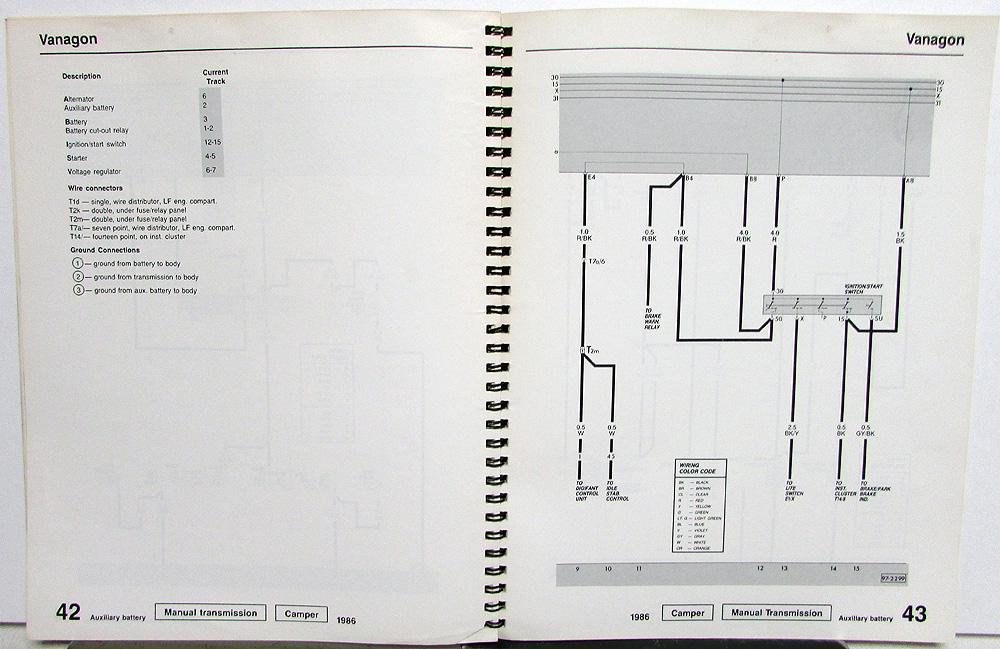

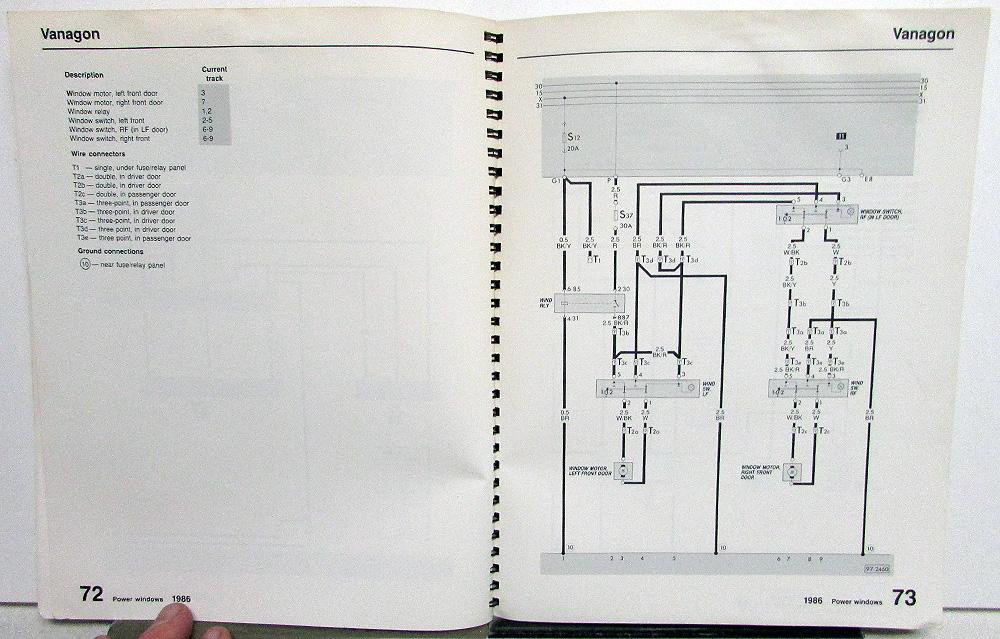

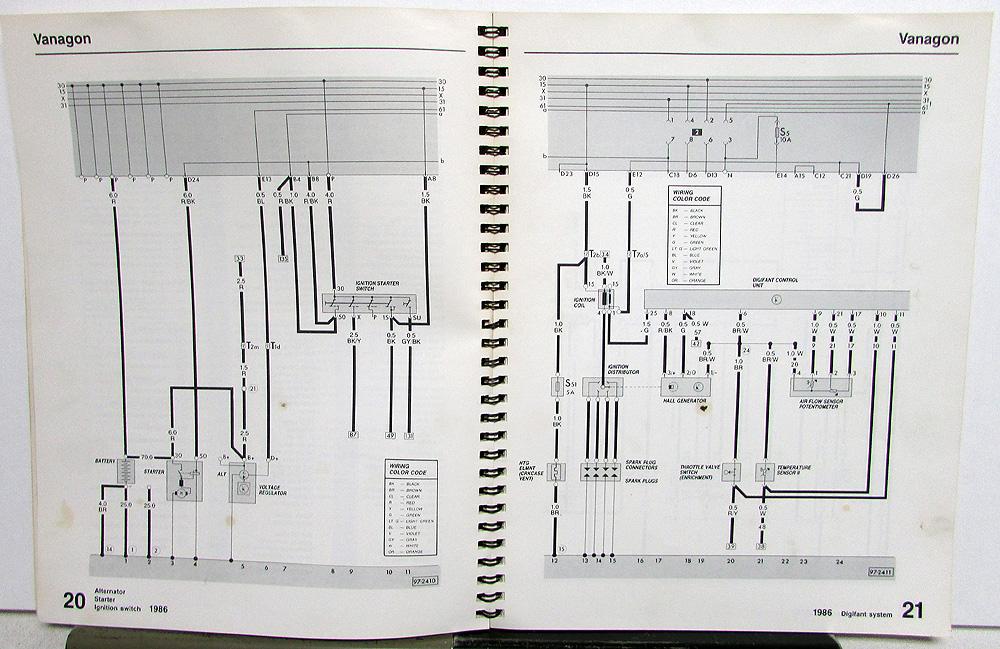

This publication contains electrical wiring diagrams for the Volkswagen Vanagon models, model years 1985 and 1986 sold in the USA and Canada.
Good condition with minor wear, soiling and blemishing.
