1990 Volkswagen VW Electrical Wiring Diagrams - Cabriolet Fox Vanagon
« Return to list
1990 Volkswagen VW Electrical Wiring Diagrams - Cabriolet Fox Vanagon
Price $49.00 $39.20
DetailsW: 9 x H: 11 x D: 0.625
Weight1.12 lbs.
Page Count155
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberWD-56352
OEM NumberW42 901 001 146 1 Printed 11/90
In Stock
Flat US shipping rate$8.95
Flat International shipping rate$34.00
Description
1990 Volkswagen VW Electrical Wiring Diagrams. Original.

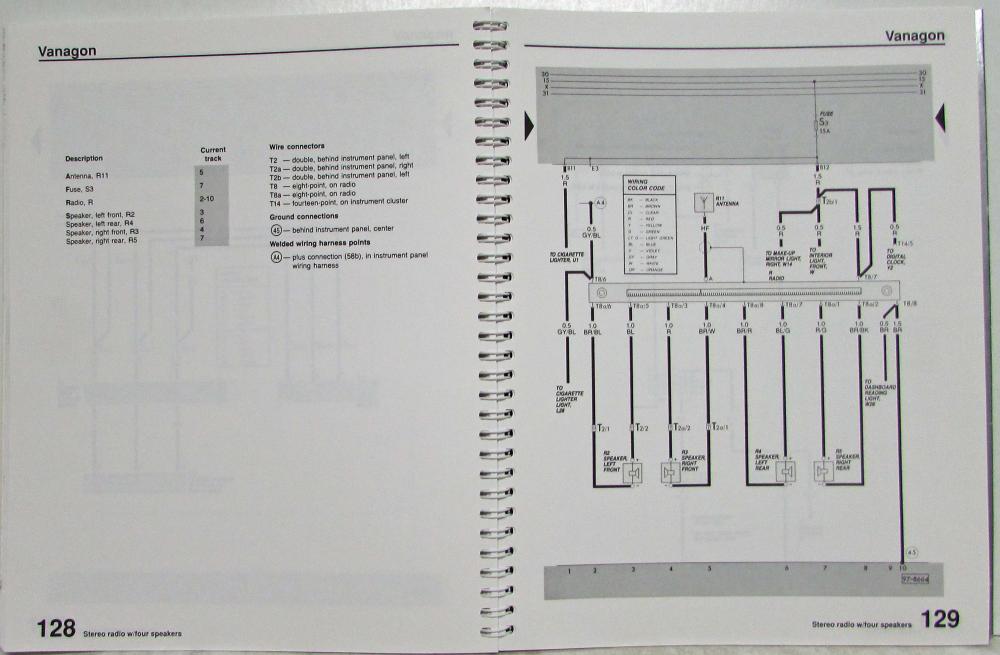

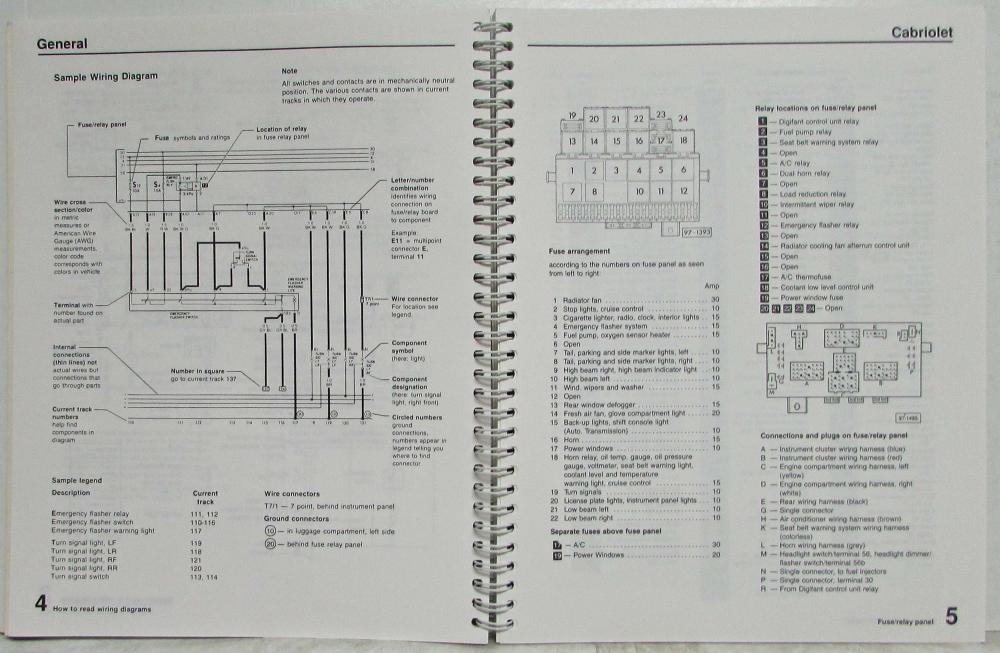

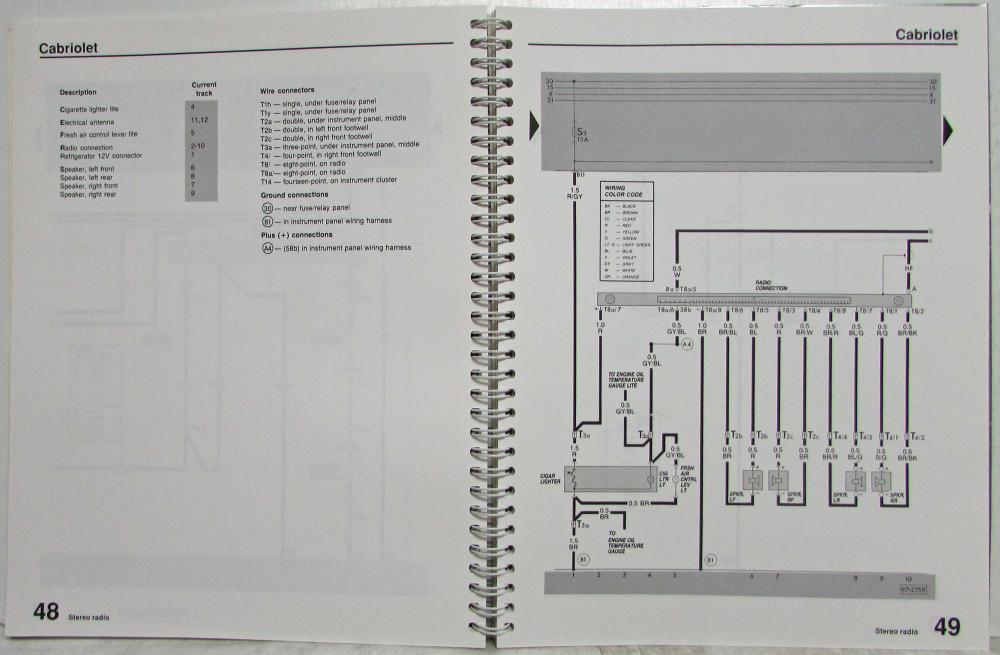

This publication contains electrical wiring diagrams for the Volkswagen Cabriolet, Fox and Vanagon models, model year 1990 sold in the USA and Canada.
Condition: Cover shows some scuffs.
