1989 Volkswagen VW Electrical Wiring Diagrams - Cabriolet Scirocco Vanagon

Price $49.95 $39.96 Details W: 9 x H: 11 x D: 0.75 Weight 1.19 lbs. Page Count 164 Condition Used Original - Good Item Type Factory Manual Inventory Number WD-56348 OEM Number W42 891 001 145 1 Printed 11/89 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $44.95


1989 Volkswagen VW Electrical Wiring Diagrams. Original.

This publication contains electrical wiring diagrams for the Volkswagen Cabriolet, Scirocco and Vanagon models, model year 1989 sold in the USA and Canada.

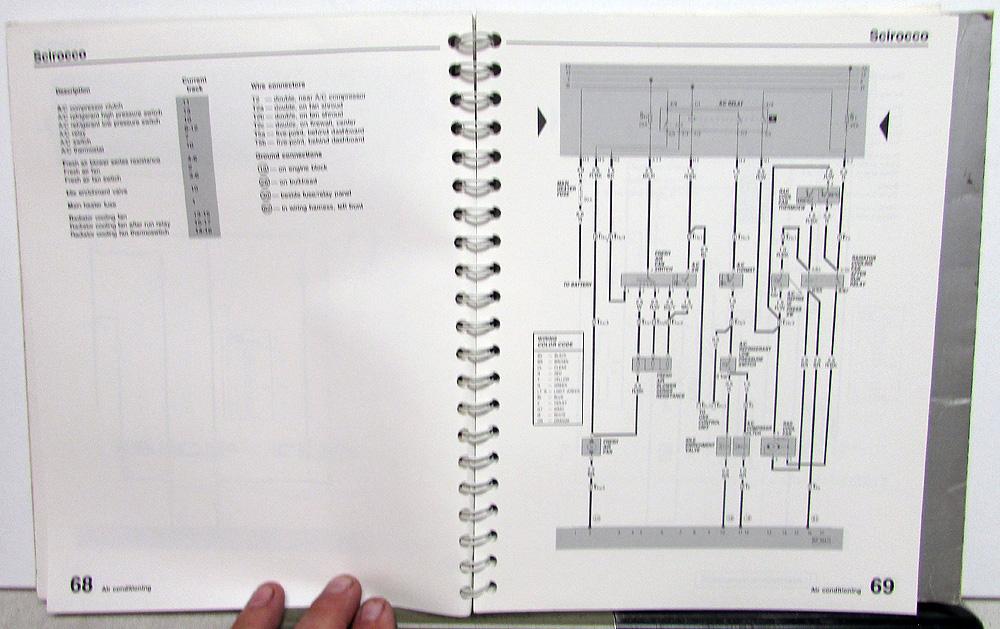

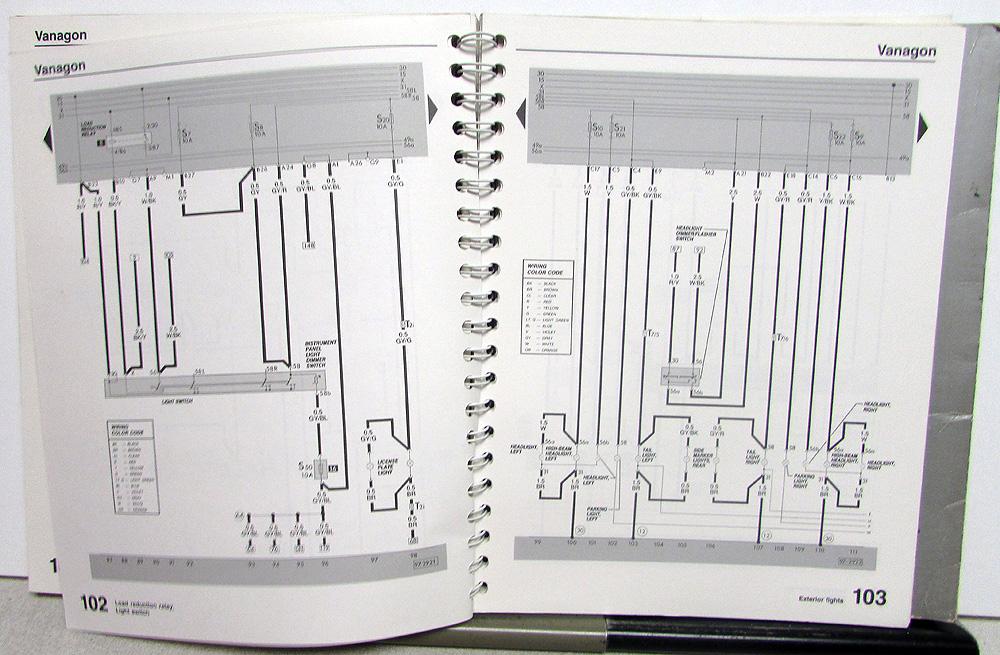

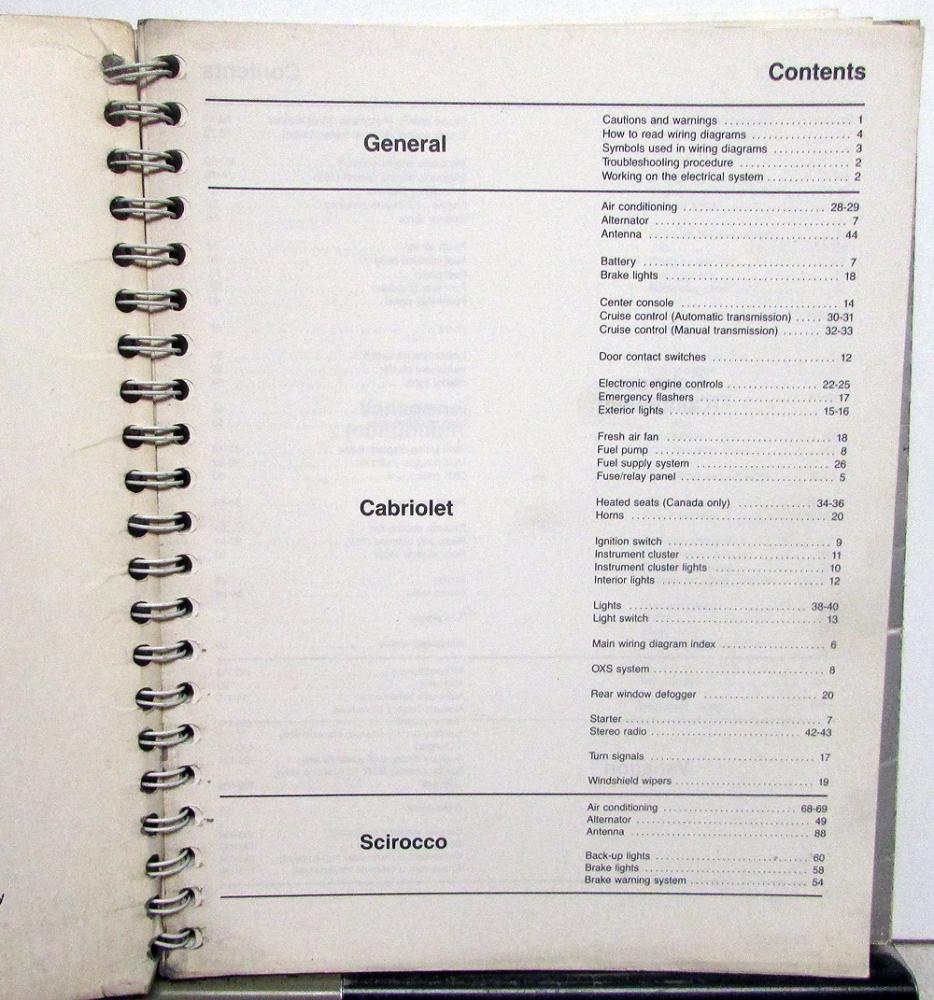

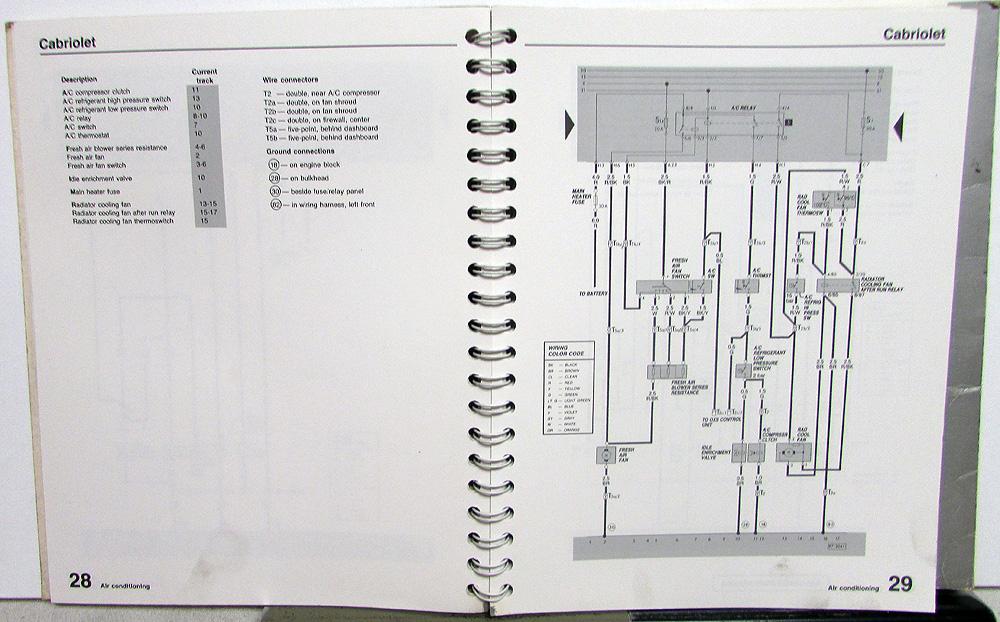

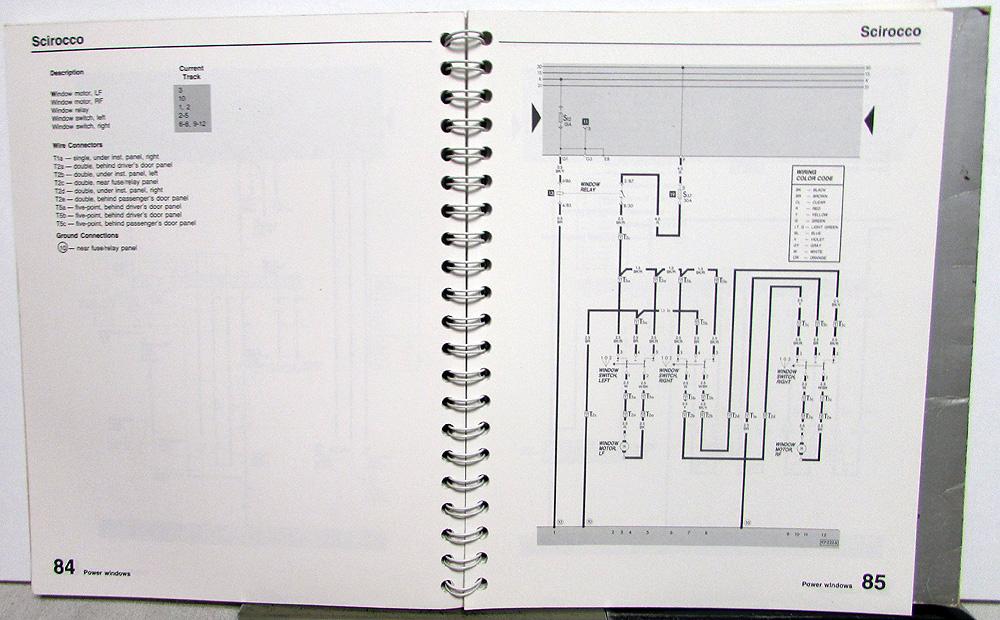

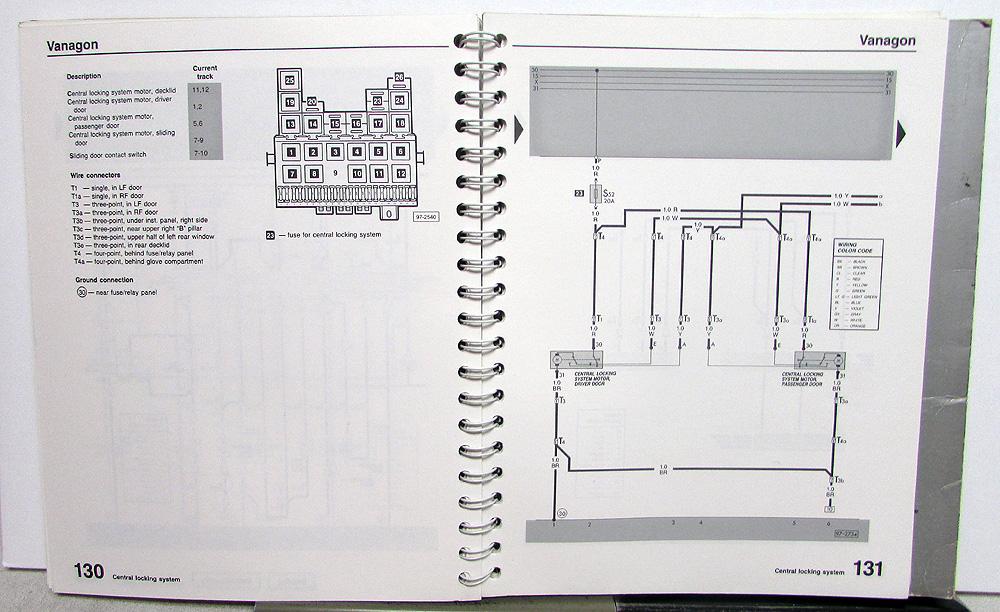

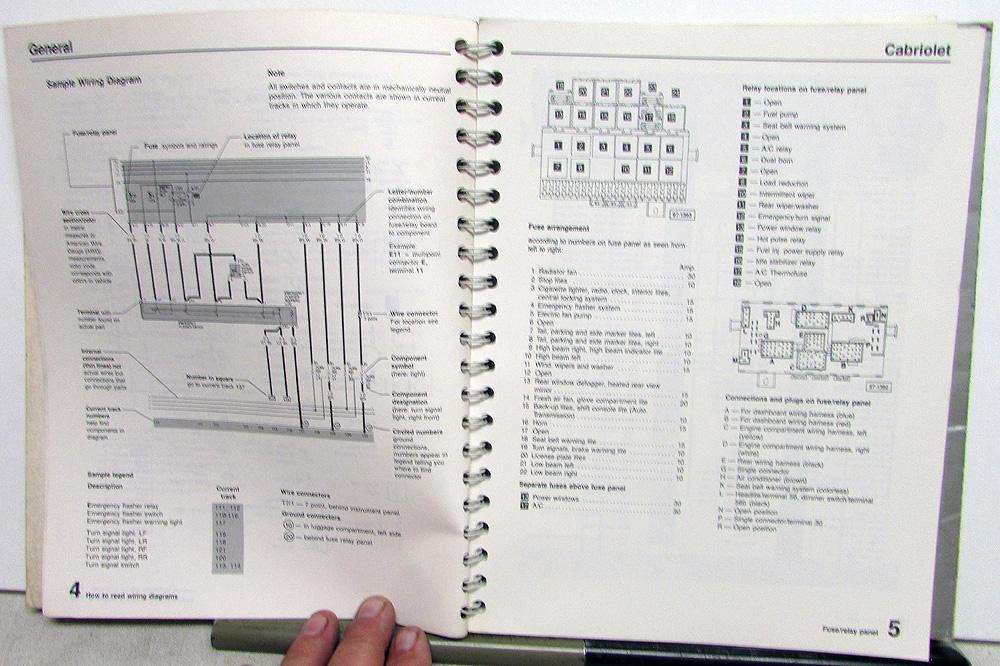

Good condition with normal wear, soiling and blemishing from use in a Dealership [see photos].
