2009 Ford Explorer, Ford Explorer Sport Trac & Mercury Mountaineer Service Shop Repair Manual Set. Volumes 1 & 2. ORIGINAL
Developed by Ford Motor Company, this shop manual provides detailed repair instruction written by the manufacturer. Information contained in each body type specific manual has been developed to aid technicians in diagnosing and repairing vehicle components and systems. Each manual covers the entire vehicle bumper to bumper including specifications, diagnosis and testing, in vehicle repairs, component removal and installation and complete engine and transmission rebuilding.
Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.
Ford Explorer, Explorer Sport Trac, Mercury Mountaineer

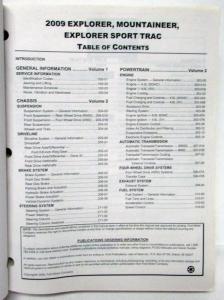

Volume 1 Contents:
- Service Information
- Climate Control System
- Instrumentation and Warning Systems
- Battery and Charging System
- Audio Systems
- Electrical Distribution
- Electronic Feature Group
Body and Paint
- Frame and Mounting
Volume 2 Contents:
- Brake System
- Steering System
- Automatic Transmission
- Four-Wheel Drive Systems
- Exhaust System
- Fuel System
Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Light use in the shop, if any. Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear that you aren't seeing here.
