2008 Ford Low Cab Forward Electrical Wiring Diagrams Manual

Price $19.00 $15.20 Details W: 11 x H: 8.5 x D: 0.375 Weight 0.78 lbs. Page Count 150+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-31777 OEM Number FCS-13793-08 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $28.20

Description

2008 Ford Low Cab Forward Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual by Helm, Inc.

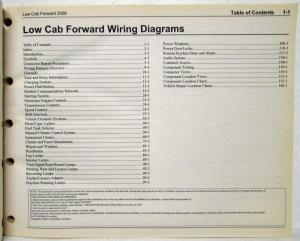

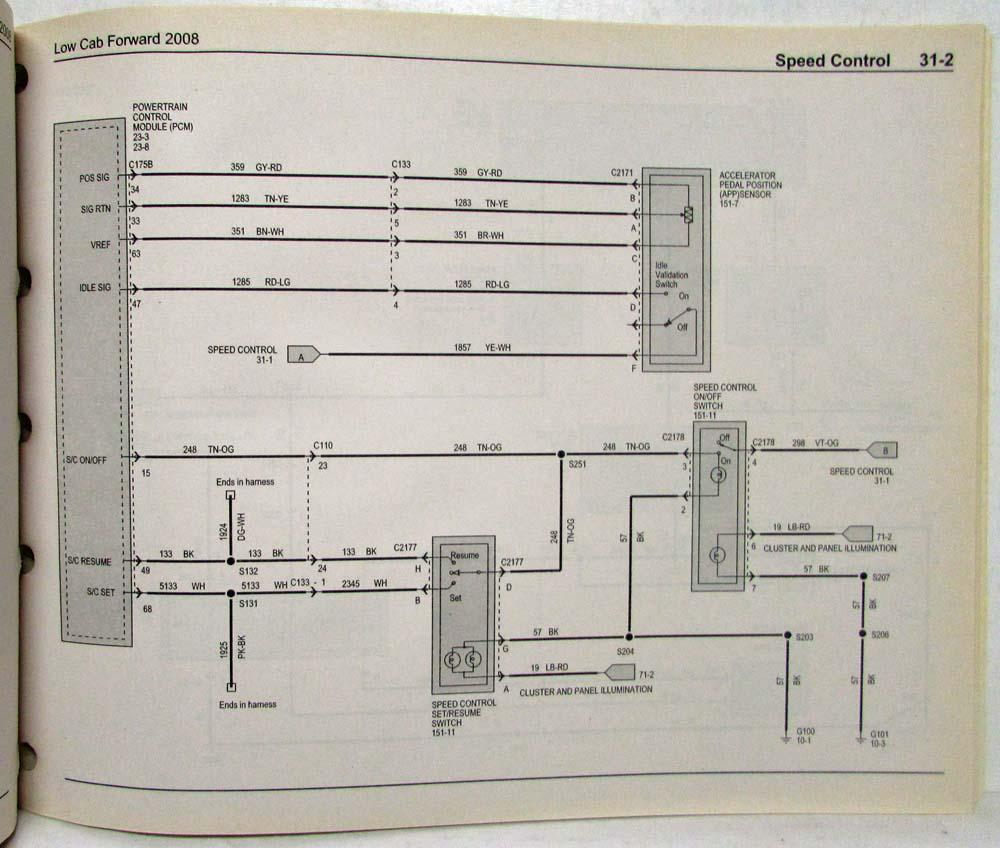

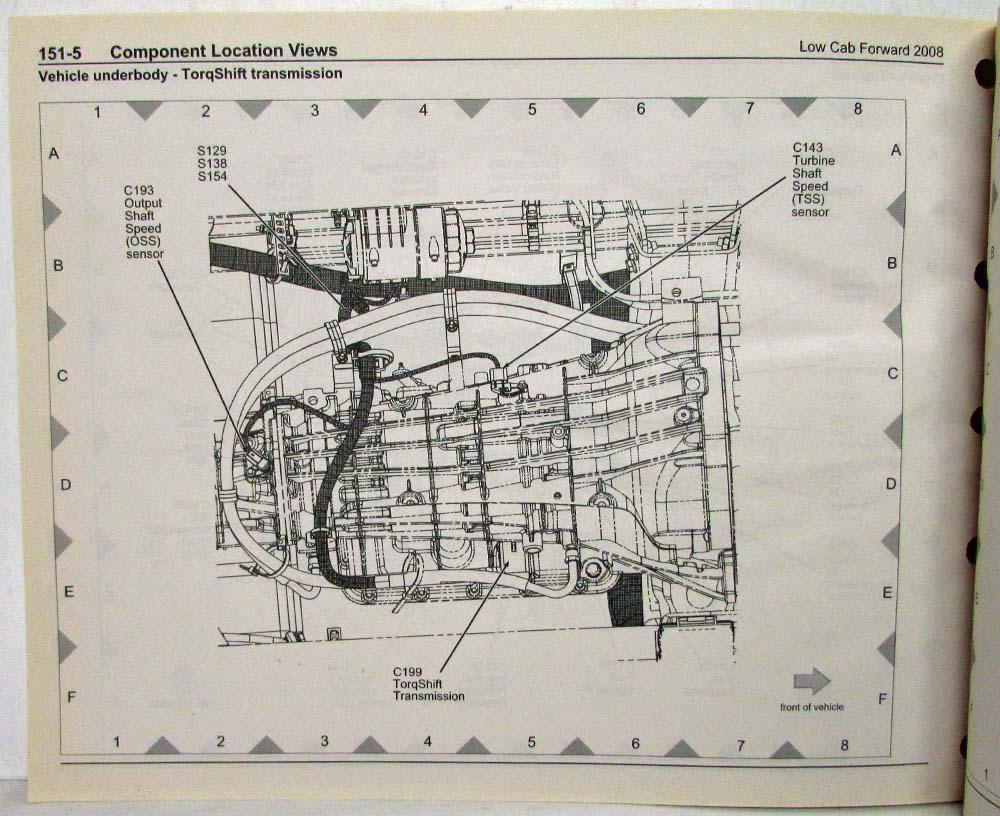

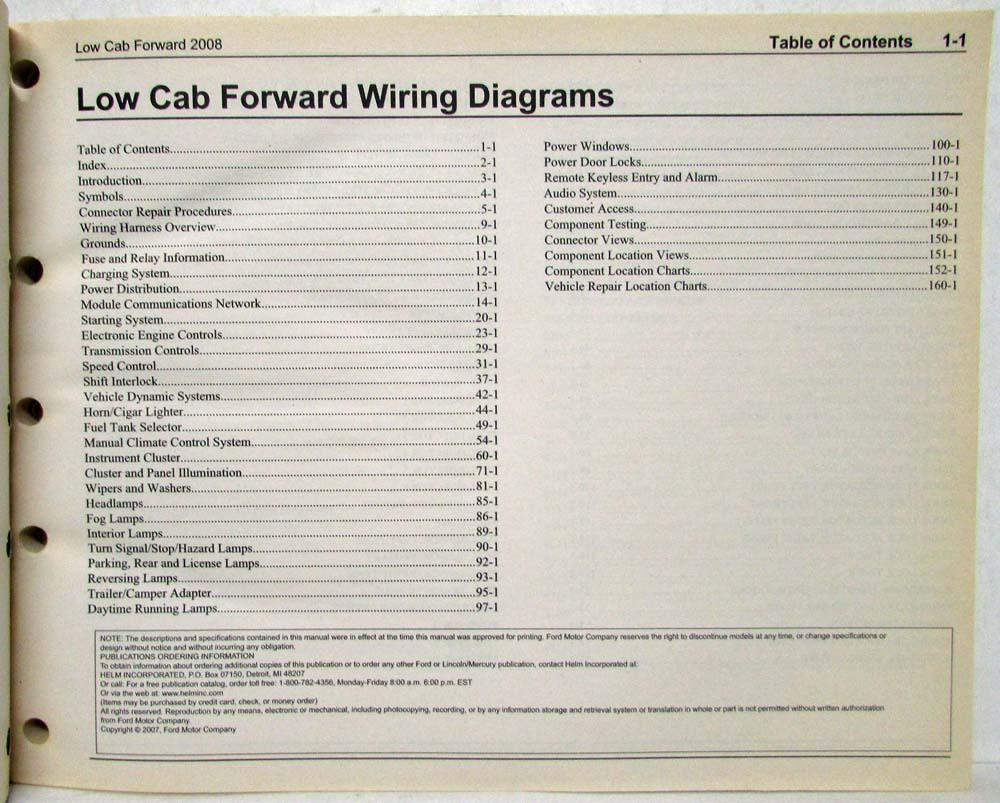

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2008 / Low Cab Forward

Keywords: LCF, Cab Forward, Medium Duty, Cabover, Truck

Condition: What you see pictured is what you get. Light use in the shop, if any. Wiring Diagrams are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling you aren't seeing on this one.
