2002 Ford Mercury Dealer Electrical Wiring Diagram Manual Explorer Mountaineer

Price $24.95 $19.96 Details W: 11 x H: 8.5 x D: 0.5 Weight 2.38 lbs. Page Count 200 Condition Used Original - Good Item Type Factory Manual Inventory Number WD-9256 OEM Number 12206-02 In Stock
Flat US shipping rate: $6.95
Flat International shipping rate: $48.95

---

Description

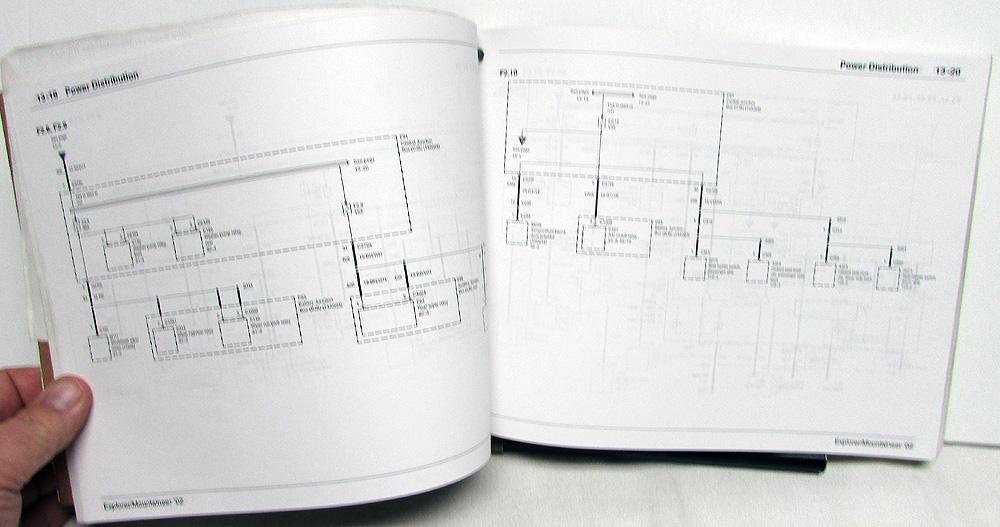

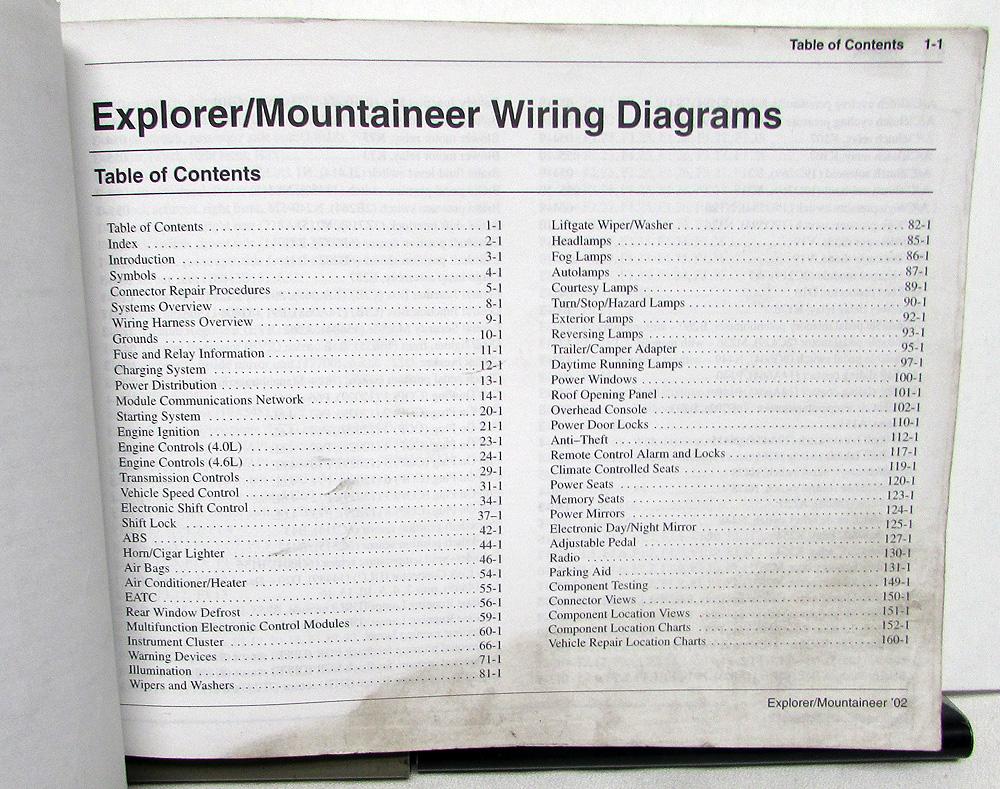

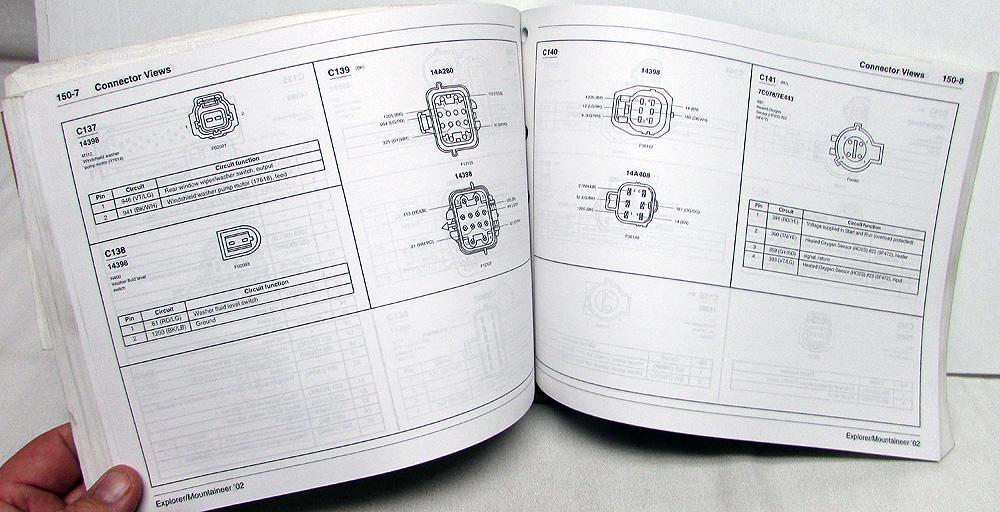

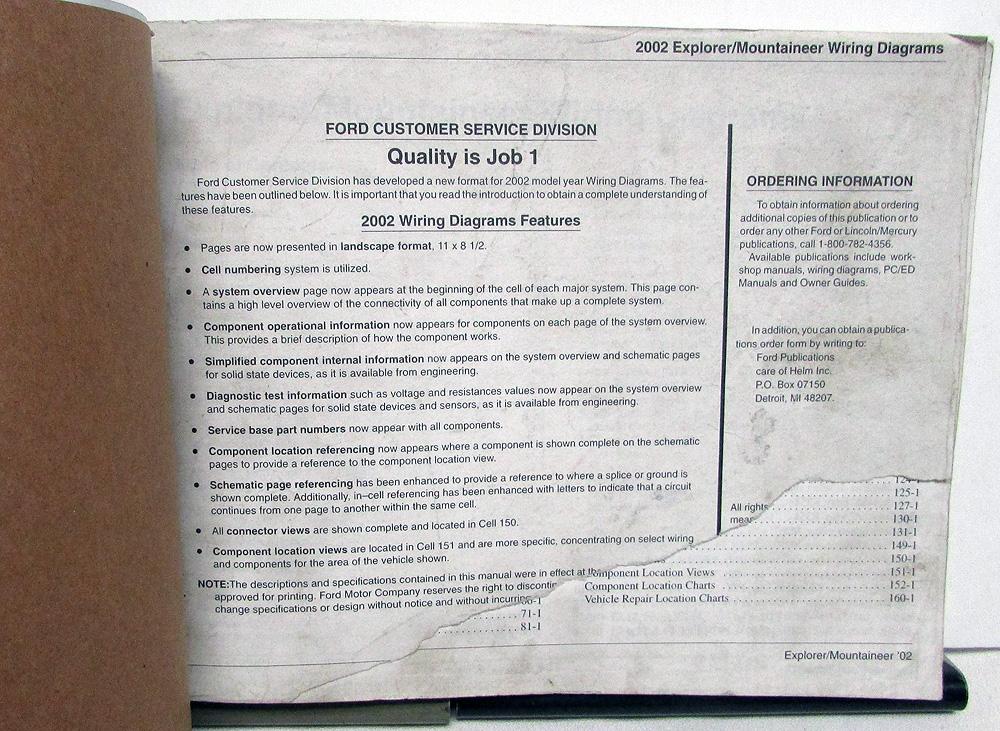

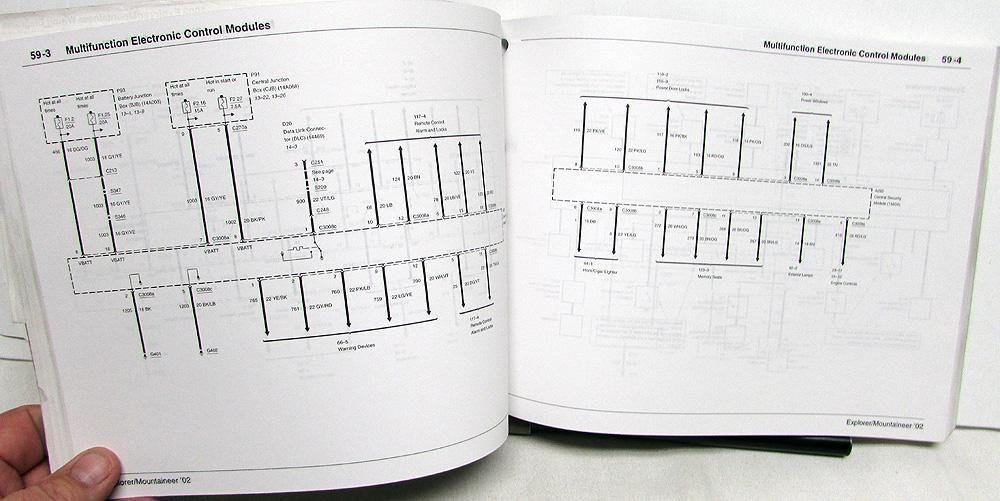

Original 2002 Ford/Mercury Dealer Electrical Wiring Diagram Service Manual. This manual was used by the Factory Dealership to diagnose and identify electrical problems on the Explorer & Mountaineer Models. It contains a wealth of information and will prove invaluable in service procedures on this model. 12206-02 Manual shows normal wear, soiling and blemishing from use in a Dealership [see photos]. The front cover has been replaced and the lower corner of first page is torn off.
