1998 Mazda 626 Electrical Wiring Diagram Manual

Price $39.00 $31.20 Details W: 8.5 x H: 11 x D: 0.25 Weight 0.69 lbs. Page Count 100+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-44997 OEM Number 9999-95-021G-98 5410-10-971 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

---

Description

1998 Mazda 626 Electrical Wiring Diagram Manual. Original.

This wiring diagram incorporates the wriing schematics of the basic vehicle and available optional equipment. Actual vehicle wiring may vary slightly depending on optional equipment or local specifications, or both. All information in this booklet is based upon information available at the time of printing.

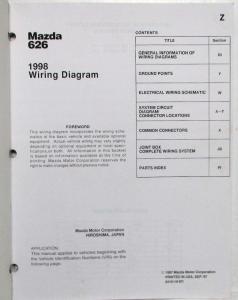

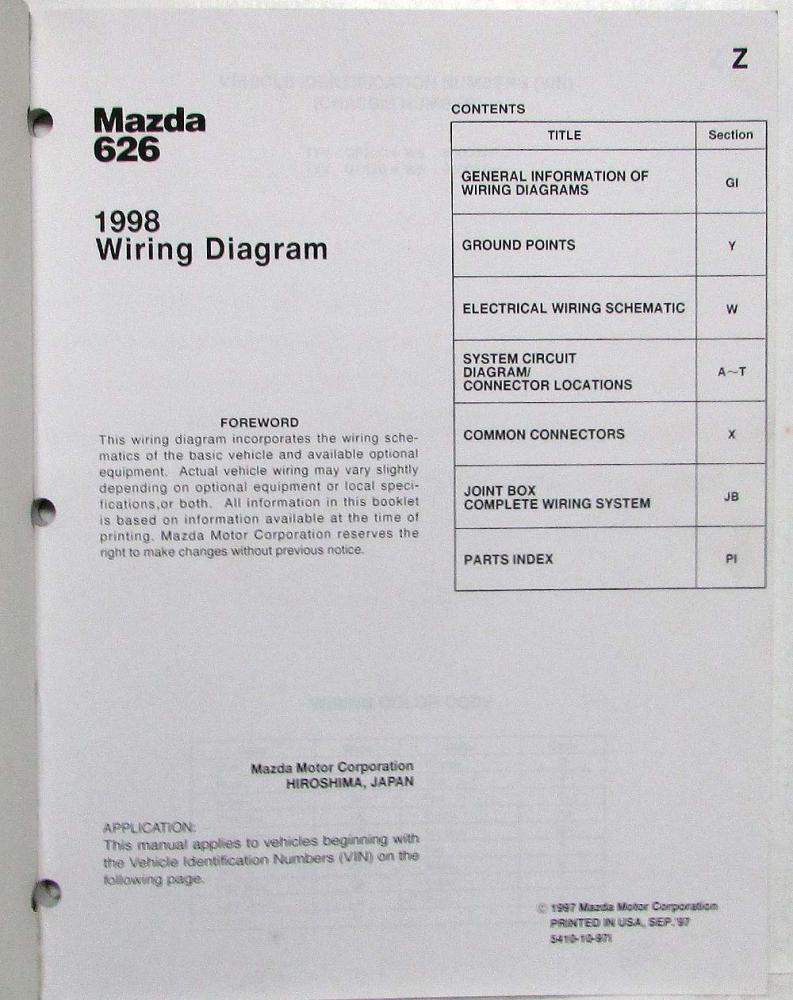

Contents:
General Information of Wiring Diagrams
Grount Points

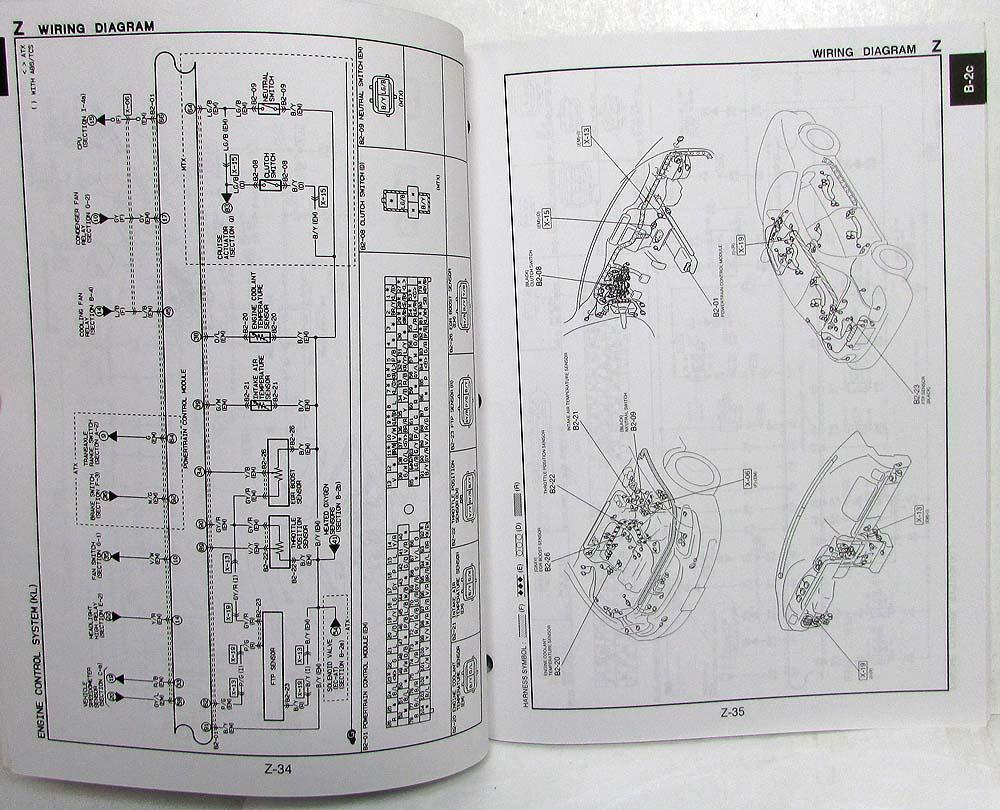

Electrical Wiring Schematic

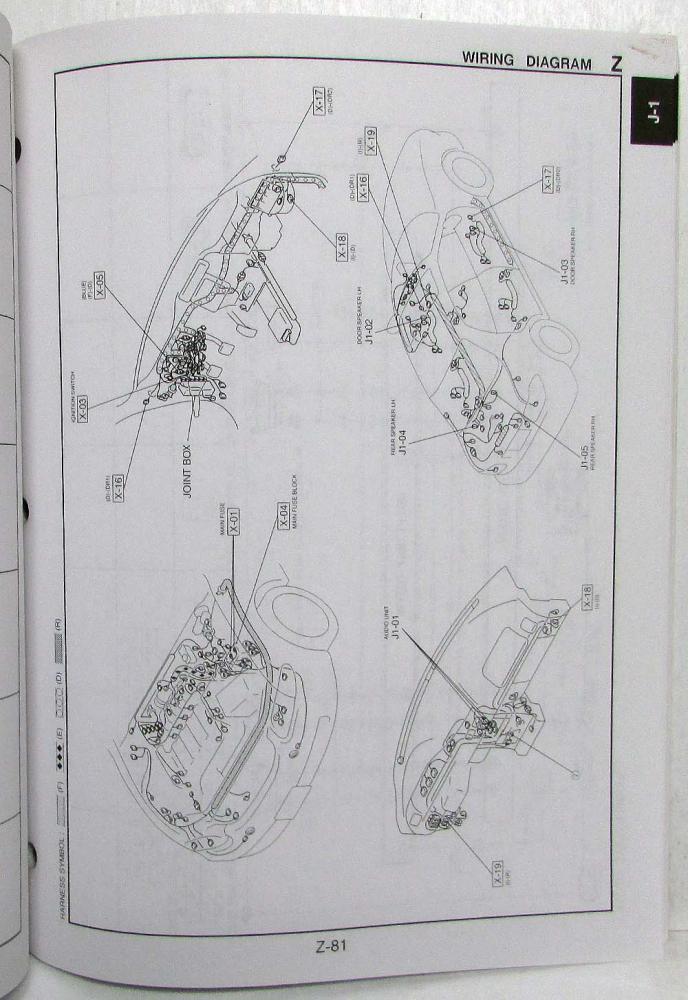

System Circuit Diagram/Connector Locations
Common Connectors
Joint Box Complete Wiring System
Parts Index

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. There is some fading along the spine.
