1987 Volkswagen VW Electrical Wiring Diagrams - Quantum Vanagon Orig
Price $49.95 $39.96
DetailsW: 9 x H: 11 x D: 0.4375
Weight0.81 lbs.
Page Count102
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberWD-56340
OEM Numbernone
In Stock
Flat US shipping rate$8.95
Flat International shipping rate$34.00
Description
1987 Volkswagen VW Electrical Wiring Diagrams. Original.
This publication contains electrical wiring diagrams for the Volkswagen Quantum and Vanagon models, model year 1987 sold in the USA and Canada.

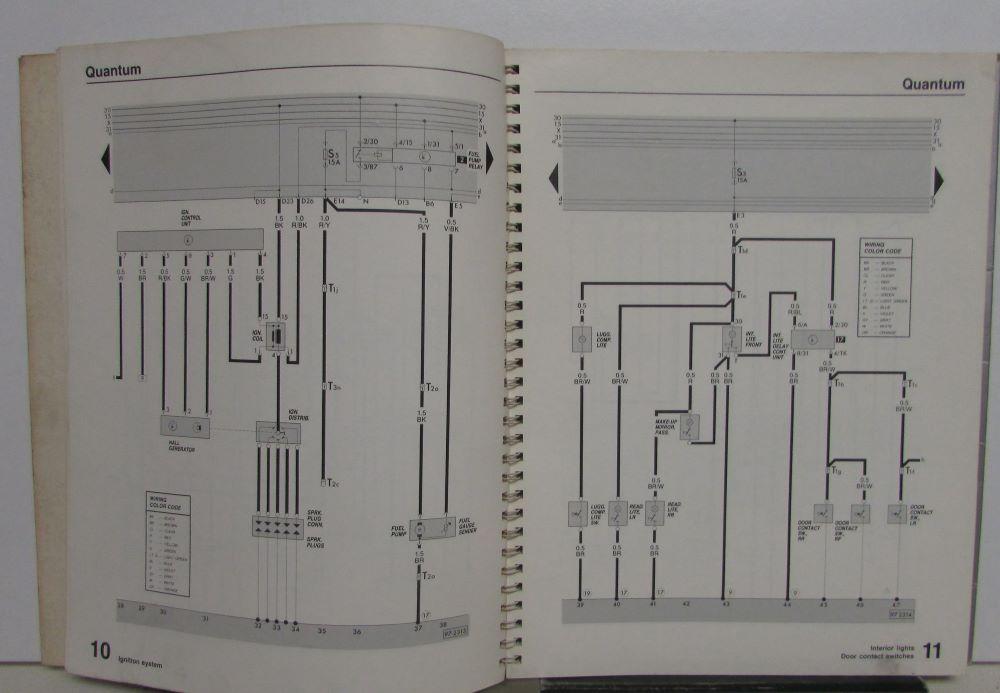

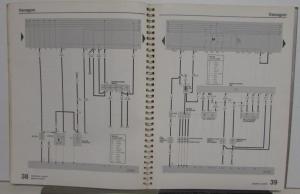

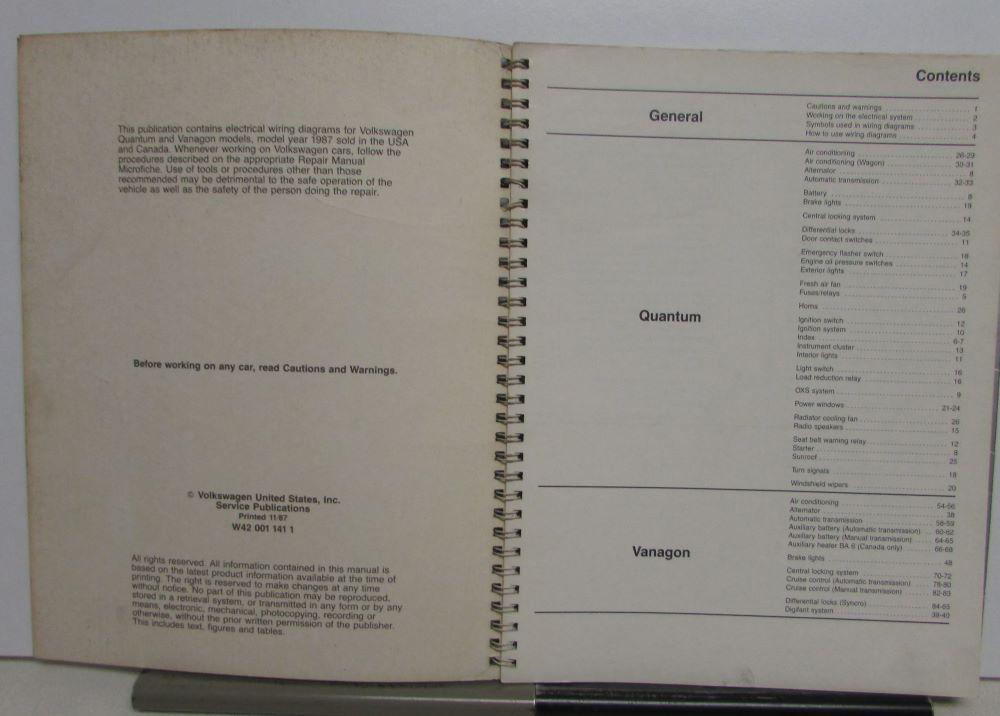

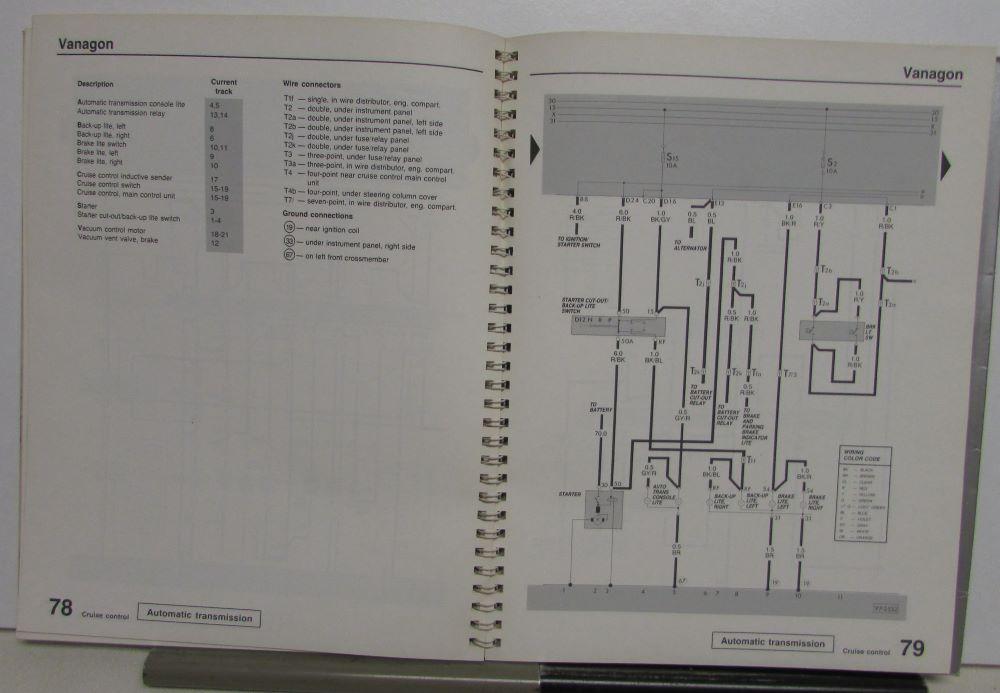

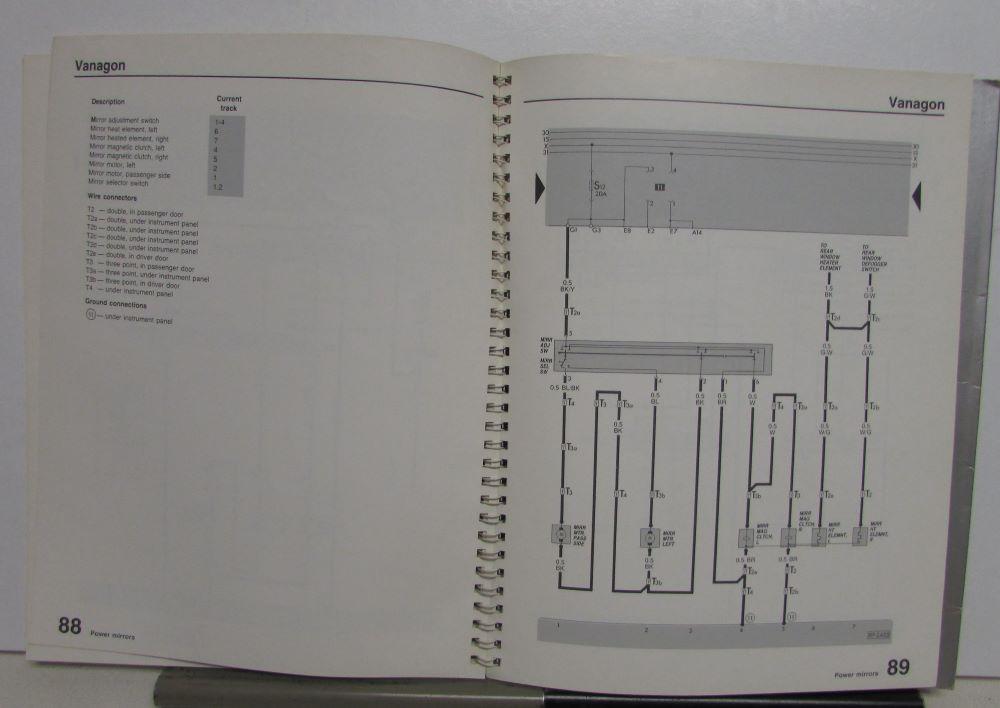

Good condition with normal wear and soiling from use in a Dealership [see photos].
