1987 Honda Accord Service Shop Repair Manual Supplement - Auto Seat Belt System

Price $19.87 $15.90 Details W: 8.5 x H: 11 x D: 0.0625 Weight 0.19 lbs. Page Count 24 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-30431 OEM Number H/C 2660108 61SE301Z ASV 1217 (8705) In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $28.20

---

Description

1987 Honda Accord Service Shop Repair Manual Supplement - Automatic Seat Belt System. ORIGINAL.

This manual provides the following information for 1987 3-door Honda Accords equipped with automatic seat belts:
System operation
Automatic seat belt disassembly/assembly procedures
Inspection of automatic seat belt
Automatic seat belt troubleshooting and testing
Automatic seat belt repair

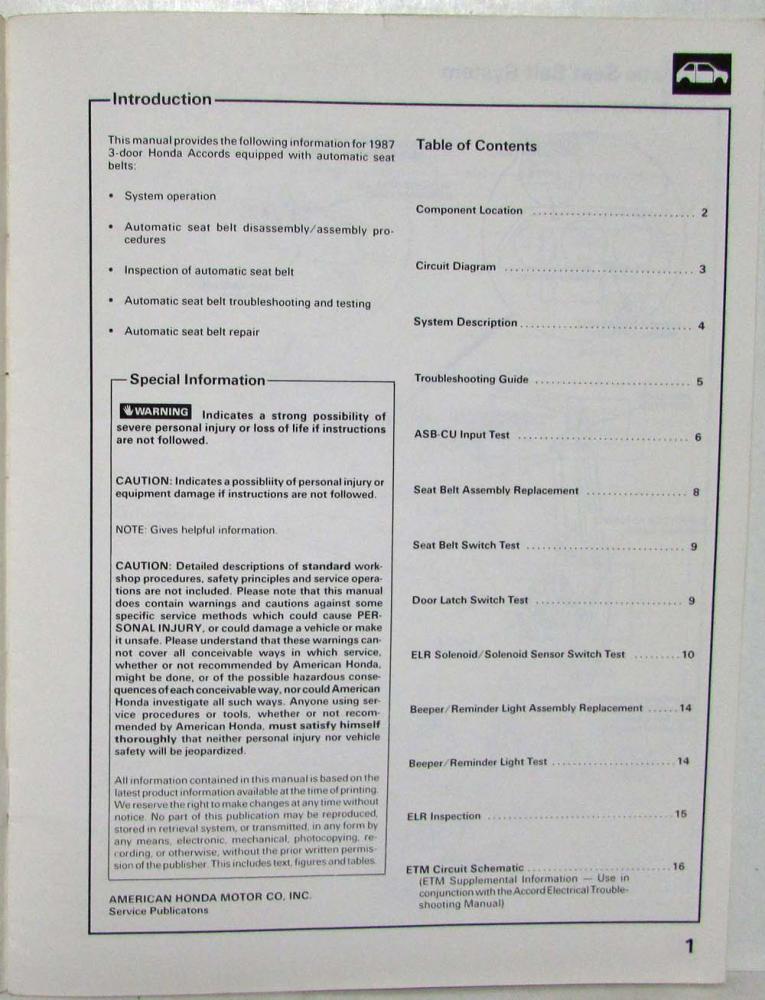

Contents:
Component Location
Circuit Diagram
System Description
Troubleshooting Guide
ASB-CU Input Test
Seat Belt Assembly Replacement
Seat Belt Switch Test
Door Latch Swith Test

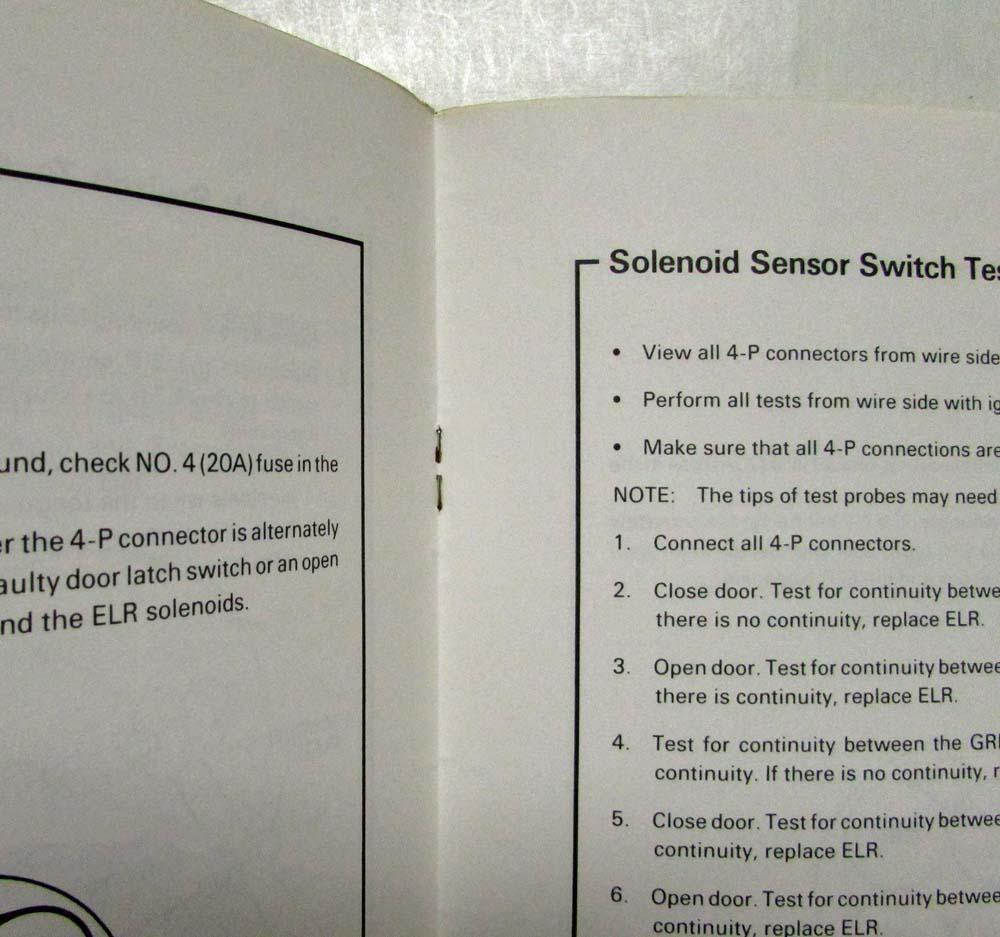

ELR Solenoid/Solenoid Sensor Switch Test
Beeper/Reminder Light Assembly Replacement
Beeper/Reminder Light Test
ELR Inspection

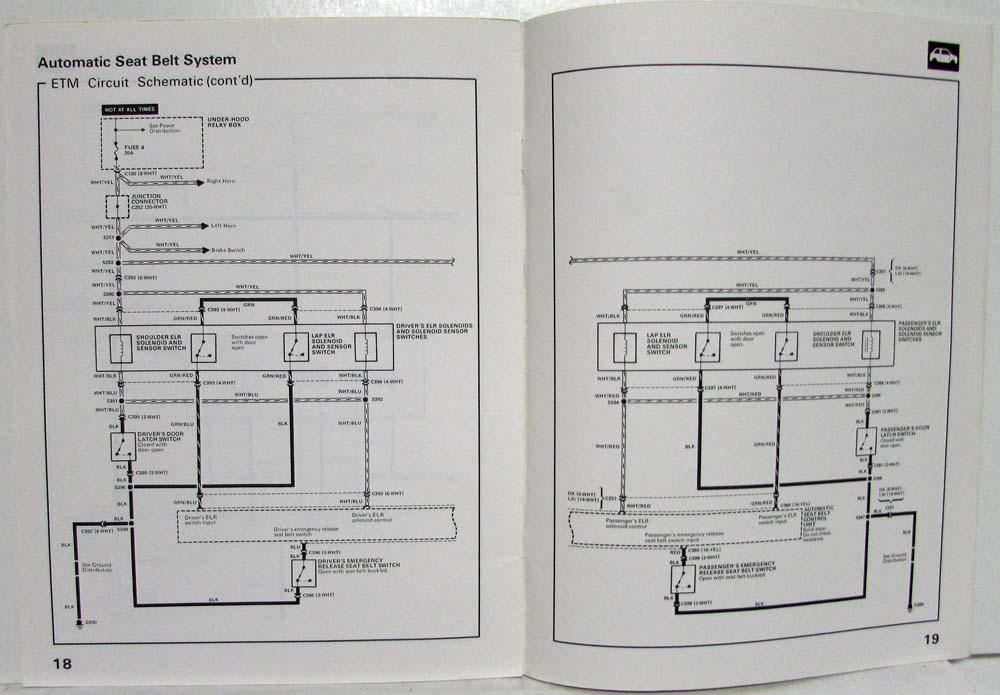

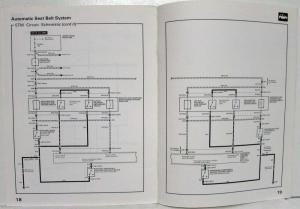

ETM Circuit Schematic

Condition: Service Manuals have been used in Dealerships, Independent Garages and in Fleet Environments and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight in the care and maintenance of vehicles. Cover has some soiling. Dealer label. Some oxidation on the staples. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
