1986 Audi ABS Introductory Service Training Information - 5000S 5000CS Turbo

Price $22.00 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.38 lbs. Page Count 55 Condition Used Original - Good Item Type Promotional Material Inventory Number SM-56400 OEM Number WSP-521-134-00 In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00

Description

1986 Audi Anti-Lock Brake System (ABS) Introductory Service Training Information. 5000S. 5000CS Turbo. Original.

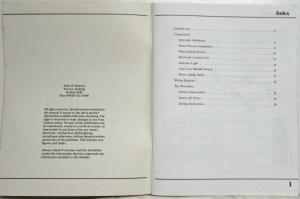

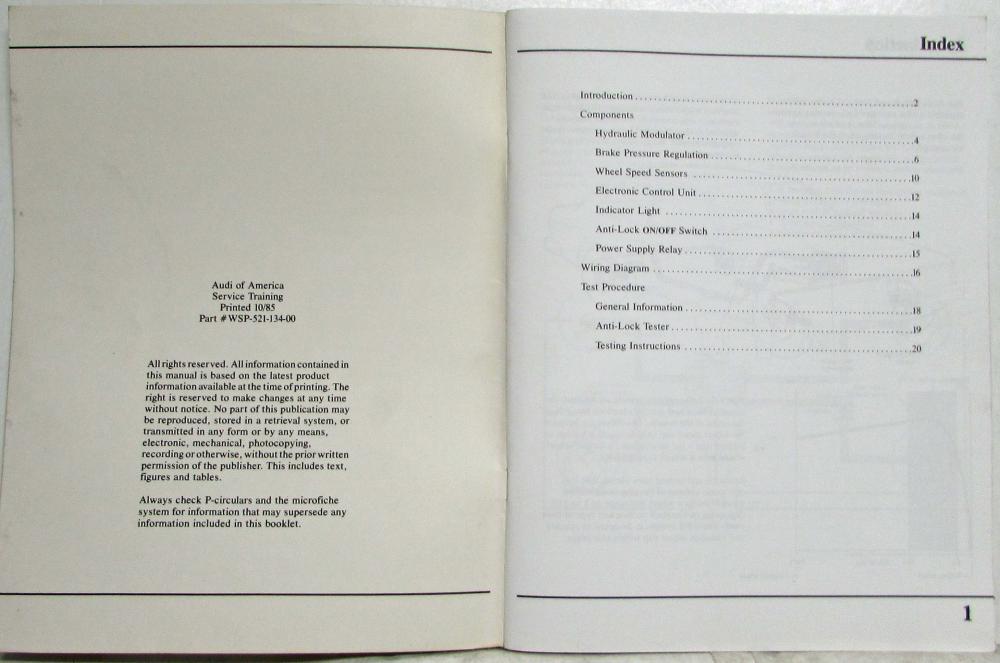

Contents:

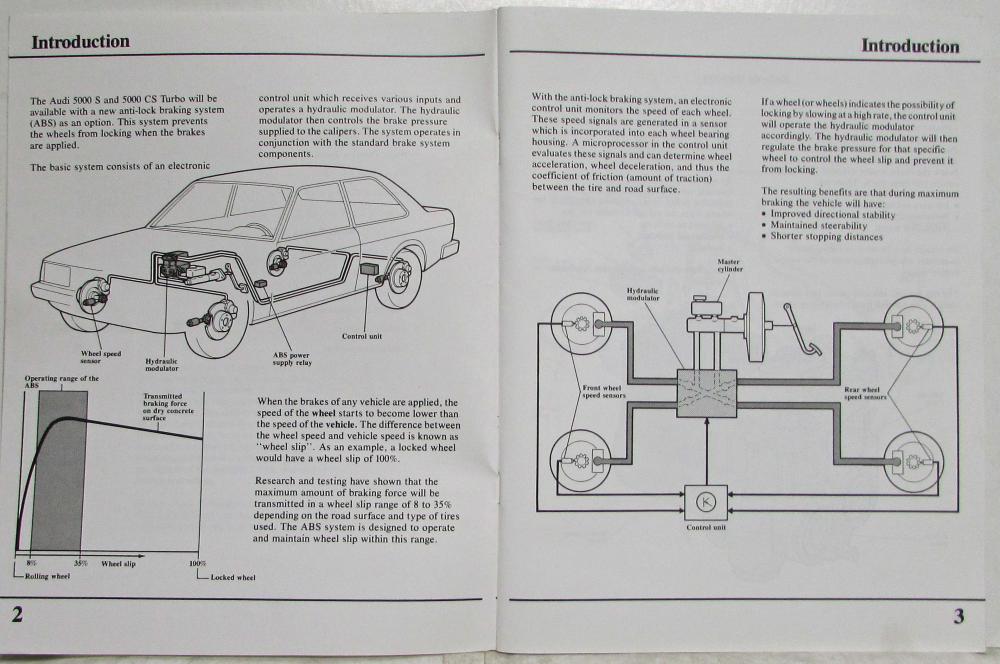

Introduction
Components

Hydraulic Modulator
Brake Pressure Regulation

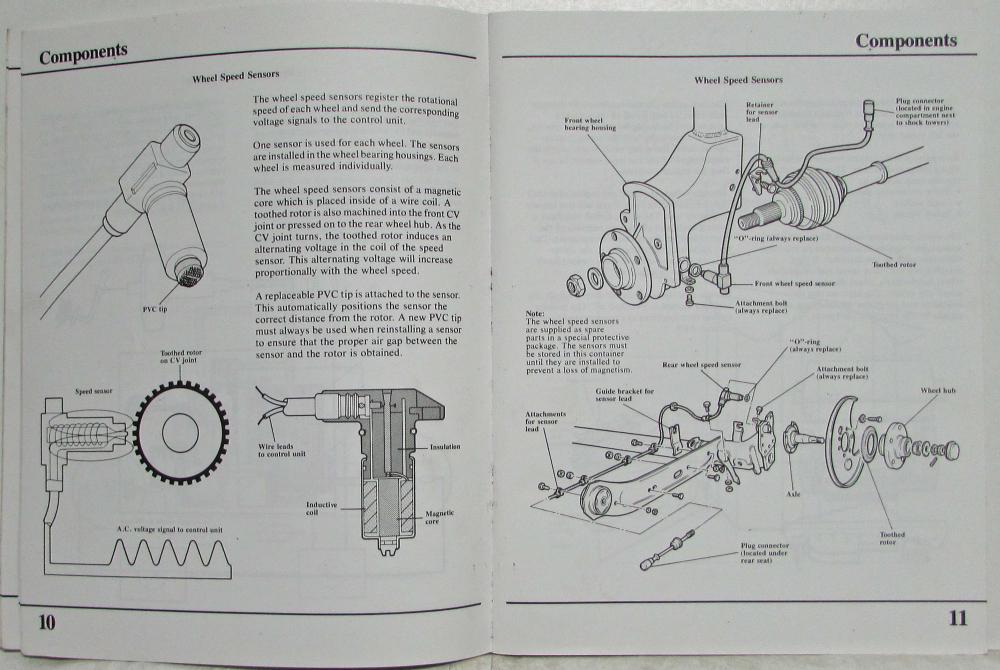

Wheel Speed Sensors
Electronic Control Unit

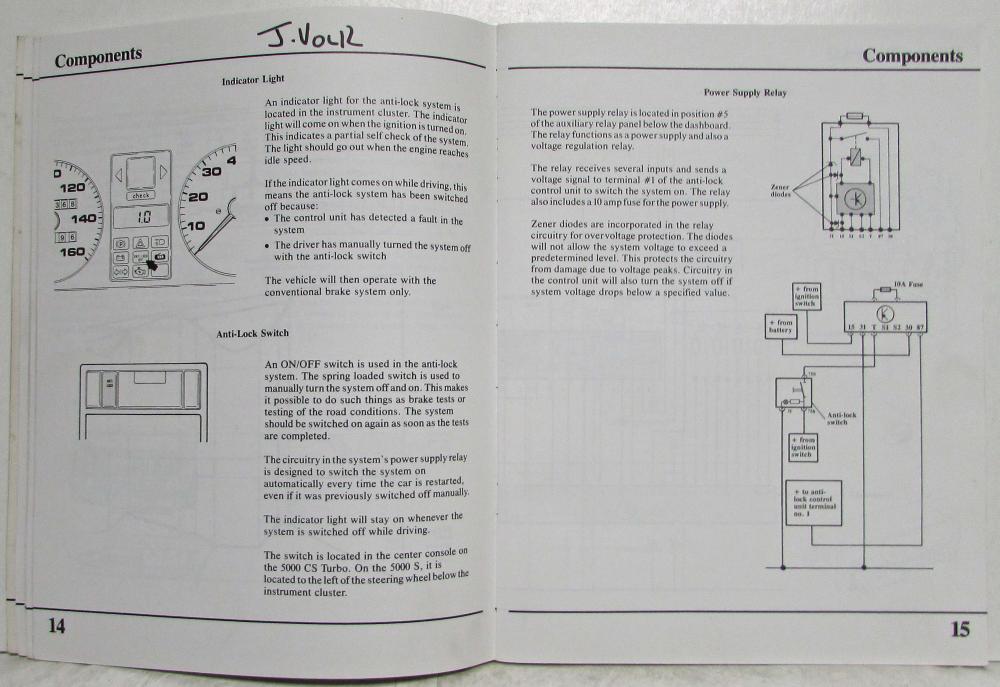

Indicator Light
Anti-Lock ON/OFF Switch
Power Supply Replay

Wiring Diagram

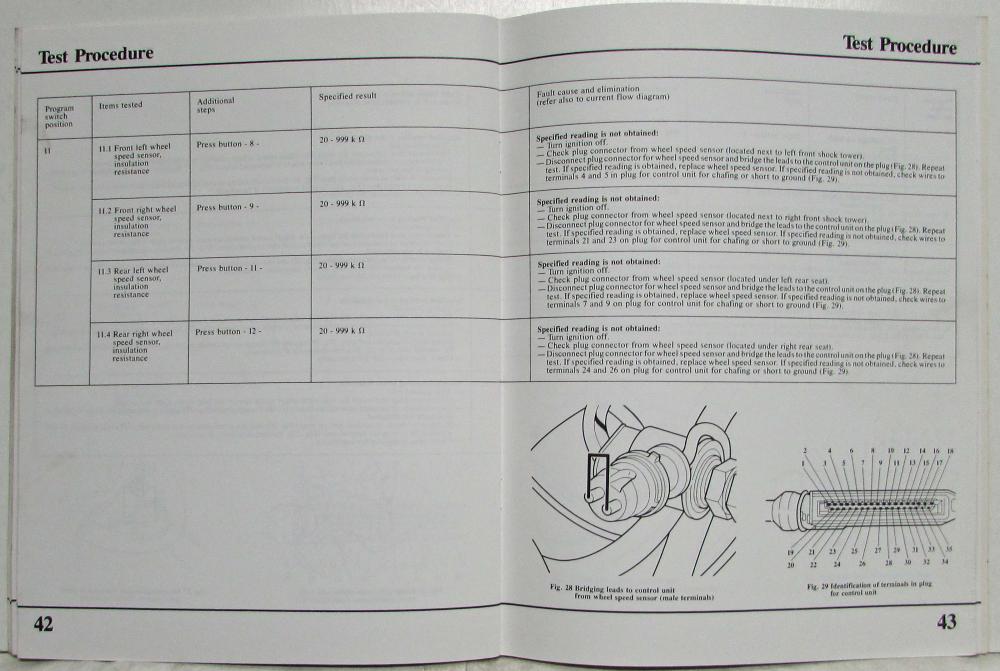

Test Procedure

General Information
Anti-Lock Tester
Testing Instructions


Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
