1984 Audi CIS Electronic Fuel Injection System Service Training Information

Price $29.00 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.50 lbs. Page Count 62 Condition Used Original - Good Item Type Promotional Material Inventory Number SM-56383 OEM Number WSP 521-121-00 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $34.00

Description

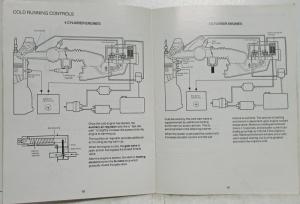

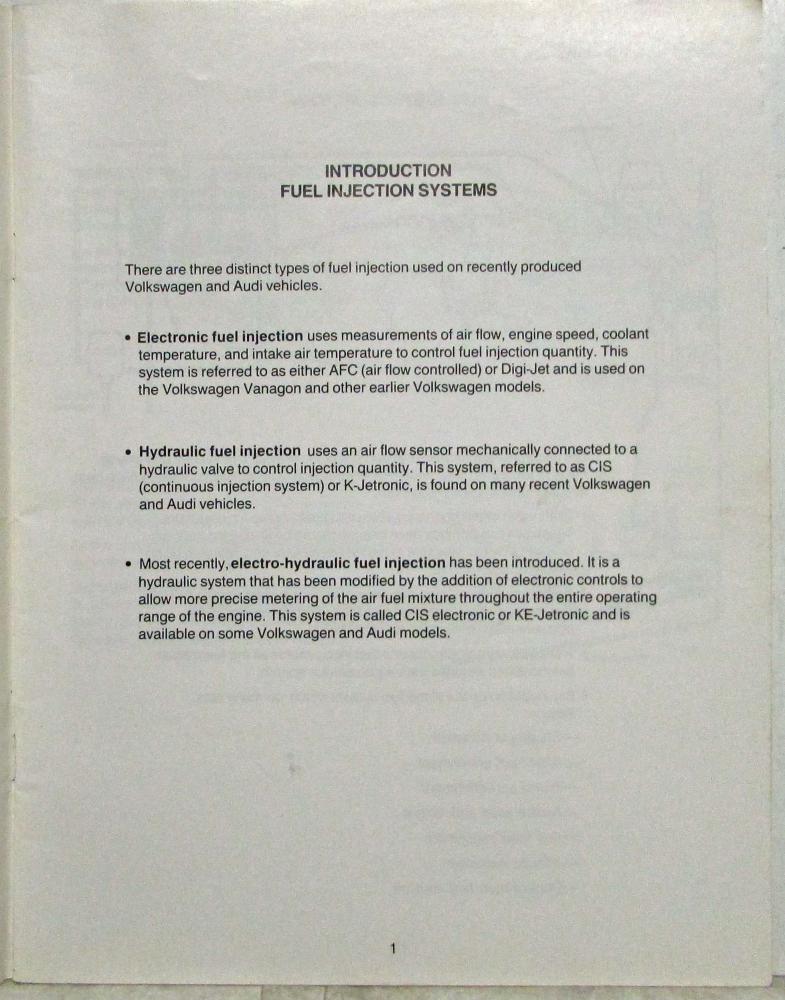

1984 Audi CIS (Continuous Injection System) Electronic Fuel Injection System Service Training Information. Original.

There are three distinct types of fuel injection used on recently produced Volkswagen and Audi vehicles:

Electronic Fuel Injection
Hydraulic Fuel Injection
Electro-Hydraulic Fuel Injection

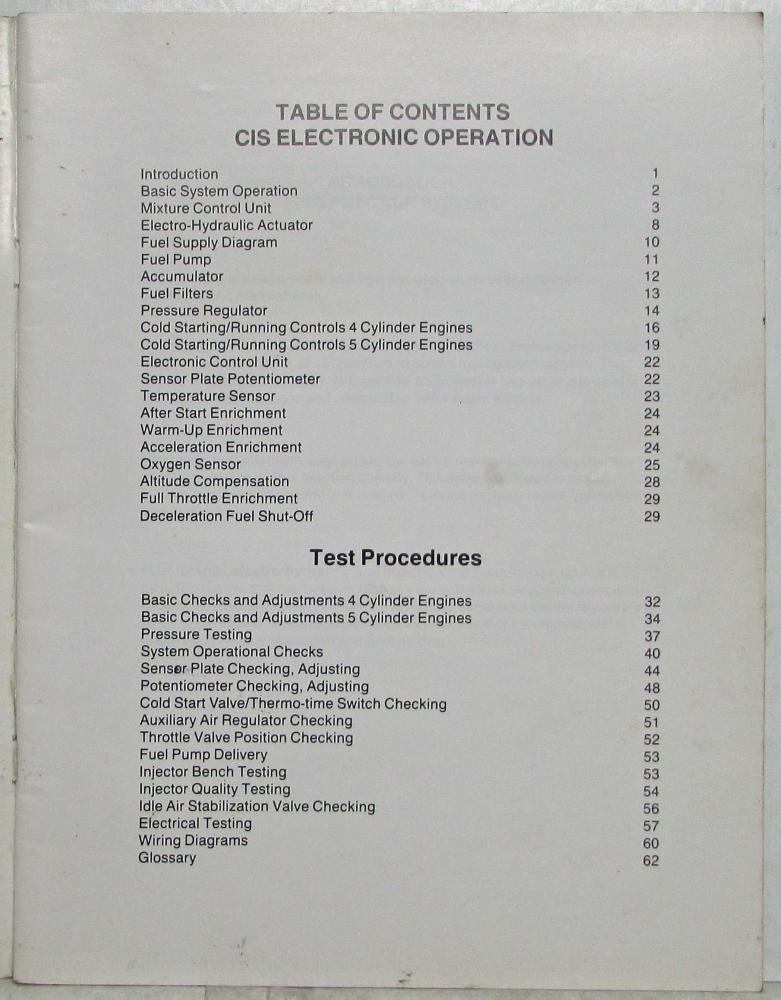

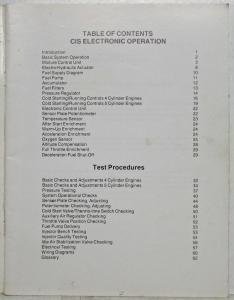

Contents:

CIS Electronic Operation

Introduction
Basic System Operation
Mixture Control Unit
Electro-Hydraulic Actuator
Fuel Supply Diagram
Fuel Pump
Accumulator
Fuel Filters
Pressure Regulator
Cold Starting/Running Controls 4 Cylinder Engines
Cold Starting/Running Controls 5 Cylinder Engines
Electronic Control Unit
Sensor Plate Potentiometer
Temperature Sensor
After Start Enrichment
Warm-Up Enrichment
Acceleration Enrichment
Oxygen Sensor
Altitude Compensation
Full Throttle Enrichment
Deceleration Fuel Shut-Off

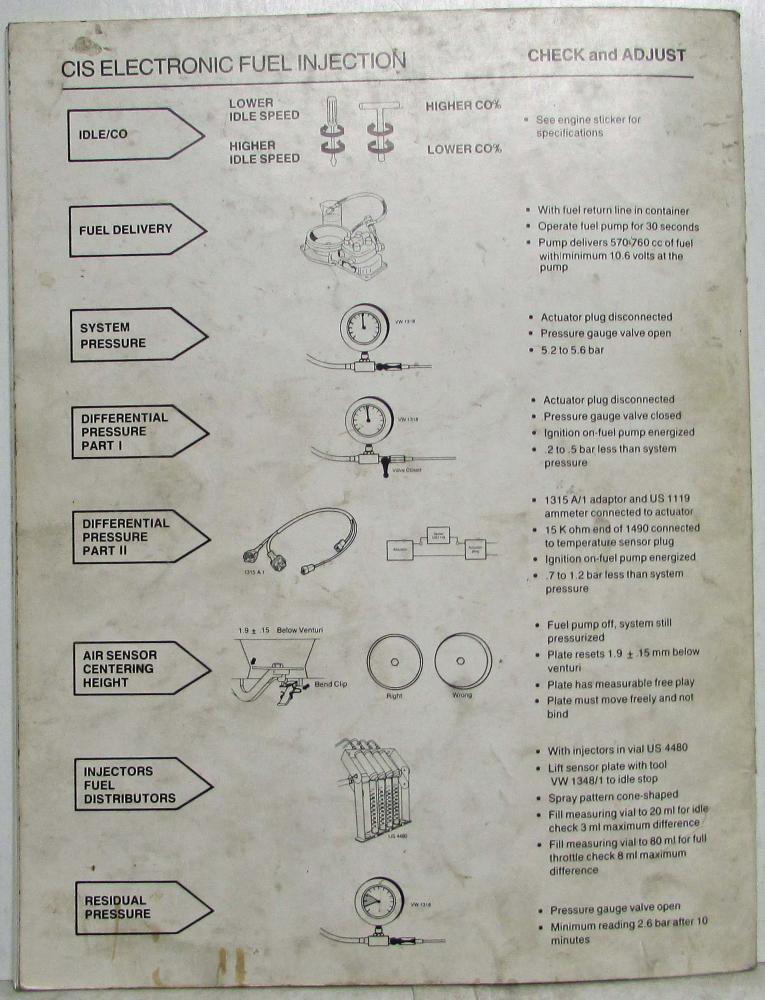

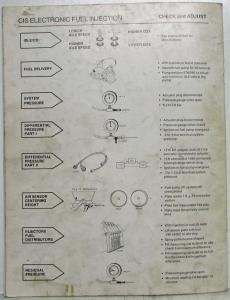

Test Procedures


Basic Checks and Adjustments 4 Cylinder Engines
Basic Checks and Adjustments 5 Cylinder Engines
Pressure Testing
System Operational Checks

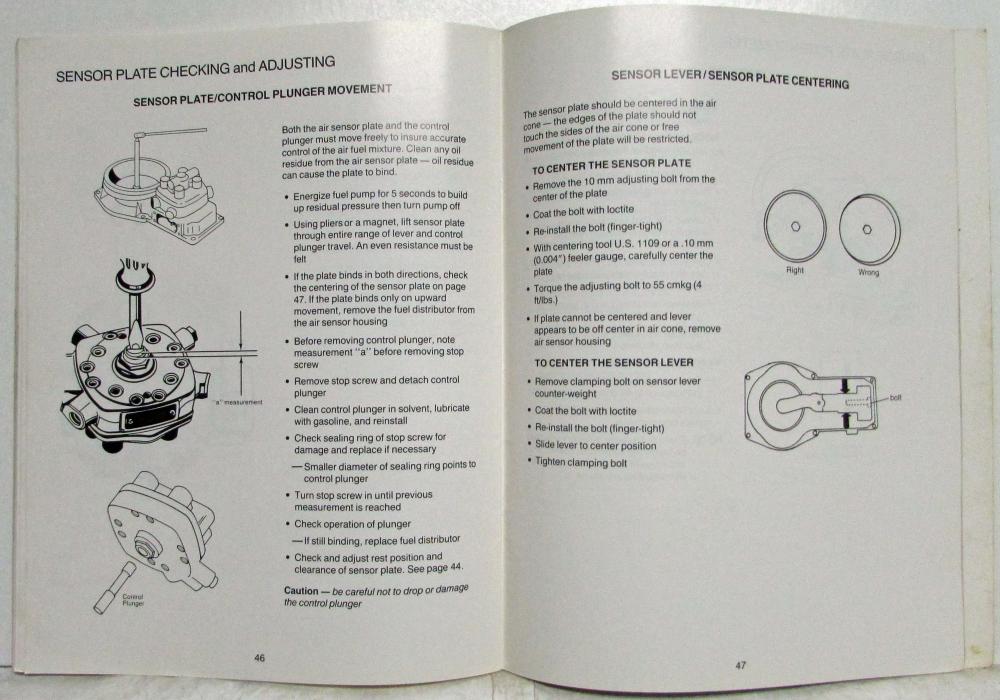

Sensor Plate Checking, Adjusting
Potentiometer Checking, Adjusting
Cold Start Valve/Thermo-time Switch Checking
Auxiliary Air Regulator Checking
Throttle Valve Position Checking
Fuel Pump Delivery
Injector Bench Testing
Injector Quality Testing
Idle Air Stabilization Valve Checking
Electrical Testing
Wiring Diagrams
Glossary


Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. Has some handwriting inside as well.
