1978 Audi 5000 Type 43 Factory Installed Air Conditioner Repair Manual

« Return to list
1978 Audi 5000 Type 43 Factory Installed Air Conditioner Repair Manual

1978 Audi 5000 Type 43 Factory Installed Air Conditioner Repair Manual

Price $24.00 $19.20
DetailsW: 8.25 x H: 11.5 x D: 0.1
Weight0.31 lbs.
Page Count34
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberSM-56416
OEM NumberW 42-559-140-AAC First Edition 9/77
In Stock
Flat US shipping rate$5.95
Flat International shipping rate$22.00
Description

1978 Audi 5000 Type 43 Factory Installed Air Conditioner Repair Manual. Original.

This publication contains the essential removal, installation, and adjustment procedures for factory-installed air conditioners for the 1978 Audi 5000 sold in the USA and Canada.

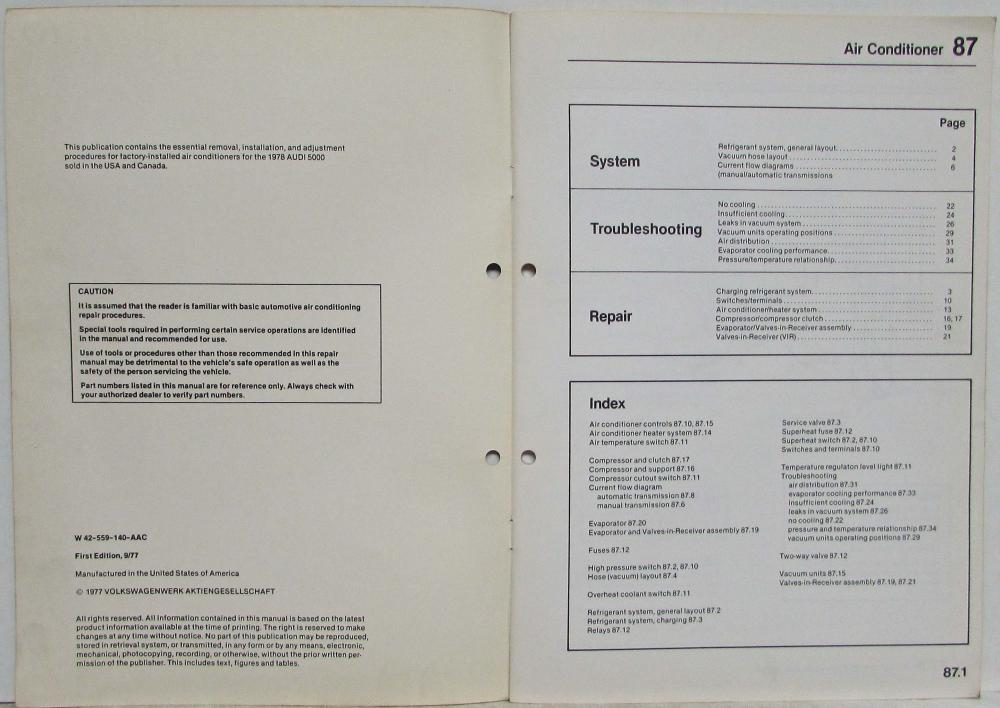

Contents:

System

Refrigerant system, general layout
Vacuum hose layout
Current flow diagrams (manual/automatic transmissions)

Troubleshooting

No cooling

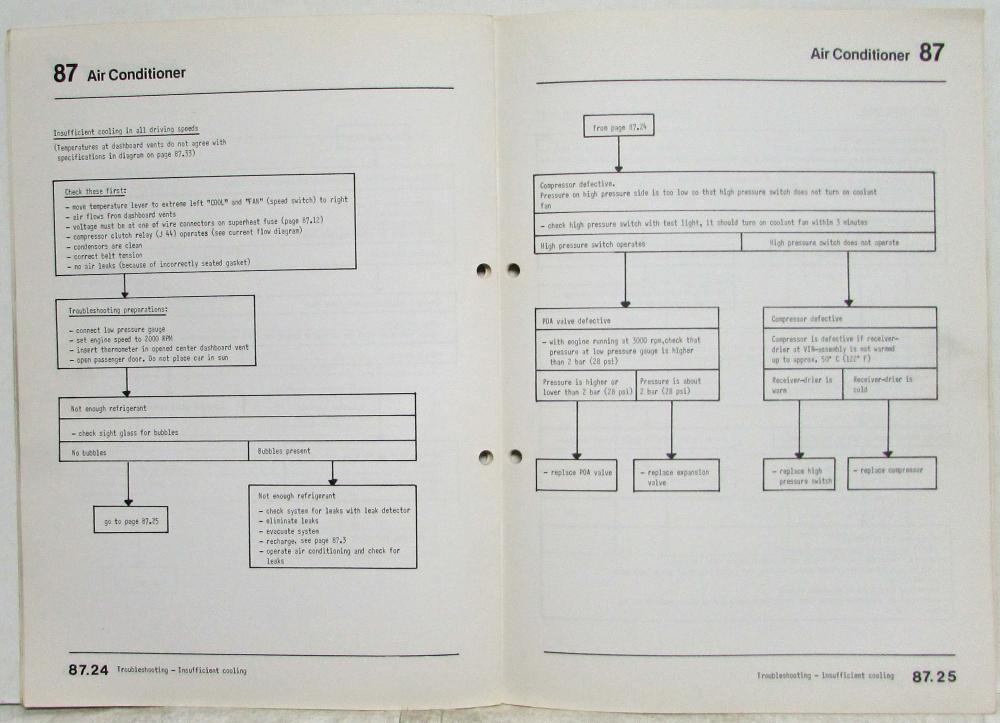

Insufficient cooling
Leaks in vacuum system
Vacuum units operating positions
Air distribution
Evaporator cooling performance
Pressure/temperature relationship

Repair

Charging refrigerant system
Switches/terminals

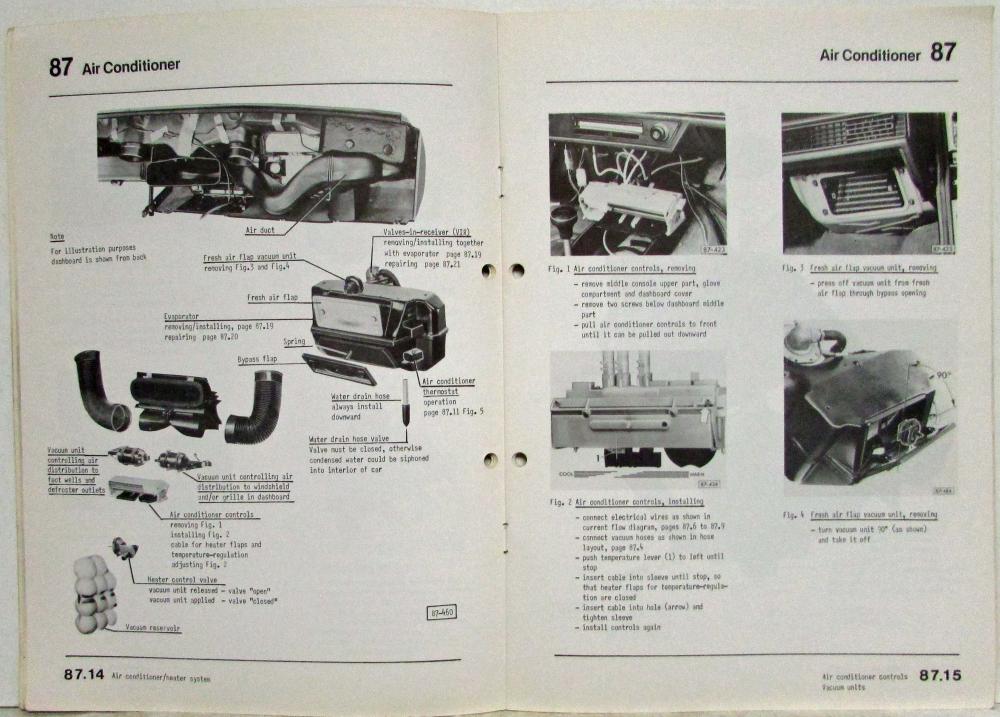

Air conditioner/heater system
Compressor/compressor clutch

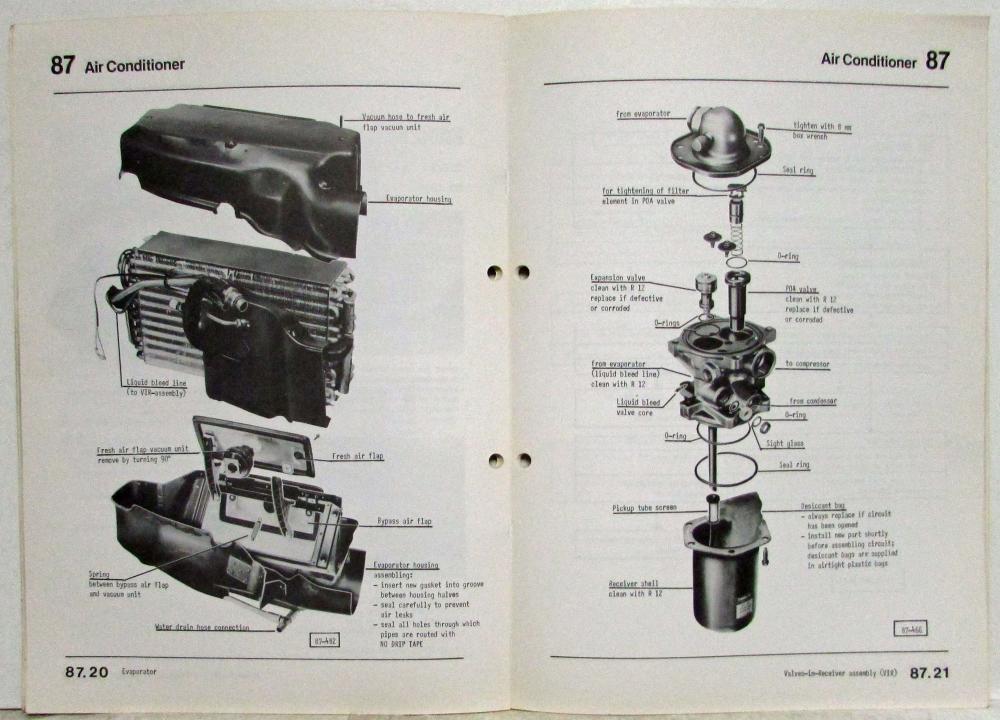

Evaporator/Valves-in-Receiver assembly
Valves-in Receiver (VIR)


Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
