1973 Ford-Mercury Automatic Temperature Control System Training Handbook - HVAC

Price $19.00 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.31 lbs. Page Count 44 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-44144 OEM Number Course No 0323-135 3671-005 In Stock
Flat US shipping rate: $4.95
Flat International shipping rate: $17.25

Description

1973 Service Highlights Ford-Mercury Automatic Temperature Control System Training Handbook. HVAC. Course No 0323-135 and 3671-005. Original.

1973 HVAC Contents:

Ford and Mercury

Automatic Temperature Control System
Automatic Termperature Control Diagnosis

Heating, Ventilating and Air Conditioning System Changes

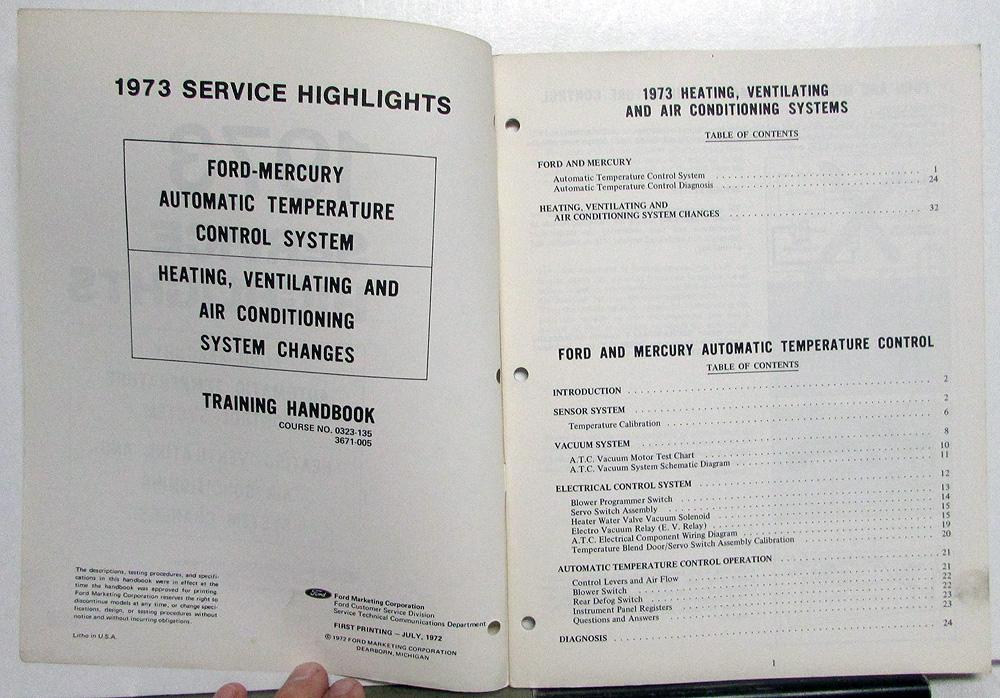

Ford and Mercury Automatic Temperature Control Contents:

Introduction

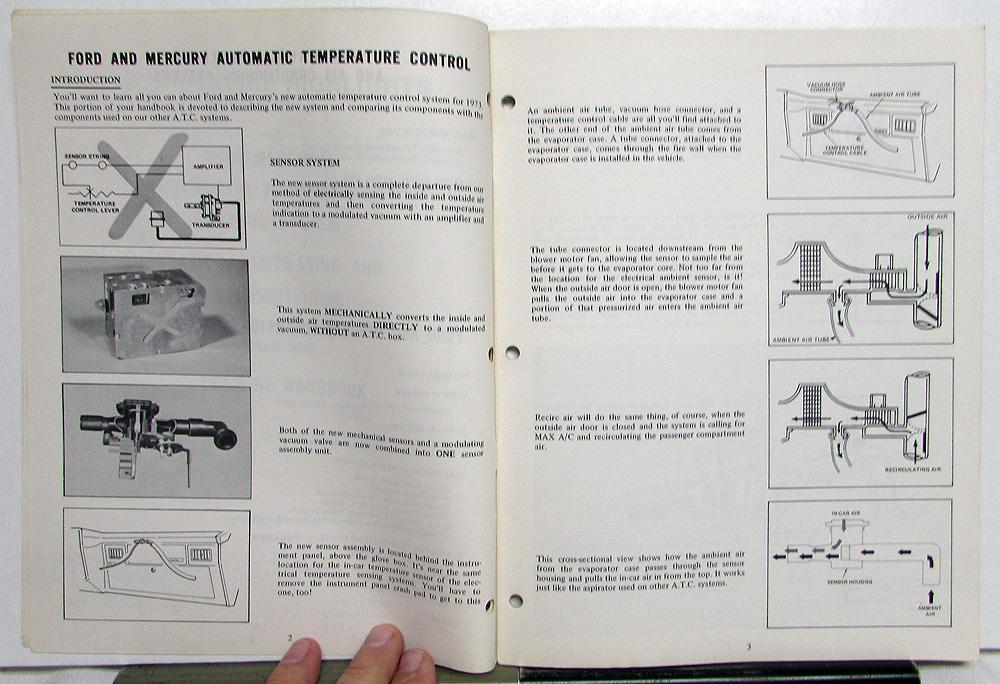

Sensor System

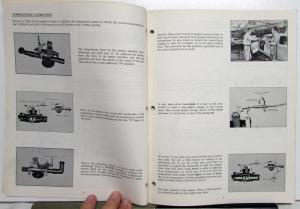

Temperature Calibration

Vacuum System

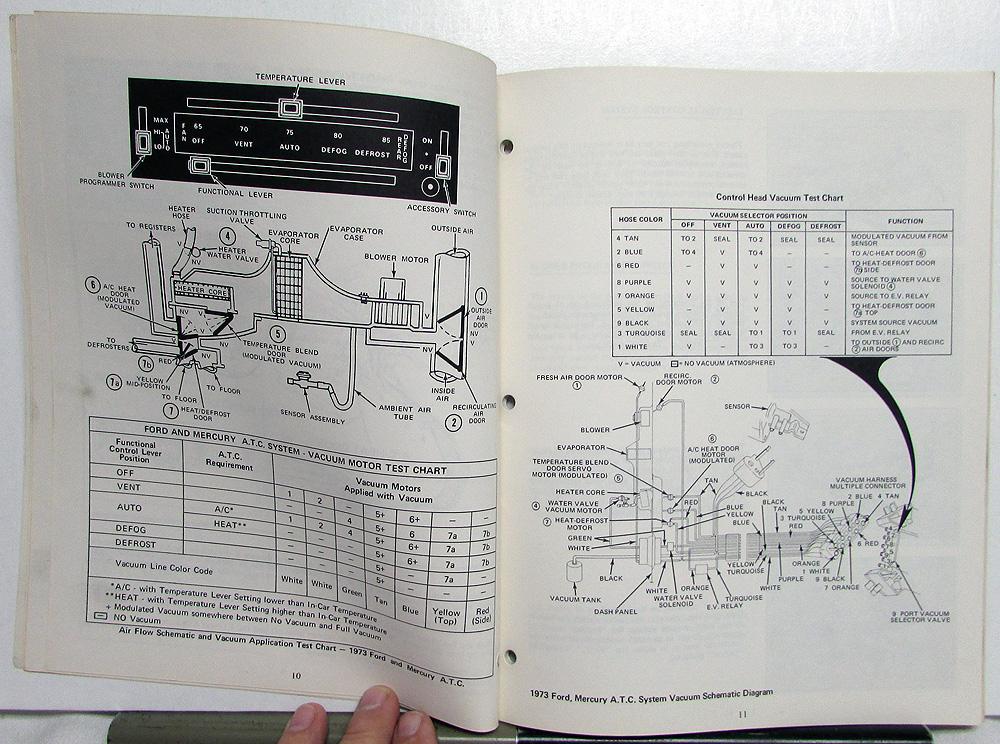

ATC Vacuum Motor Test Chart
ATC Vacuum System Schematic Diagram

Electrical Control System

Blower Programming Switch
Servo Switch Assembly
Heater Water Valve Vacuum Solenoid

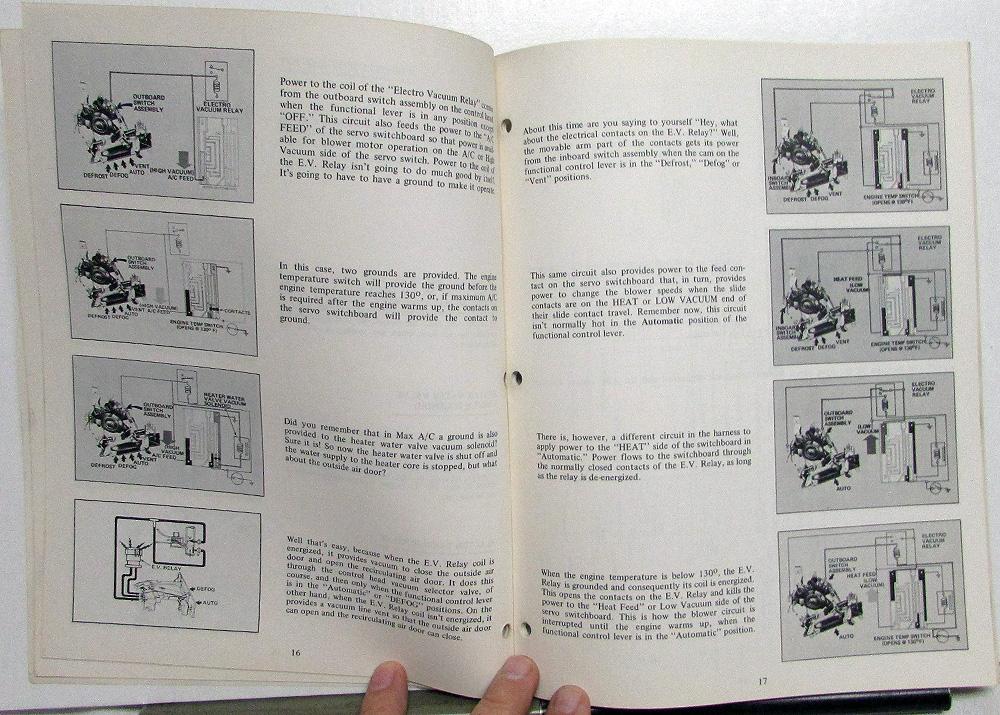

Electro Vacuum Relay (EV Relay)
ATC Electrical Component Wiring Diagram
Temperature Blend Door/Servo Switch Assembly Calibration

Automatic Temperature Control Operation

Control Levers and Air Flow
Blower Switch
Rear Defog Switch
Instrument Panel Registers
Questions and Answers

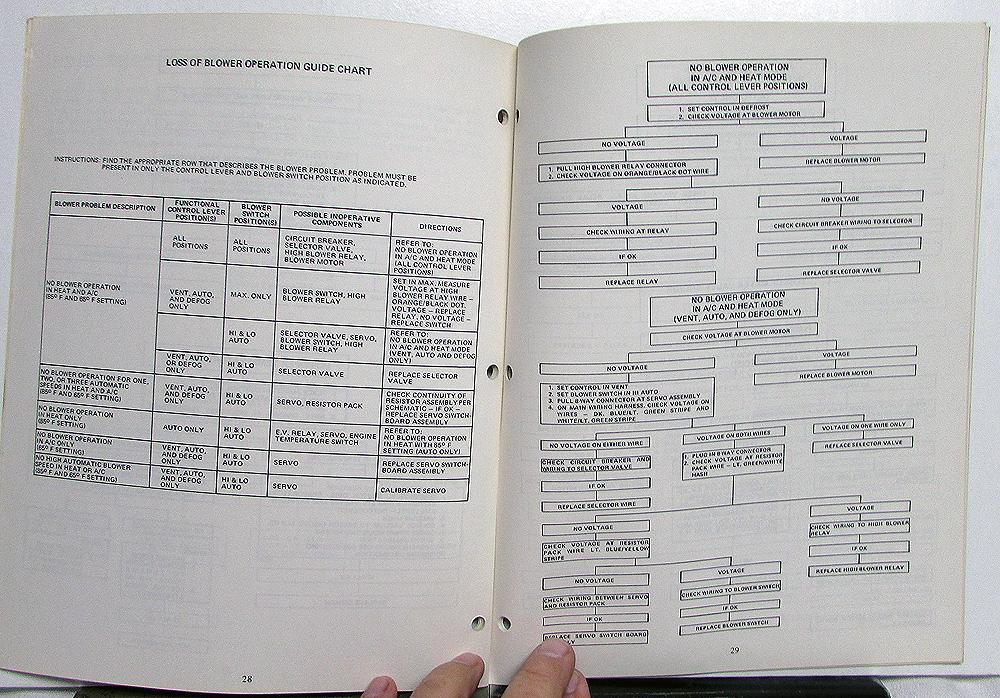

Diagnosis


Condition: Service Training Manuals are used in Classrooms, Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
