1972 May Ford Shop Tips Vol 10 No 9 New Air Conditioning System

Price $10.00 Details W: 8.375 x H: 10.875 x D: 0.1 Weight 0.12 lbs. Page Count 16 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-26108 OEM Number Vol 72 MSD 64 In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00

Description

1972 May Ford Shop Tips Vol. 10 No. 9

Technical parts and service information published by the MotorCraft-Ford Parts Division and distributed by Ford and Lincoln-Mercury dealers to assist servicemen in Service Stations, Independent Garages and Fleets.


In this issue:


Ford's New Air Conditioning System ...Service Tips

There's a Lot of Air Out There

Review of Basic Refrigeration Principles...Laws of Nature

1972 Ford Motor Company Refrigerant System Changes

Schrader Charging Valves

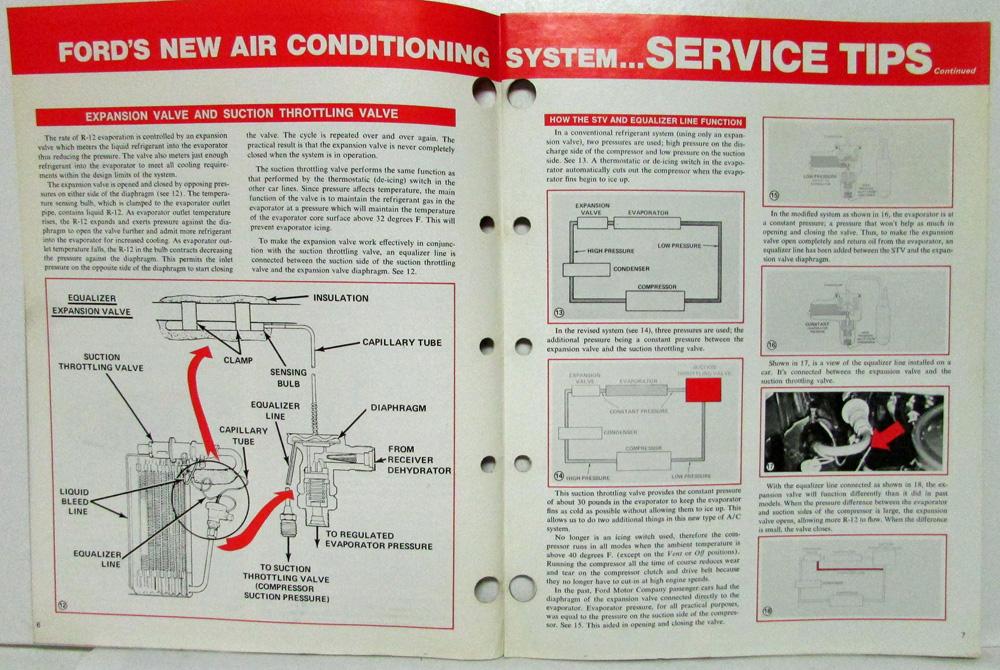

Expansion Valve and Suction Throttling Valve (STV)

How the STV and Equalizer Line Function

Liquid Bleed Line

Refrigerant Flow with the Suction Throttling Valve

Ambient Temperature Switch

High Pressure Relief Valve

Testing the 1972 A/C Systems

Check for Leaks

Checking Sight Glass

Attaching the Manifold Gauge Set

Safety Information on Air Conditioning Refrigerant

Performance Test

Suction Throttling Valve Test

Pressure/Altitude Correction

Receiver-Dryer Test

Magnetic Clutch Test

Technical Service Briefs


Condition: Shop Tips have been used in Service Stations, Independent Garages and Fleets and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight. The images shown are representative of the issues shipped.
