19 Ford Pinto Service Shop Repair Manual. ORIGINAL

Developed by Ford Motor Company, this shop manual is intended to provide the Service Technician with the information necessary to perform the service operations for the newest member of the Ford car line - Pinto.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models:
Ford: Pinto

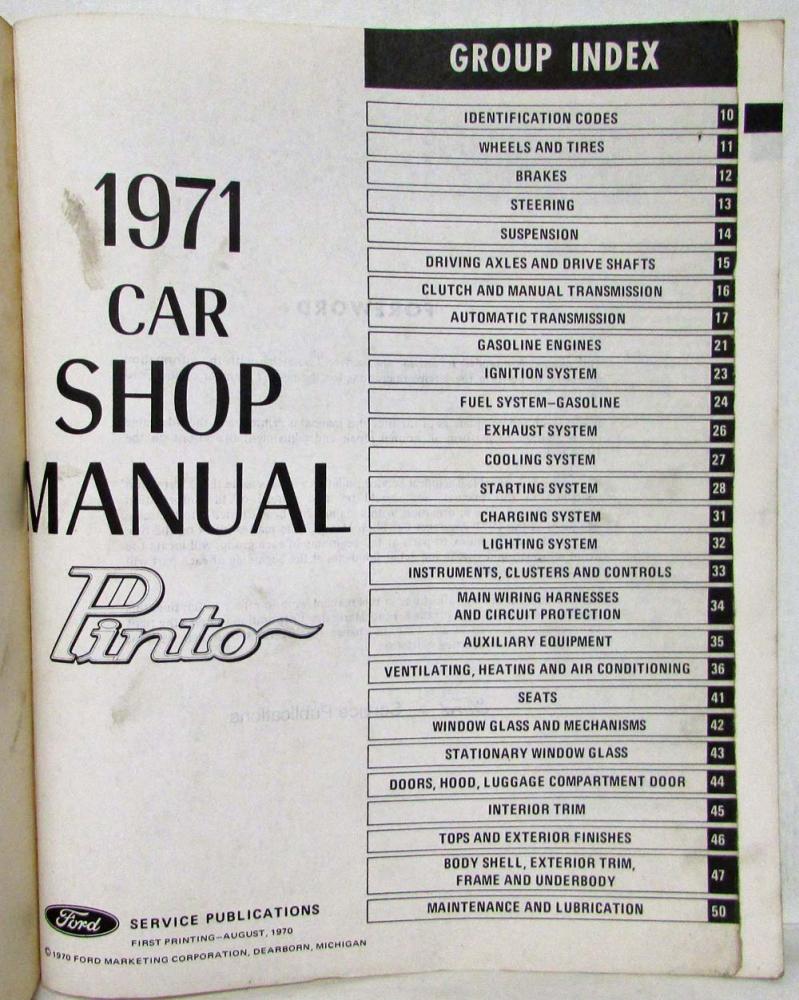

Contents:

Identification Codes
Wheels and Tires
Brakes
Steering
Suspension
Driving Axles and Drive Shafts
Clutch and Manual Transmission
Automatic Transmission
Gasoline Engines
Ignitiion System
Fuel System - Gasoline
Exhaust System
Cooling System
Starting System
Charging System
Lighting System
Instruments, Clusters and Controls
Main Wiring Harnesses and Circuit Protection
Auxiliary Equipment
Ventilating, Heating and Air Conditioning
Seats
Window Glass and Mechanisms
Stationary Window Glass
Doors, Hood, Luggage Compartment Door
Interior Trim
Tops and Exterior Finishes
Body Shell, Exterior Trim, Frame and Underbody
Maintenance and Lubrication

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. This is not a coffee table book. This volume has a some soiling on the cover and the outside page edges. Internal pages look to be free of soiling for the most part. With this type of book it is the content that reigns supreme and the information within is still legible and can give valuable insight into the care and maintenance of a vehicle. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
