2021 Ford Ranger Electrical Wiring Diagrams Manual

Price $69.00 $55.20 Details W: 11 x H: 8.5 x D: 1.1 Weight 2.00 lbs. Page Count 575+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-55889 OEM Number FCS-21569-21 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $48.95


2021 Ford Ranger Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual.

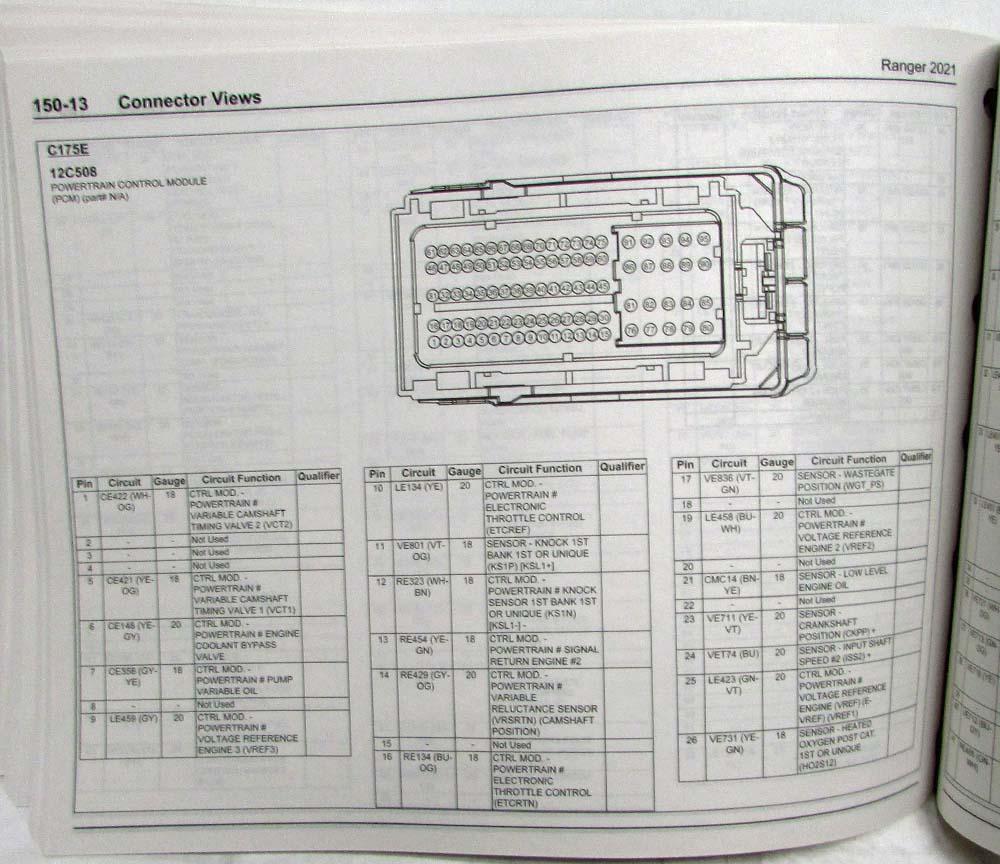

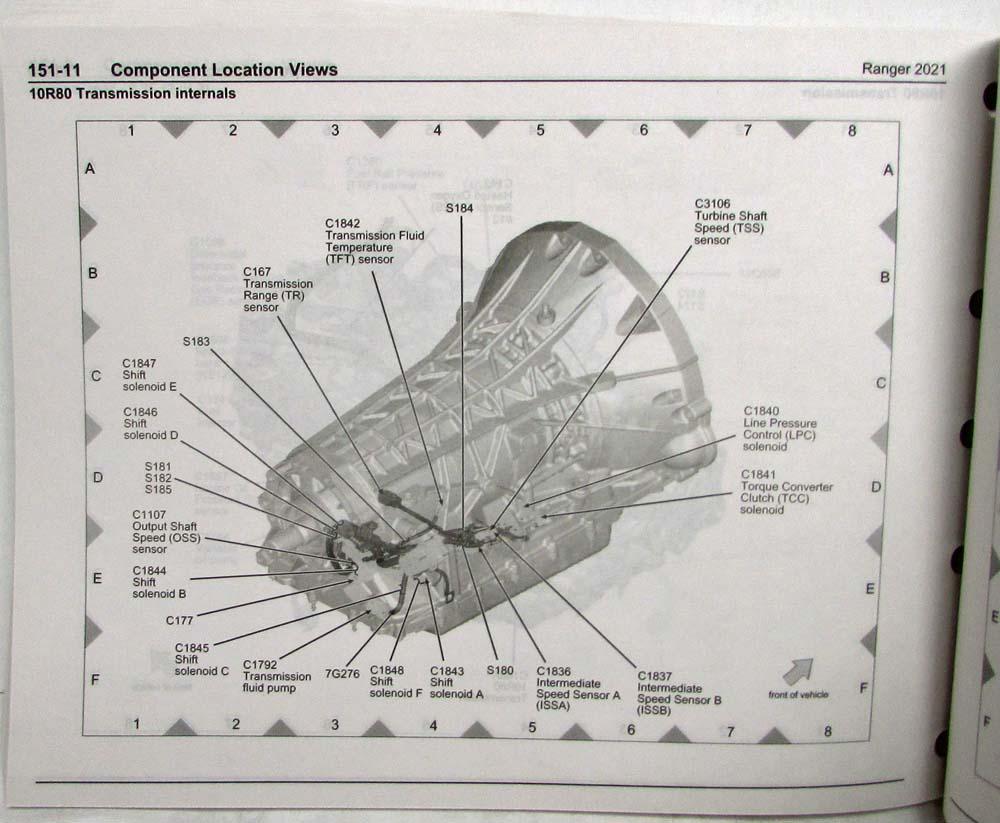

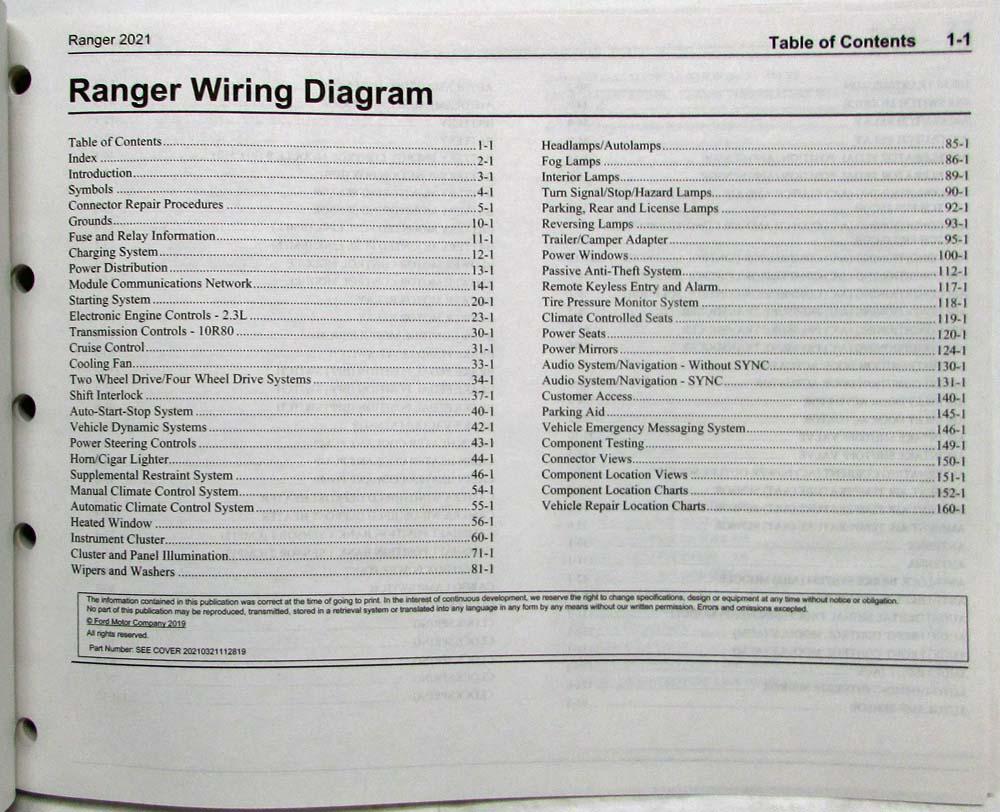

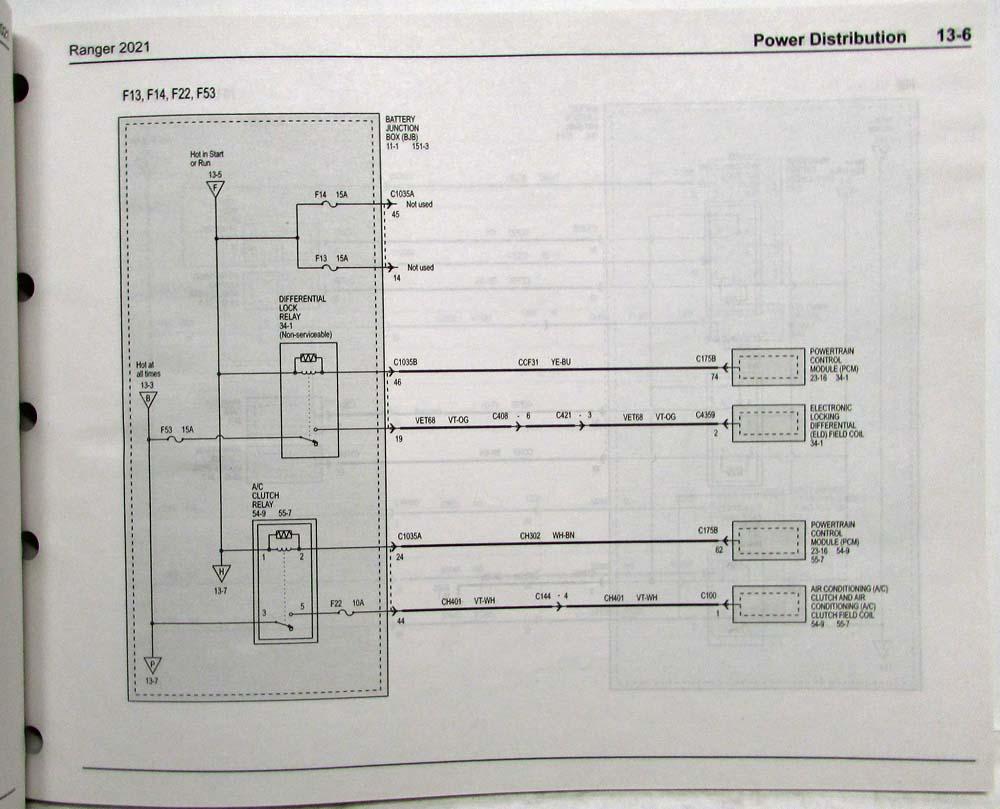

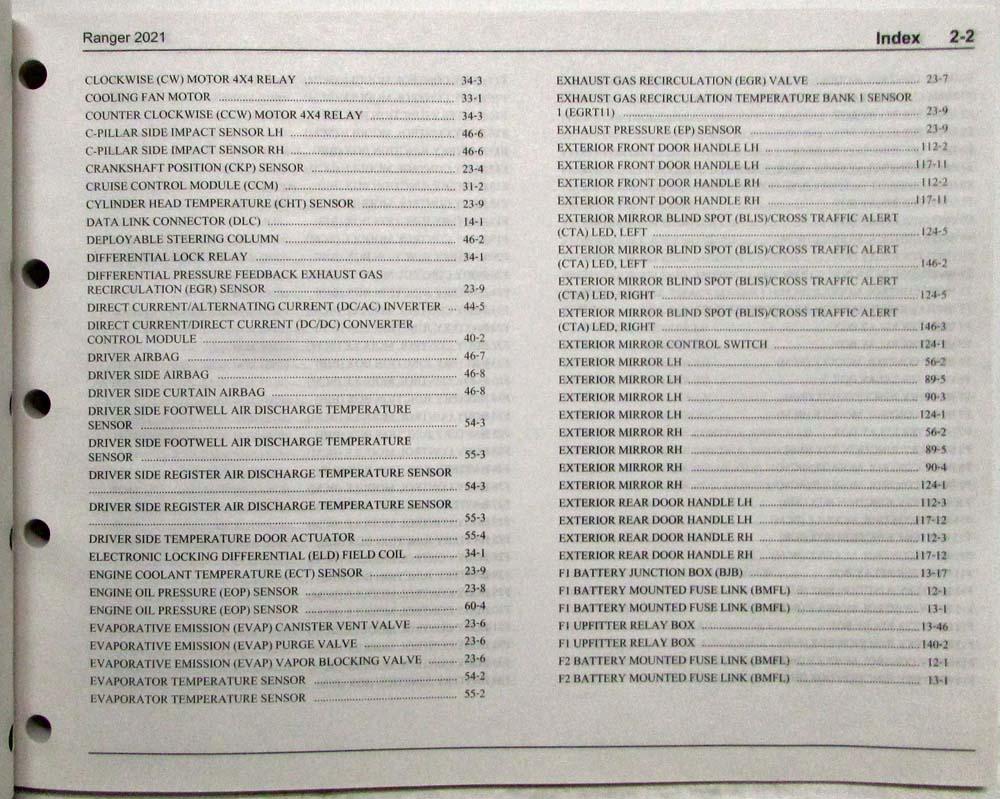

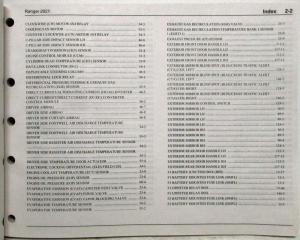

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2021 / Ford Ranger

Keywords: 2.3L, 2WD, 4WD, Pickup

Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Light use in the shop, if any. Wiring Diagrams are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling you aren't seeing here.
