2018 Ford F-250 350 450 550 Super Duty Pickup Electrical Wiring Diagrams Manual

Price $89.18 Details W: 11 x H: 8.25 x D: 1.75 Weight 3.19 lbs. Page Count 550+ Condition New - Original (NOS) Item Type Factory Manual Inventory Number SM-51904 OEM Number FCS-14612-18 In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $79.55

Description

2018 Ford F-250, F-350, F-450, F-550 Super Duty Pickup Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual.

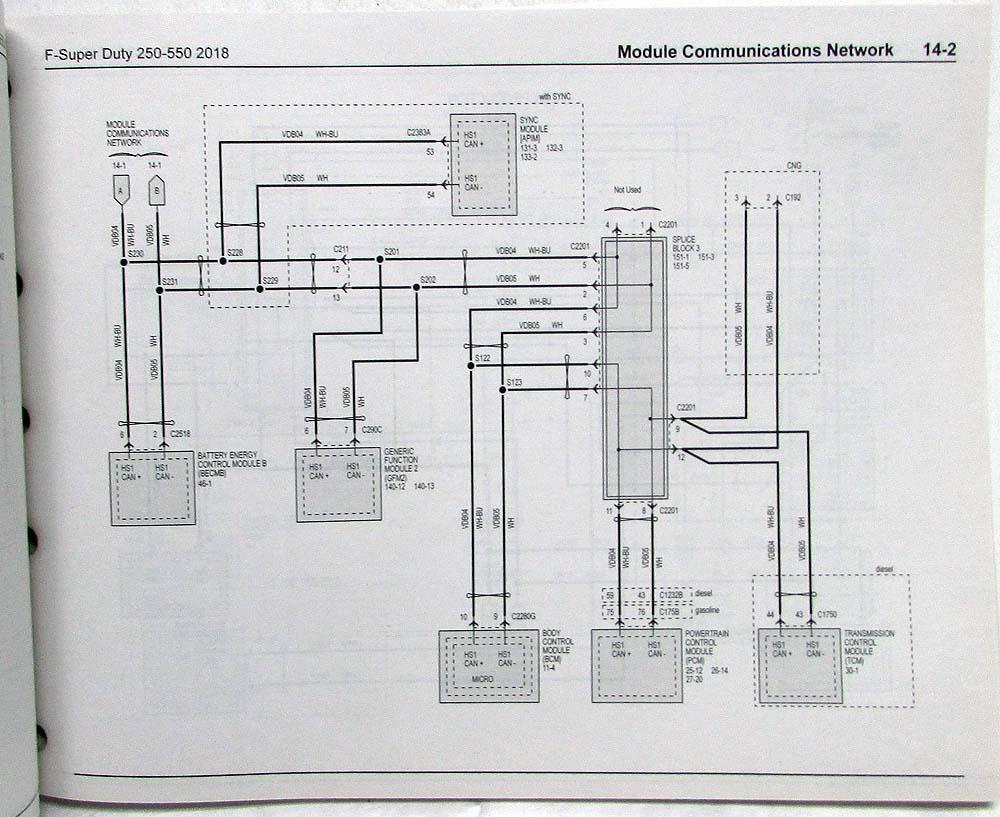

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2018 F-250 Pickup / F-350 Trucks / F-450 Trucks / F-550 Trucks

Keywords: Super Duty, Pickup, Trucks, XL, XLT, Lariat, King Ranch, Platinum, 4x2, 4x4, 4WD, 6.8L, 6.2L, 6.7L Diesel

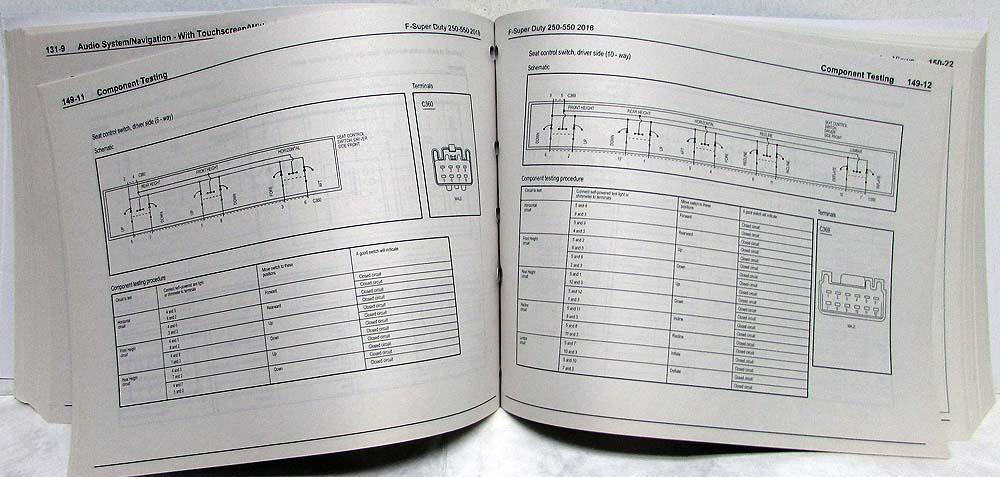

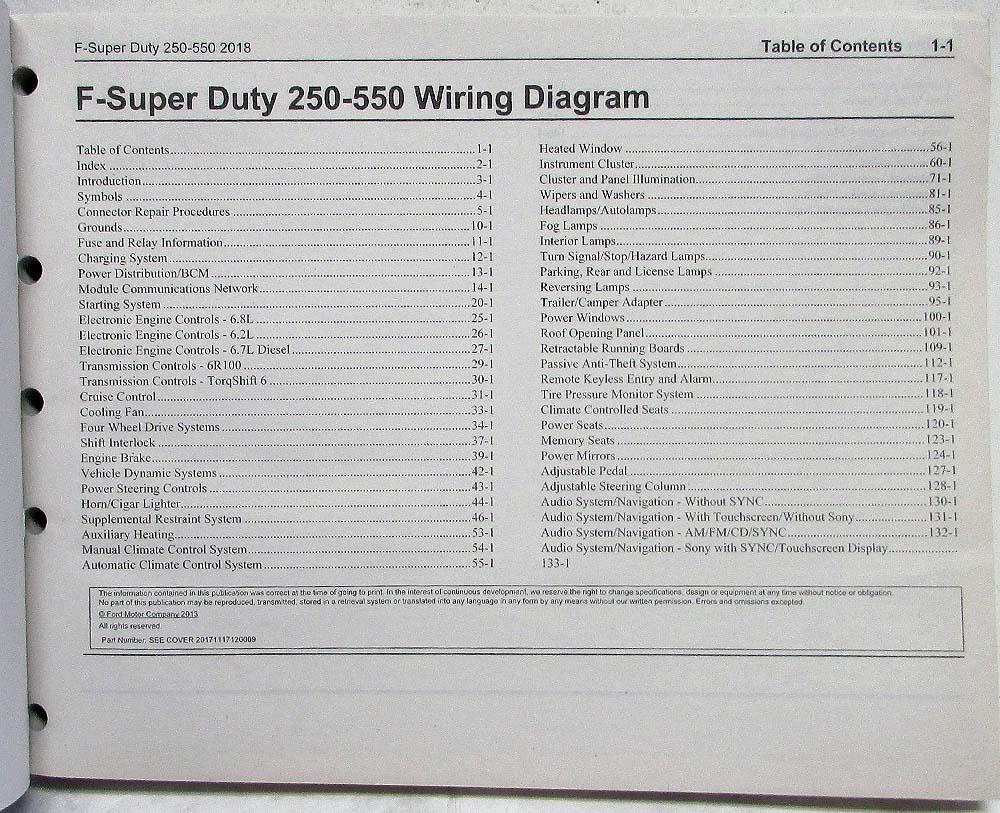

Condition: What you see pictured is what you get. New and ready for you to get it greasy like many of the other manuals we have that have been used in dealer shops. Someone has written on a piece of paper while sitting on the cover which has left some writing indentations on the cover.
