2009 Ford Lincoln Electrical Wiring Diagram Manual Expedition Navigator
Price $19.09 $15.27
DetailsW: 11 x H: 8.5 x D: 0.5
Weight2.31 lbs.
Page Count200
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberWD-9356
OEM Number12886-09
In Stock
Flat US shipping rate$8.95
Flat International shipping rate$51.80
Description
Good original 2009 Ford/Lincoln Dealer Electrical Wiring Diagram Service Manual.

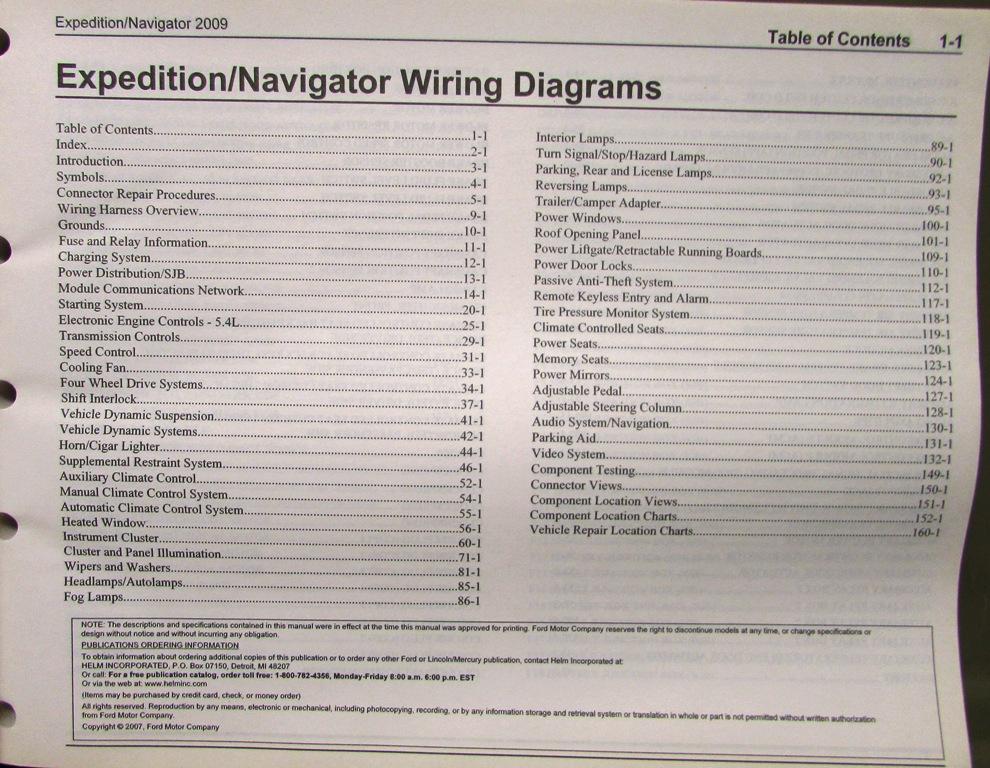

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.
12886-09
