2009 Ford Gas Power Control Emissions Diagnosis Service Manual Mustang F-Series

Price $44.00 Details W: 8.5 x H: 11 x D: 1.25 Weight 2.94 lbs. Page Count 800+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-34952 OEM Number FCS-12106-09-A In Stock
Flat US shipping rate: $10.95
Flat International shipping rate: $52.75

Description

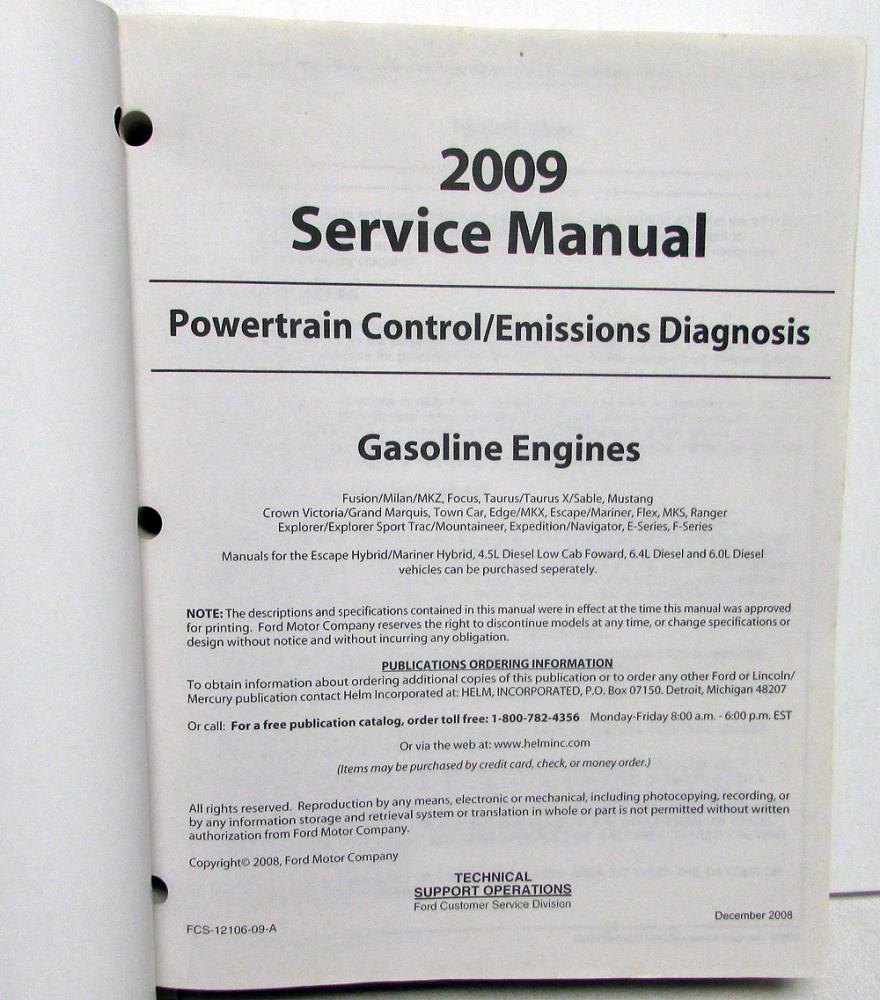

2009 Ford Gasoline Engines Power Control/Emissions Diagnosis Service Manual. ORIGINAL

Information contained within this official Ford Motor Company reference manual provides the user a step-by-step approach for diagnosing drivability, emission and power train control system symptoms. This manual should be used in conjunction with the Shop Manual and Wiring Diagram.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication.

Applicable models:
Ford: Fusion, Focus, Taurus, Taurus X, Mustang, Crown Victoria, Edge, Escape, Flex, Ranger, Explorer, Explorer Sport Trac, Expedition, E-Series, F-Series
Lincoln: MKZ, Town Car, MKX, MKS, Navigator
Mercury: Milan, Sable, Grand Marquis, Mariner, Mountaineer

Note: Manuals for Escape Hybrid/Mariner Hybrid, 4.5L Diesel Low Cab Forward, 6.4L Diesel and 6.0L Diesel vehicles sold separately.

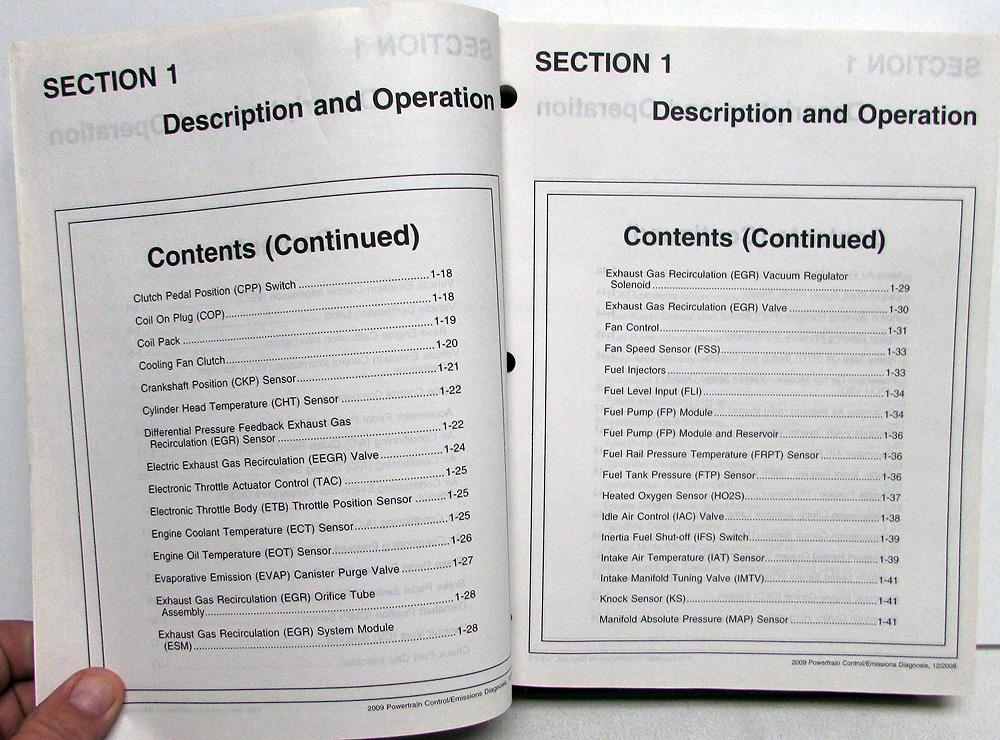

Contents:

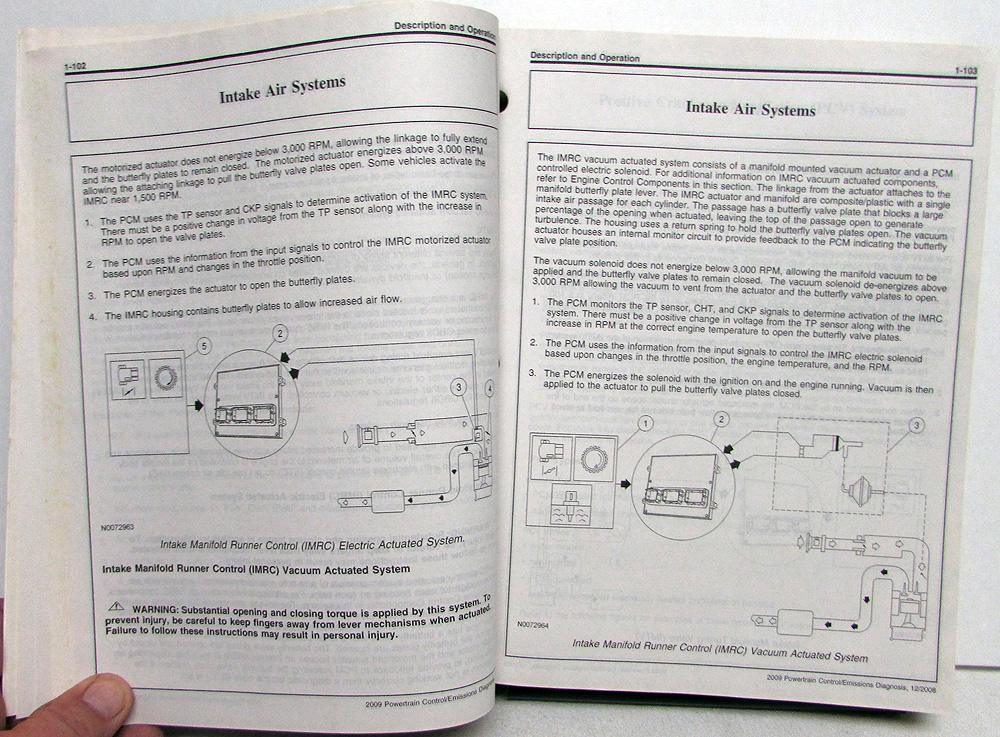

Description and Operation
Diagnostic Methods
Symptom Charts

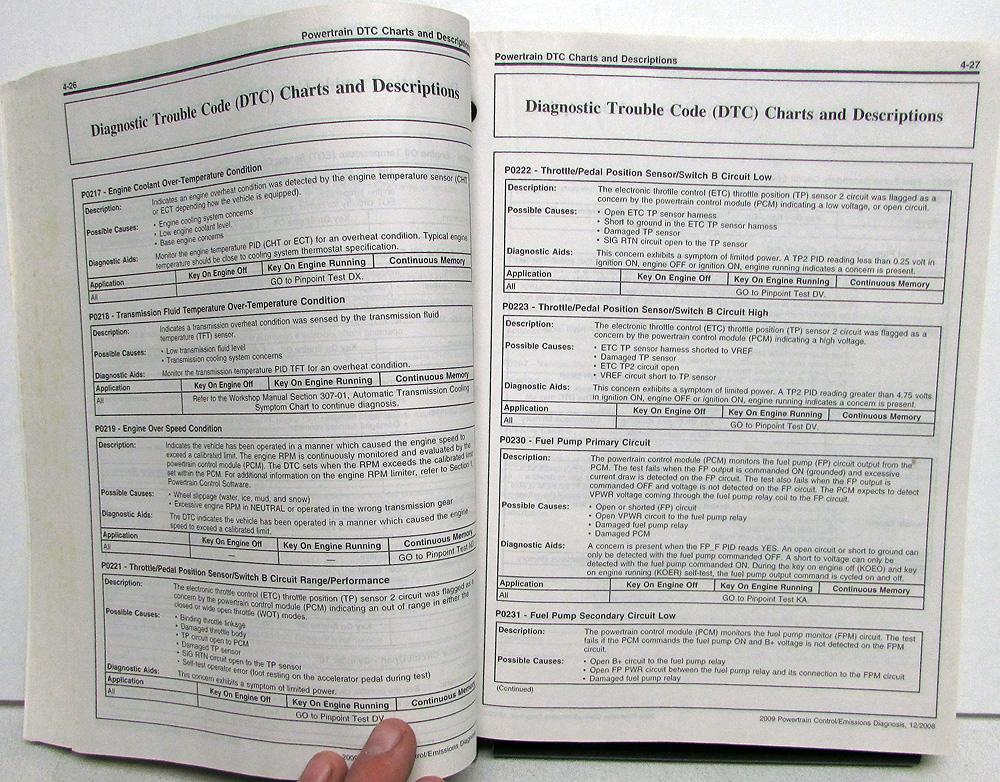

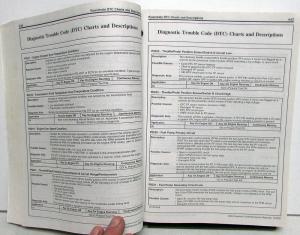

Powertrain Diagnostic Trouble Code (DTC) Charts and Descriptions

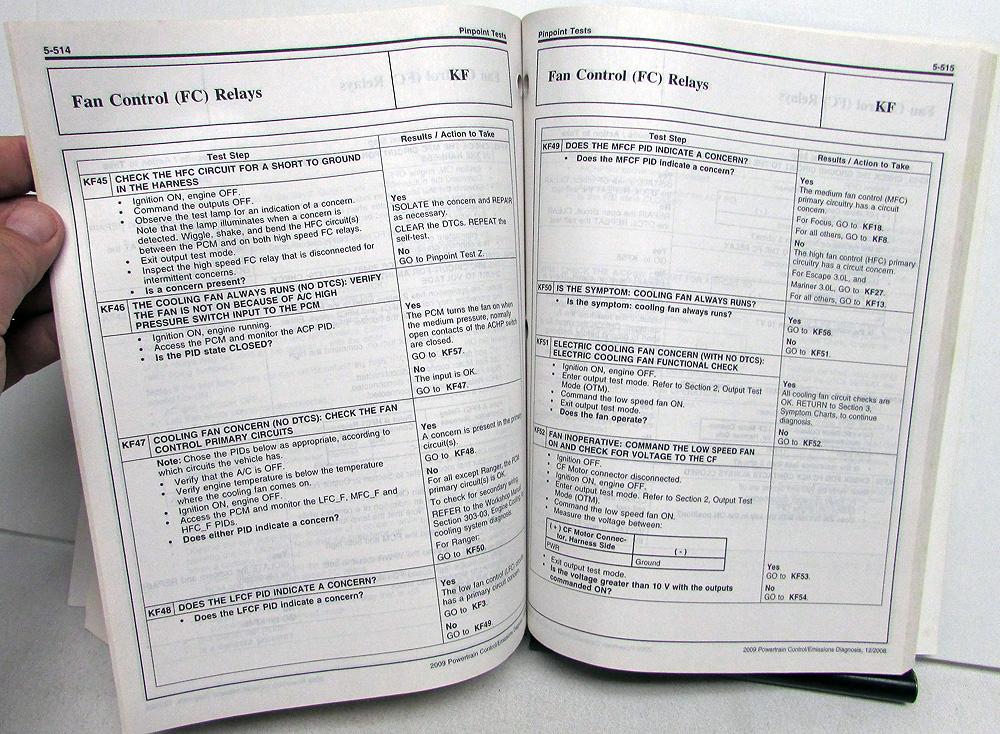

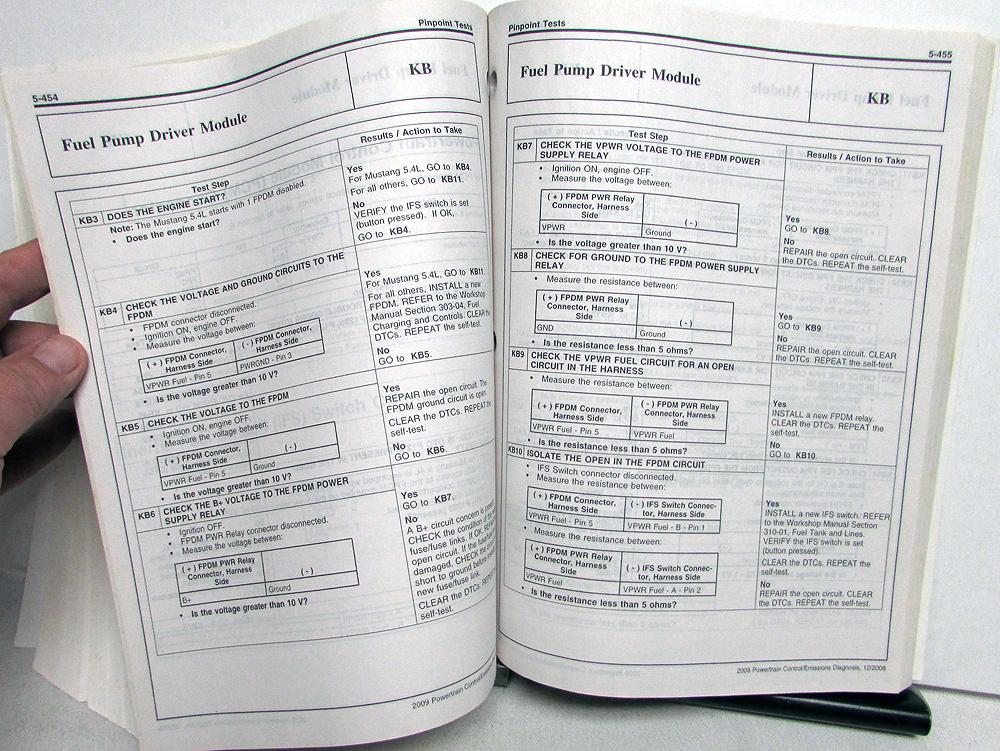

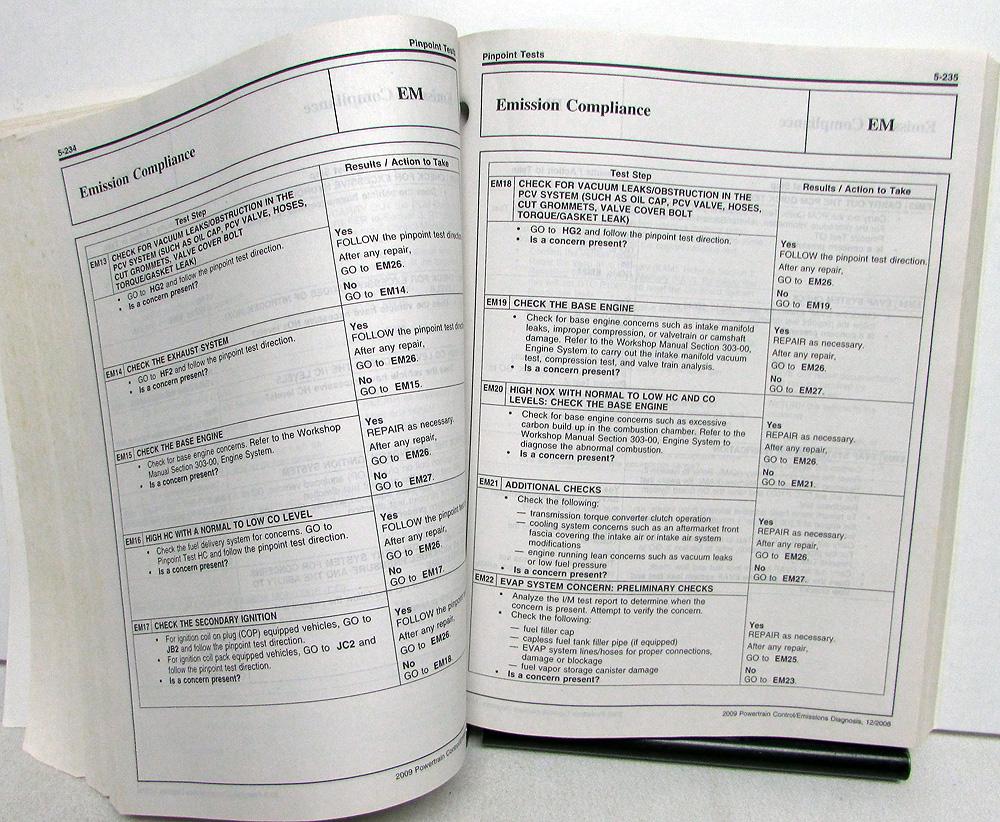

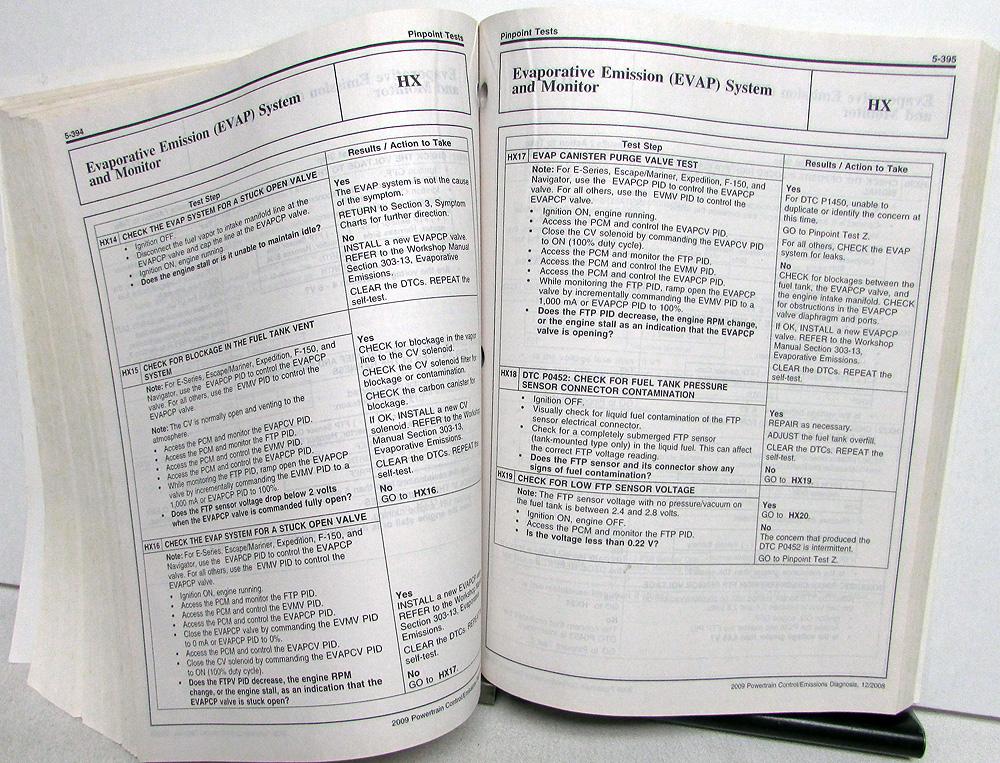

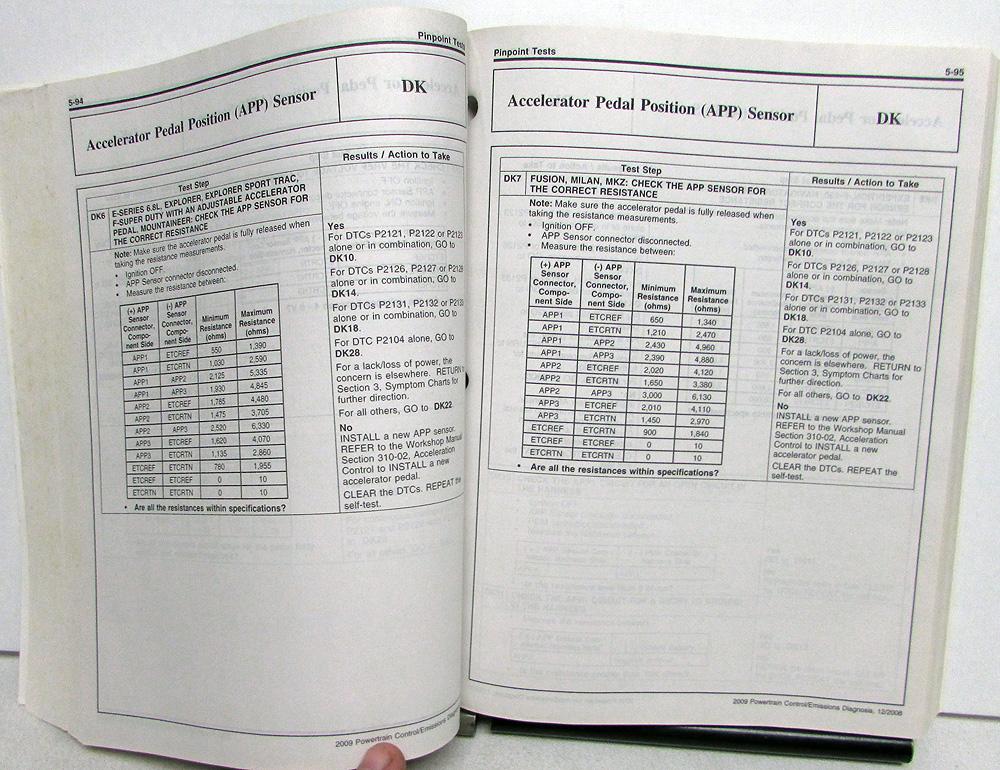

Pinpoint Tests
Reference Values

Condition:  Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. This original is very clean, back cover has the lower corner torn off.
