2007 Ford Car-Truck Powertrain Emissions Diagnosis Service Manual. ORIGINAL

Information contained within this official Ford Motor Company reference manual provides the user a step-by-step approach for diagnosing drivability, emission and power train control system symptoms. This manual should be used in conjunction with the Shop Manual and Wiring Diagram.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models:
2007
Ford: Five Hundred / Freestyle / Fusion / Focus / Taurus / Mustang / Crown Victoria / Edge / Escape / Ranger / Freestar /Explorer / Explorer Sport Trac / Expedition / E-Series, F-Series Trucks (F-150 Pickup, F-250 Pickup, F-350 Trucks, F-450 Trucks, F-550 Trucks, F-650 Trucks)
Mercury: Milan / Grand Marquis / Mariner / Monterey / Mountaineer
Lincoln: MKZ / MKX / Town Car / Navigator / Mark LT

Manuals for the Ford Escape Hybrid, Mercury Mariner Hybrid, 4.5L Diesel Low Cab Forward and 6.0L Diesel vehicles are separate publications (not included).

Contents:
Description and Operation
Diagnostic Methods
Symptom Charts
Powertrain DTC Charts and Descriptions
Pinpoint Tests
Reference Values

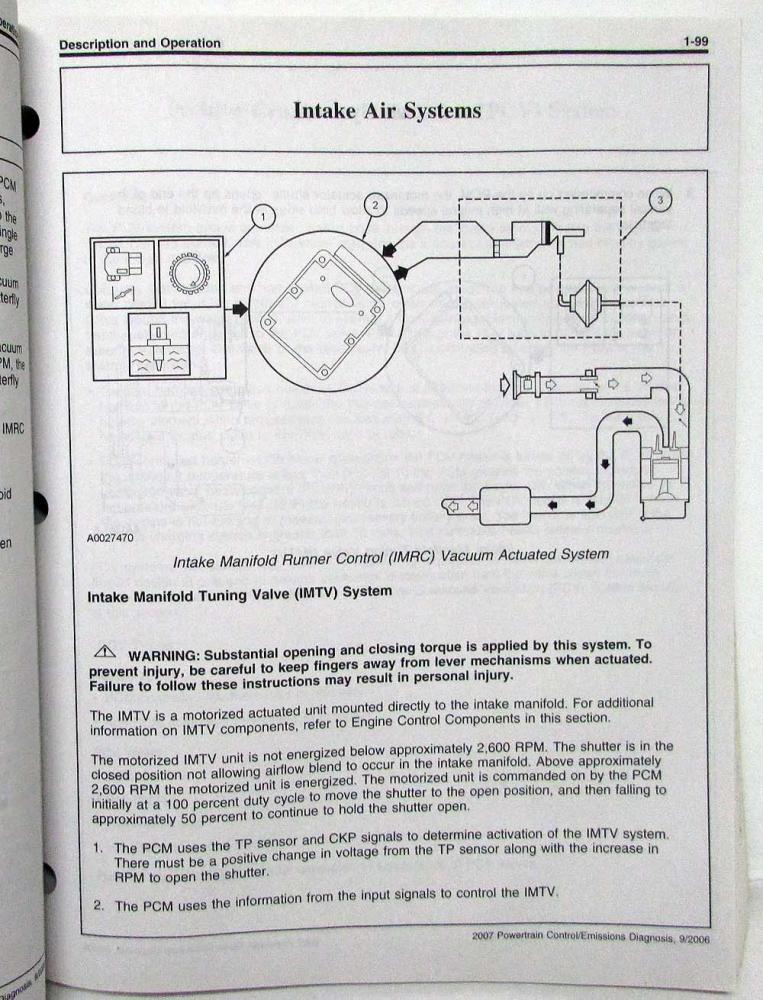

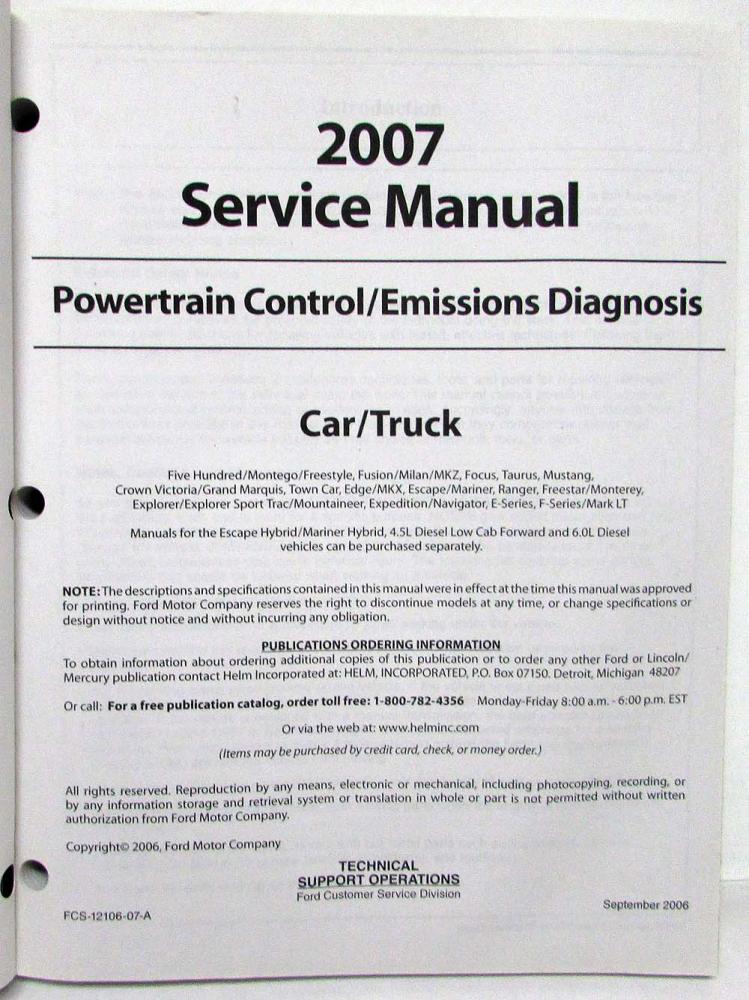

Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Light use in the shop, if any. Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear that you aren't seeing here.
