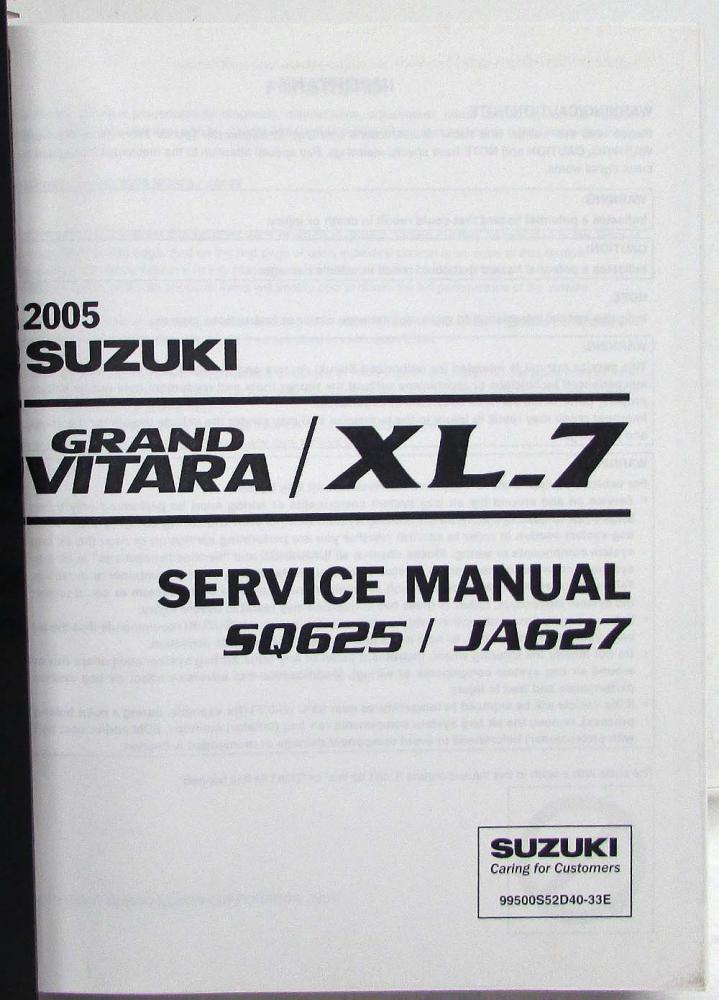

2005 Suzuki Grand Vitara SQ-625 / XL-7 JA627 Service Shop Repair Manual. Original.

Note: Service manuals can be valuable tools when working on and/or restoring a vehicle. For the uninitiated, keep in mind that these manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments (even today).

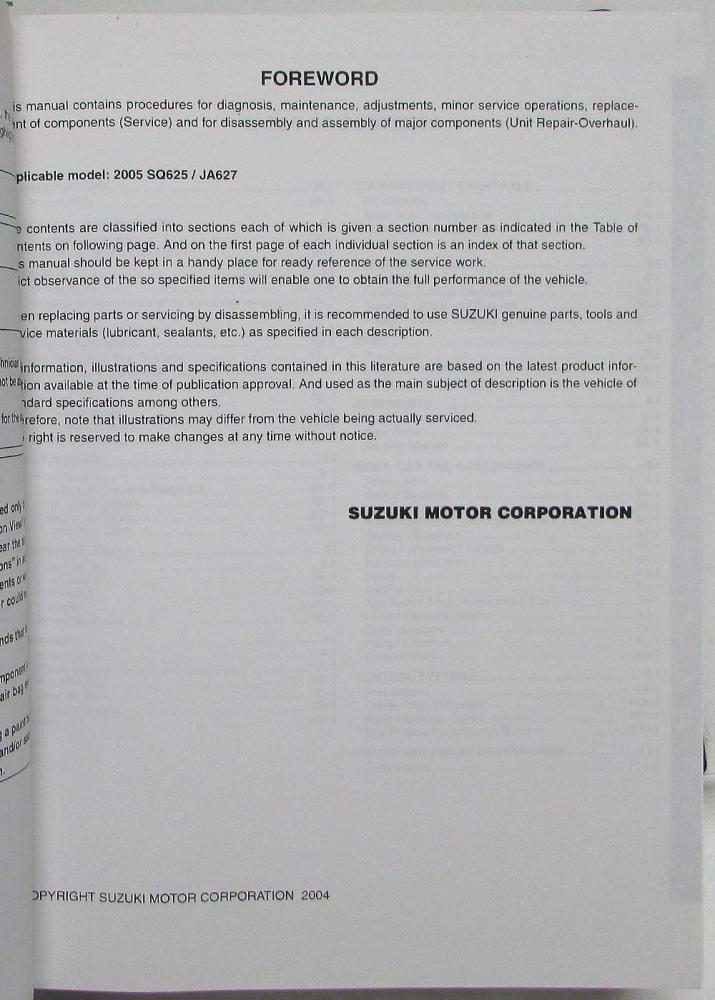

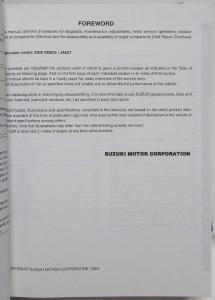

This manual contains procedures for diagnosis, maintenance adjustments, minor service operations, replacement of components (Service) and for disassembly and assembly of major components (Unit Repair-Overhaul).

Applicable models: 2006 Grand Vitara XL7 JA627

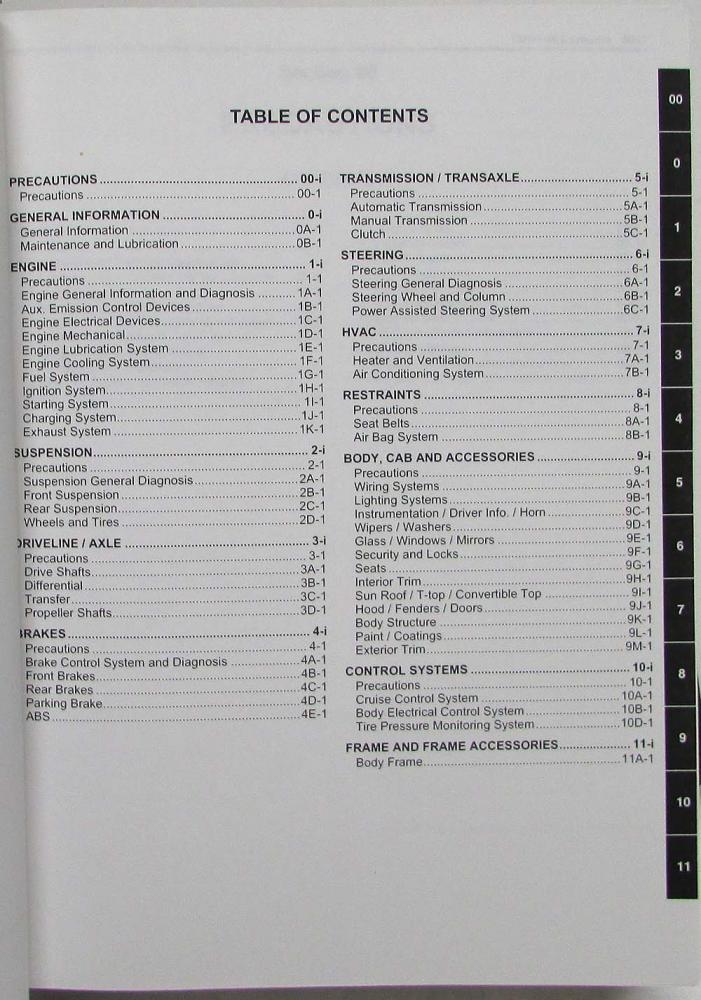

Contents:

Precautions
General Information
Engine
Suspension
Driveline/Axle
Brakes
Transmission/Transaxle
Steering
HVAC
Restraint
Body,Cab and Accessories
Control Systems
Frame and Frame Accessories

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
