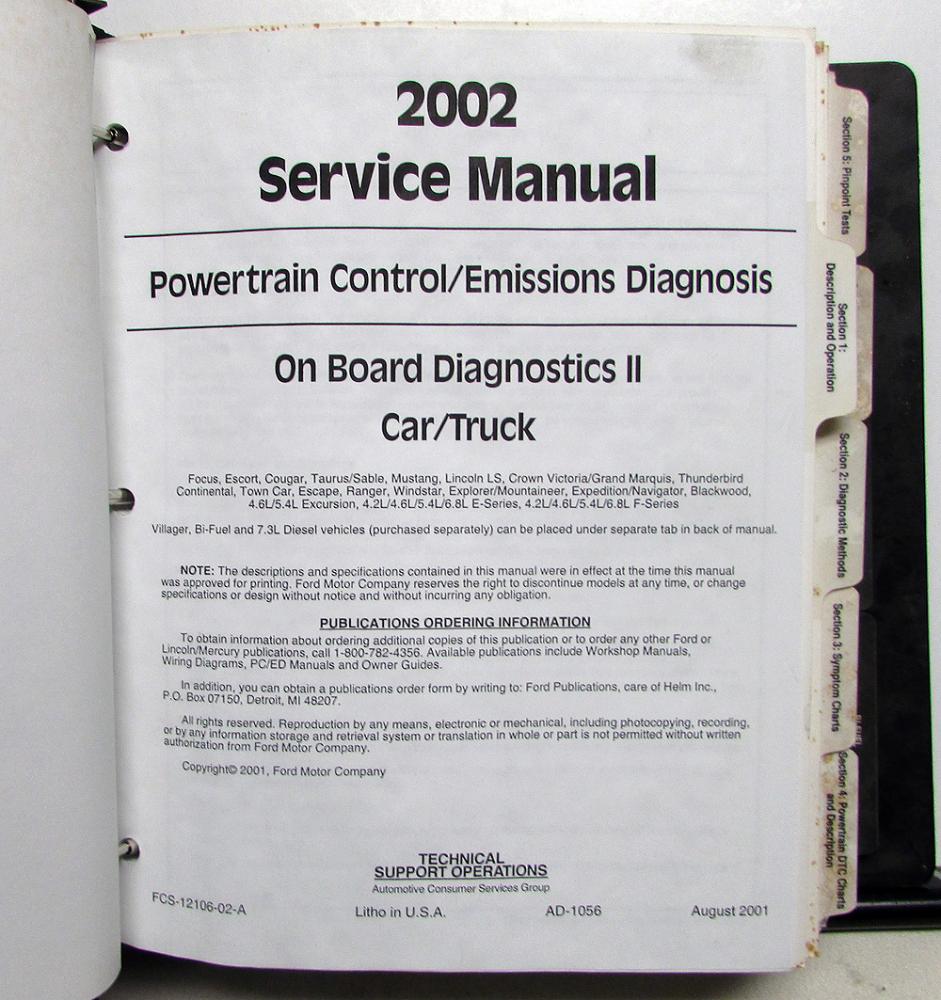

2002 Ford Powertrain Control Emissions Diagnosis Service Manual Car-Truck OBD-II

Price $149.95 $119.96 Details W: 10 x H: 11.75 x D: 3.75 Weight 9.75 lbs. Page Count 1500+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-43741 OEM Number FCS-12106-02-D FCS-12106-02-B FCS-12106-02-A In Stock
Flat US shipping rate: $24.95
Flat International shipping rate: $139.95

Description

2002 Ford Powertrain Control Emissions Diagnosis Service Manual ODB-II. ORIGINAL.

Note: On Board Diagnostics II (OBD-II or ODB2) is an advanced/improved technology to ODB-I (OBD1). OBD-II provides better and more standardized vehicle protocols and system checks data. OBD-I needs a corded connection and the port is usually found under the hood, while an OBD-II port is usually located within a couple of feet of the steering wheel and data will often be accessed via an ODB-II adapter that supports Bluetooth or Wi-Fi connectivity.

Information contained within this official Ford Motor Company reference manual provides the user a step-by-step approach for diagnosing drivability, emission and power train control system symptoms. This manual should be used in conjunction with the Shop Manual and Wiring Diagram, which are NOT included.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models:
Ford: Focus, Escort, Taurus, Mustang, Crown Victoria, Thunderbird, Escape, Ranger, Windstar, Explorer, Expedition, 4.6L/5.4L Excursion, 4.2L/4.6L/5.4L/6.8L E-Series, 4.2L/4.6L/5.4L/6.8L F-Series
Lincoln: LS, Continental, Town Car, Navigator, Blackwood
Mercury: Cougar, Sable, Grand Marquis, Mountaineer

Contents:
Description and Operation
Diagnostic Methods
Symptom Charts
Powertrain DTC Charts and Descriptions

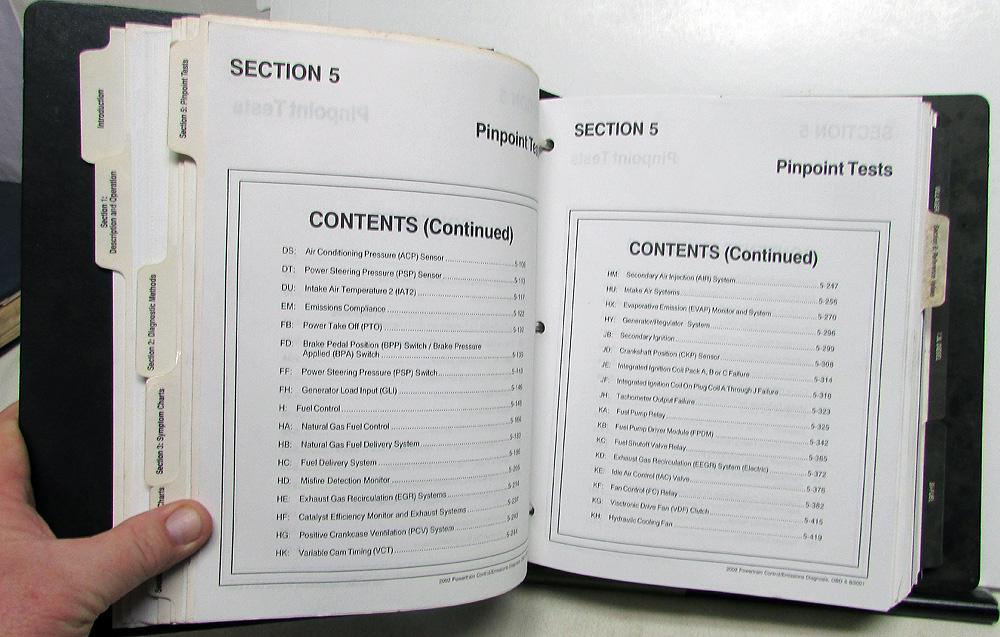

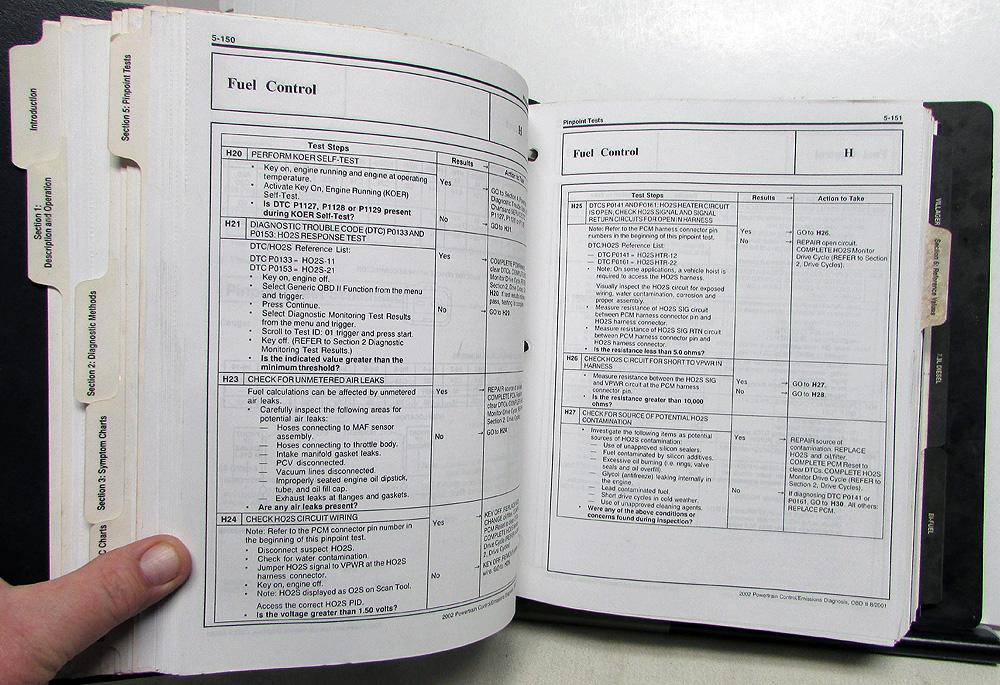

Pinpoint Tests

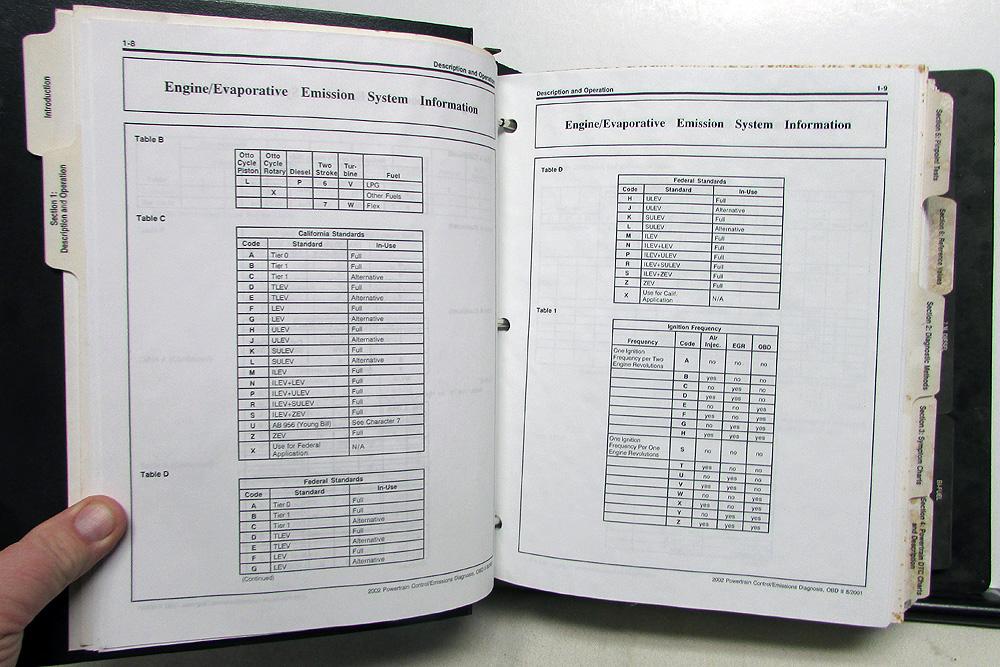

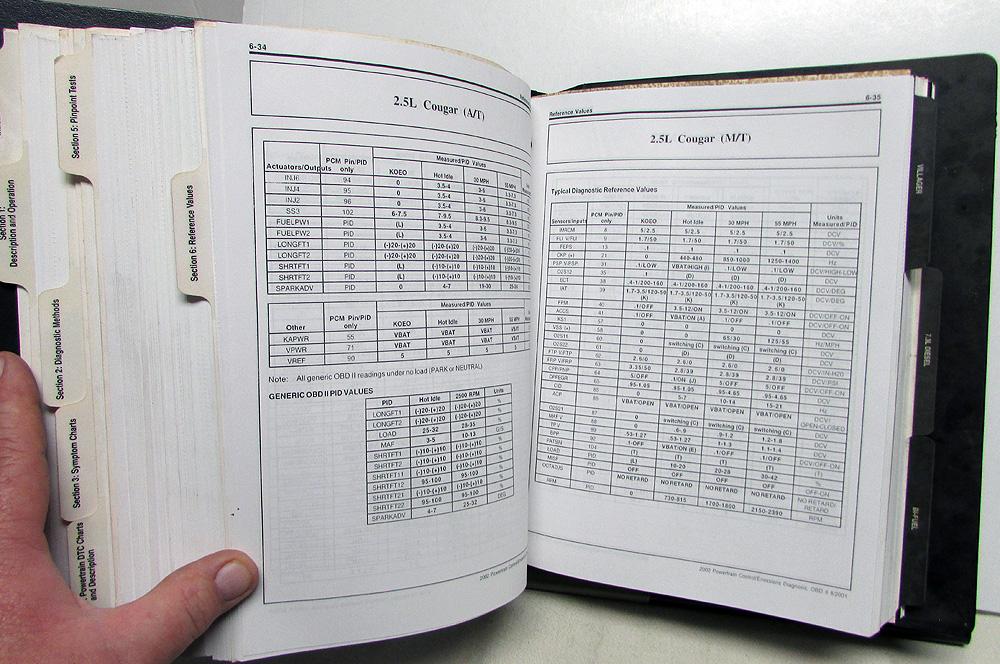

Reference Values

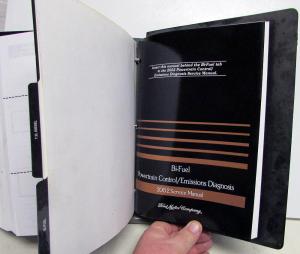

Bi-Fuel Powertrain Control/Emissions Diagnosis (5.4L F-150 LPG, 5.4L F-150 CNG)
7.3L Powerstroke Diesel Powertrain Control/Emissions Diagnosis (2002 7.3L Powerstroke Diesel Econoline and 2002 7.3L Powerstroke Diesel SuperDuty Series: Excursion, F250, F350, F450, F550, Motorhome, F650, F750)

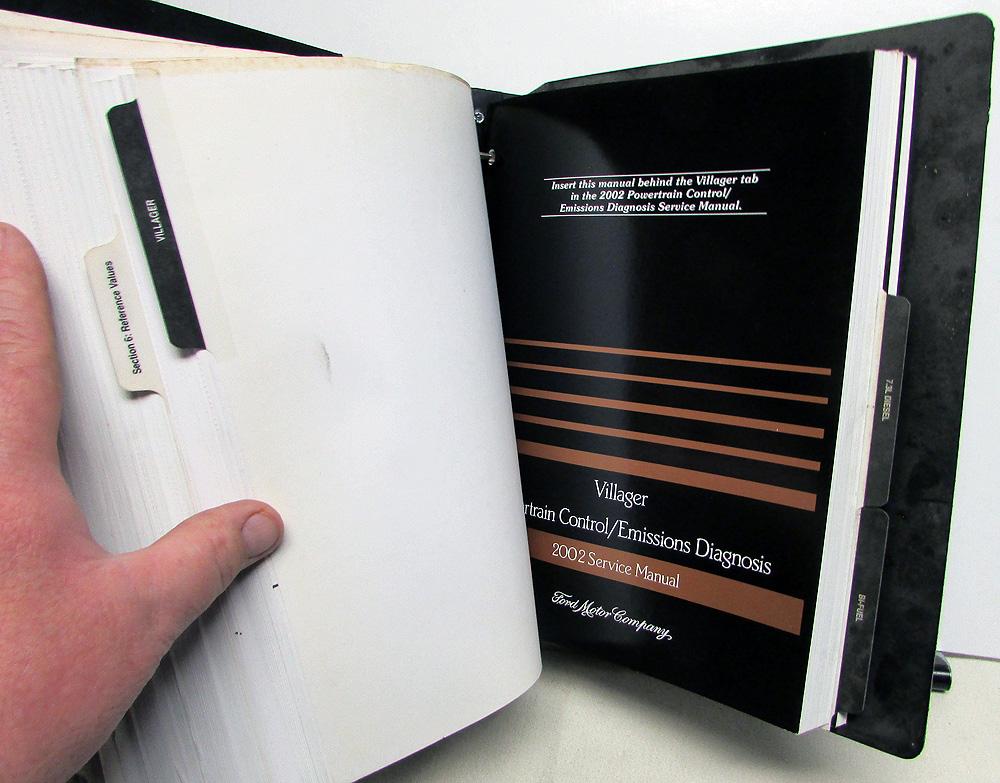

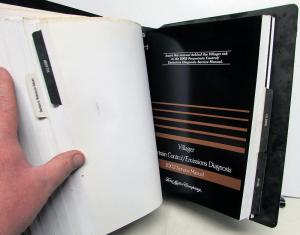

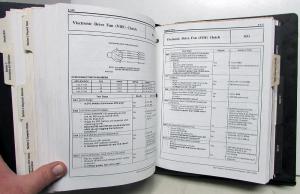

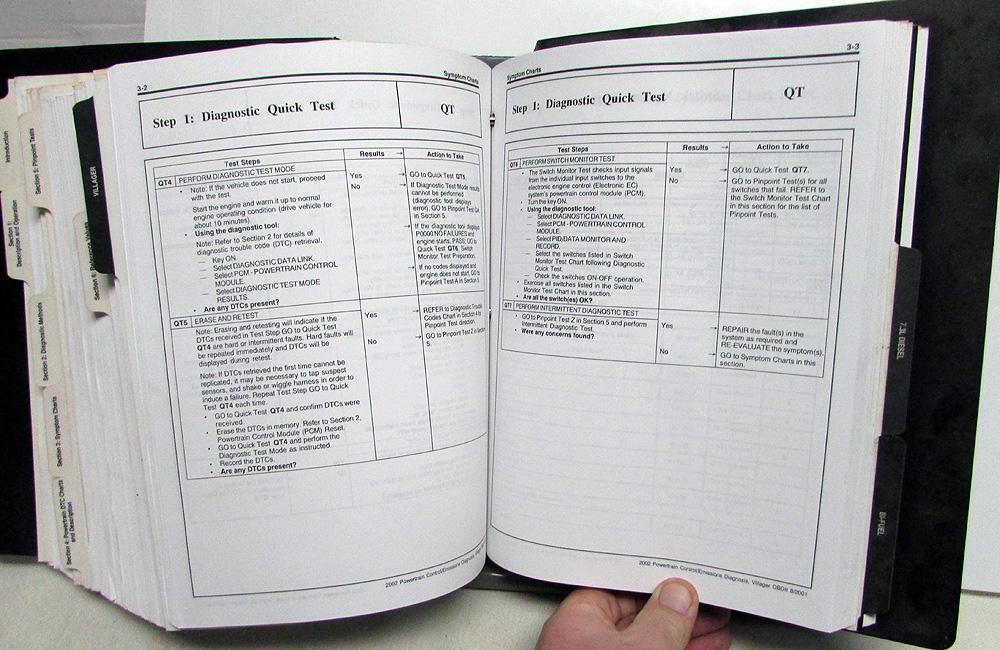

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. This is not a coffee table book. With this type of book, it is the content that reigns supreme and the information within is still legible and can give valuable insight into the care and maintenance of a vehicle. The images shown are representative of what is shipped. The 7.3L Diesel Manual has been damp and shows somw wrinkling and blemishing but it will serve its purpose.
