2001 Mazda Millenia Electrical Wiring Diagram

Price $49.00 $39.20 Details W: 8.5 x H: 11 x D: 0.375 Weight 0.94 lbs. Page Count 152 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45125 OEM Number 9999-95-036G-01 5458-1U-99G In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

2001 Mazda Millenia Electrical Wiring Diagram. Original.

2001 Mazda Millenia Wiring Diagram Service Manual. This manual was used by the Mazda Dealership to diagnose and identify electrical problems on the Mazda Millenia.

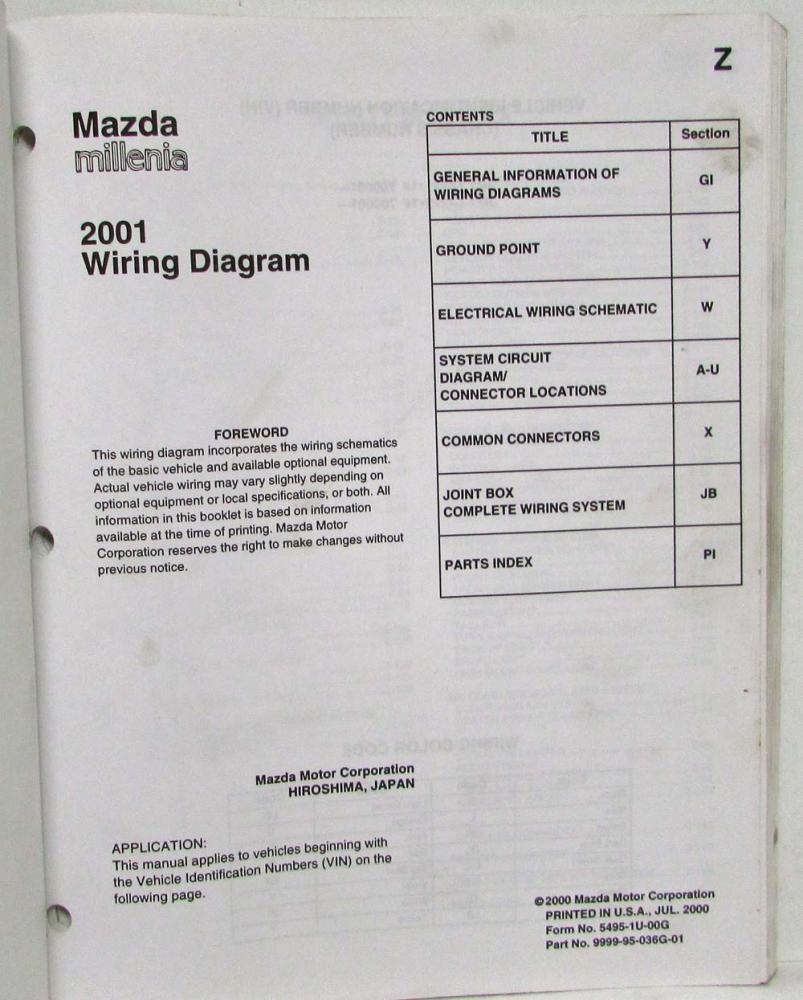

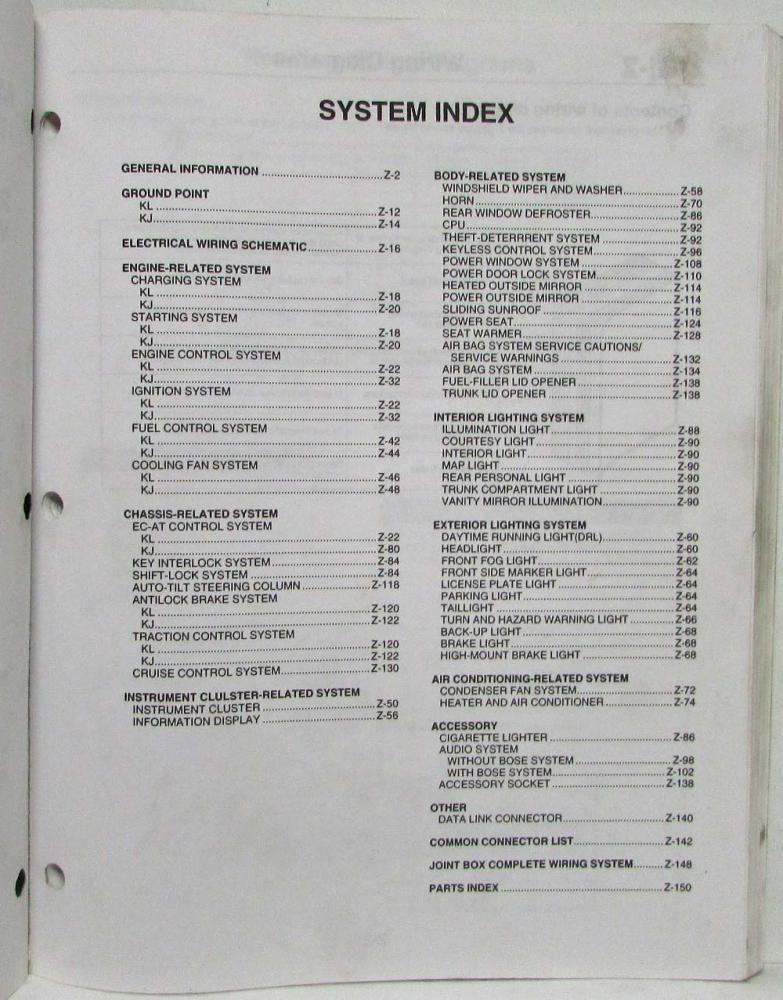

Contents:
General Information of Wiring Diagrams
Ground Point

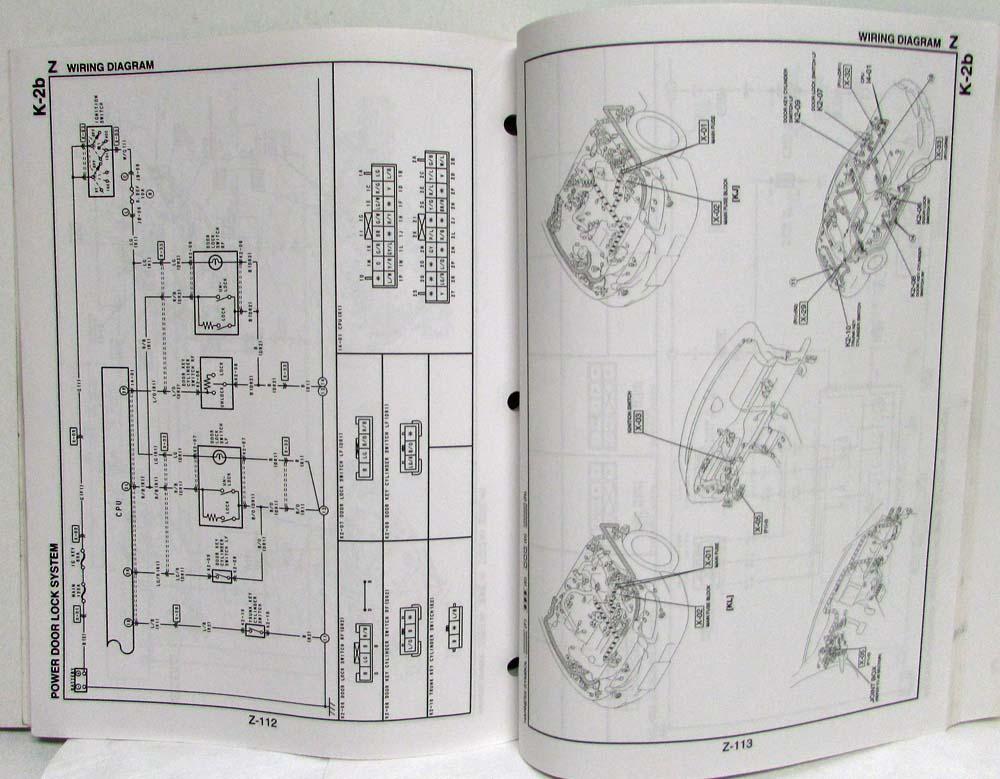

Electrical Wiring Schematic
System Circuit Diagram/Connector Locations
Common Connectors
Joint Box Complete Wiring System
Parts Index

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
