1998 Chevy Pontiac Olds Buick Cadillac GMC Unit Repair Manual Supplement

Price $12.00 $9.60 Details W: 8.5 x H: 11 x D: 0.1 Weight 0.19 lbs. Page Count 38 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-49338 OEM Number GMPT/98-TURM-S In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00


1998 All Passenger Cars and Light Duty Trucks Unit Repair Manual Supplement. Original. Chevrolet. Pontiac. Oldsmobile. Buick. Cadillac. GMC.

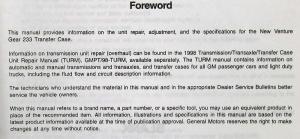

This manual provides information on the unit repair, adjustment, and the specifications for the New Venture Gear 233 Transfer Case.

Information on transmission unit repair (overhaul) can be found in the 1998 Transmission/Transaxle/Transfer Case Unit Repair Manual TURM, GMPT/98-TURM (NOT Included). The TURM manual contains information on automatic and manual transmissions and transaxles, and transfer cases for all GM passenger cars and light duty trucks, including the fluid flow and circuit description information.

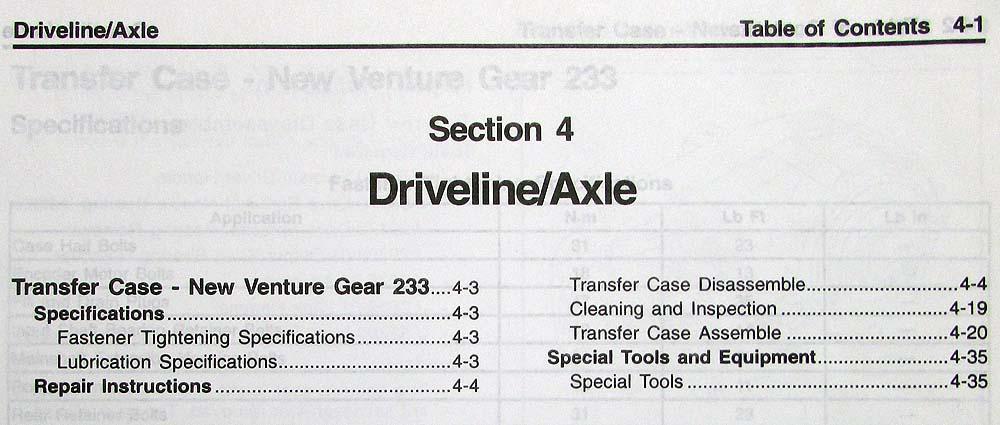

Contents: Section 4 Driveline/Axle

Transfer Case - New Venture Gear 233


Fastener Tightening Specifications
Lubrication Specifications

Repair Instructions

Transfer Case Disassemble
Cleaning and Inspection
Transfer Case Assemble

Special Tools and Equipment

Special Tools

Note: Service manuals can be valuable tools when working on and/or restoring a vehicle. For the uninitiated, keep in mind that these manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments (even today).

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
