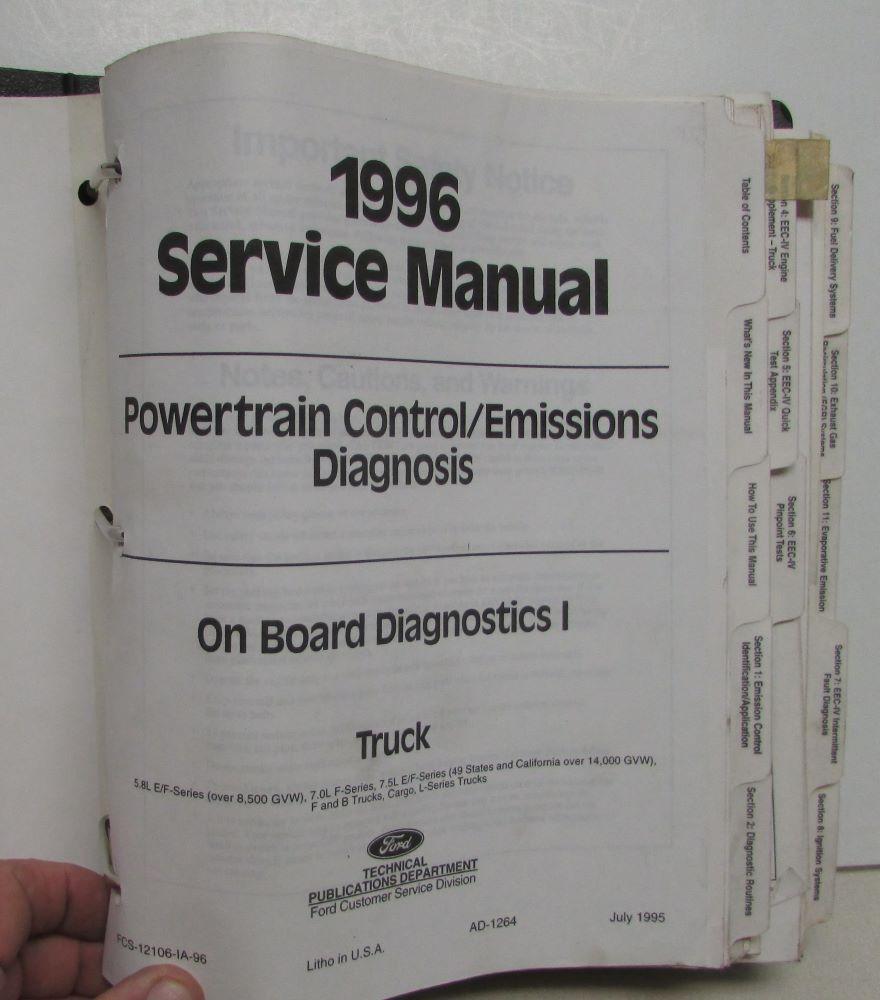

1996 Ford Powertrain Control Emissions Diagnosis Service Manual ODB-I. ORIGINAL.
Note: On Board Diagnostics II (OBD-II or ODB2) is an advanced/improved technology to ODB-I (OBD1). OBD-II provides better and more standardized vehicle protocols and system checks data. OBD-I needs a corded connection and the port is usually found under the hood, while an OBD-II port is usually located within a couple of feet of the steering wheel and data will often be accessed via an ODB-II adapter that supports Bluetooth or Wi-Fi connectivity.
This 1996 Service Manual provides information covering Emissions for some 1996 Ford Motor Company Trucks. Complete emissions related diagnostic procedures for all affected systems or components are covered in this manual. For complete service coverage this manual should be used in conjunction with other Shop Manuals and Wiring Diagrams, which are NOT included.
Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.
Ford: 5.8L E/F-Series (over 8,500 GVW), 7.0L F-Series, 7.5L E/F-Series (49 States and California over 14,000 GVW), F and B Trucks, Cargo, L-Series Trucks.
Table of Contents
What's New in This Manual
How to Use This Manual
Emission Control Identification/Application
EEC-IV Engine Supplement - Truck
EEC-IV Quick Test Appendix
EEC-IV Pinpoint Tests
EEC-IV Intermittent Fault Diagnosis
Fuel Delivery Systems
Exhaust Gas Recirculation (EGR) System
Evaporative Emission (EVAP) Symptom
Air Intake and Throttle Body Systems
Secondary Air Injection (AIR) Systems
Positive Crankcase Ventilation (PCV) Systems
Catalyst and Exhaust Systems
7.0L MFI Truck Governor System
Emission Related Components
Diesel Diagnosis - 7.3L DI Engine
Diesel Diagnosis - FD-1060 and FD1460 Engines
7.0L LPG Engine Diagnostics

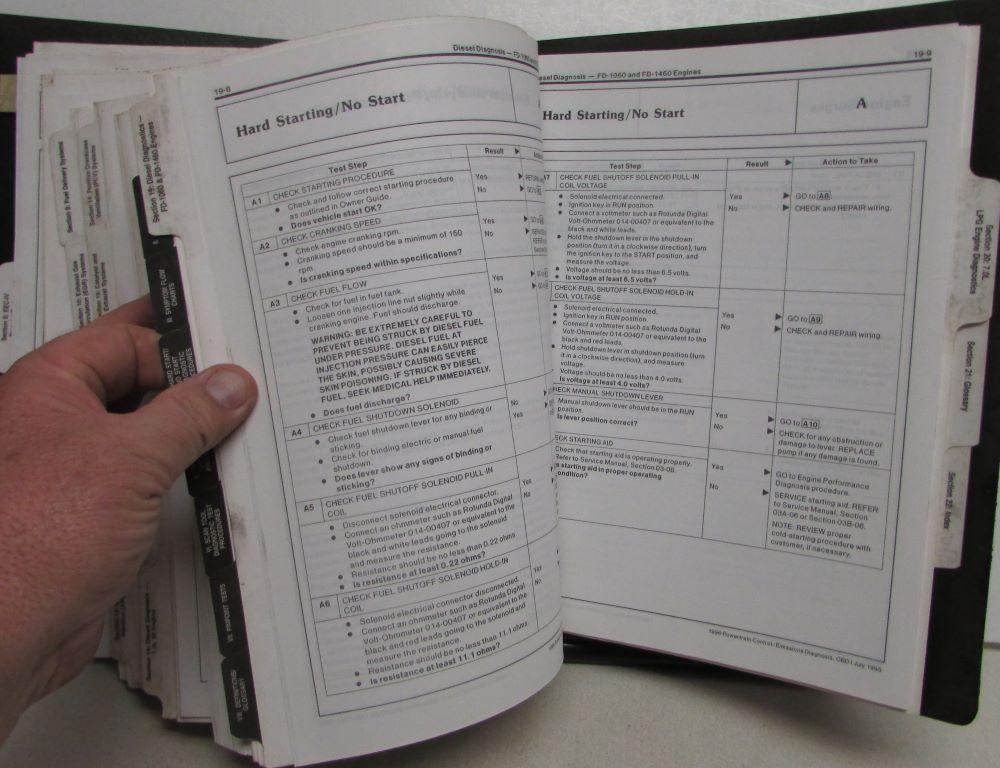

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. This is not a coffee table book. With this type of book, it is the content that reigns supreme and the information within is still legible and can give valuable insight into the care and maintenance of a vehicle. The images shown are representative of what is shipped.
