1995 Mazda RX-7 Body Electrical Troubleshooting Manual

Price $52.00 $41.60 Details W: 8.5 x H: 11 x D: 1.125 Weight 2.81 lbs. Page Count 450+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45379 OEM Number 9999-95-085F-95 1456-10-94G In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $80.75

---

Description

1995 Mazda RX-7 Body Electrical Troubleshooting Manual. Original.

This manual is intended as an aid for repairing the body electrical systems of the vehicle.

Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

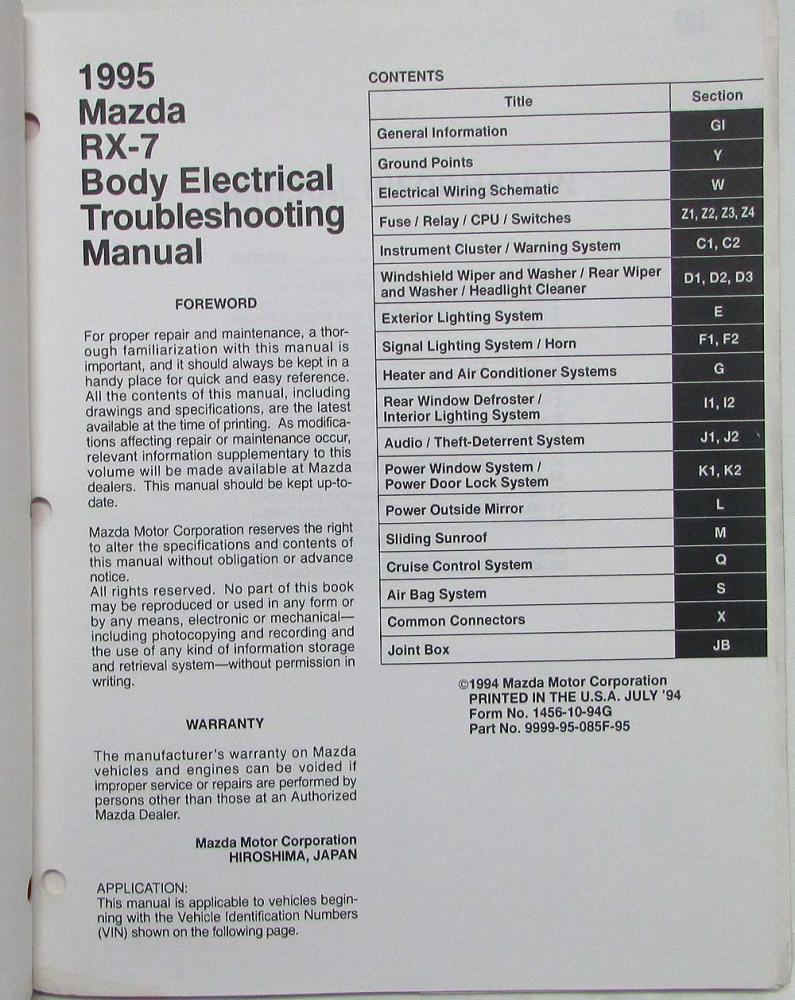

Contents:

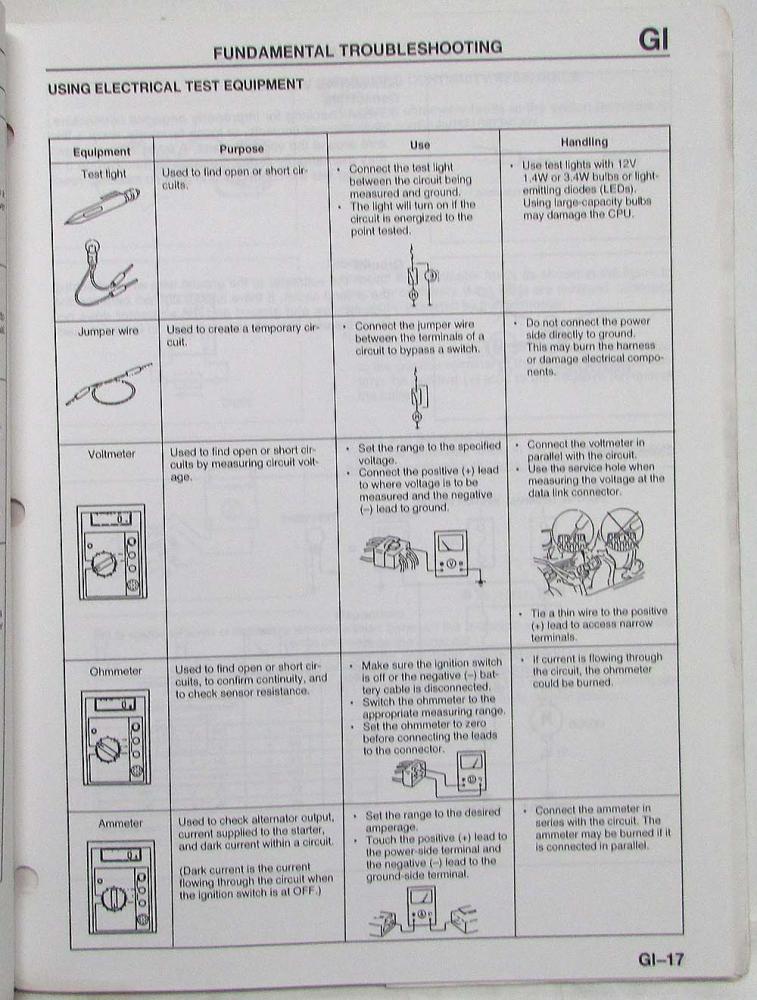

General Information
Ground Points

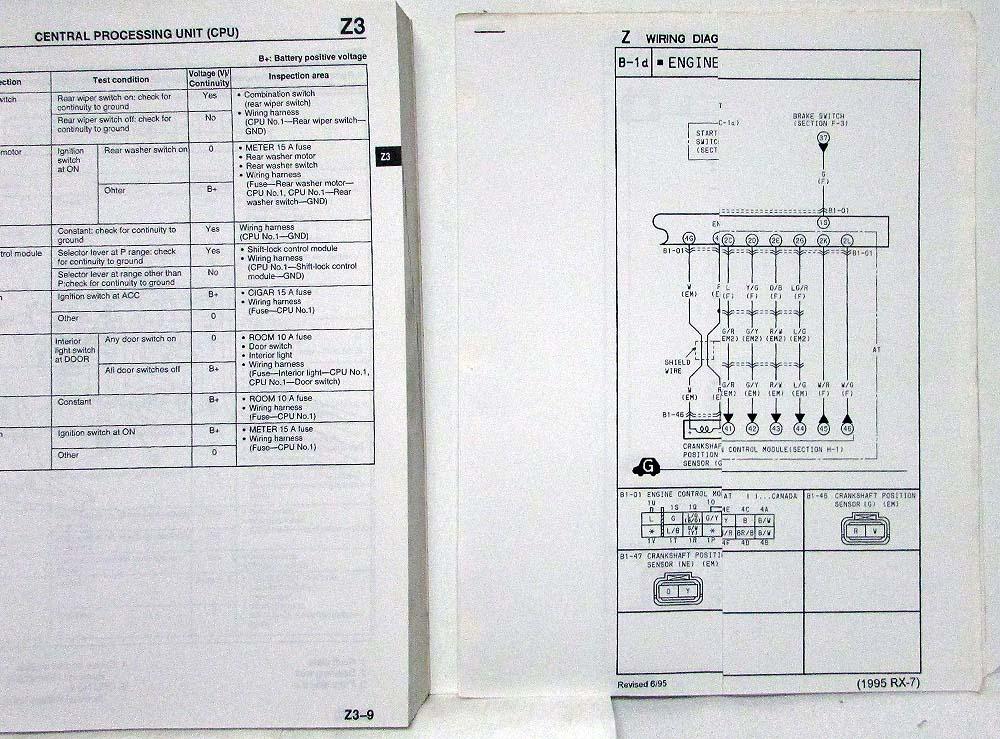

Electrical Wiring Schematic
Fuse/Relay/CPU/Switches
Instrument Cluster/Warning System

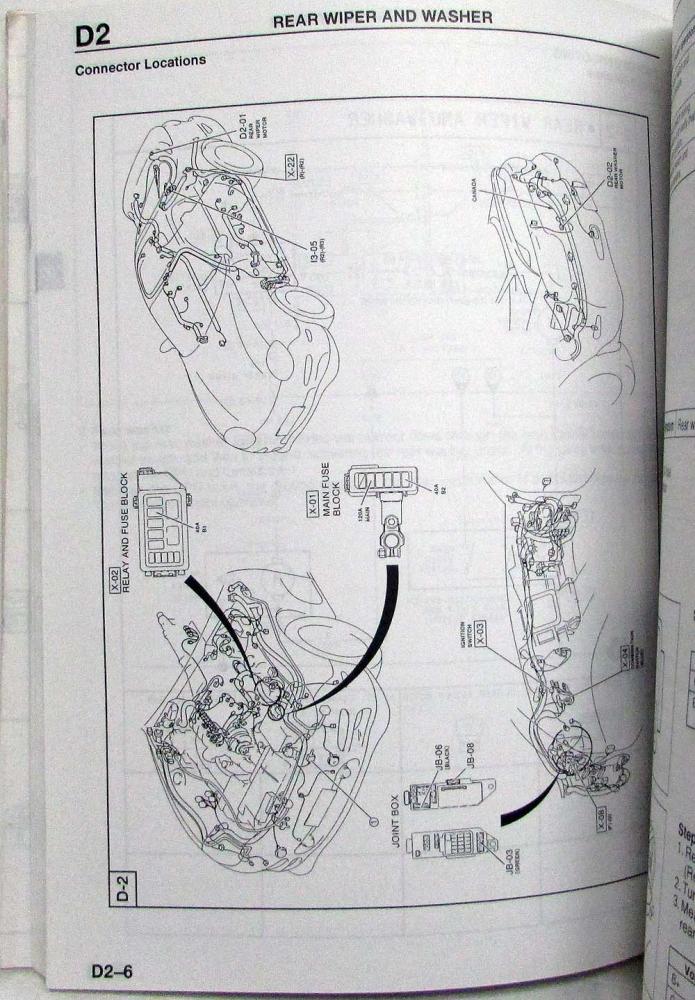

Windshield Wiper and Washer/Rear Wiper and Washer/Headlight Cleaner
Exterior Lighting System
Signal Lighting System/Horn
Heater and Air Conditioner Systems
Rear Window Defroster/Interior Lighting System

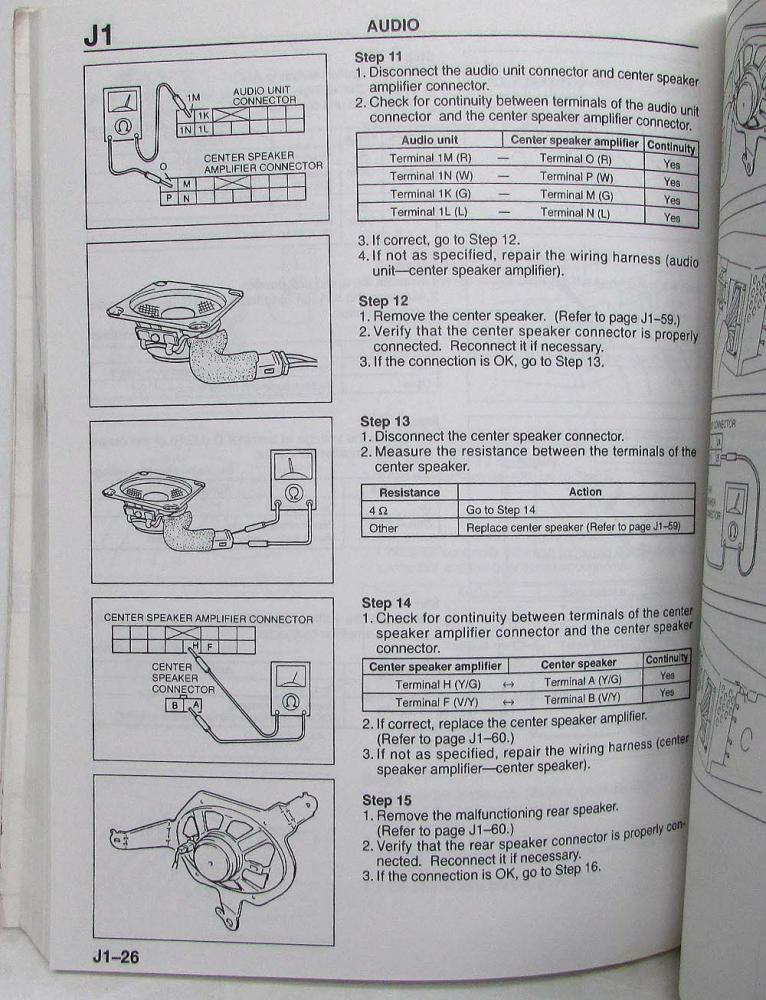

Audio/Theft-Deterrent System
Power Window System/Power Door Lock System
Power Outside Mirror
Sliding Sunroof
Cruise Control System
Air Bag System
Common Connectors
Joint Box

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. Someone has stuck some revised pages in it.
