1995 Mazda MX-3 Electrical Wiring Diagram Manual

Price $39.00 $31.20 Details W: 8.5 x H: 11 x D: 0.5625 Weight 1.25 lbs. Page Count 125+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45013 OEM Number 9999-95-034G-95 5330-10-94G In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

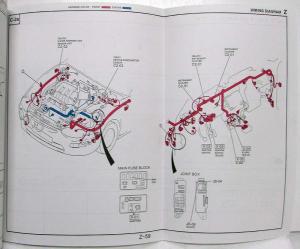

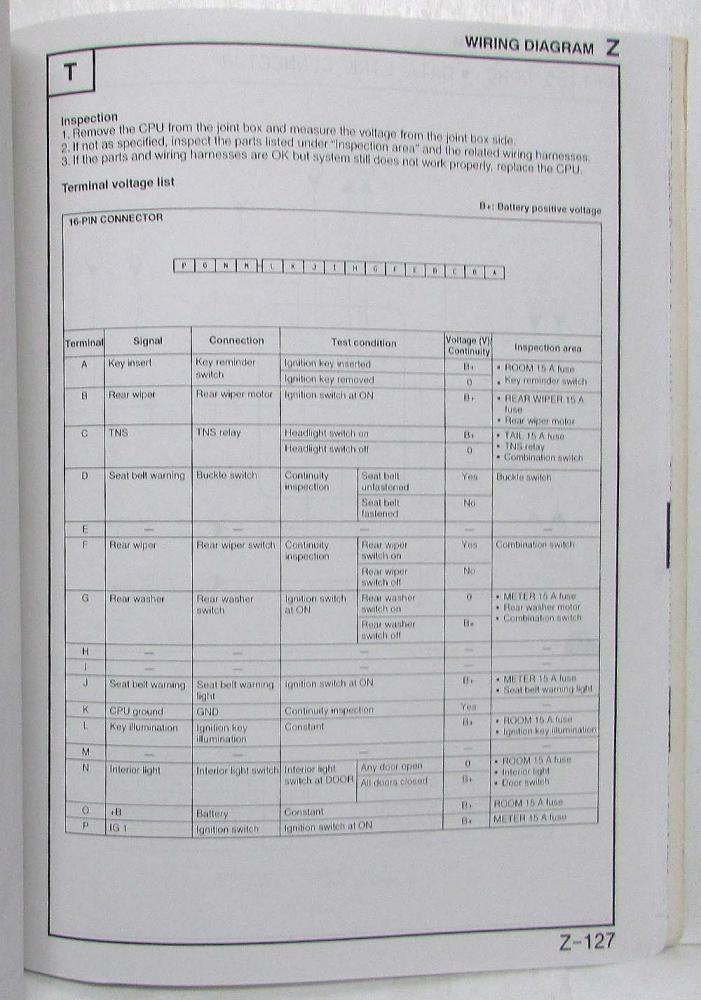

1995 Mazda MX-3 Electrical Wiring Diagram Manual. Original.

This wiring diagram incorporates the wriing schematics of the basic vehicle and available optional equipment. Actual vehicle wiring may vary slightly depending on optional equipment or local specifications, or both. All information in this booklet is based upon information available at the time of printing.

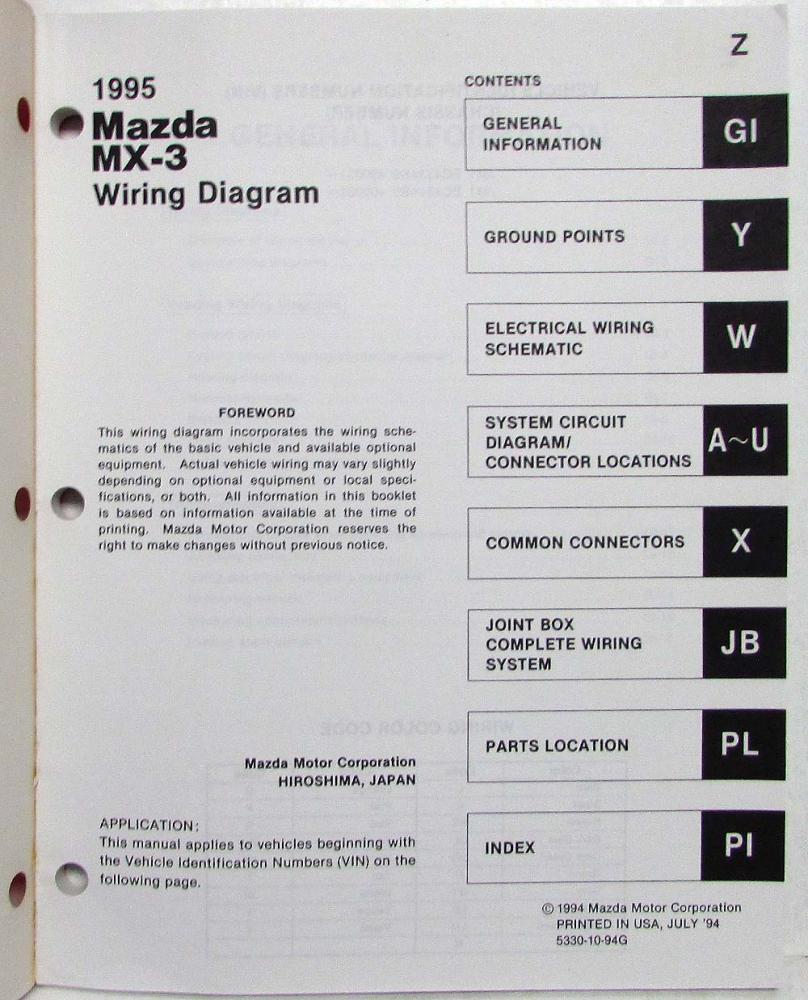

Contents:
General Information
Grount Points
Electrical Wiring Schematic
System Circuit Diagram/Connector Locations
Common Connectors
Joint Box Complete Wiring System
Parts Location
Index

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
