1995 Mazda B-Series (B2300, B3000, B4000) Pickup Truck Body Electrical Troubleshooting Manual. Original.

This manual is intended for use by service technicians of authorized Mazda dealers to help them diagnose body electrical systems of Mazda vehicles. It can also be useful to owners and operators of Mazda vehicles in diagnosing some problems and performing limited repair and maintenance on Mazda vehicles.

Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

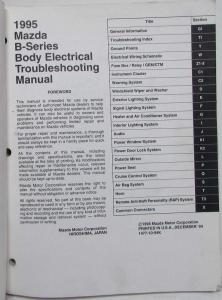

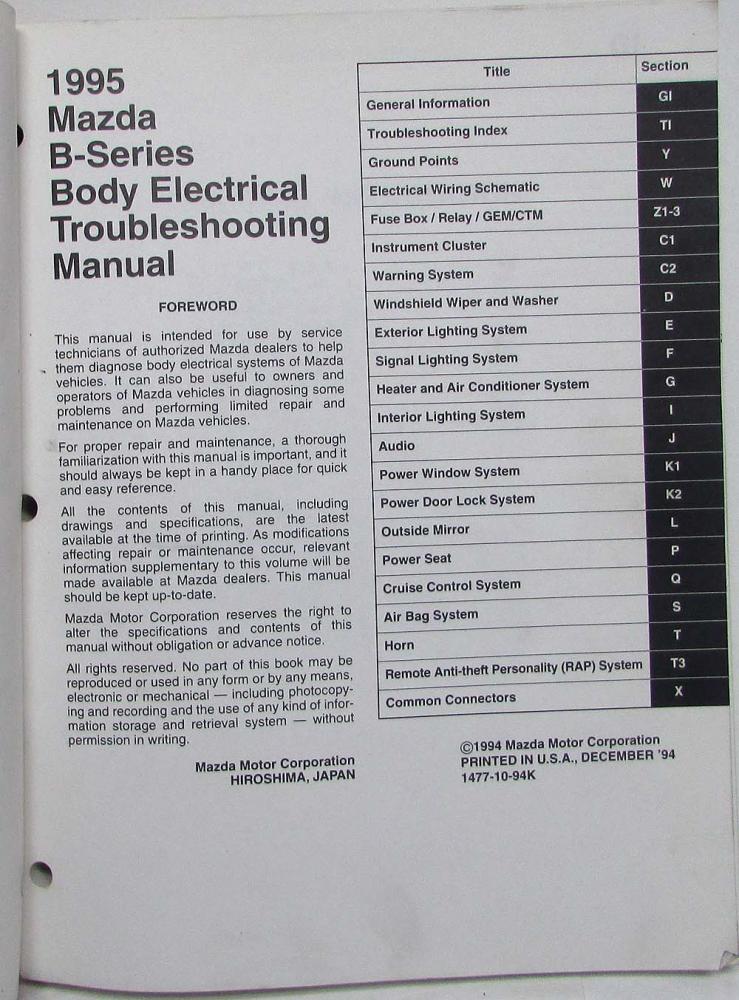

Contents:
General Information

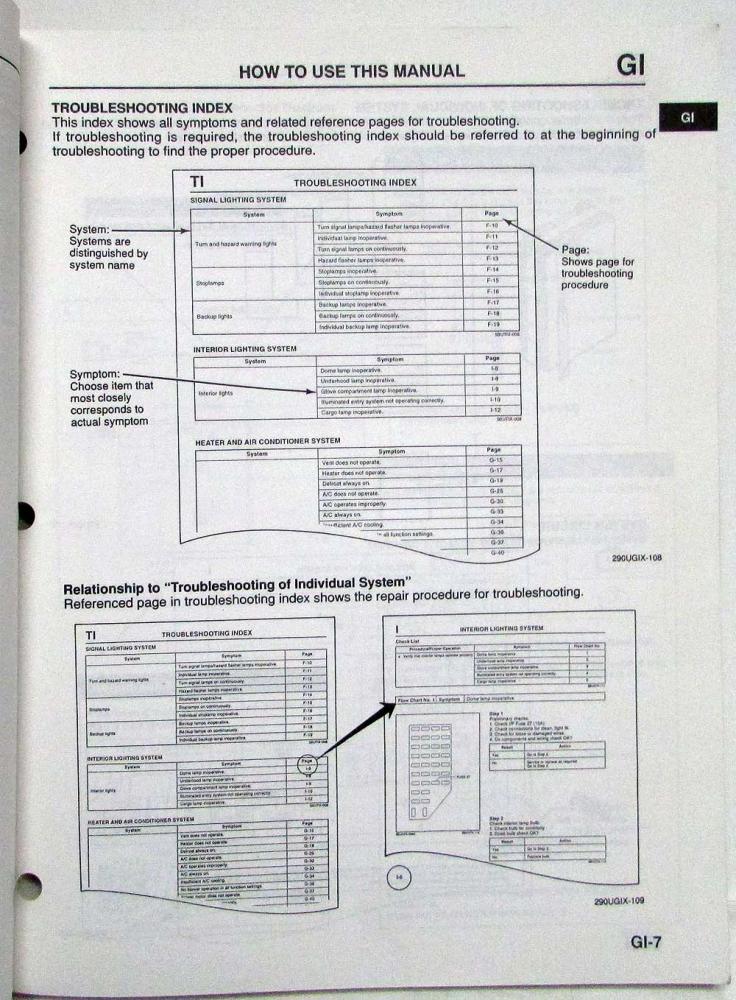

Troubleshooting Index
Ground Points
Electrical Wiring Schematic
Fuse Box/Relay/ GEM/CTM
Instrument Cluster
Warning System

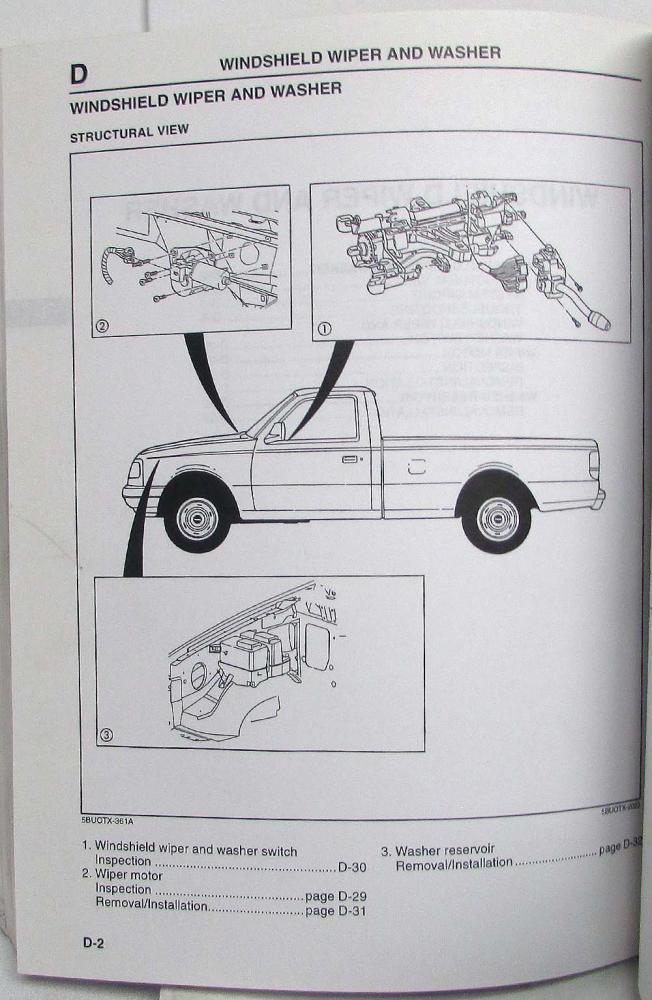

Windshield Wiper and Washer
Exterior Lighting System
Signal Lighting System

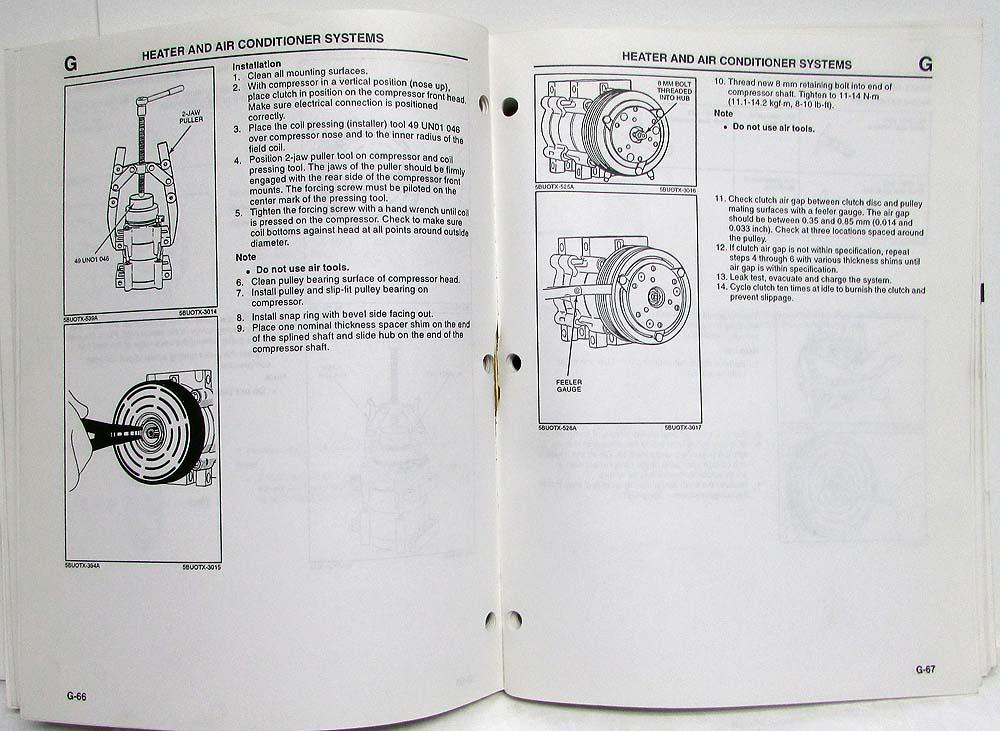

Heater and Air Conditioner System
Interior Lighting System
Audio
Power Window System
Power Door Lock System
Outside Mirror
Power Seat
Cruise Control System
Air Bag System
Horn
Remote Anti-theft Personality (RAP) System
Common Connectors

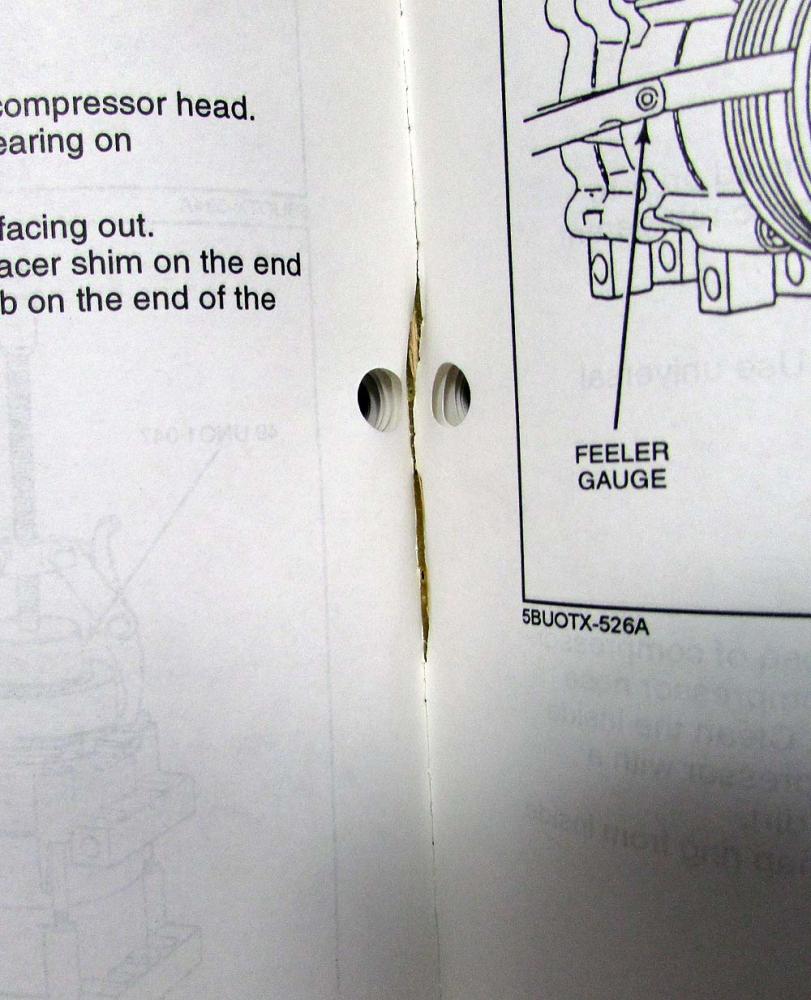

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
