1995 Eagle Talon Dealer Service Shop Repair Manual Volume 2 Only Electrical

Price $29.95 $23.96 Details W: 8.5 x H: 11 x D: 0.75 Weight 1.50 lbs. Page Count 200 + Condition Used Original - Good Item Type Factory Manual Inventory Number SM-50193 OEM Number 81-270-5501
Flat US shipping rate: $6.95
Flat International shipping rate: $49.95

Description

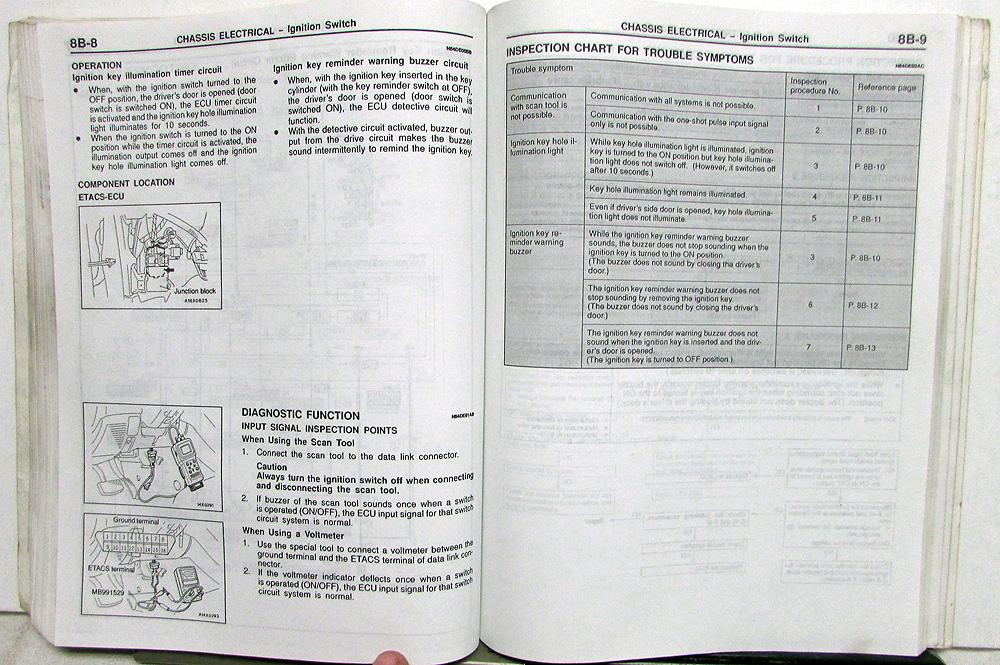

Original 1995 Eagle Talon Dealer Service Manual [Volume 2 ONLY]. This Volume 2 [Electrical] Shop Manual is what the Dealer used to help service and repair your Talon. It has information, specifications, troubleshooting, procedures and illustrations to aid in repairing Electrical issues on these Models. The Volume 1 [Chassis/Body/Engine Service Manual] is NOT INCLUDED.


Volume 1 covers Groups: *NOT INCLUDED*

Lubrication

Front Suspension

Rear Axle

Brakes

Clutch

Cooling

Engine

Intake & Exhaust

Fuel

Prop. Shaft

Rear Suspension

Steering

Transaxle

Wheels

Body

Heat & A/C

Emissions

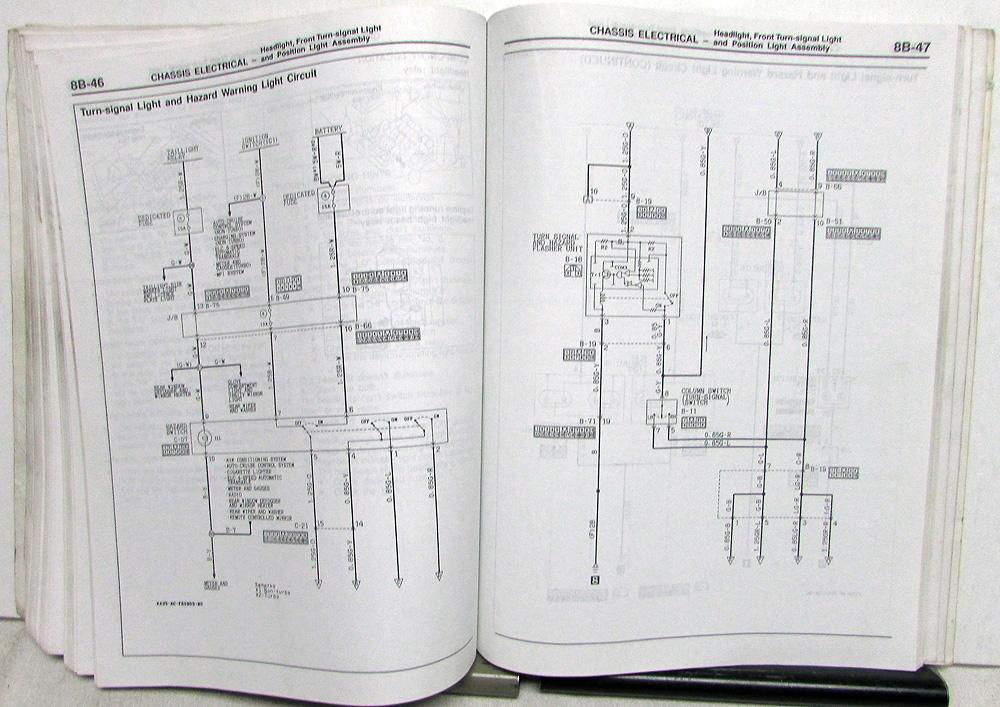

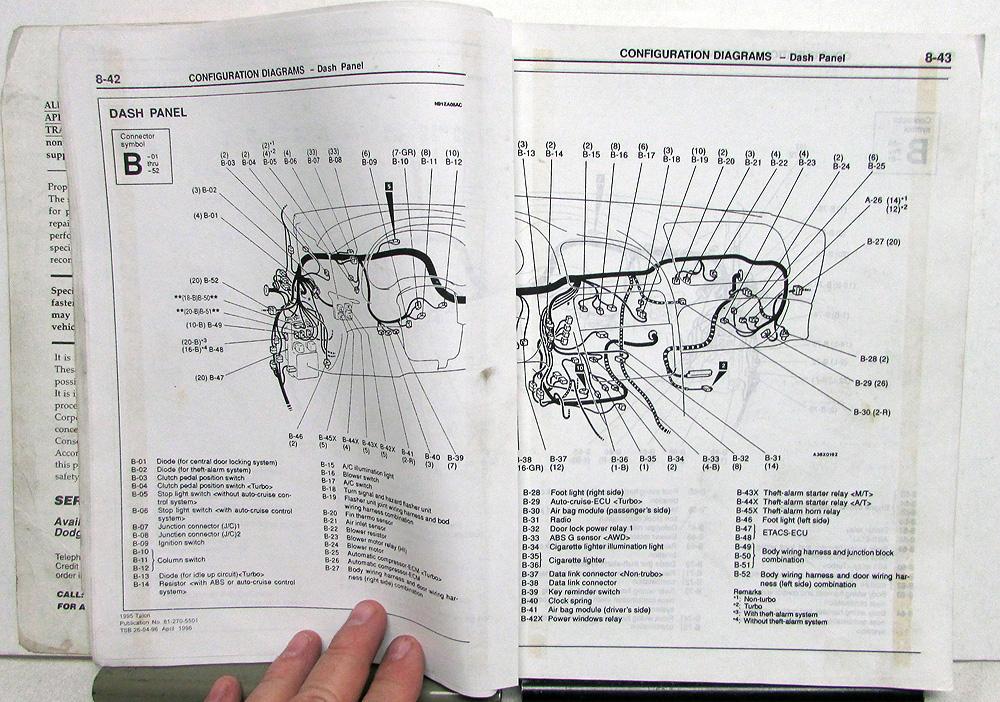

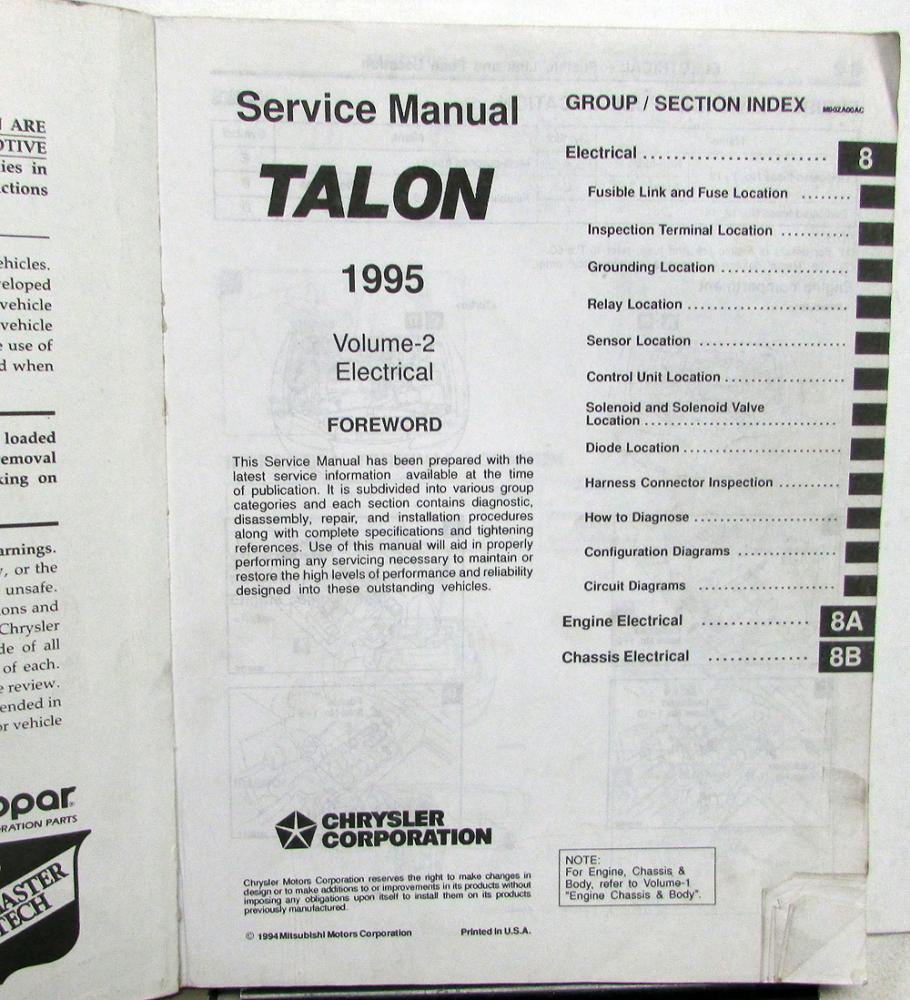

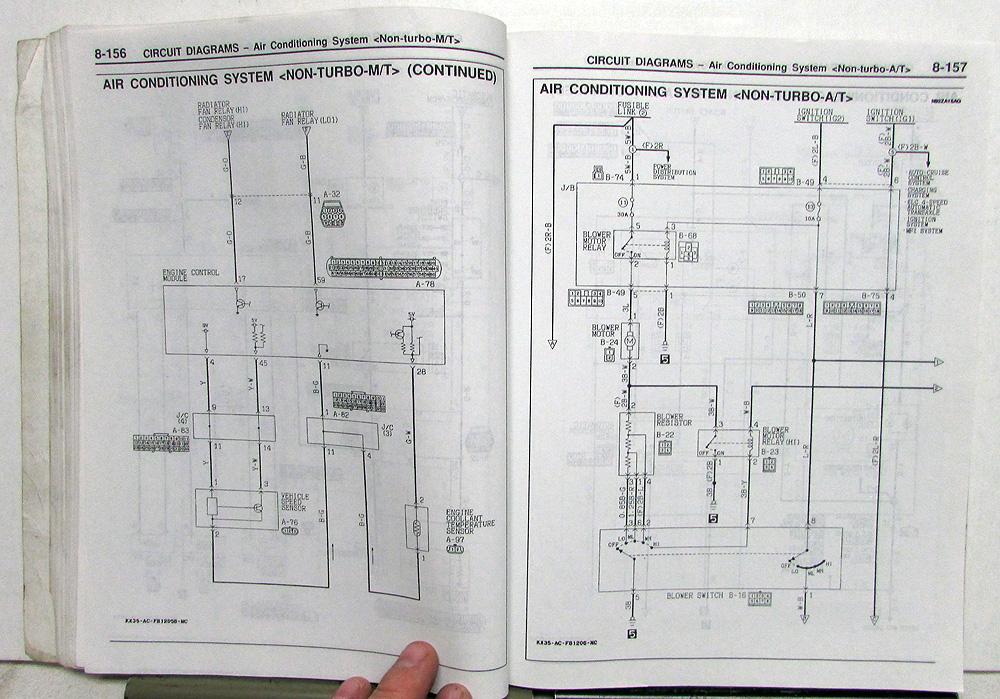

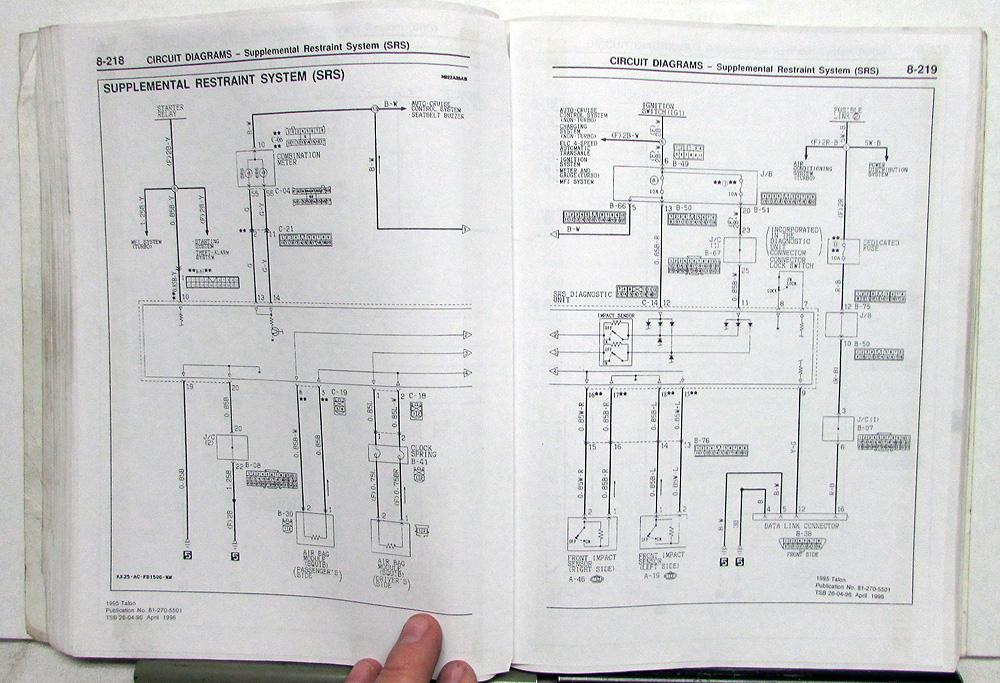

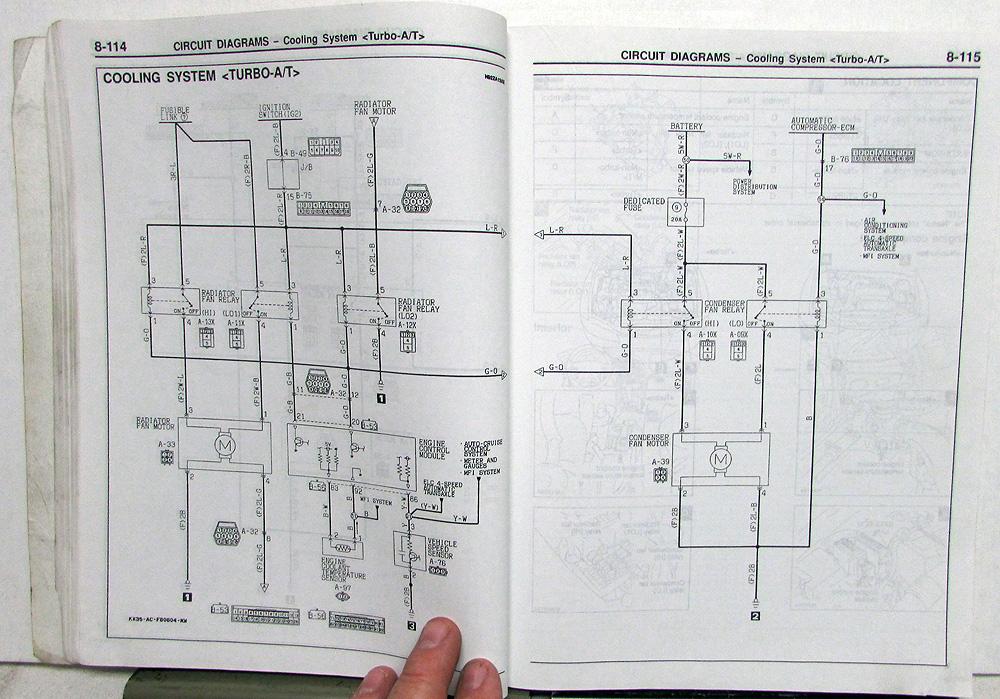

Volume 2 covers the Electrical Components and has Wiring Diagrams. *INCLUDED*


This Electrical Manual is in good condition with normal wear, blemishing and soiling from use in a Dealership [see photos].  81-270-5501


Out of Stock.
