1993 Ford Car-Truck Powertrain Emissions Diagnosis Service Manual Mustang F-250

Price $119.00 Details W: 10 x H: 11.75 x D: 5.75 Weight 14.81 lbs. Page Count 850+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-43102 OEM Number FPS-12106-93 FPS-12106-93-B In Stock
Flat US shipping rate: $19.95
Flat International shipping rate: $156.65

Description

1993 Ford Car-Truck Powertrain Emissions Diagnosis Service Manual. ORIGINAL

This 1993 Service Manual provides information covering Emissions for all 1993 Ford Motor Company Passenger Cars and Trucks. Complete emissions related diagnostic procedures for all affected systems or components are covered in this manual.

For service information on specific vehicle lines for Body, Chassis, Electrical and Powertrains, refer to the individual service manual (NOT included). For information on pre-delivery, maintenance and lubrication for all vehicles, refer to the Pre-Delivery, Maintenance and Lubrication manual (NOT included).

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.


Contents Powertrain Control/Emissions Diagnosis Manual. Powertrain Control Systems Designed in North America:

Applicable models: 1993
Ford: Festiva / Escort / Probe / Mustang / Tempo / Taurus / Thunderbird / Crown Victoria / Ranger / Aerostar / Explorer / E-Series / F-Series / Bronco
Mercury: Capri / Tracer / Topaz / Sable / Cougar / Villager
Lincoln: Continental / Town Car / Mark VIII

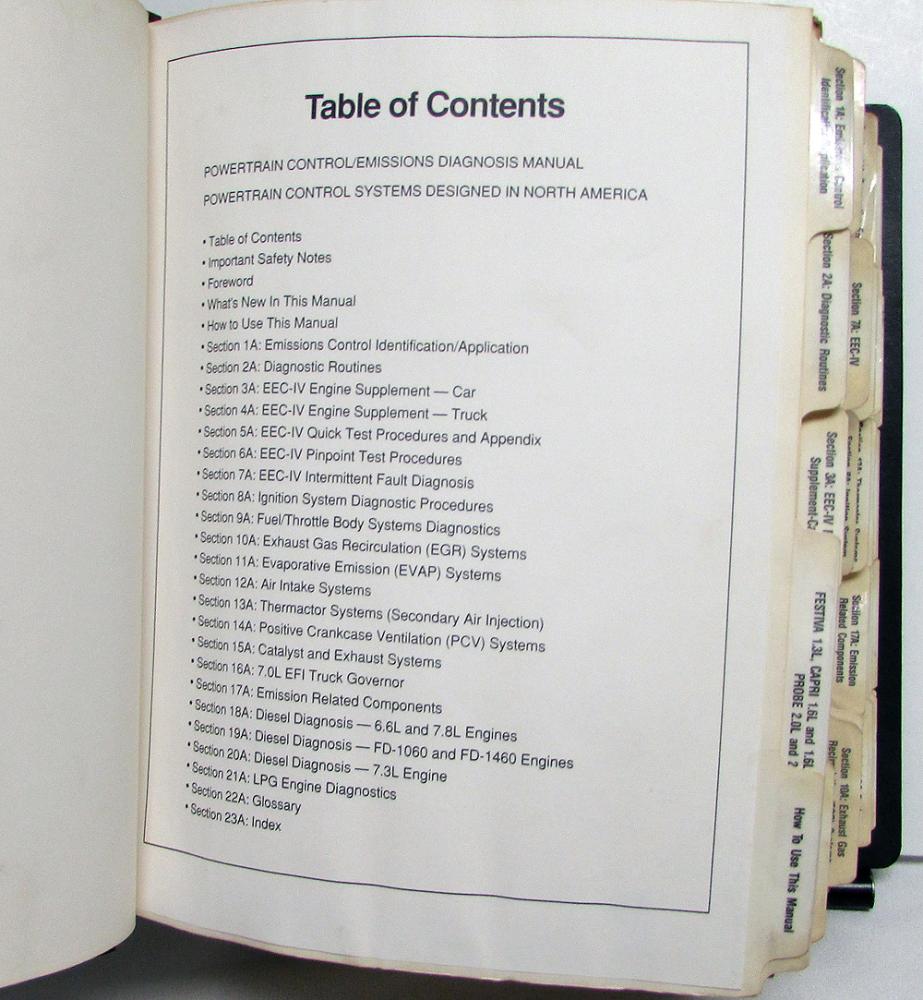

Table of Contents
Important Safety Notes
Foreword
What's New In This Manual
How to Use This Manual
Section 1A: Emissions Control Identification/Application

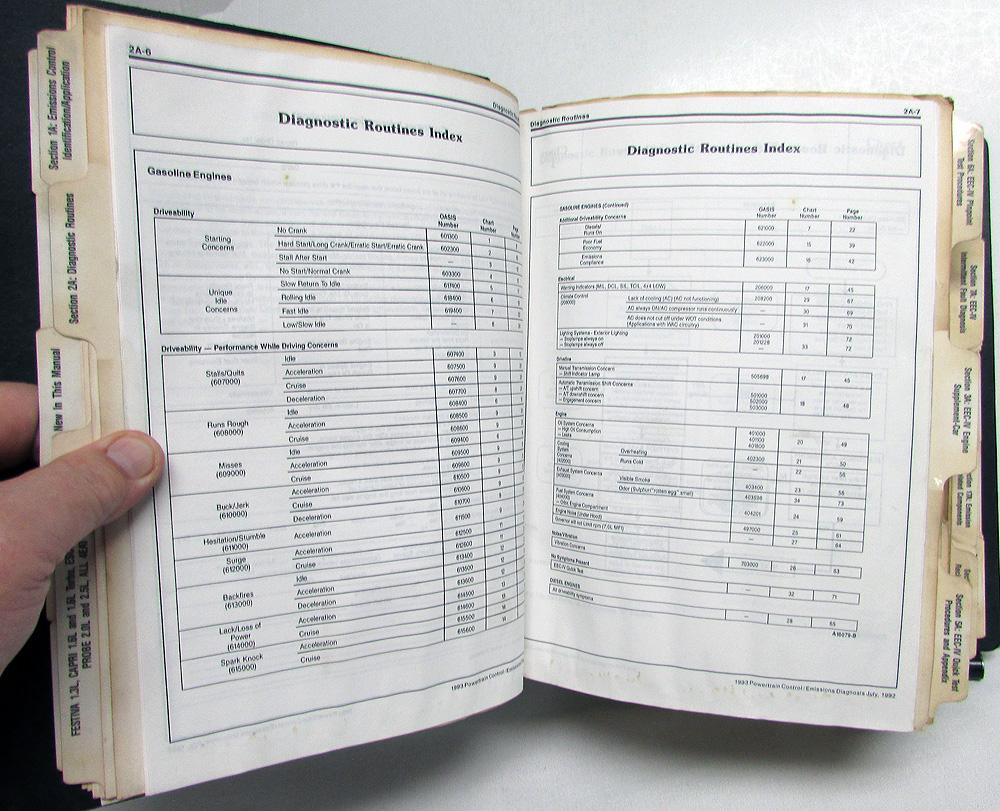

Section 2A: Diagnostic Routines
Section 3A: EEC-IV Engine Supplement - Car
Section 4A: EEC-IV Engine Supplement - Truck
Section 5A: EEC-IV Quick Test Procedures and Appendix

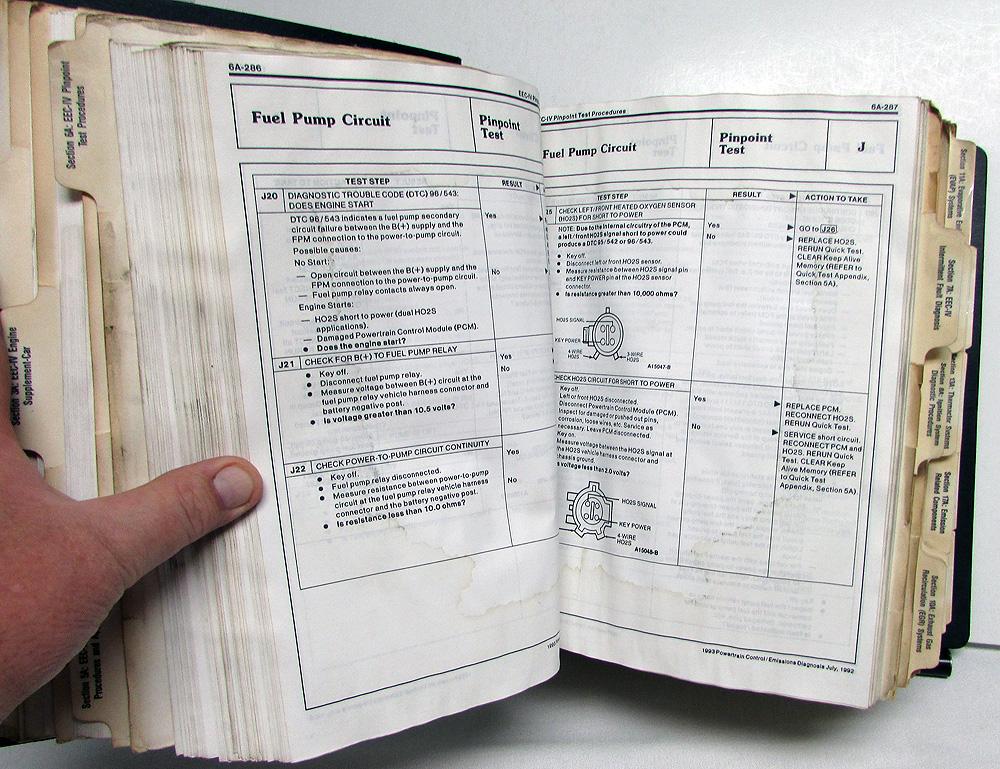

Section 6A: EEC-IV Pinpoint Test Procedures

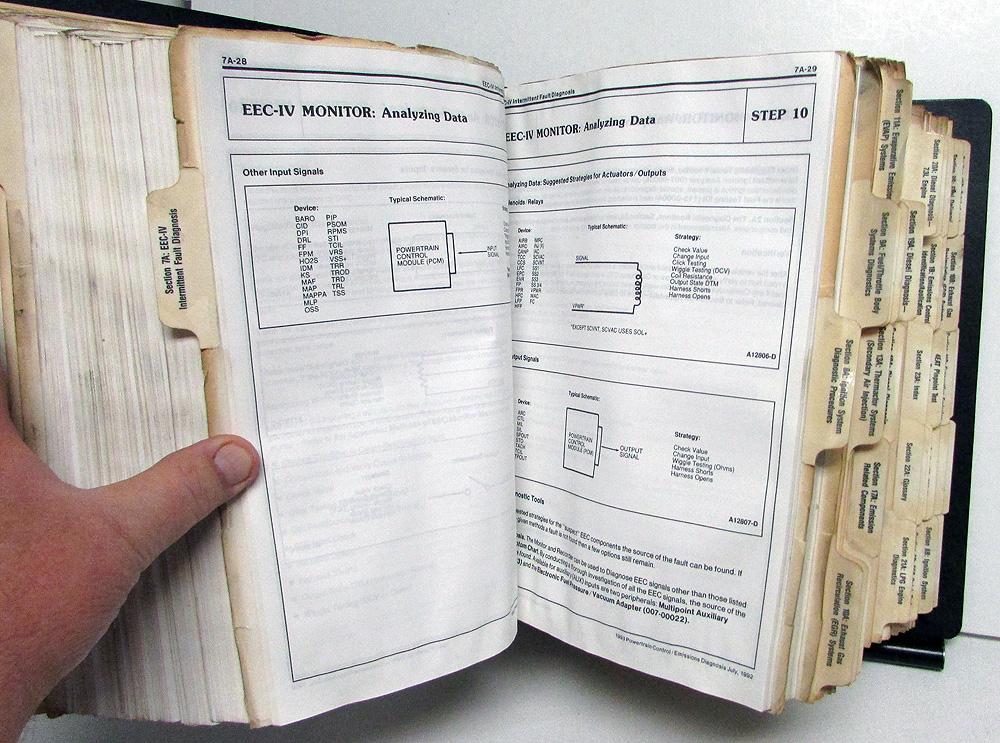

Section 7A: EEC-IV Intermittent Fault Diagnosis

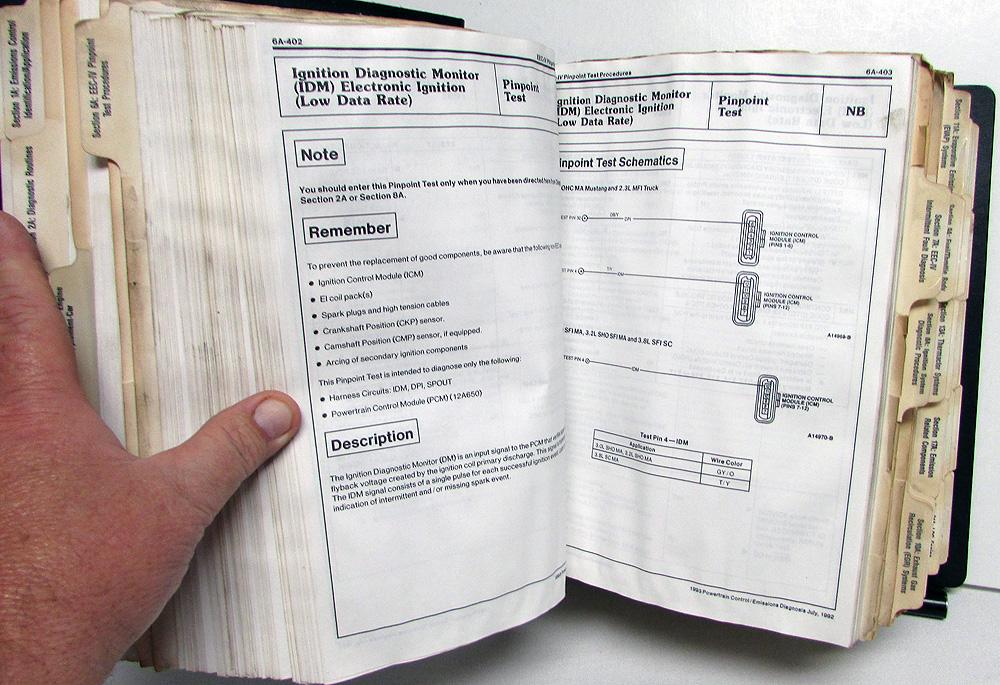

Section 8A: Ignition System Diagnostic Procedures
Section 9A: Fuel/Throttle Body Systems Diagnostic
Section 10A: Exhaust Gas Recirculation (EGR) Systems
Section 11A: Evaporative Emission (EVAP) Systems
Section 12A: Air Intake System
Section 13A: Thermactor Systems (Secondary Air Injection)
Section 14A: Positive Crankcase Ventilation (PCV) Systems
Section 15A: Catalyst and Exhaust Systems

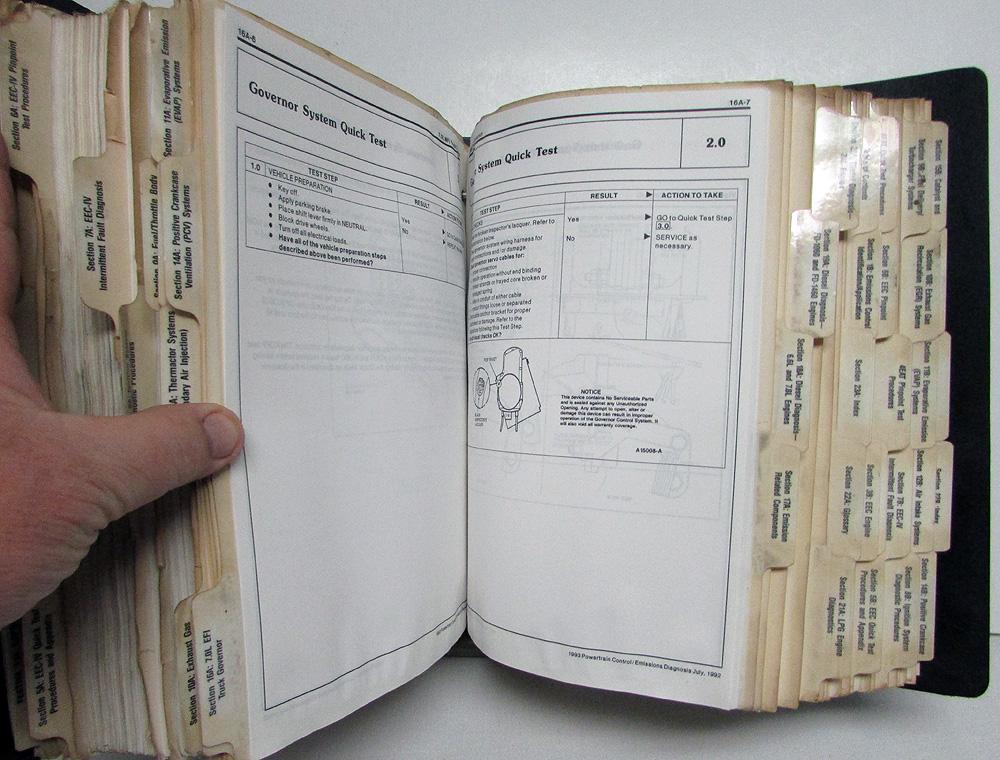

Section 16A: 7.0L EFI Truck Governor
Section 17A: Emission Related Components
Section 18A: Diesel Diagnosis - 6.6L and 7.8L Engines
Section 19A: Diesel Diagnosis - FD-1060 and FD-1460 Engines

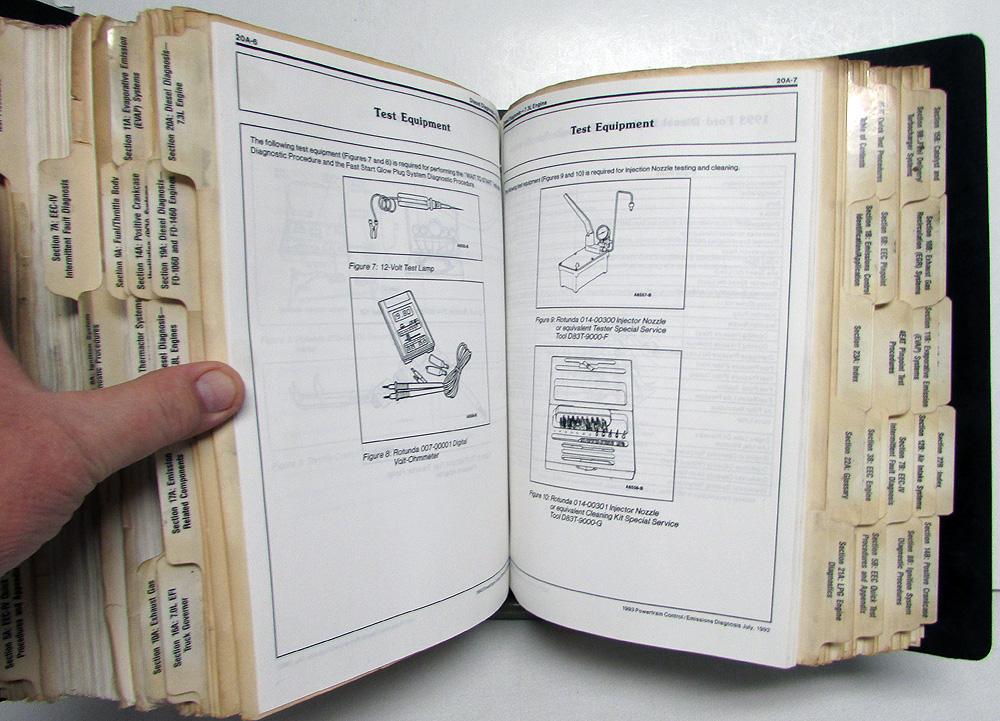

Section 20A: Diesel Diagnosis - 7.3L Engine
Section 21A: LPG Engine Diagnostics
Section 22A: Glossary
Section 23A: Index


Contents Powertrain Control/Emissions Diagnosis Manual.

Applicable models: 1993
Ford: Festiva / Escort / Probe
Mercury: Capri / Tracer

Section 1B: Emissions Control Identification/Application
Section 2B: Diagnostic Routines
Section 3B: EEC Engine Supplement - Car
Section 5B: EEC Quick Test Procedures and Appendix (includes 4EAT Quick Test Procedures)

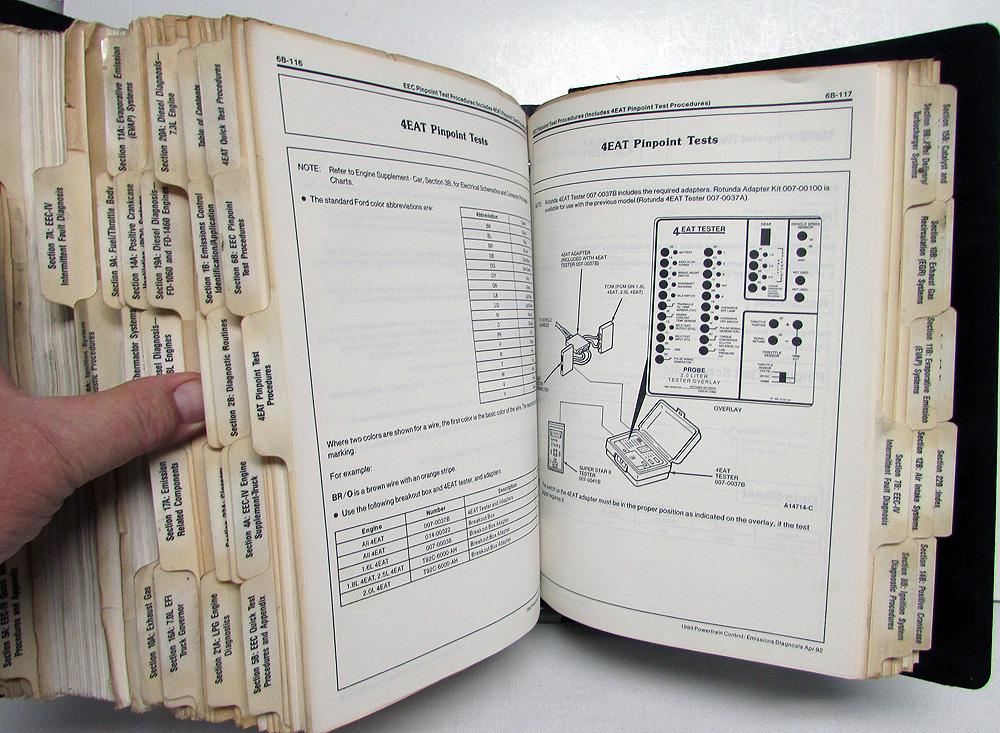

Section 6B: EEC Pinpoint Test Procedures (Includes 4EAT Pinpoint Test Procedures)
Section 7B: EEC Intermittent Fault Diagnosis
Section 8B: Ignition System Diagnostic Procedures
Section 9B: Fuel Delivery/Turbocharger Systems
Section 10B: Exhaust Gas Recirculation (EGR) Systems
Section 11B: Evaporative Emission (EVAP) Systems
Section 12B: Air Intake Systems
Section 14B: Positive Crankcase Ventilation (PCV) Systems
Section 15B: Catalyst and Exhaust Systems
Section 17B: Emission Related Components
Section 21B: Glossary
Section 22B: Index


Contents Villager Powertrain Control/Emissions Diagnosis Manual.

Applicable models: 1993
Mercury: Villager

Emissions Control Identification/Application
Diagnostic Routines
EEC Engine Supplement - Car
EEC Quick Test Procedures and Appendix (includes 4F20E [Automatic Transaxle] Quick Test Procedures)
EEC Pinpoint Test Procedures (Includes 4F20E [Automatic Transaxle] Pinpoint Test Procedures)
EEC Intermittent Fault Diagnosis
Ignition System Diagnostic Procedures
Fuel Delivery Systems
Exhaust Gas Recirculation (EGR) Systems
Evaporative Emission (EVAP) Systems
Air Intake Systems
Positive Crankcase Ventilation (PCV) Systems
Catalyst and Exhaust Systems
Emission Related Components
Glossary
Index

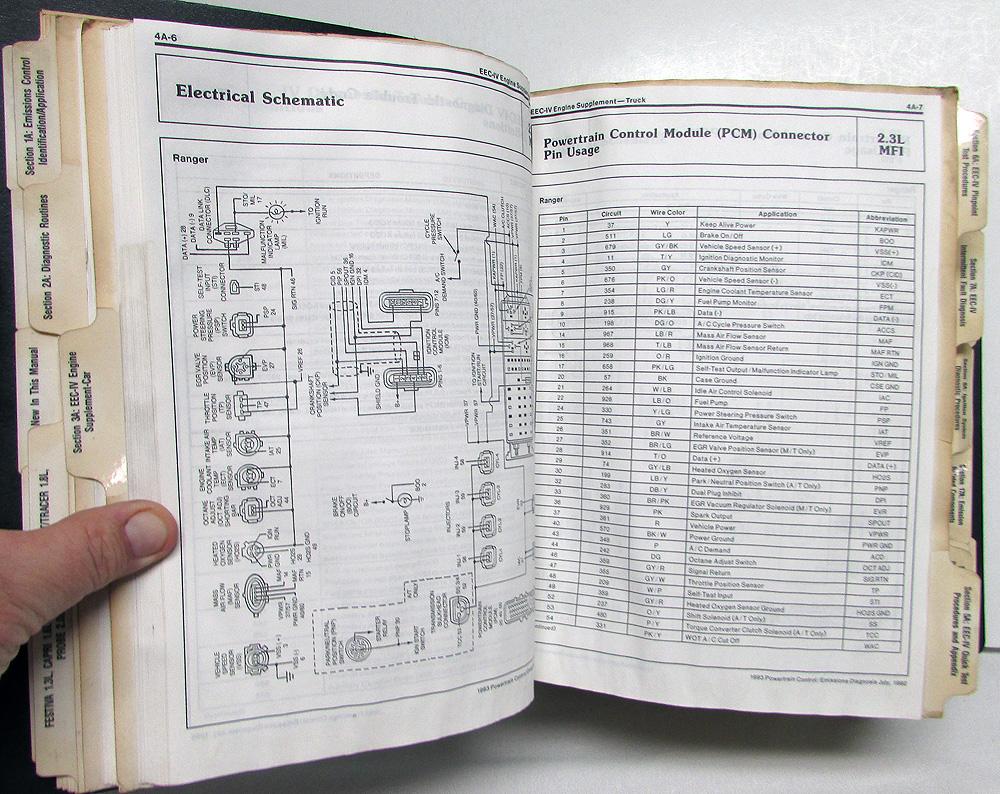

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
