1992 Chevrolet Lumina APV, Pontiac Trans Sport, and Oldsmobile Silhouette Rear HVAC Manual Supplement. Original.

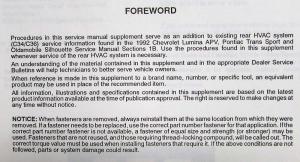

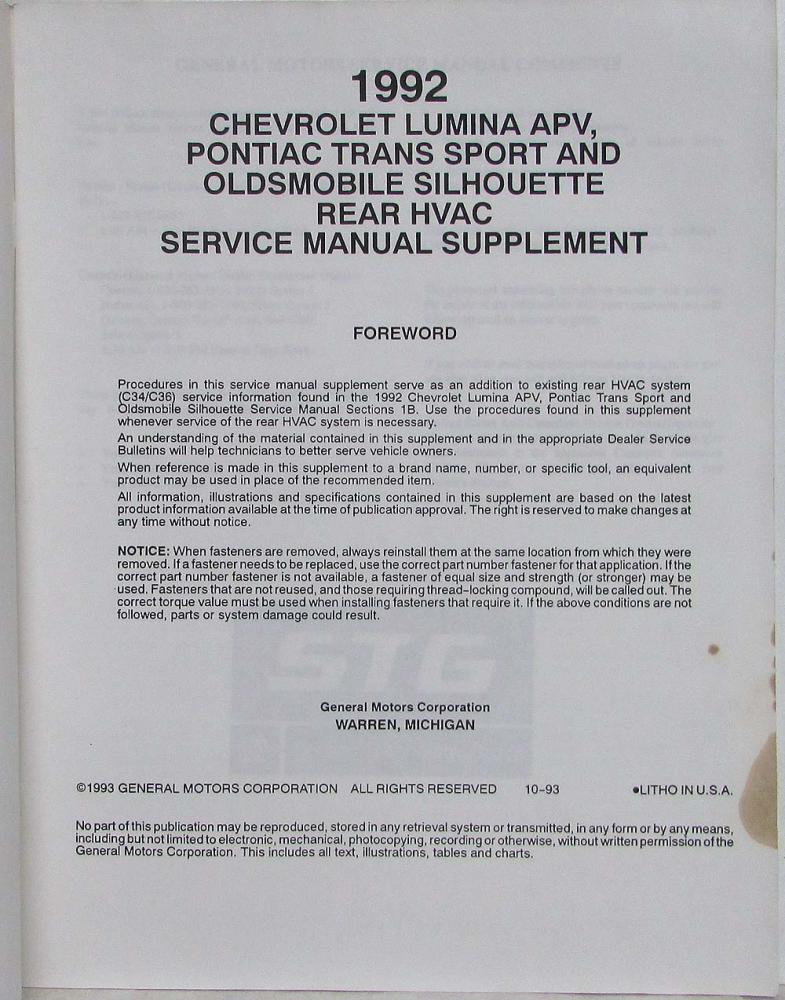

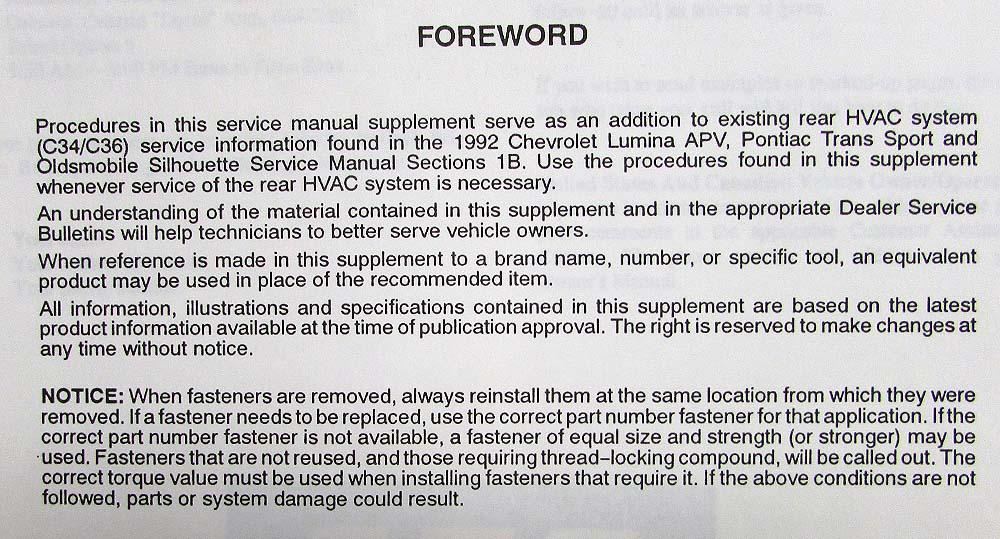

Procedures in this service manual supplement serve as an addition to existing rear HVAC system (C34/C36) service information found in the 1992 Chevrolet Lumina APV, Pontiac Trans Sport and Oldsmobile Silhouette Service Manual Sections 1B. Use the procedures found in this supplement whenever service on the rear HVAC system is necessary.

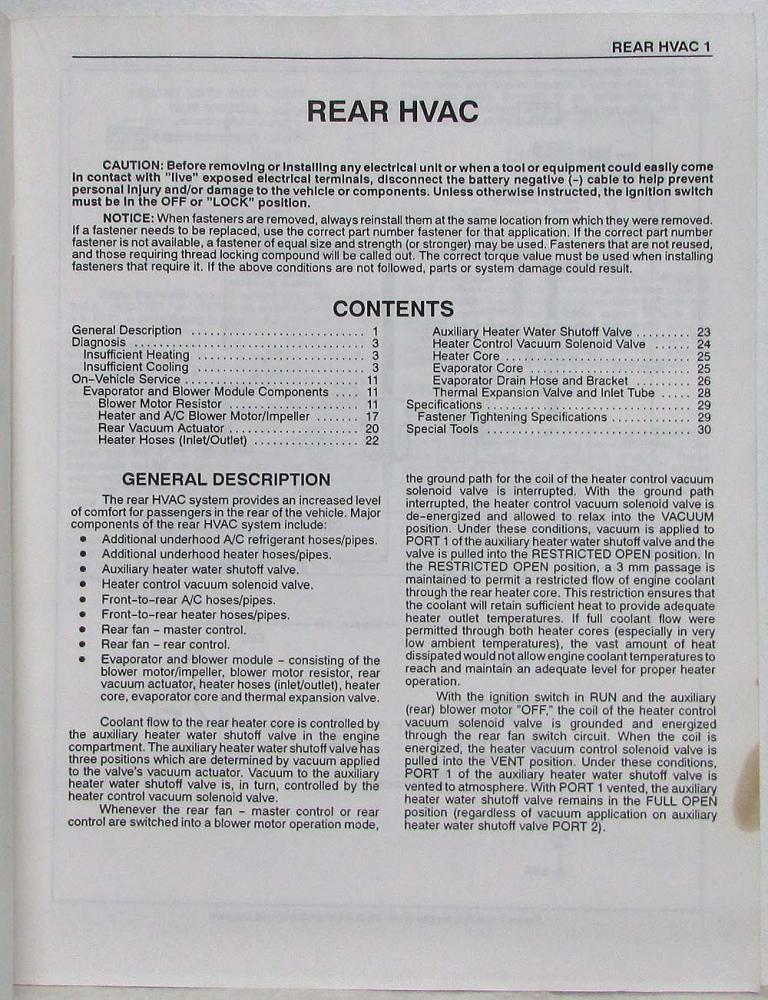

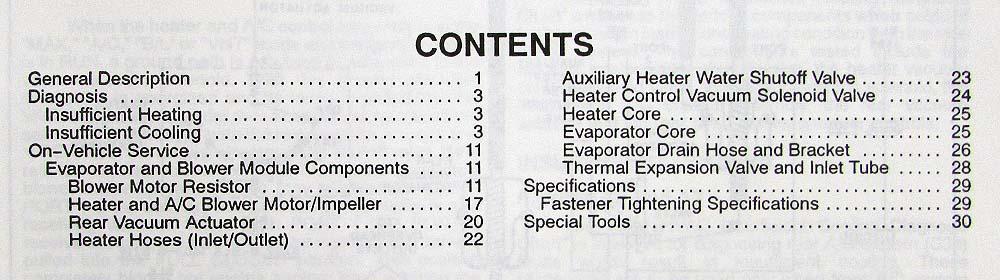

Contents:

General Information
Diagnosis

Insufficient Heating
Insufficient Cooling

On-Vehicle Service

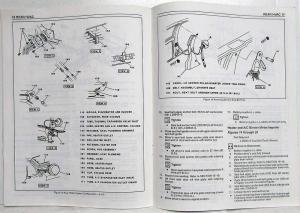

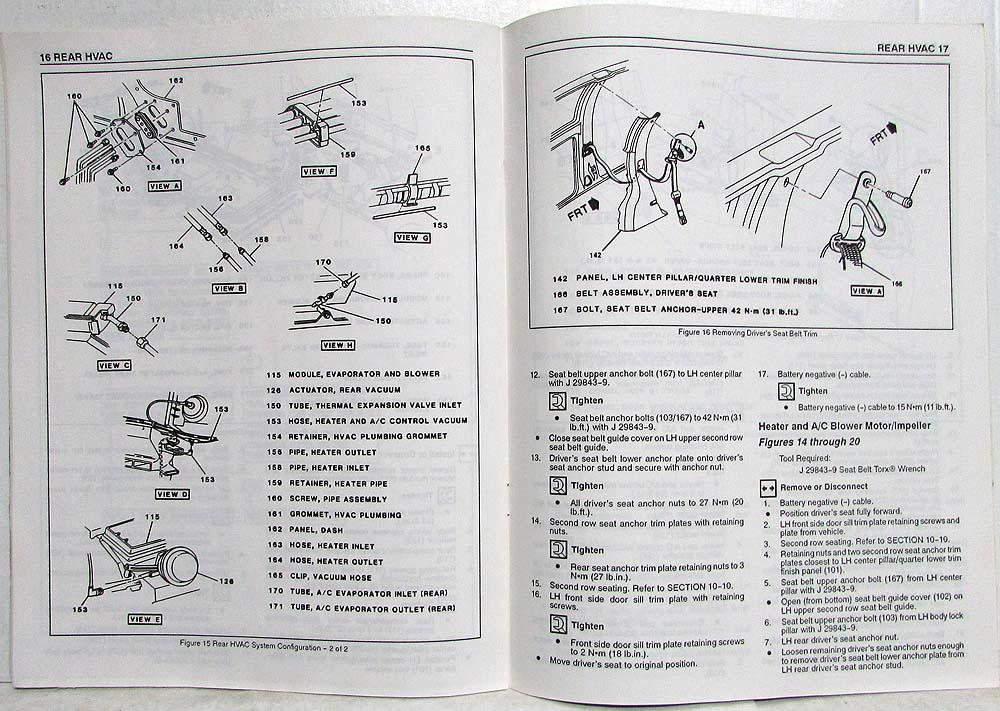

Evaporator and Blower Module Components

Blower Motor Resistor
Heater and A/C Blower Motor/Impeller
Rear Vacuum Acutuator
Heater Hoses (Inlet/Outlet)
Auxiliary Heater Water Shutoff Valve
Heater Control Vacuum Solenoid Valve
Heater Core
Evaporator Core
Evaporator Drain Hose and Bracket
Thermal Expansion Valve and Inlet Tube

Specifications

Fastener Tightening Specifications

Special Tools
