1990 Mazda RX-7 Electrical Wiring Diagram

Price $69.00 $55.20 Details W: 8.5 x H: 11 x D: 0.5 Weight 1.25 lbs. Page Count 180 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45181 OEM Number 9999-95-022G-90 5144-10-89I In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

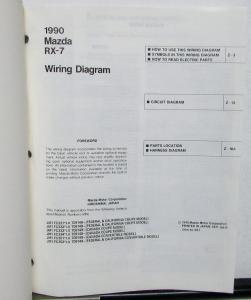

1990 Mazda RX-7 Electrical Wiring Diagram. Original.

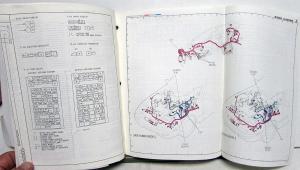

1990 Mazda RX-7 Electrical Wiring Diagram Service Manual. This manual was used by the Mazda Dealership technicians to help diagnose and identify electrical problems on the RX-7.

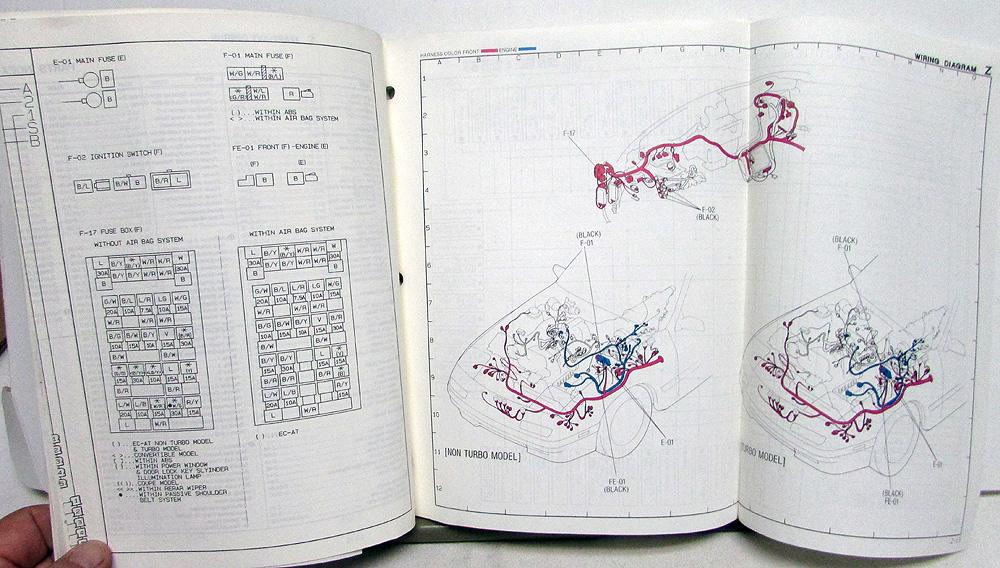

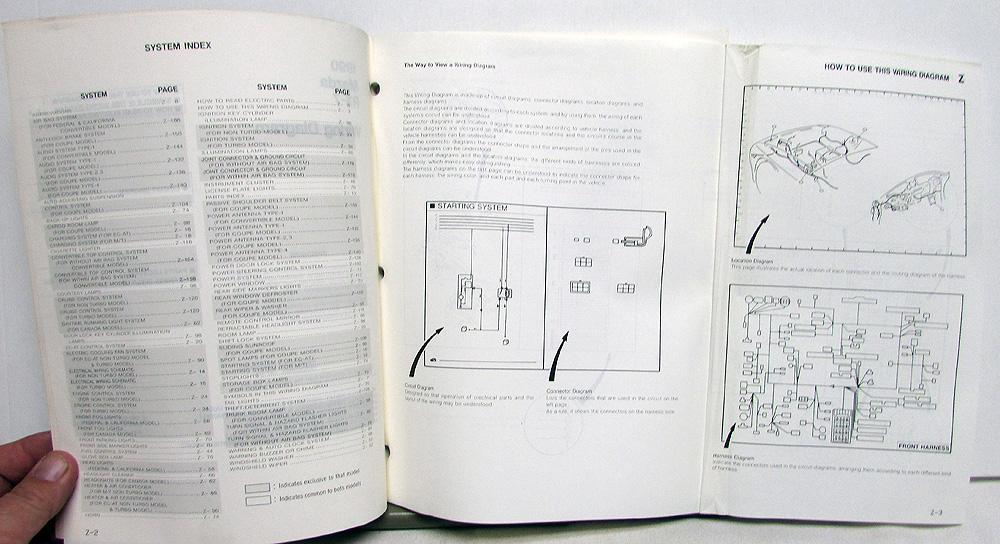

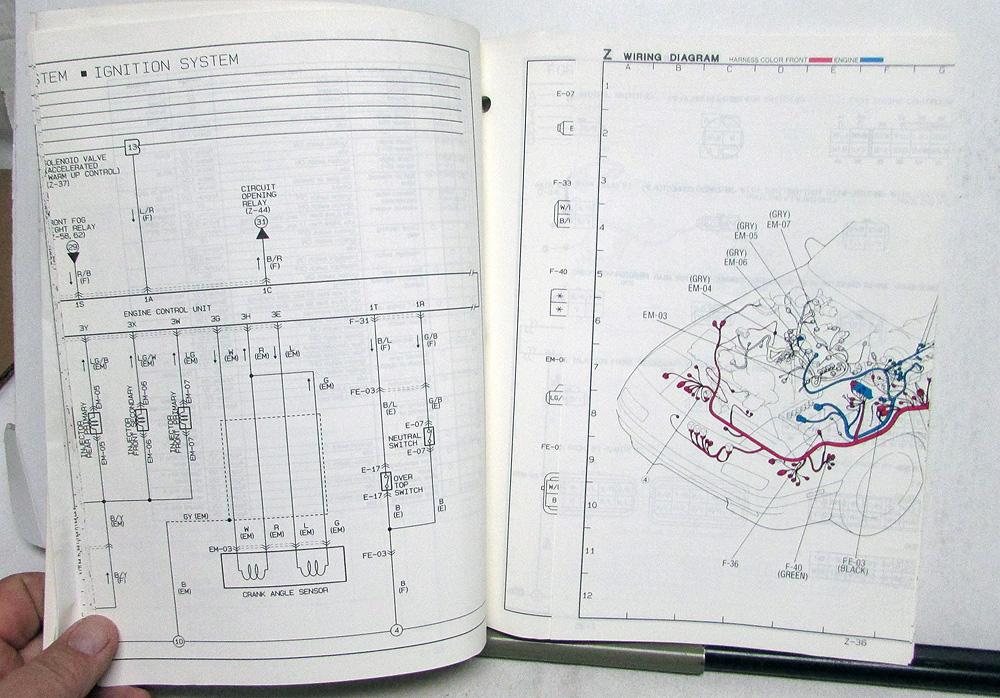

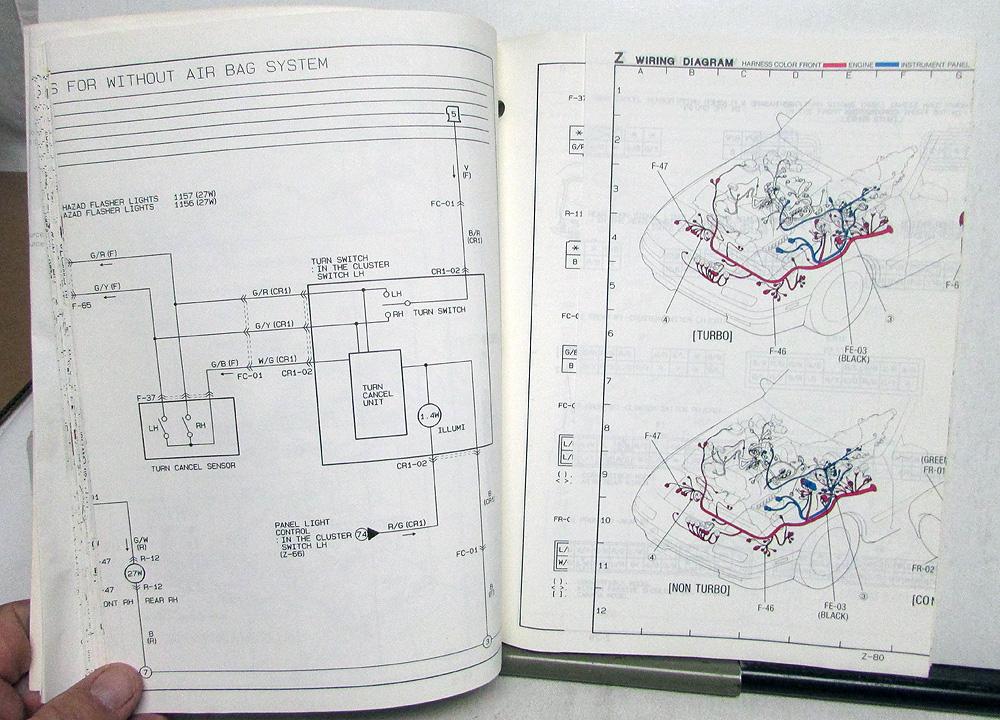

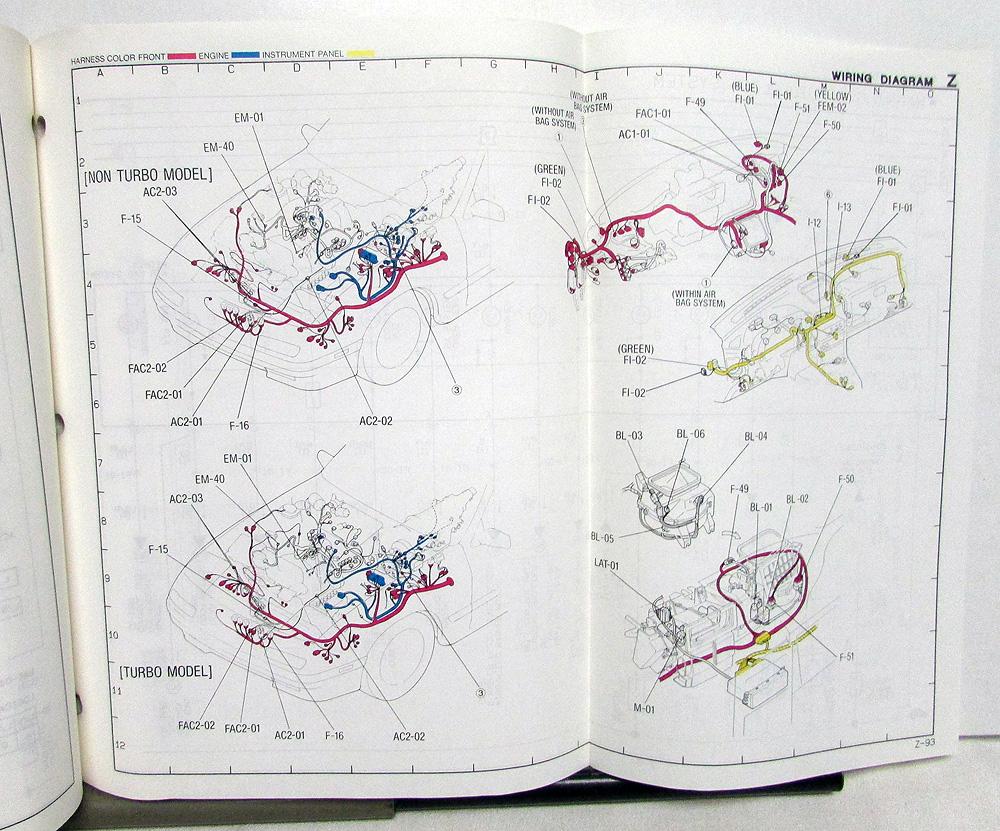

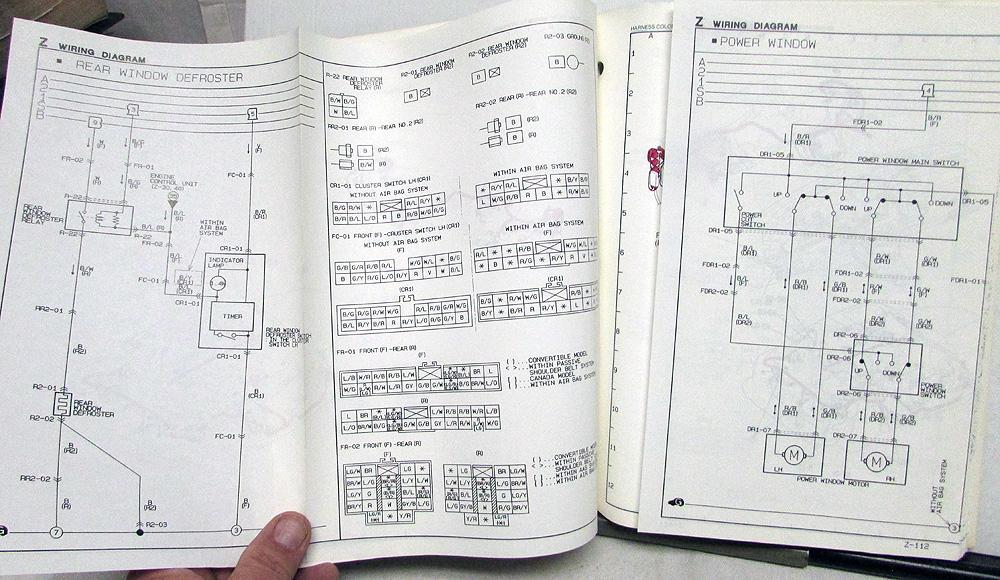

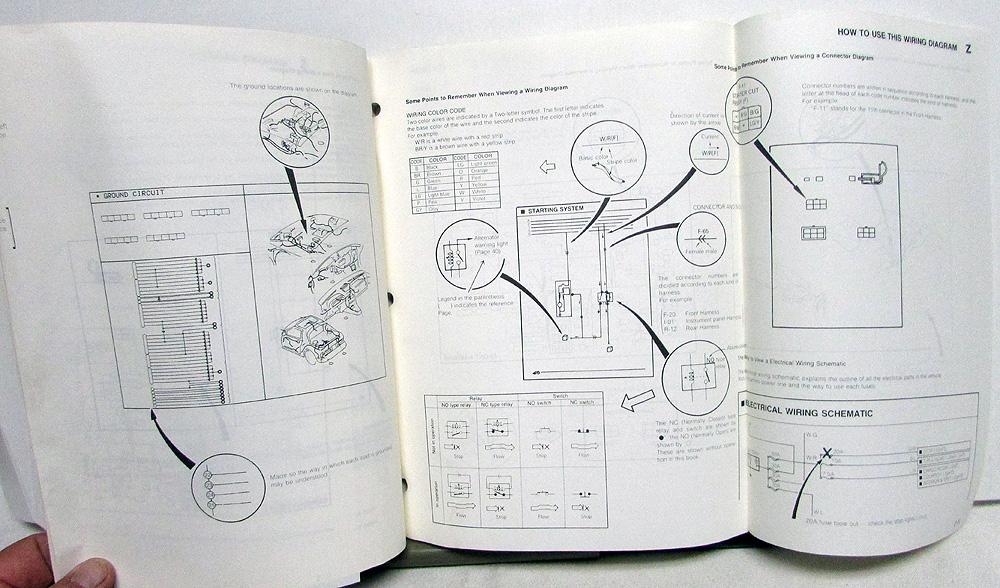

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
