1990 Mazda B2200 B2600i Pickup Truck Electrical Wiring Diagram

Price $64.95 $51.96 Details W: 8.5 x H: 11 x D: 0.3125 Weight 0.81 lbs. Page Count 114 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45178 OEM Number 9999-95-020G-90 5143-10-89I In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

1990 Mazda B2200 B2600i Pickup Truck Electrical Wiring Diagram. Original.

1990 Mazda B2200 B2600i Pickup Truck Electrical Wiring Diagram Service Manual. This manual was used by the Mazda Dealership technicians to help diagnose and identify electrical problems on the B-2200 and B2600i.

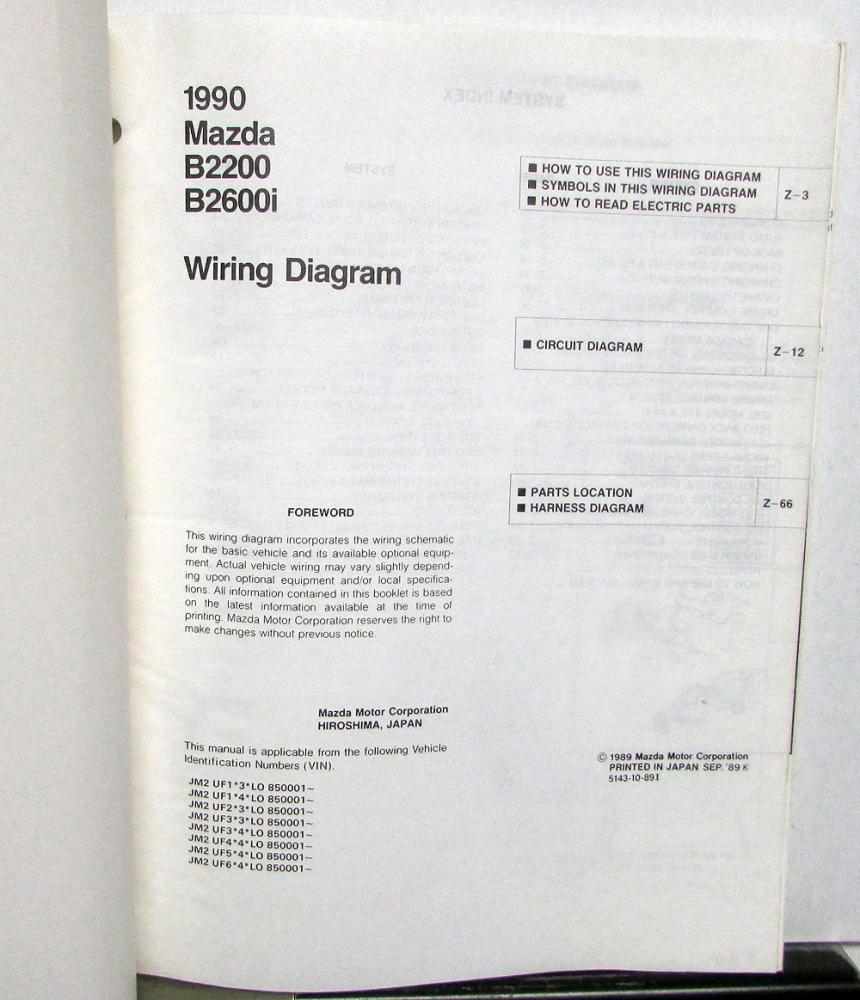

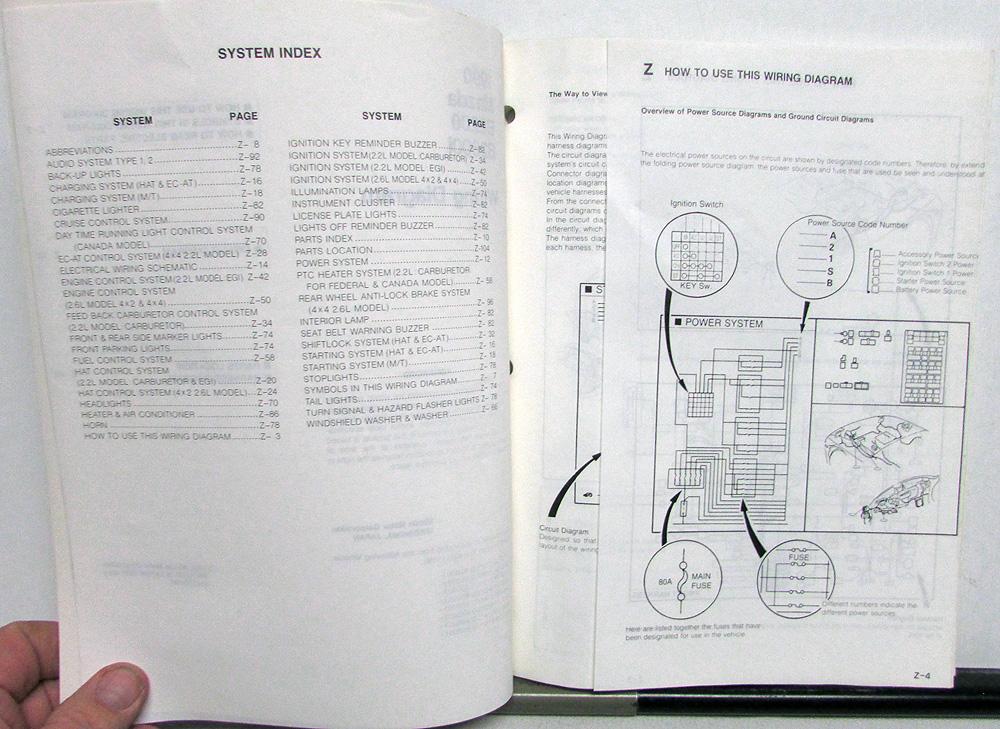

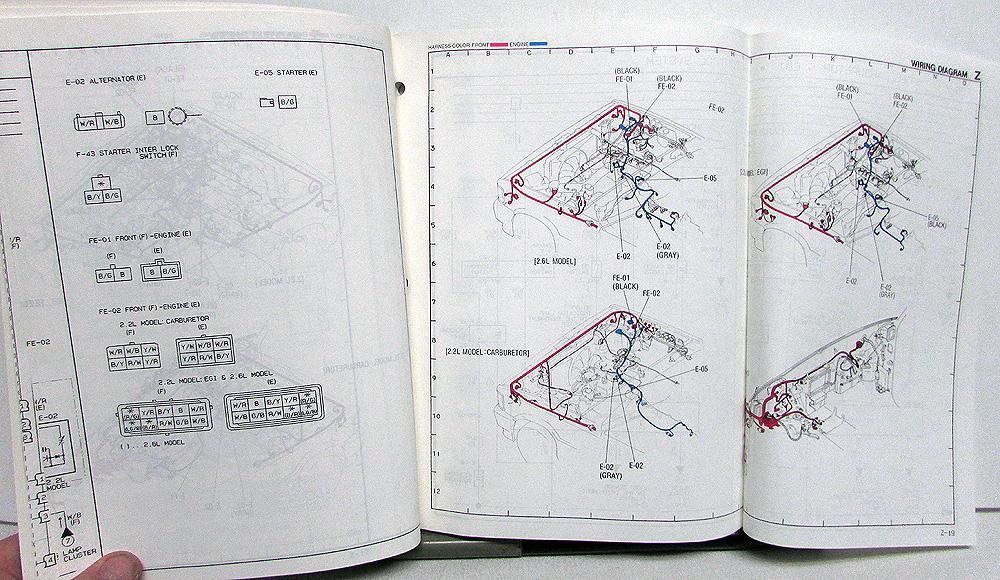

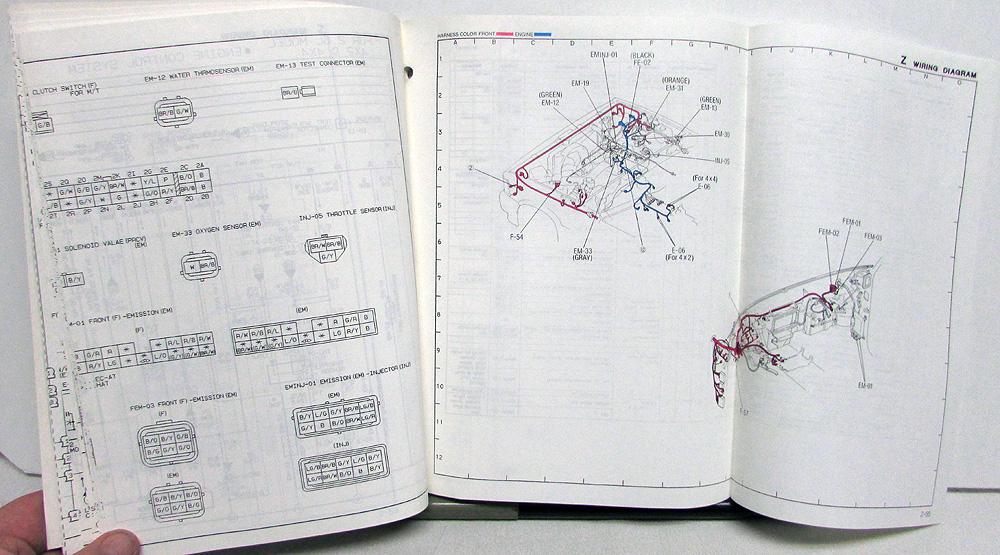

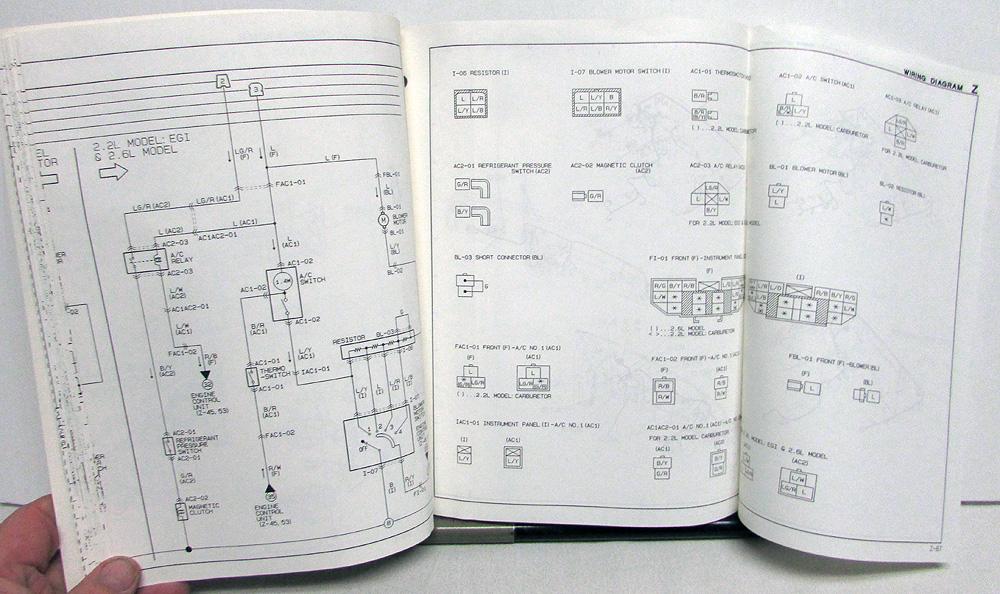

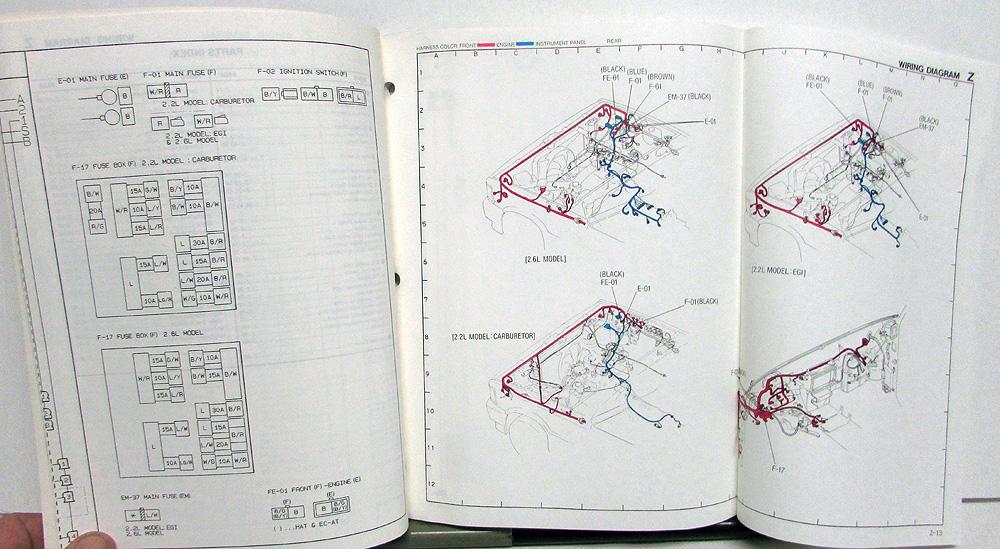

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
