1990 Isuzu Pickup & Amigo Electrical Troubleshooting Manual

Price $89.00 $71.20 Details W: 8.5 x H: 11 x D: 0.4 Weight 1.12 lbs. Page Count 203 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-44564 OEM Number Part No 2-90029-011-0 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

---

Description

1990 Isuzu Pickup (TF) & Amigo (TC) Electrical Troubleshooting Manual. Original.

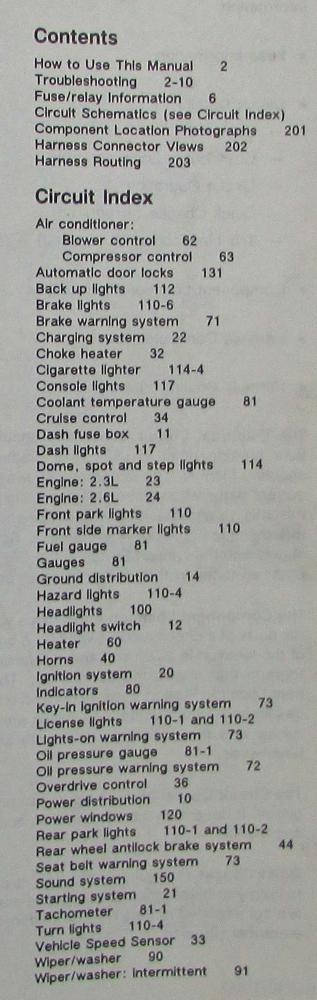

Contents:
How to Use this Manual
Troubleshooting
Fuse/Relay Information

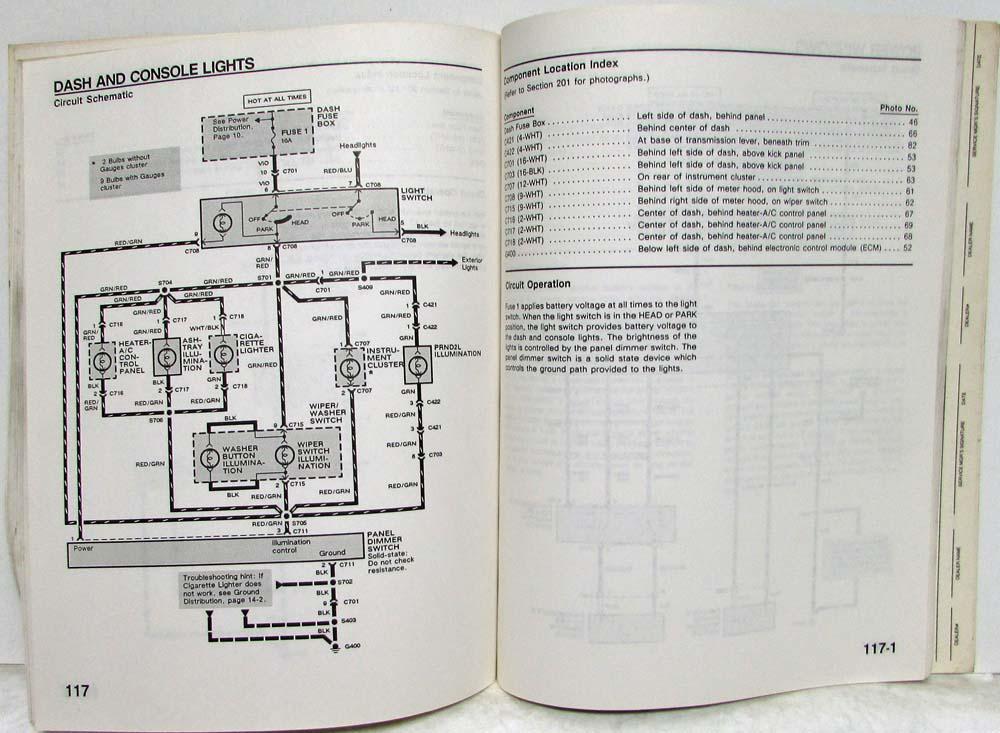

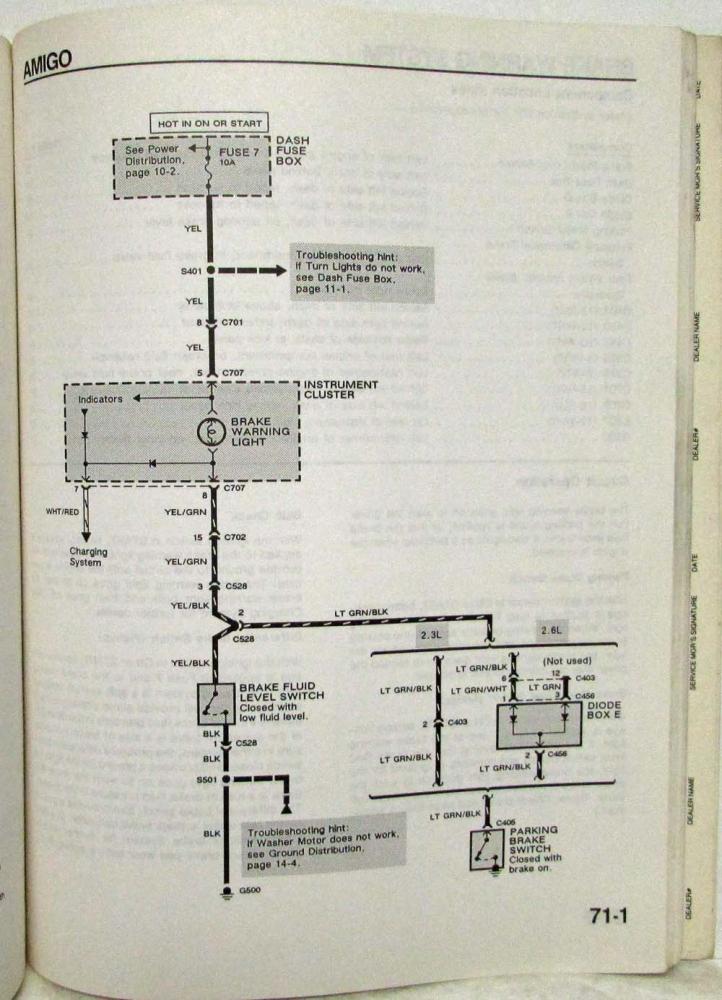

Circuit Schematics
Component Location Photographs
Harness Connector Views
Harness Routing

This manual contains the following troubleshooting information:

Fuse Information
Circuit Details

Schematic
Component Location Index
Circuit Operation
Quick Checks (if required)
Troubleshooting (if required)

Component Location Photographs
Harness Connector Faces
Harness Routing Views

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
