1989 Volkswagen VW Anti-Lock Brake System Service Training Publication

Price $22.00 $17.60 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.31 lbs. Page Count 28 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-56330 OEM Number WSP 521-171-00 Printed 9/88 In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00

---

Description

1989 Volkswagen VW Anti-Lock Brake System Service Training Publication. Original.

The Teves Anti-Lock Brake System (ABS) is now available on some Volkswagen models. With this system, hydraulic brake pressure, power assist and the anti-locking control are combined into one system. As a result of compact construction, it requires about the same space as the vacuum booster and master cylinder used on our Dual Diaganol Brake system.

The advantage of ABS, when compared to conventional brake systems, is that the wheels will not lock when braking, even on slippery survaces. This maintains vehicle directional stability during hard braking and cornering.

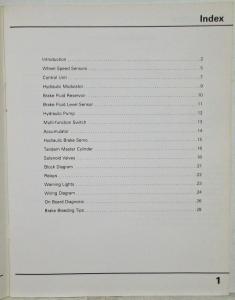

Contents:

Introduction
Wheel Speed Sensors
Control Unit
Hydraulic Modulator
Brake Fluid Reservoir
Brake Fluid Level Sensor
Hydraulic Pump
Multi-Function Switch

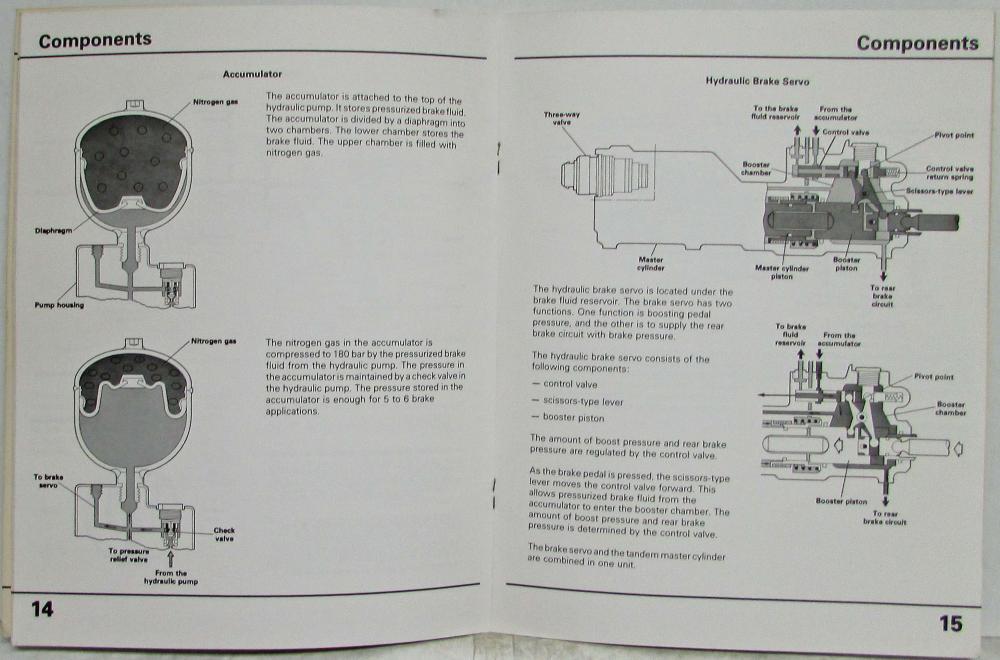

Accumulator
Hydraulic Brake Servo
Tandem Master Cylinder

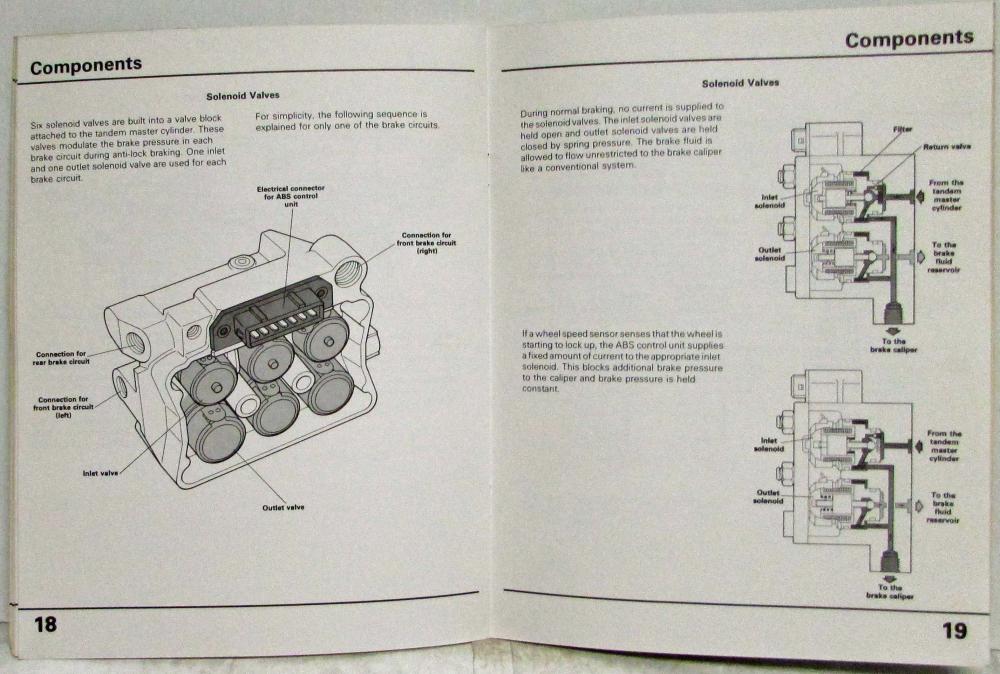

Solenoid Valves
Block Diagram
Relays
Warning Lights
Wiring Diagram
On Board Diagnosis
Brake Bleeding Tips

Condition: Shows some light blemishes on the cover.
