1988 VW Electrical Wiring Diagrams - Cabriolet Fox Golf GTI 16V Jetta Scirocco
Price $59.95 $47.96
DetailsW: 9 x H: 11 x D: 0.75
Weight2.06 lbs.
Page Count318
ConditionUsed Original - Good
Item TypeFactory Manual
Inventory NumberWD-56342
OEM NumberW42 881 001 143 1 Printed 10/88
Flat US shipping rate$9.95
Flat International shipping rate$54.95
Description
1988 Volkswagen VW Electrical Wiring Diagrams. Original.

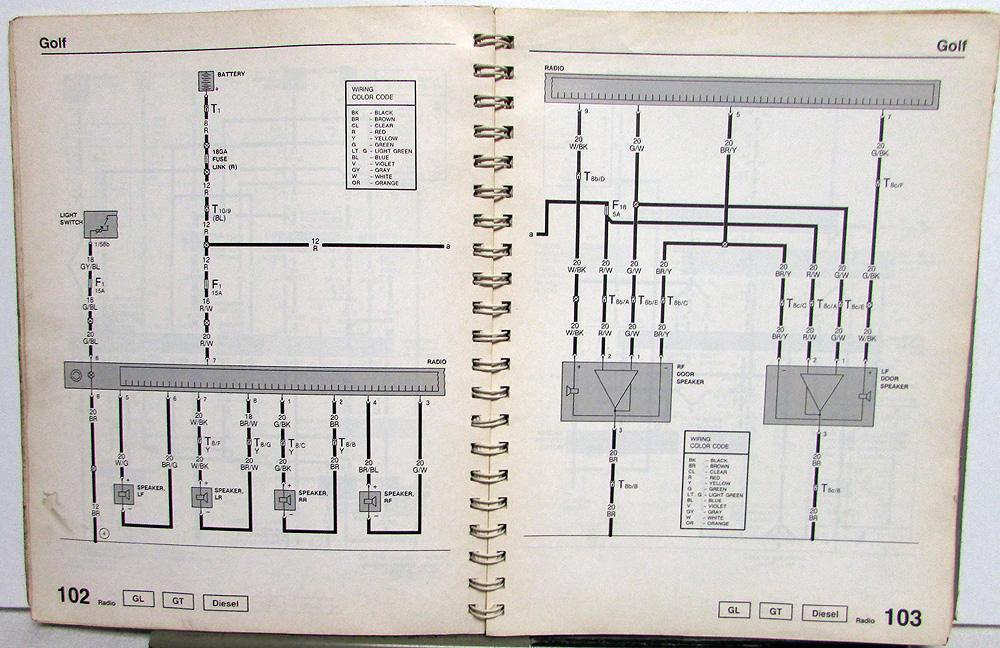

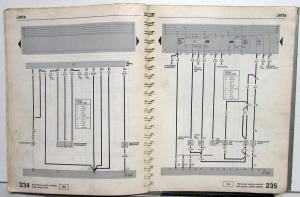

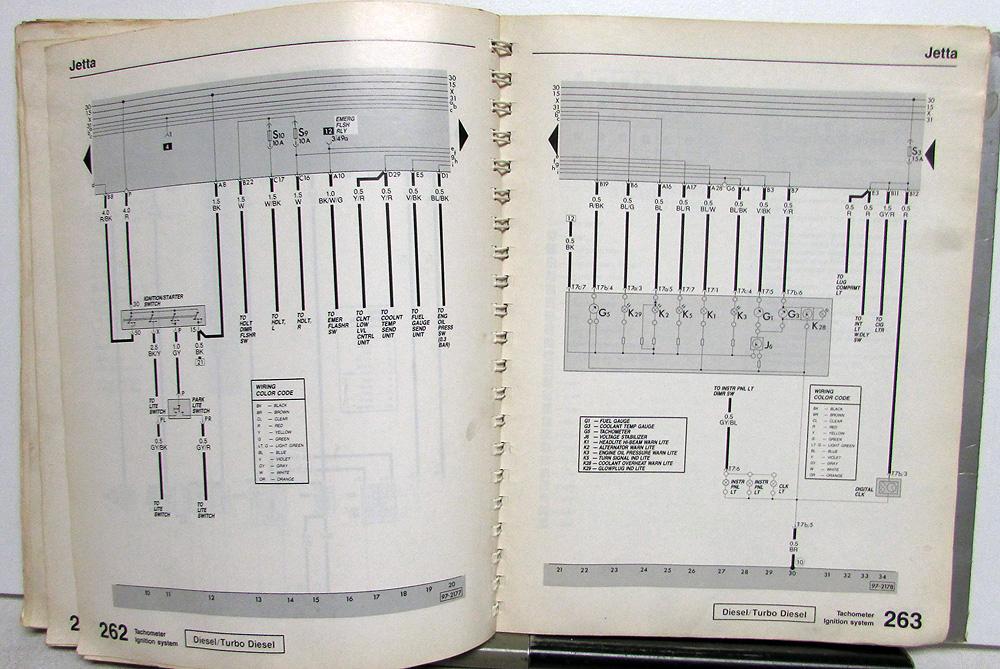

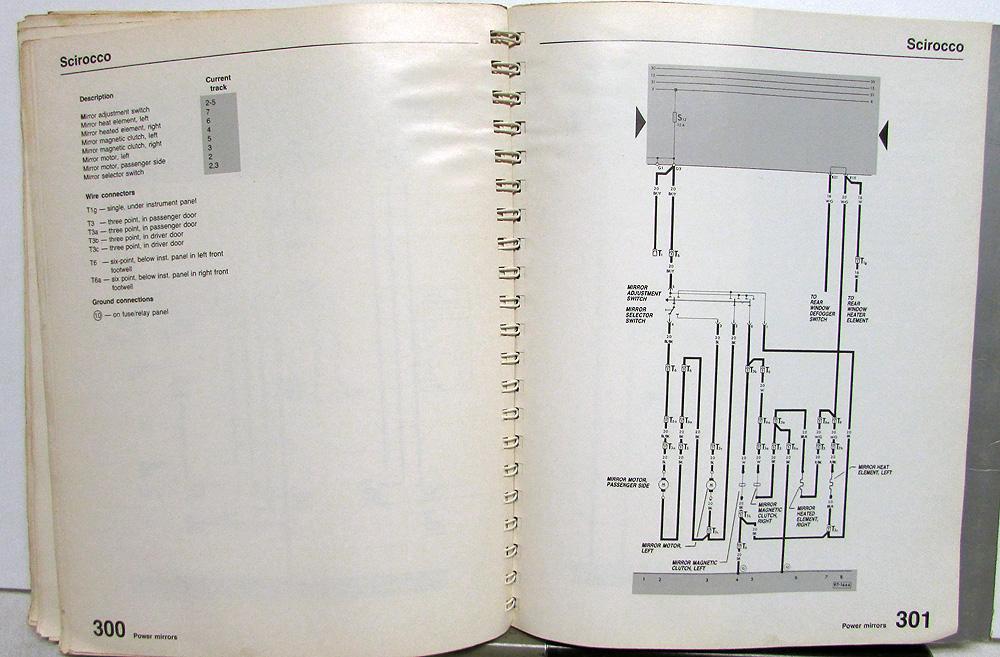

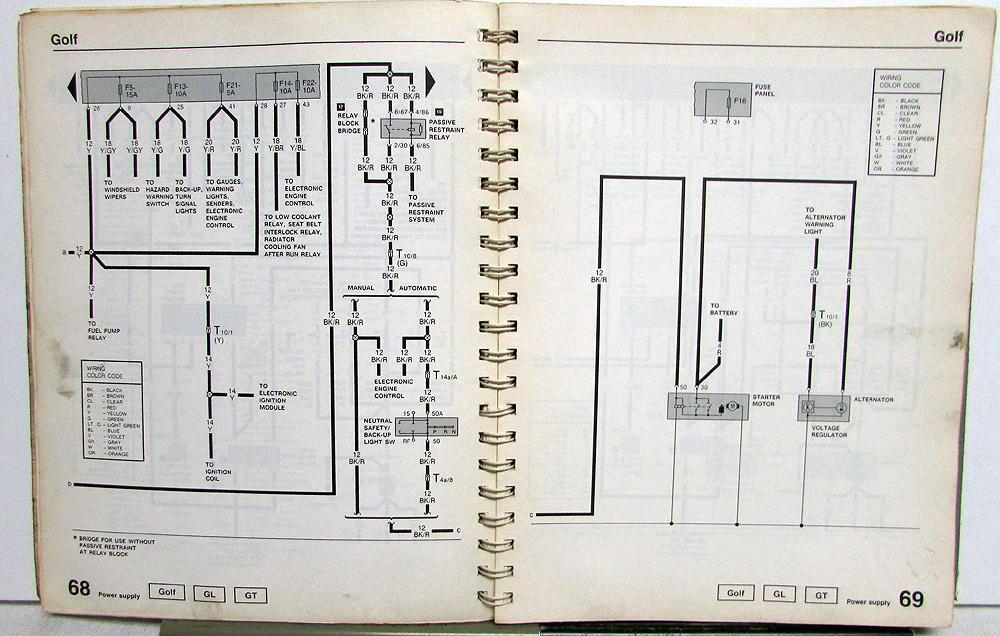

This publication contains electrical wiring diagrams for the Volkswagen Cabriolet, Fox, Golf, GTI 16V, Jetta and Scirocco models, model year 1988 sold in the USA and Canada.
Condition: Normal wear and soiling from use in a Dealership.
This item is currently out of stock.
