1987 Volkswagen VW Electrical Wiring Diagrams - Quantum Vanagon

Price $48.00 $38.40 Details W: 9 x H: 11 x D: 0.375 Weight 0.75 lbs. Page Count 102 Condition Used Original - Good Item Type Factory Manual Inventory Number WD-56338 OEM Number W42 001 141 1 Printed 11/87 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $34.00


1987 Volkswagen VW Electrical Wiring Diagrams. Original.

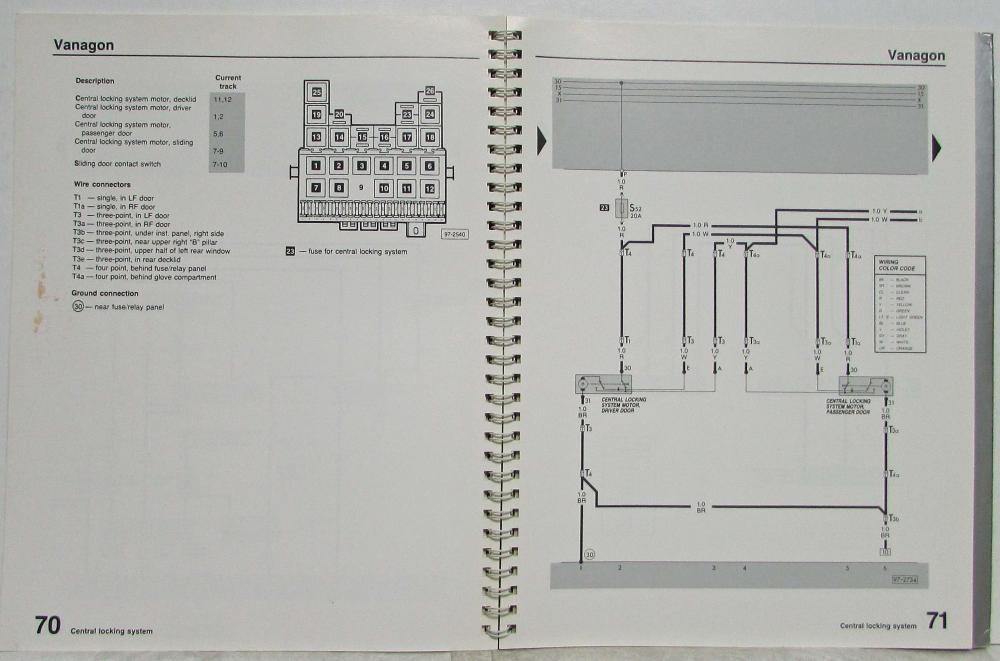

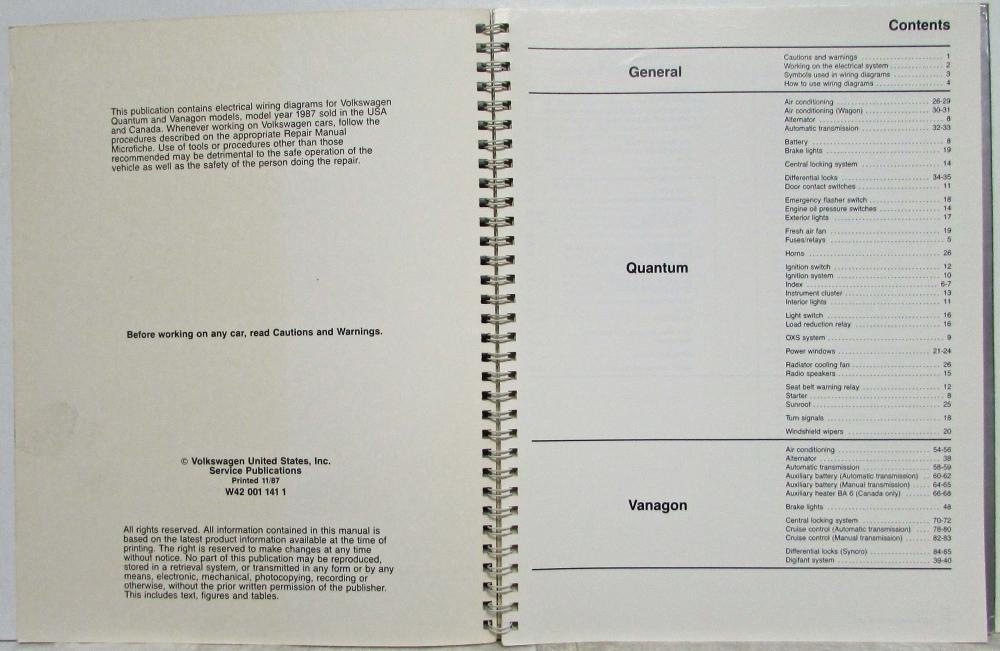

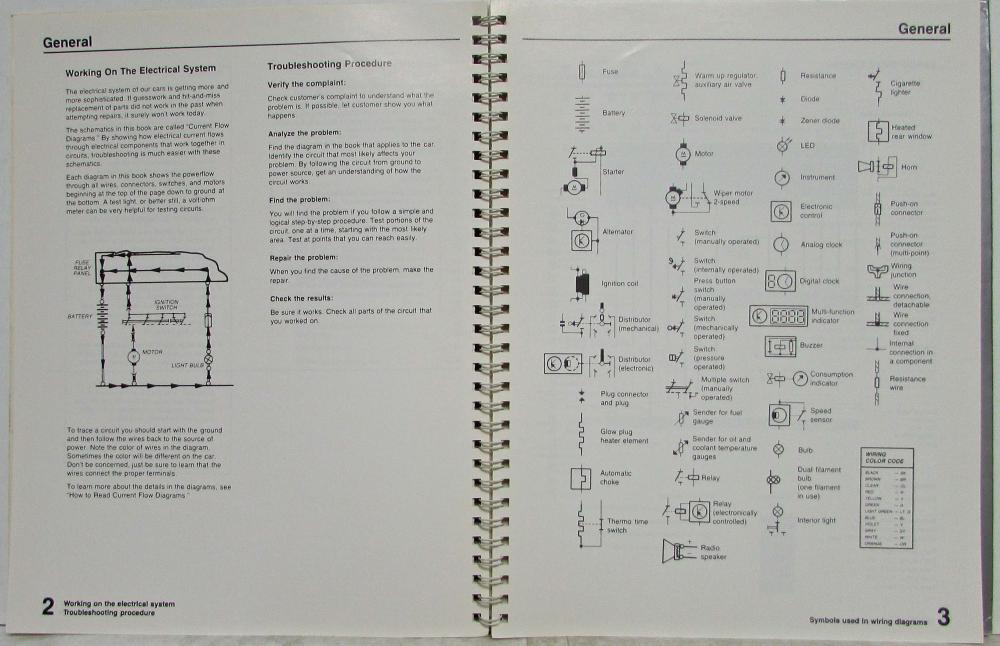

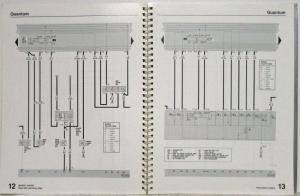

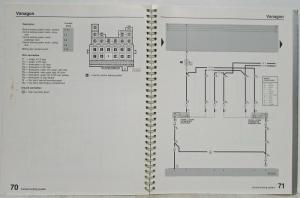

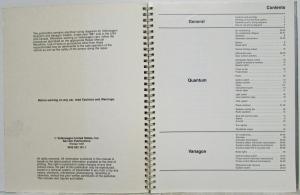

This publication contains electrical wiring diagrams for the Volkswagen Quantum and Vanagon models, model year 1987 sold in the USA and Canada.

Condition: Cover shows some blemishes.
