1986 Audi ABS Testing using the ABS 2-LED-Tester Service Training Info. 5000 Models. Original.

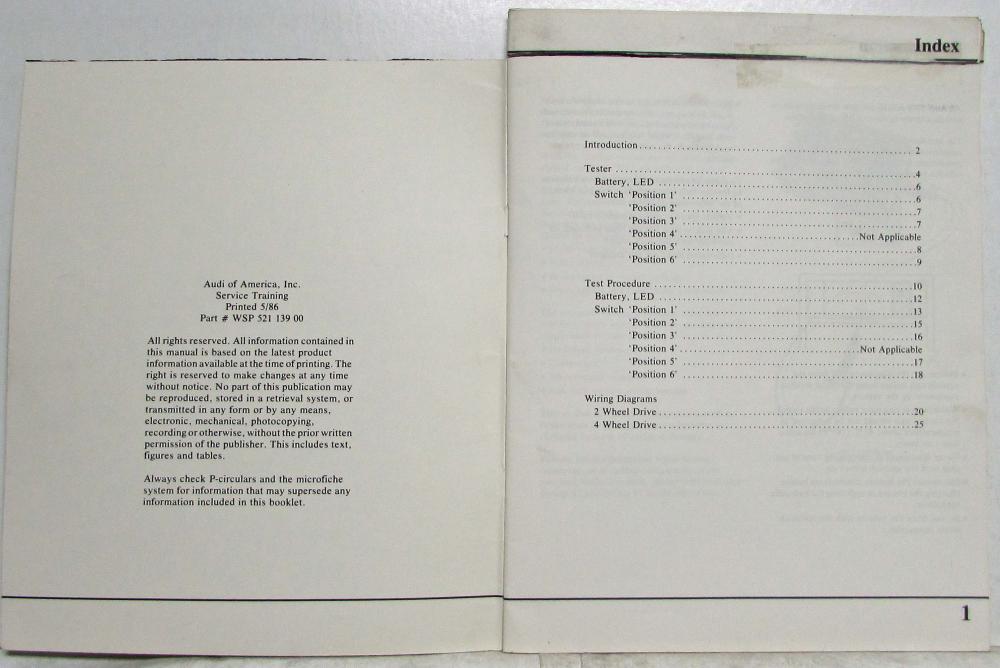

Contents:

Introduction

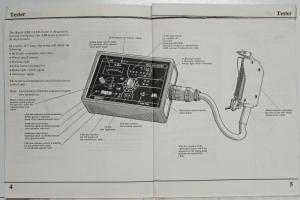

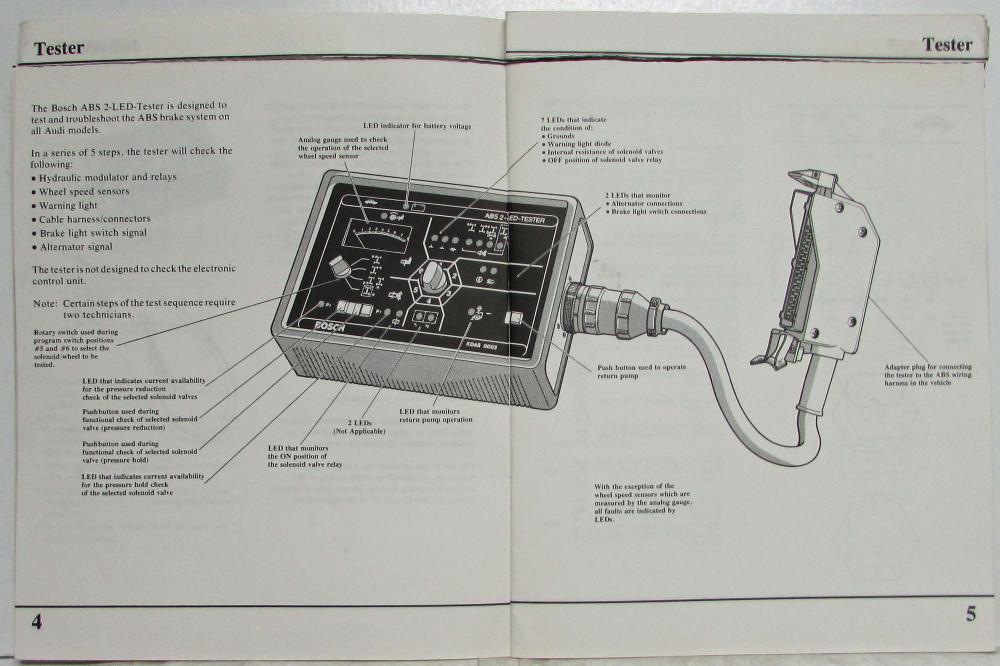

Tester

Battery, LED

Switch Position 1
Switch Position 2
Switch Position 3
Switch Position 4
Switch Position 5
Switch Position 6

Test Procedure

Battery, LED

Switch Position 1
Switch Position 2
Switch Position 3
Switch Position 4
Switch Position 5
Switch Position 6

Wiring Diagrams

2 Wheel Drive
4 Wheel Drive

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. Top portion of pages has basically been cut off and taped back on.
