1980 Mazda RX-7 Wiring Diagram

Price $49.00 $39.20 Details W: 8.25 x H: 11.5 x D: 0.125 Weight 0.25 lbs. Page Count 16 Condition Used Original - Fair Item Type Factory Manual Inventory Number SM-45074 OEM Number 5576-10-79F
Flat US shipping rate: $5.95
Flat International shipping rate: $20.75

---

Description

1979 Mazda 626 Wiring Diagram. Original.

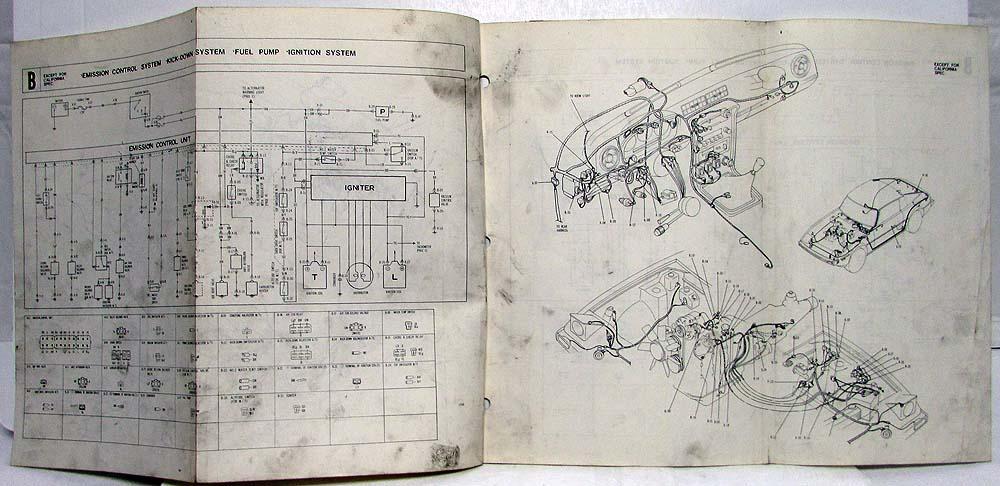

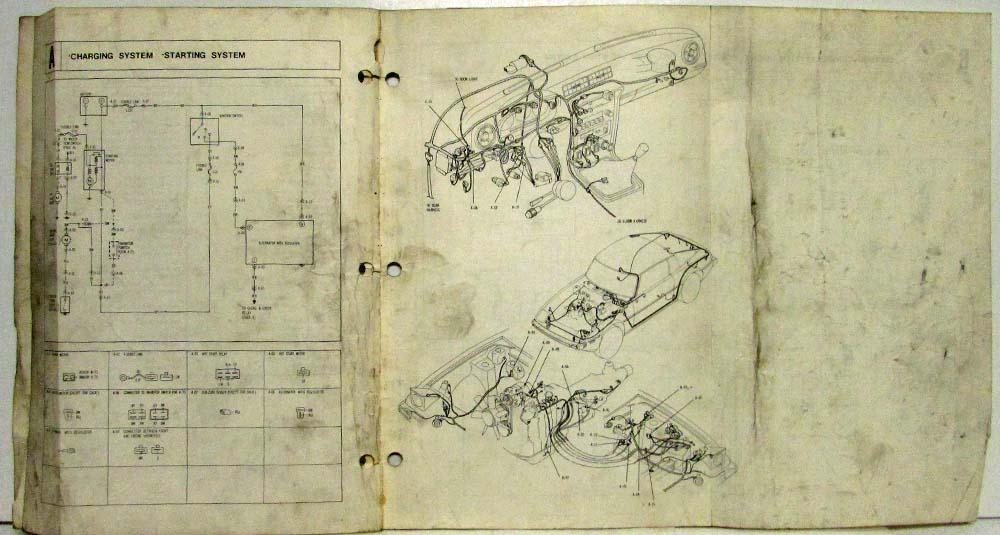

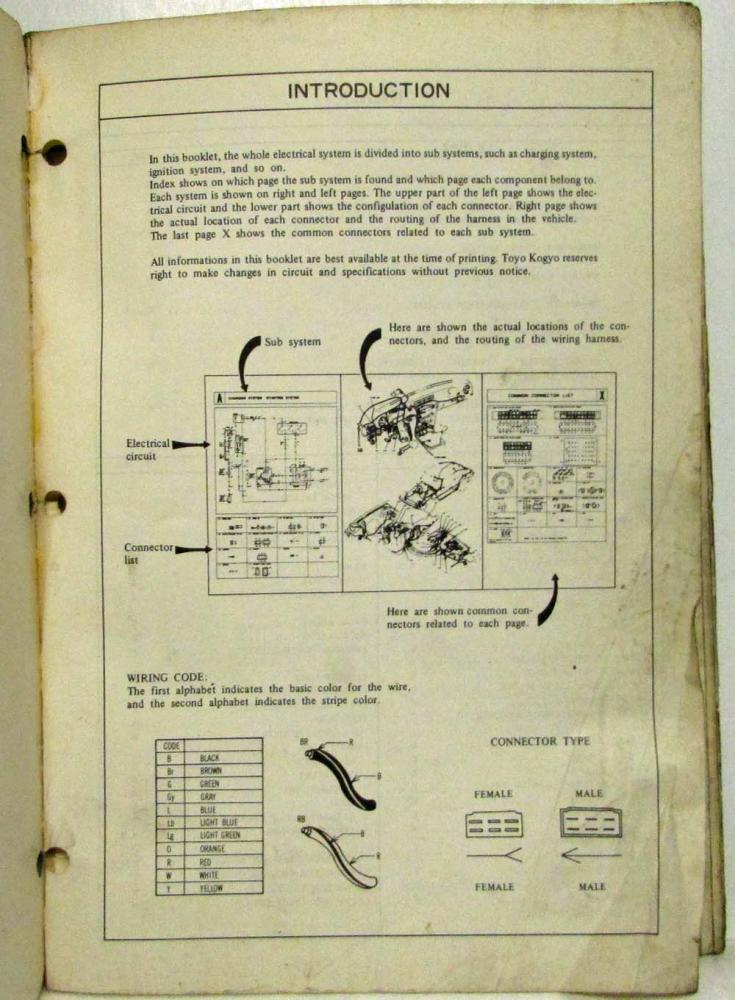

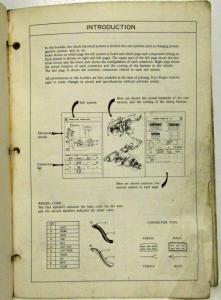

In this booklet, the whole electrical system is divided into sub systems, such as charging system, ignition system, and so on.

Index:
A. Charging System. Starting System
B. Emission Control System. Kick-Down System. Ignition System. Fuel Pump.
C. Meter and Warning System
D. Wiper and Washer System.
E. Headlight and Illumination System
F. Signal Light System. Horn.
G.Heater System. Radio. Stereo.  Heated Window System. Power Antenna.
H. Seat Belt Warning System. Room and Map Light. Auto Clock. Cigarette Lighter. Glove Box Light. Glass Hatch Release System.

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
