1972 February Ford Shop Tips Vol 10 No 6 The Starting System Problems & Fixes

Price $12.00 Details W: 8.375 x H: 10.875 x D: 0.1 Weight 0.12 lbs. Page Count 12 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-26106 OEM Number Vol 72 MSD 34 In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00

Description

1972 February Ford Shop Tips Vol. 10 No. 6

Technical parts and service information published by the MotorCraft-Ford Parts Division and distributed by Ford and Lincoln-Mercury dealers to assist servicemen in Service Stations, Independent Garages and Fleets.

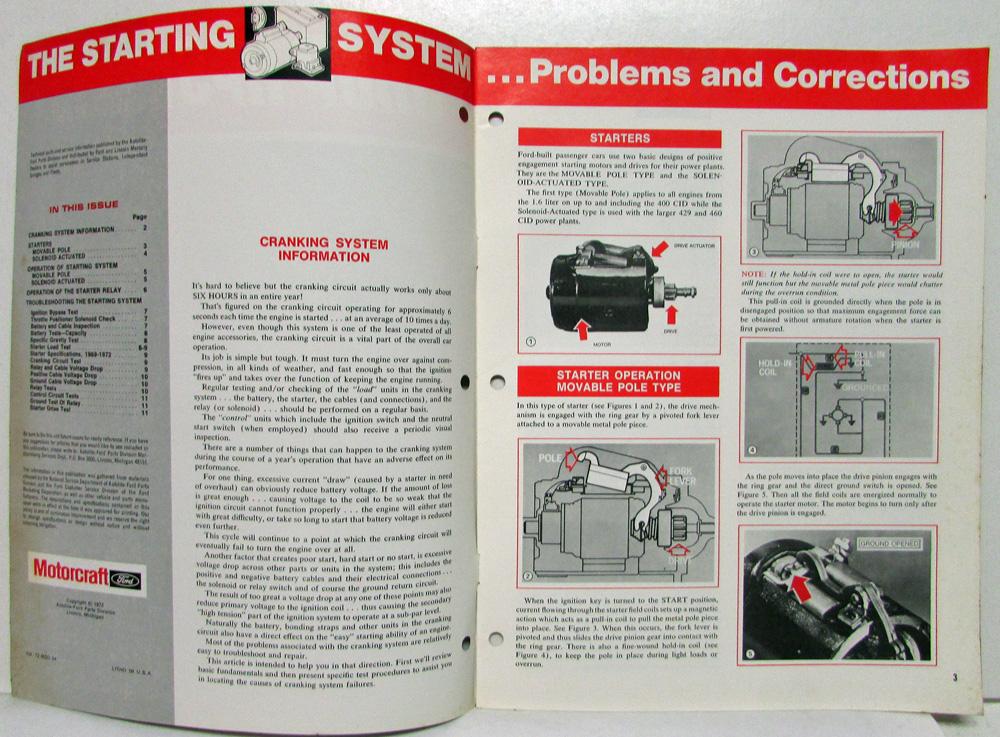

In this issue:


Cranking System Information

Starters

Movable Pole

Solenoid Actuated

Operation of Starting System

Movable Pole

Solenoid Actuated

Operation of the Starter Relay

Troubleshooting The Starting System

Ignition Bypass Test

Throttle Positioner Solenoid Check

Battery and Cable Inspection

Battery Tests - Capacity

Specific Gravity Test

Starter Load Test

Starter Specifications 1969-1972

Cranking Circuit Test

Relay and Cable Voltage Drop

Positive Cable Voltage Drop

Ground Cable Voltage Drop

Relay Tests

Control Circuit Tests

Ground Test of Relay

Starter Drive Test

Condition: Shop Tips have been used in Service Stations, Independent Garages and Fleets and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight. The images shown are representative of the issues shipped.
