1969 VW Volkswagen Type 3 Type 4 Engine Part 2 Service Shop Repair Manual

Price $100.00 $80.00 Details W: 9 x H: 12 x D: 1.5 Weight 3.62 lbs. Page Count 200+ Condition Used Original - Fair Item Type Promotional Material Inventory Number SM-56001 OEM Number 3.48.539.104.23
Flat US shipping rate: $14.95
Flat International shipping rate: $74.00

---

Description

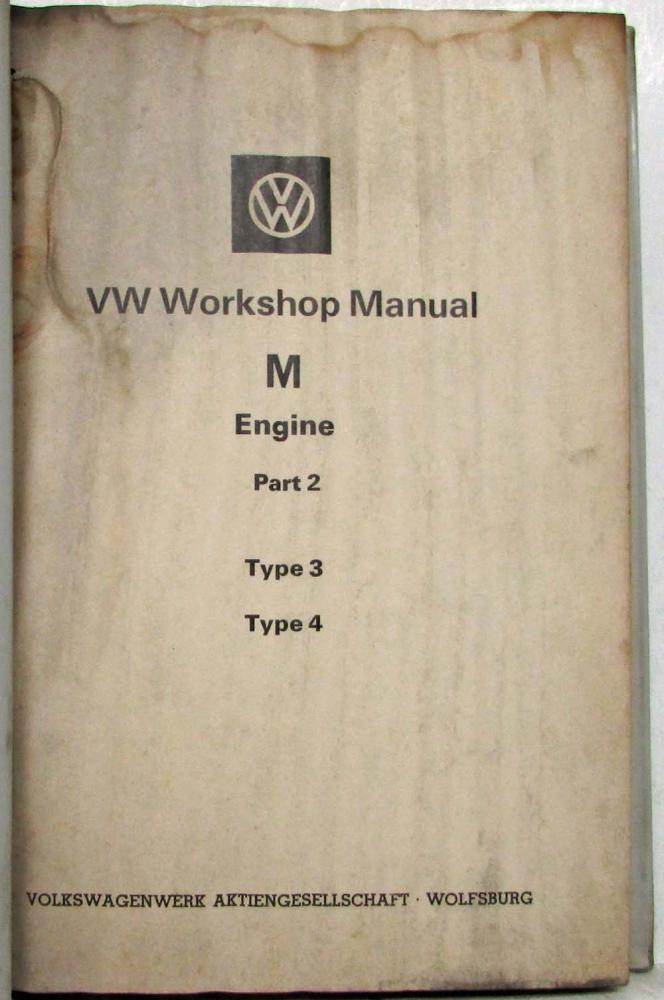

1969 VW Volkswagen Type 3, Type 4 "M" Engine Part 2 Service Shop Repair Manual. Original.

Service manuals can be valuable tools when working on and/or restoring a vehicle. For the uninitiated, keep in mind that these manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments (even today).

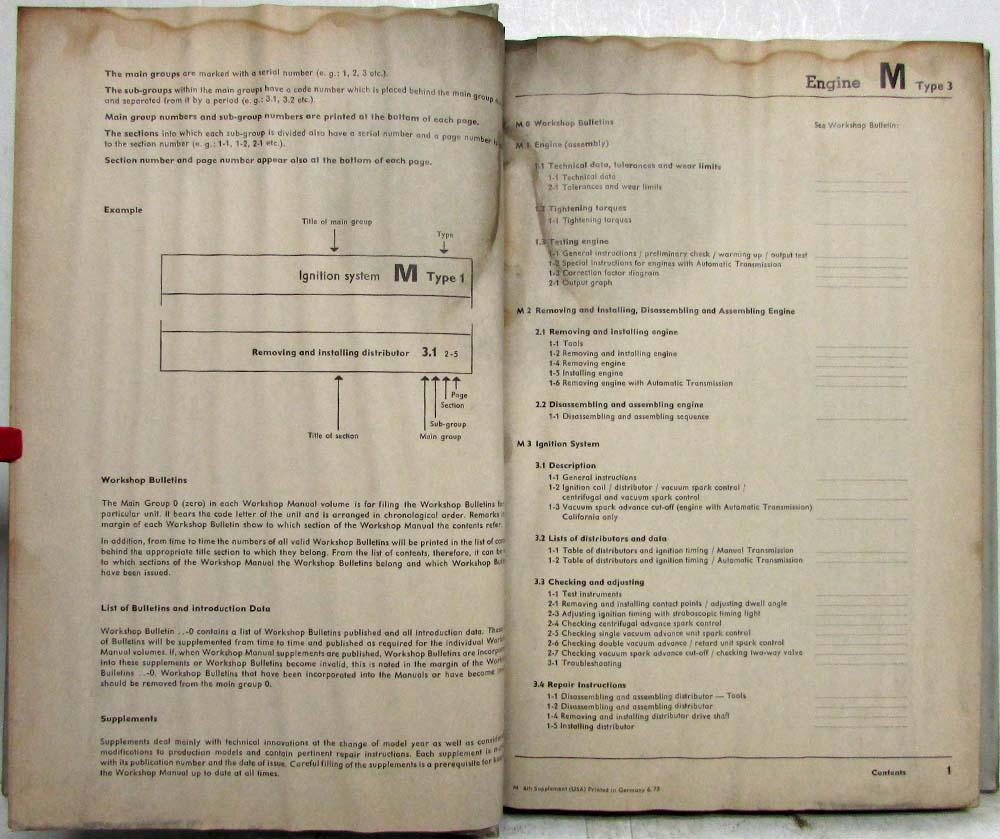

Topics:

M 1 Engine (assembly)
M 2 Removing and Installing, Dismantling and Assembling Engine
M 3 Ignition System

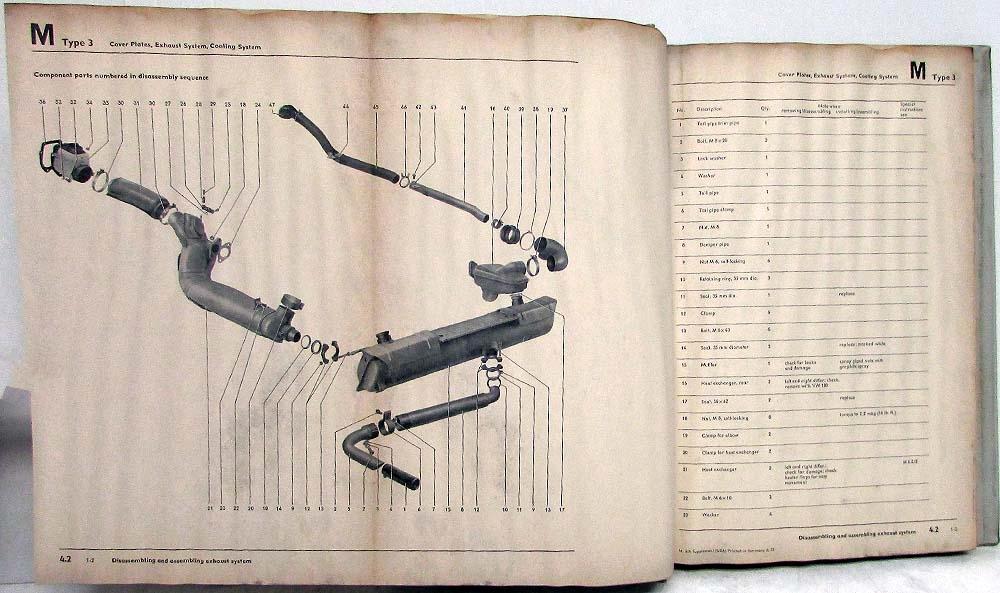

M 4 Cover Plates, Exhaust System, Cooling System

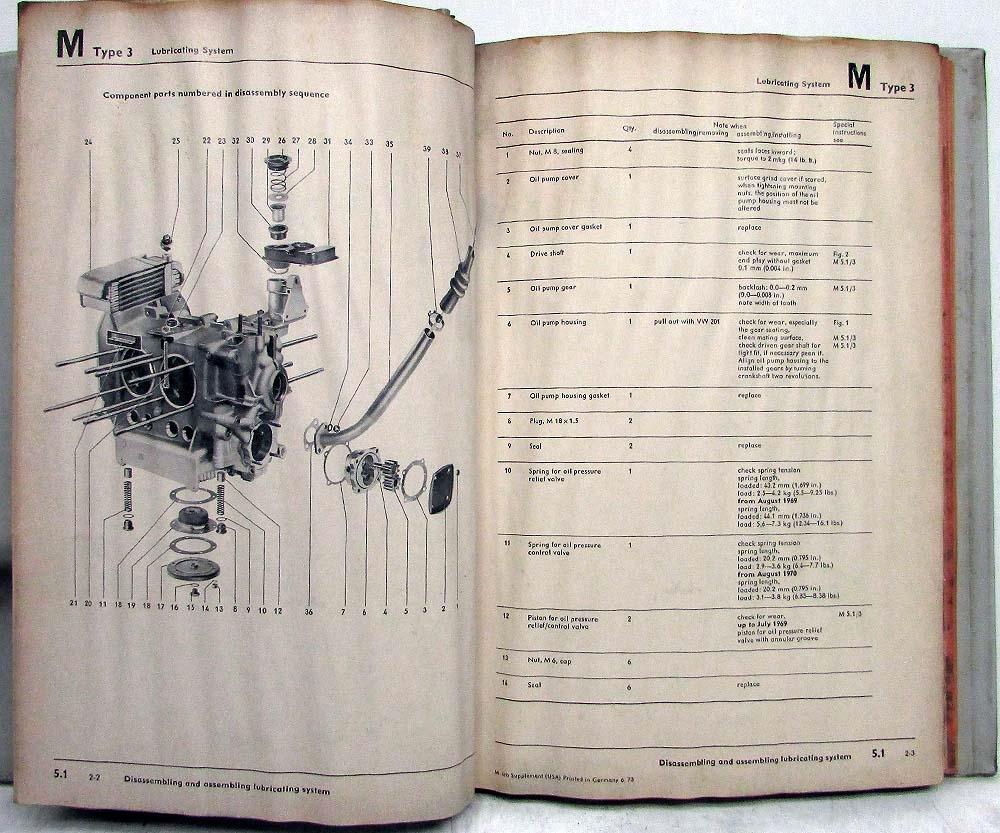

M 5 Lubricating System
M 6 Cylinder Head and Valves, Cylinders and Pistons

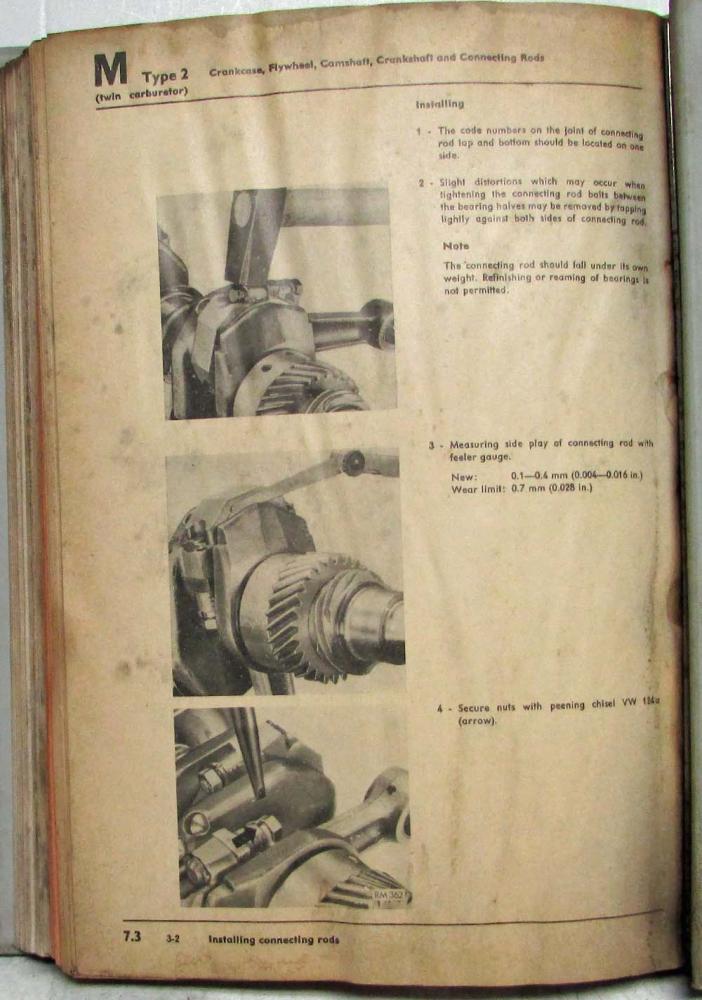

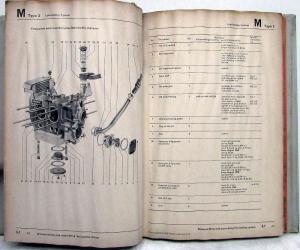

M 7 Crankcase, Flywheel, Camshaft, Crankshaft and Connecting Rods
M 8 Clutch Pressure Plate, Clutch Disc, Clutch Controls
M 9 Special Instructions

Pages at the back look to have some Type1/Type 2 information as well.

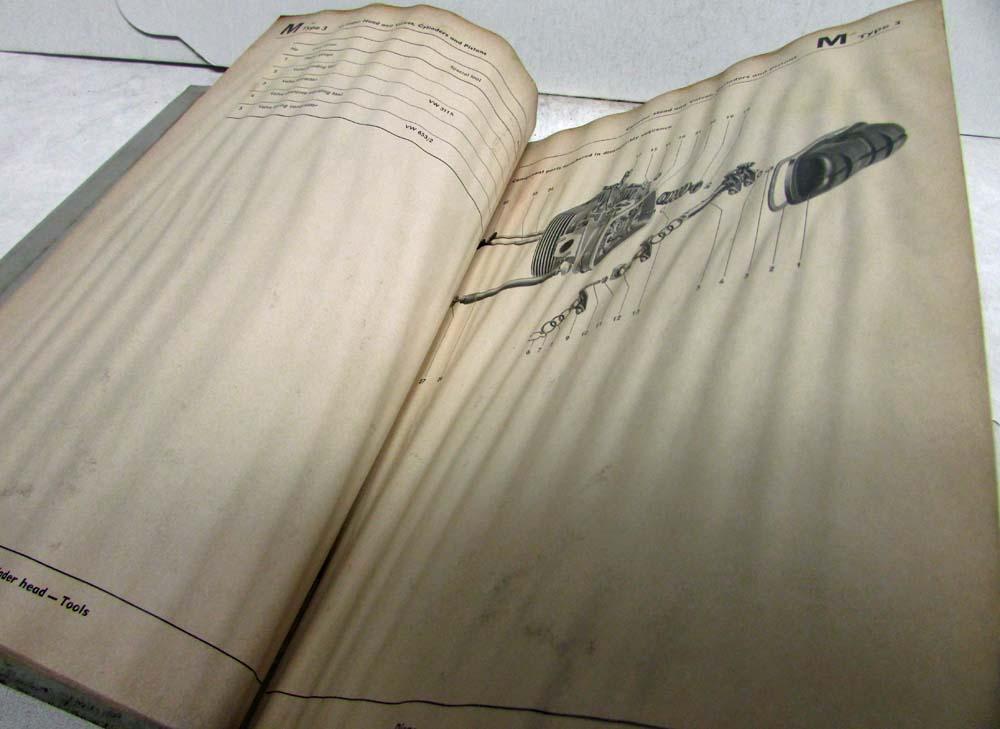

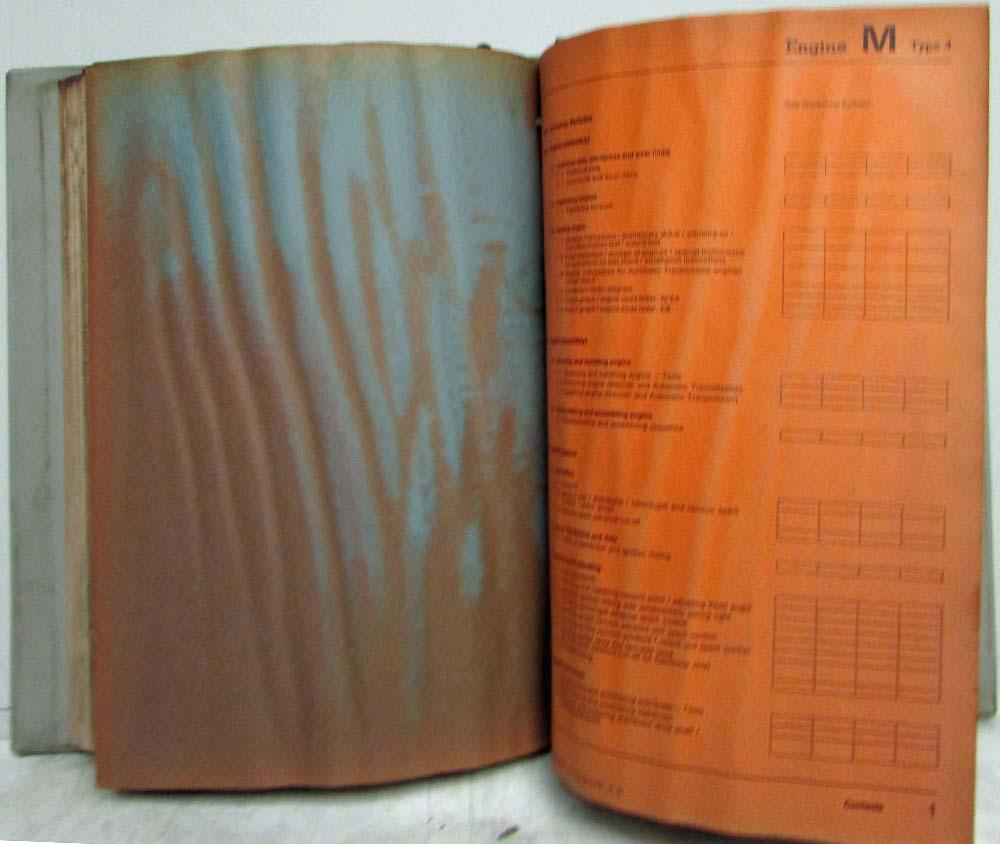

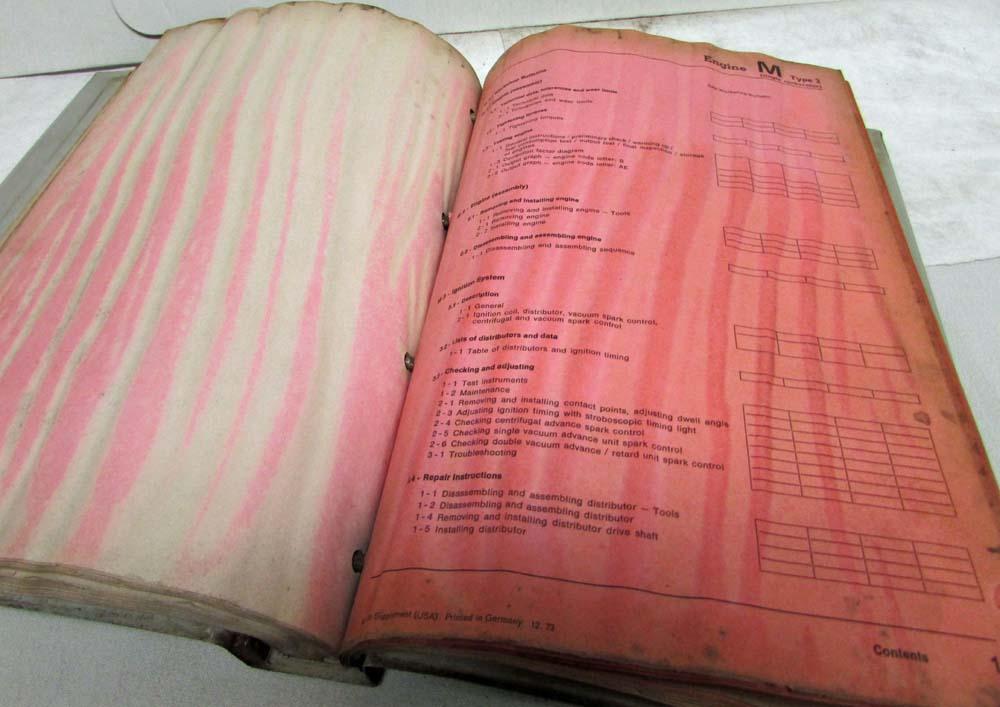

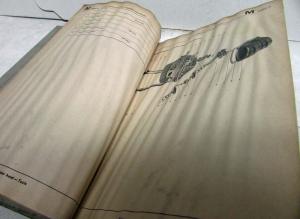

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. In this case the manual looks like it has been left out in the purple rain. It has also been subjected to moisture, leaving water/mildew stains, rippled pages, rusty binder rings, colored pages have bled, etc. See pics.

Out of Stock.
