2014 Ford Mustang GT Shelby GT500 Electrical Wiring Diagrams Manual

Price $69.00 $55.20 Details W: 11 x H: 8.5 x D: 0.625 Weight 1.72 lbs. Page Count 300+ Condition Used Original - Excellent Item Type Factory Manual Inventory Number SM-28101 OEM Number FCS-12121-14 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $34.00
Description

2014 Ford Mustang / Mustang GT / Shelby GT500 Electrical Wiring Diagrams. ORIGINAL. Ford Authorized Manual by Helm, Inc.

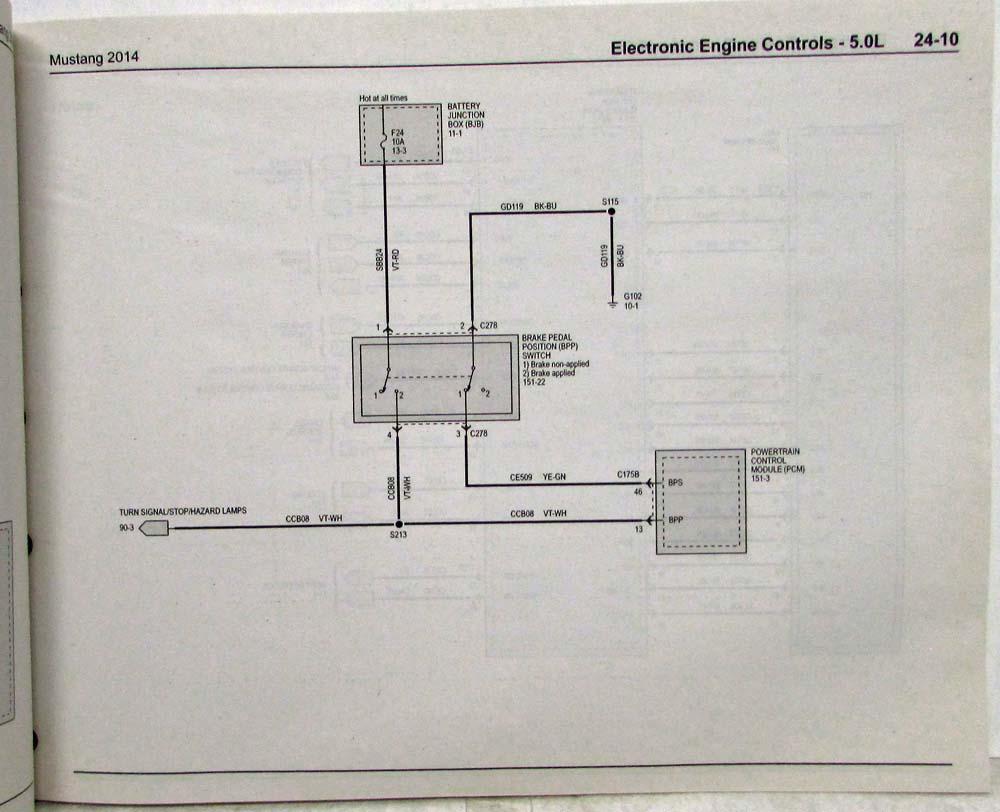

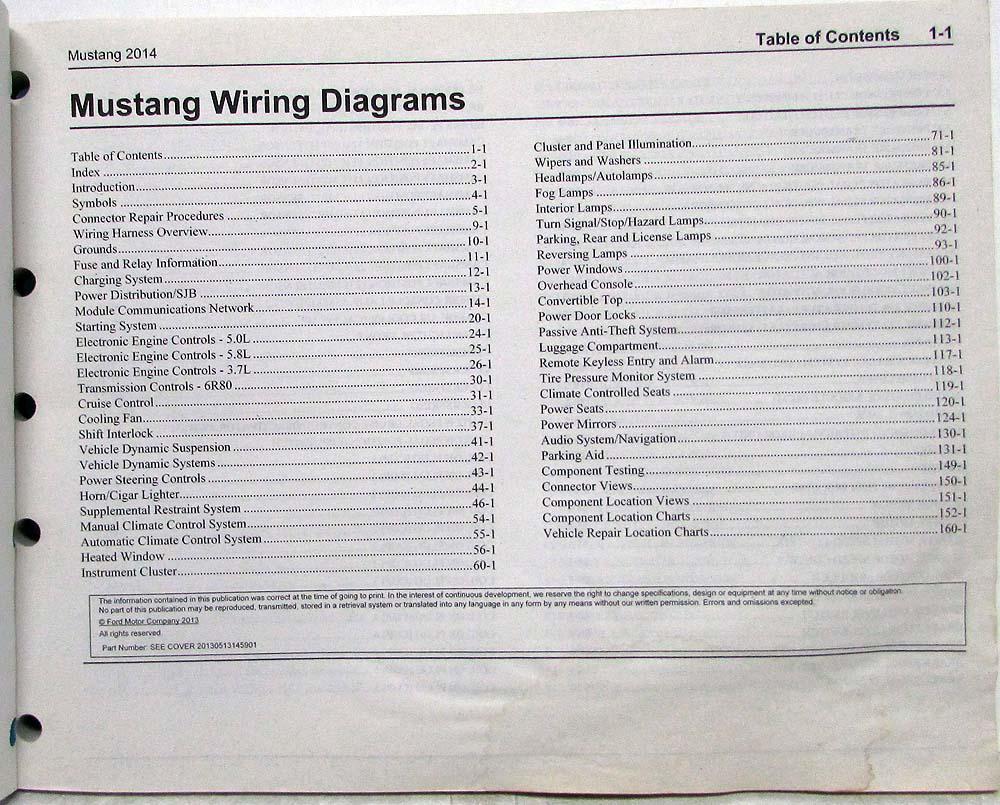

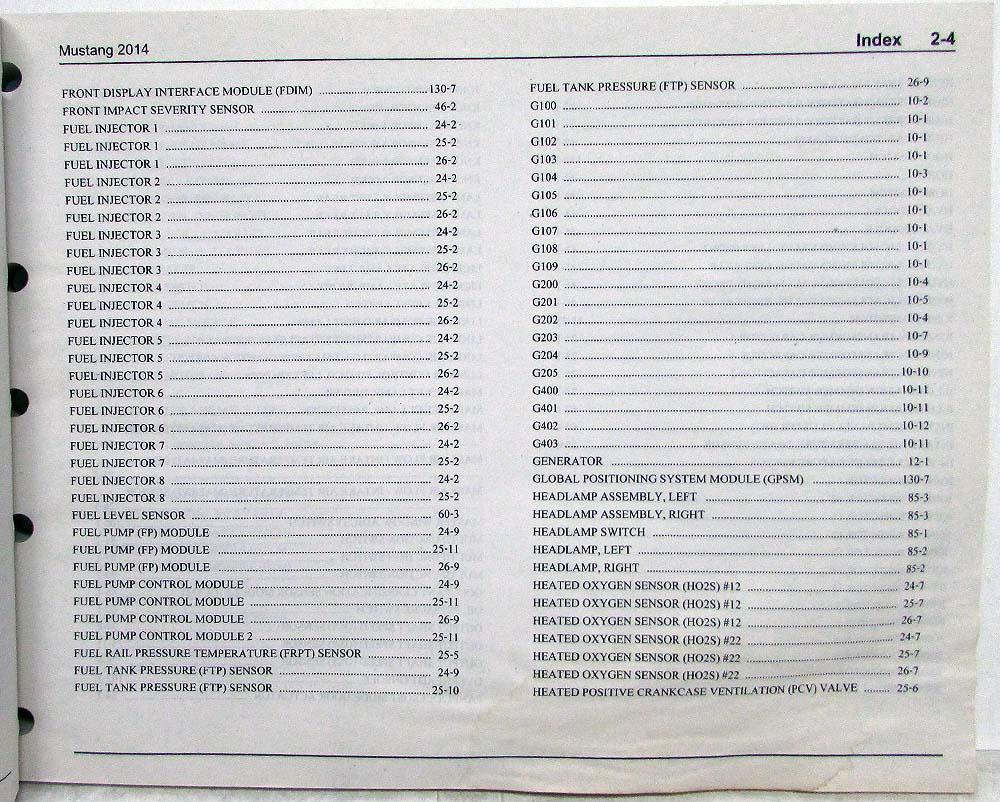

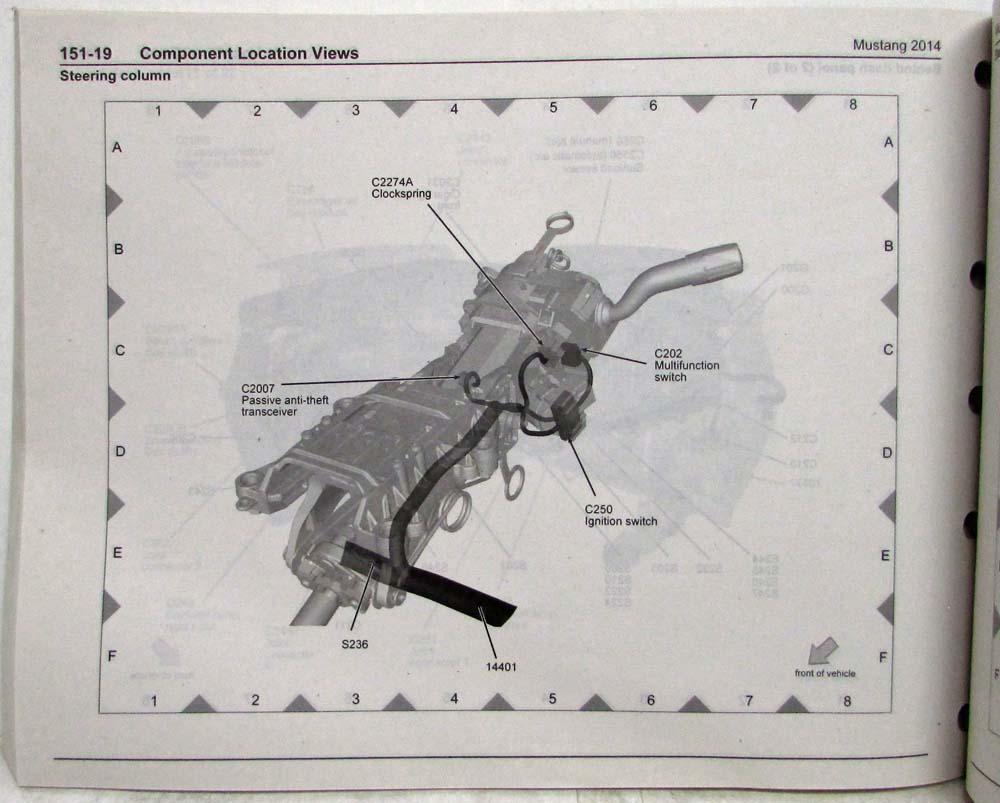

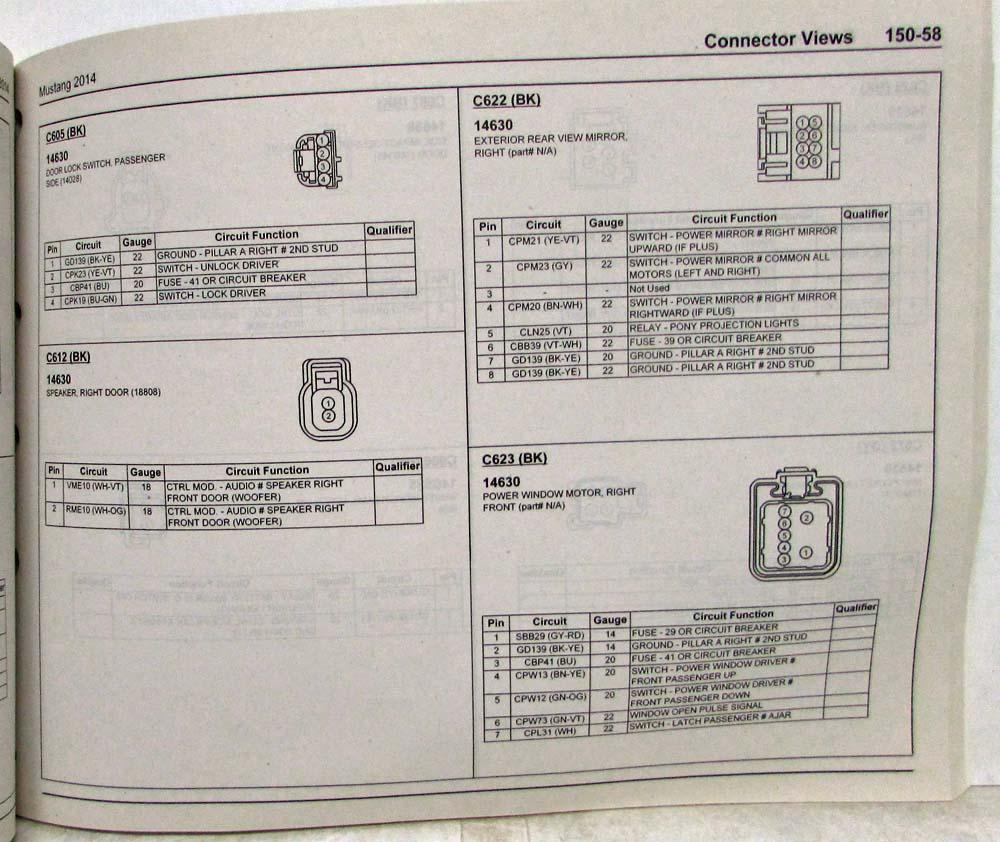

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2014 / Ford Mustang / Mustang GT / Shelby GT500

Keywords: 5th Generation, Ecoboost, GT, Fastback, Shelby, GT500, 3.7L, 5.0L, 5.8L
