2010 Ford F-250 350 450 550 Super Duty Pickup Electrical Wiring Diagrams Manual

Price $89.00 $71.20 Details W: 11 x H: 8.5 x D: 0.75 Weight 1.50 lbs. Page Count 350+ Condition Used Original - Excellent Item Type Factory Manual Inventory Number SM-28203 OEM Number FCS-14612-10
Flat US shipping rate: $8.95
Flat International shipping rate: $40.55

---

Description

2010 Ford F-250, F-350, F-450, F-550 Super Duty Pickup Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual by Helm, Inc.

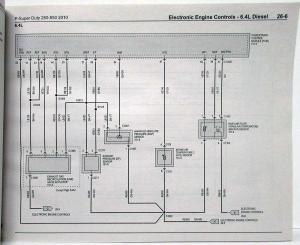

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2010 / F-250 Pickup / F-350 Trucks / F-450 Trucks / F-550 Trucks

Keywords: 2nd Generation, Super Duty, Pickup, Trucks, 4x2, 4x4, 4WD, 5.4L, 6.4L Diesel, 6.8L

Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Wiring Diagrams are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling you aren't seeing here.

Out of Stock.
