2009 Ford Ranger Pickup Truck Service Shop Repair Manual Vol 2 Only

Price $44.95 $35.96 Details W: 8.5 x H: 11 x D: 2 Weight 4.69 lbs. Page Count 800+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-56719 OEM Number FCS-12542-09-2 In Stock
Flat US shipping rate: $10.95
Flat International shipping rate: $84.95

Description

2009 Ford Ranger Pickup Truck Service Shop Repair Manual. Volume 2 ONLY of a 2 Volume Set. ORIGINAL

Developed by Ford Motor Company, this shop manual provides detailed repair instruction written by the manufacturer. Information contained in each body type specific manual has been developed to aid technicians in diagnosing and repairing vehicle components and systems. Each manual covers the entire vehicle bumper to bumper including specifications, diagnosis and testing, in vehicle repairs, component removal and installation and complete engine and transmission rebuilding.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models:
Ranger Pickup

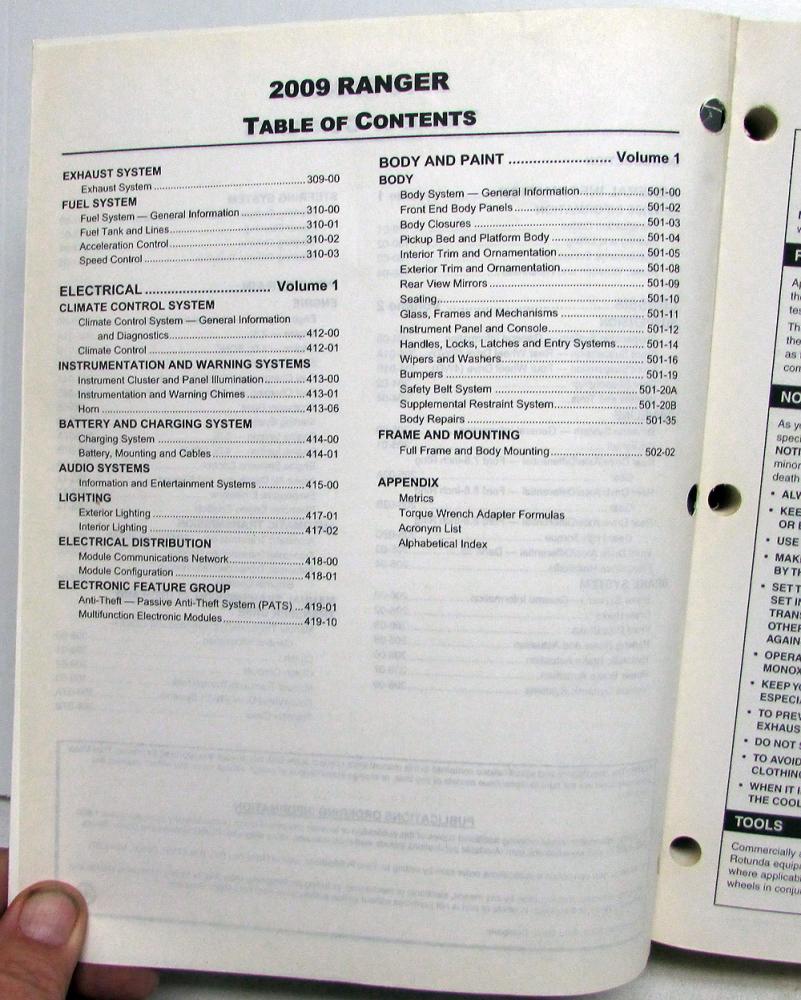

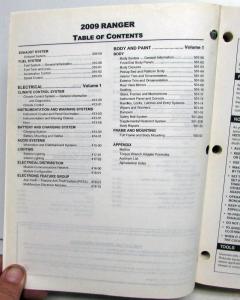

Volume 1 Contents: *[NOT INCLUDED]*
General Information

- Service Information

Electrical

- Climate Control System
- Instrumentation and Warning Systems
- Battery and Charging System
- Audio Systems
- Lighting
- Electrical Distribution
- Electronic Feature Group

Body and Paint

- Body
- Frame and Mounting

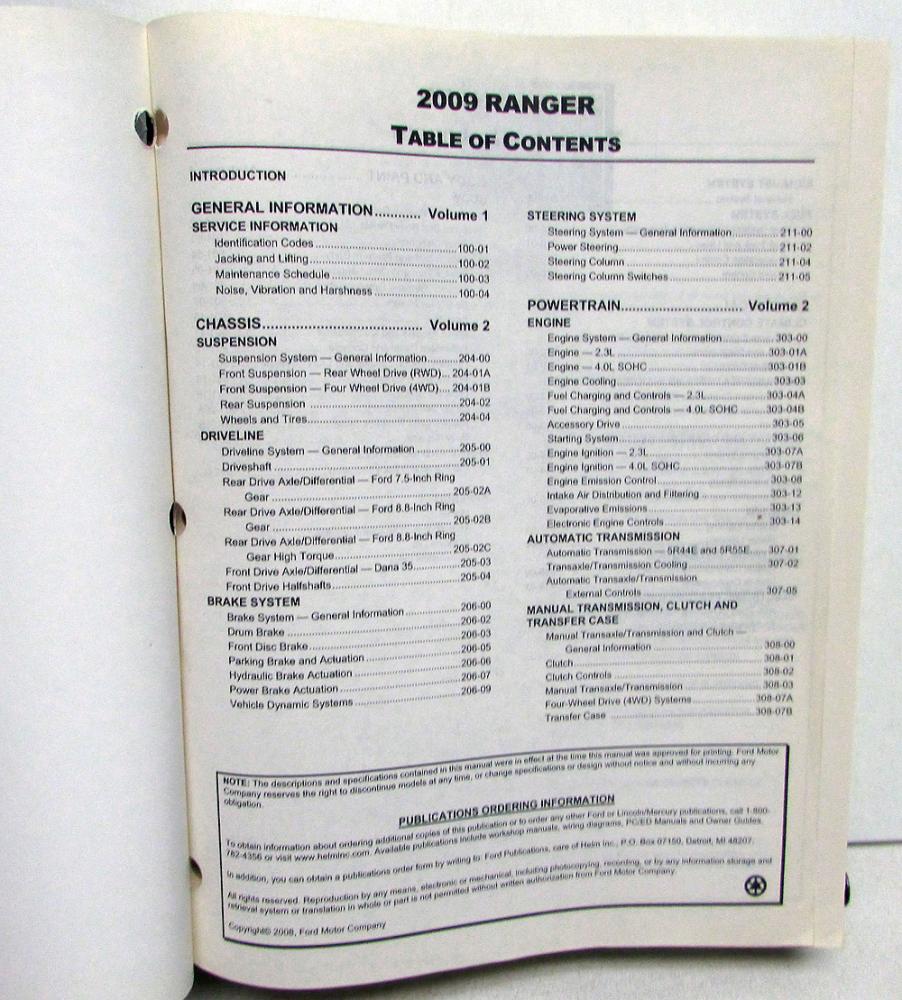

Volume 2 Contents:
Chassis

- Suspension
- Driveline
- Brake System
- Steering System

Powertrain

- Engine
- Automatic Transmission
- Manual Transmission, Clutch and Transfer Case
- Exhaust System
- Fuel System

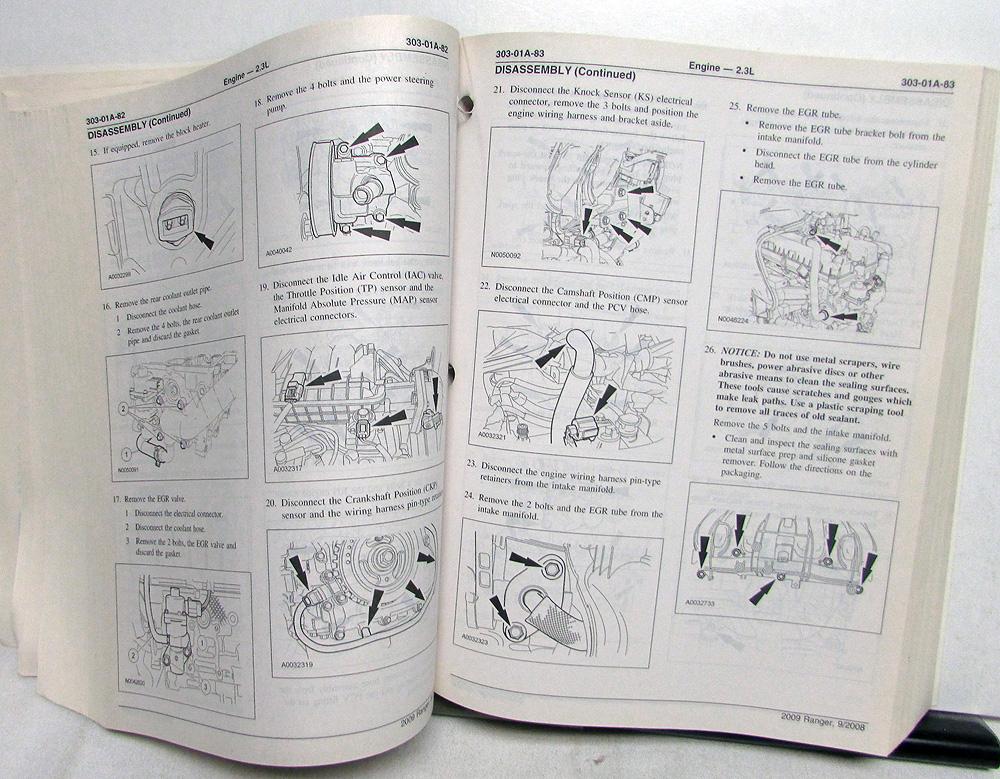

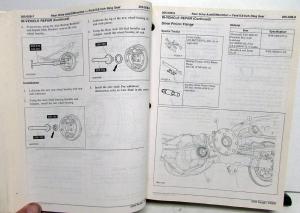

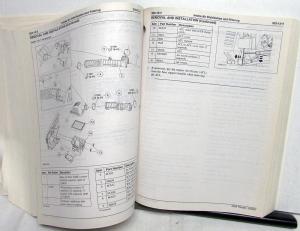

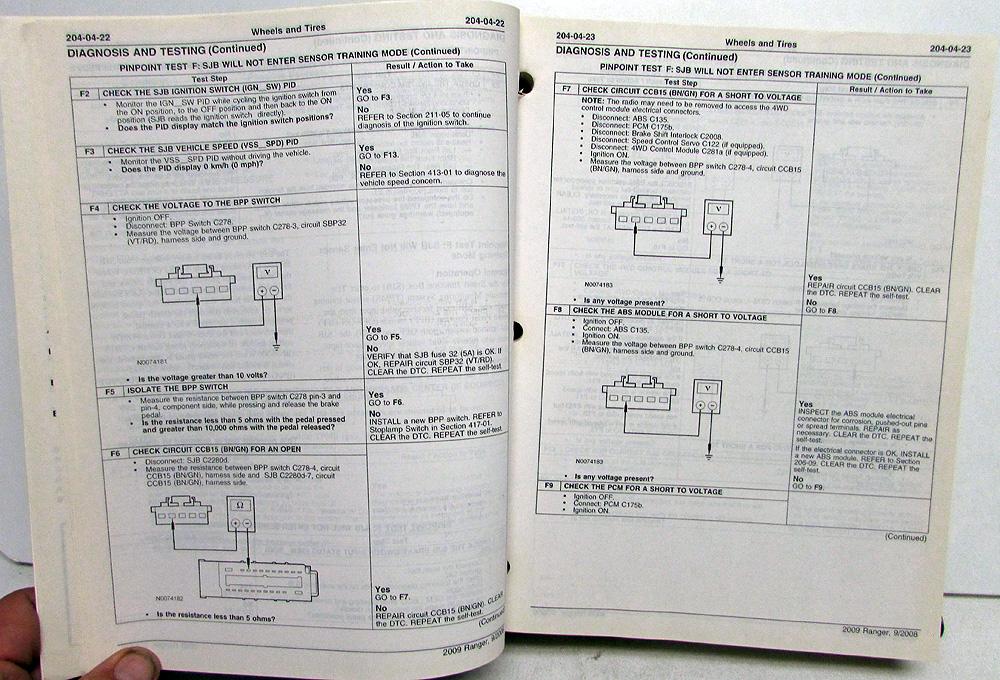

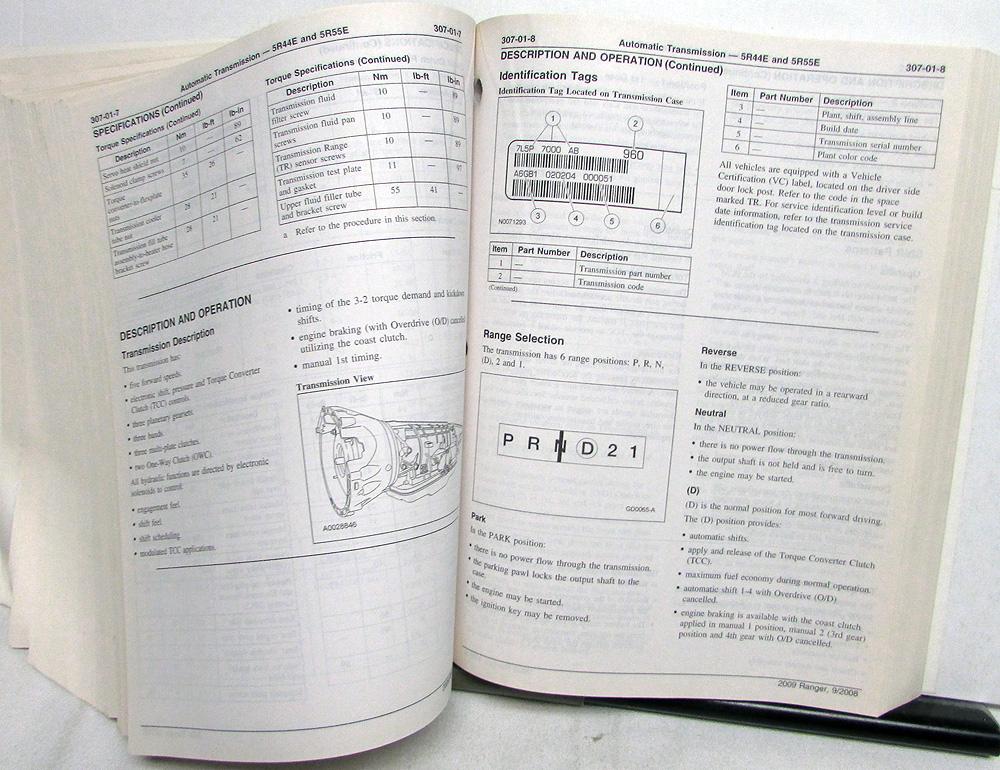

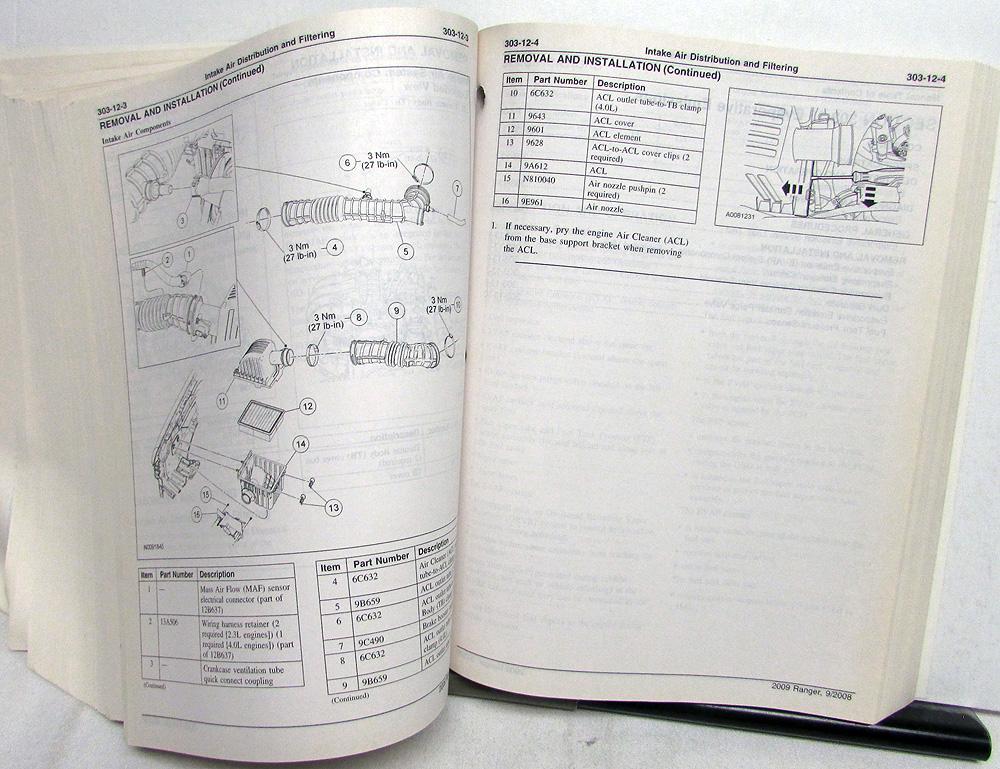

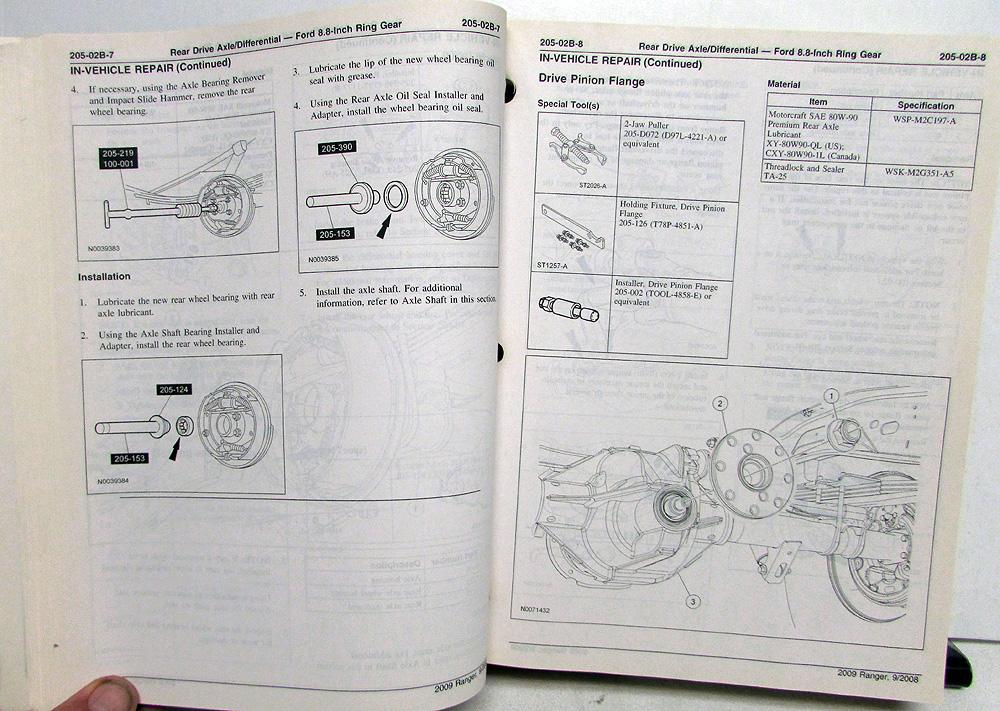

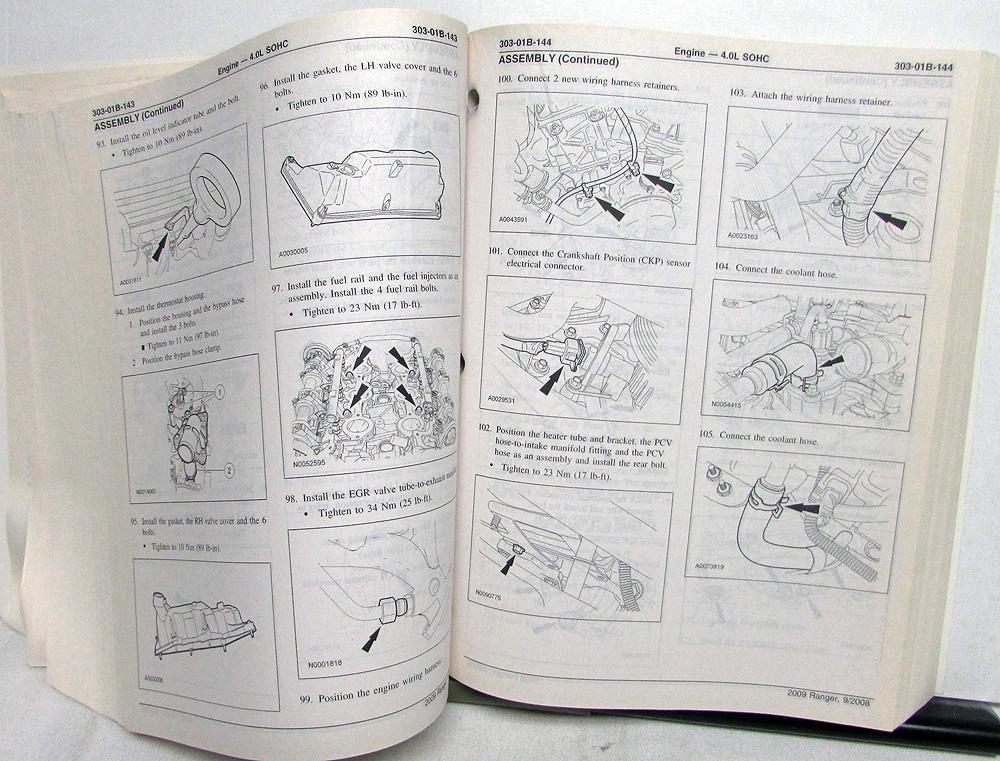

Very good condition with minor wear [see photos]. This is Volume 2 ONLY, it does NOT have Volume 1.
