2009 Ford Fusion Lincoln MKZ Mercury Milan Electrical Wiring Diagrams Manual

Price $39.95 $31.96 Details W: 11 x H: 8.5 x D: 0.875 Weight 1.77 lbs. Page Count 400+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-28222 OEM Number FCS-14299-09 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $40.55
Description

2009 Ford Fusion, Mercury Milan and Lincoln MKZ Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual by Helm, Inc.

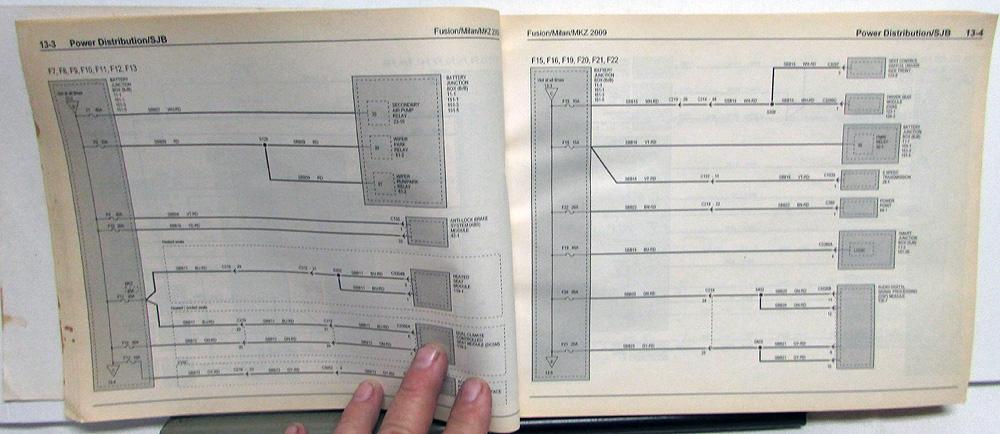

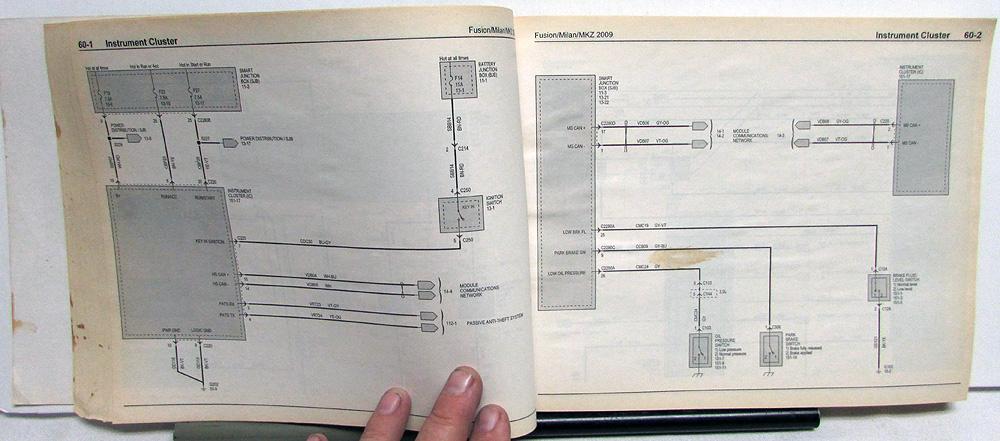

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2009 / Ford Fusion / Mercury Milan / Lincoln MKZ

Keywords: 2.3L, 3.0L, 3.5L

Good condition with minor wear and soiling [see photos].
