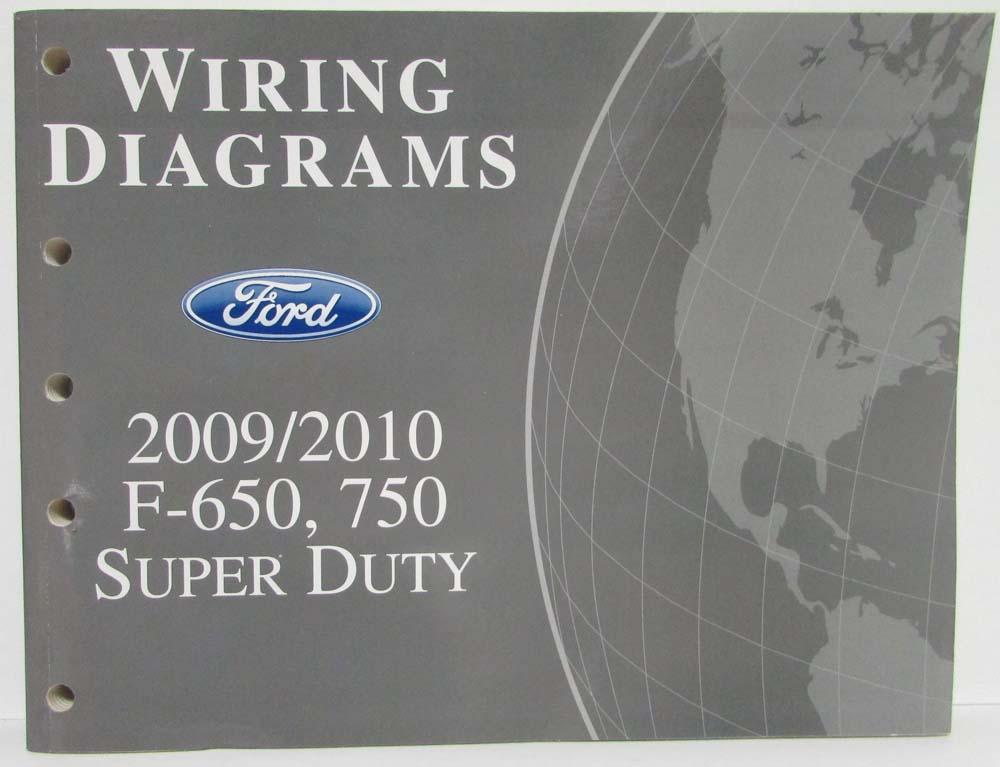

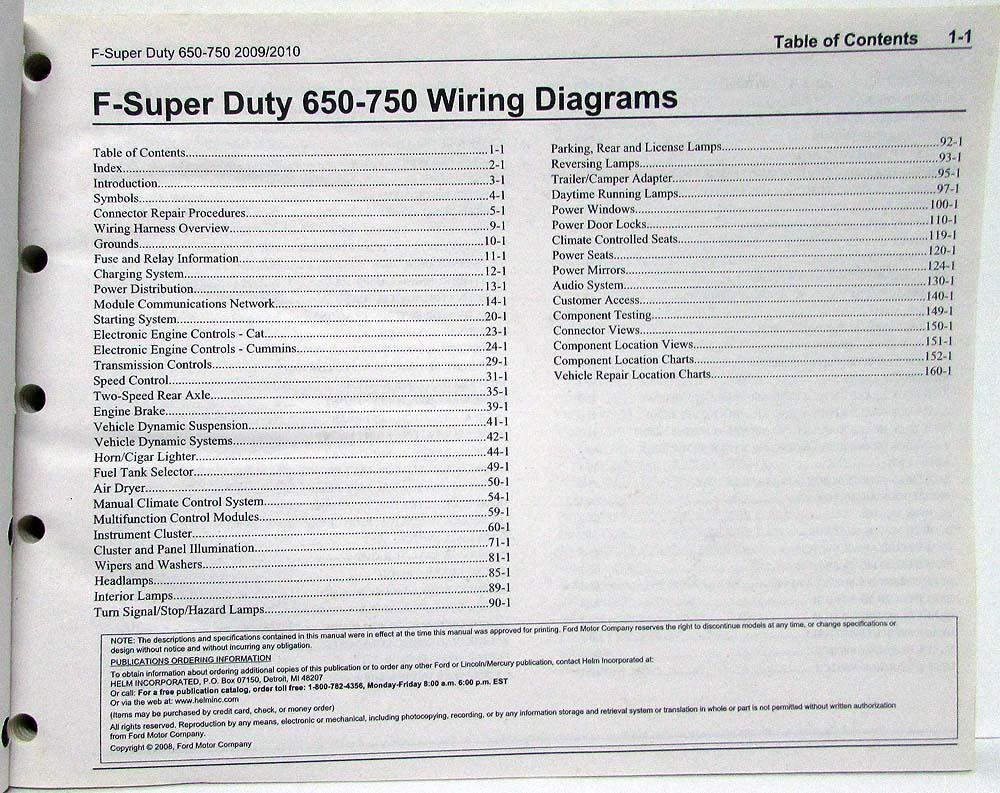

2009-2010 Ford F-650 750 Super Duty Trucks Electrical Wiring Diagrams Manual

Price $44.00 $35.20 Details W: 11 x H: 8.5 x D: 0.625 Weight 1.36 lbs. Page Count 300+ Condition Used Original - Excellent Item Type Factory Manual Inventory Number SM-28207 OEM Number FCS-12201-10 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $40.55

Description

2009-2010 Ford F-650 750 Super Duty Trucks Electrical Wiring Diagrams Manual. ORIGINAL. Ford Authorized Manual by Helm, Inc.

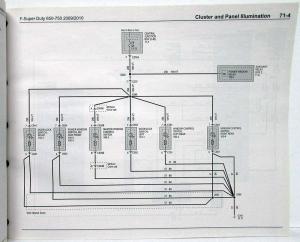

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2009 / F-650 Super Duty / F-750 Super Duty
2010 / F-650 Super Duty / F-750 Super Duty

Keywords: Truck, Super Duty

Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Light use in the shop, if any. Wiring Diagrams are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling you aren't seeing here.
