1986 Chrysler Dodge Plymouth Service Shop Manual RWD Diplomat Gran Fury Fifth Av

Price $59.95 $47.96 Details W: 8.5 x H: 11 x D: 1 Weight 3.38 lbs. Page Count 300 + Condition Used Original - Good Item Type Factory Manual Inventory Number SM-49572 OEM Number 81-270-6001 In Stock
Flat US shipping rate: $9.95
Flat International shipping rate: $64.95

---

Description

Original 1986 Chrysler, Dodge, Plymouth Rear Wheel Drive Passenger Cars Dealer Service Manual. This Shop Manual is what the Dealer used to service and repair your Diplomat, Fifth Avenue, Newport or Gran Fury Model. It has information, specifications, illustrations, troubleshooting and procedures to aid in repairing these Cars. The Service Manual covers Groups:

Lubrication

Front Suspension

Rear Axle

Brakes

Cooling

Electrical

Engine

Exhaust

Body & Frame Alignment

Fuel

Prop. Shaft

Shocks & Springs

Steering

Transmission

Wheels

Body

Heat & A/C

Emissions

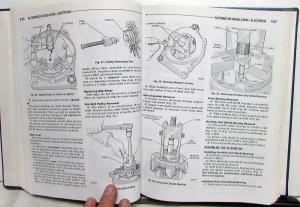

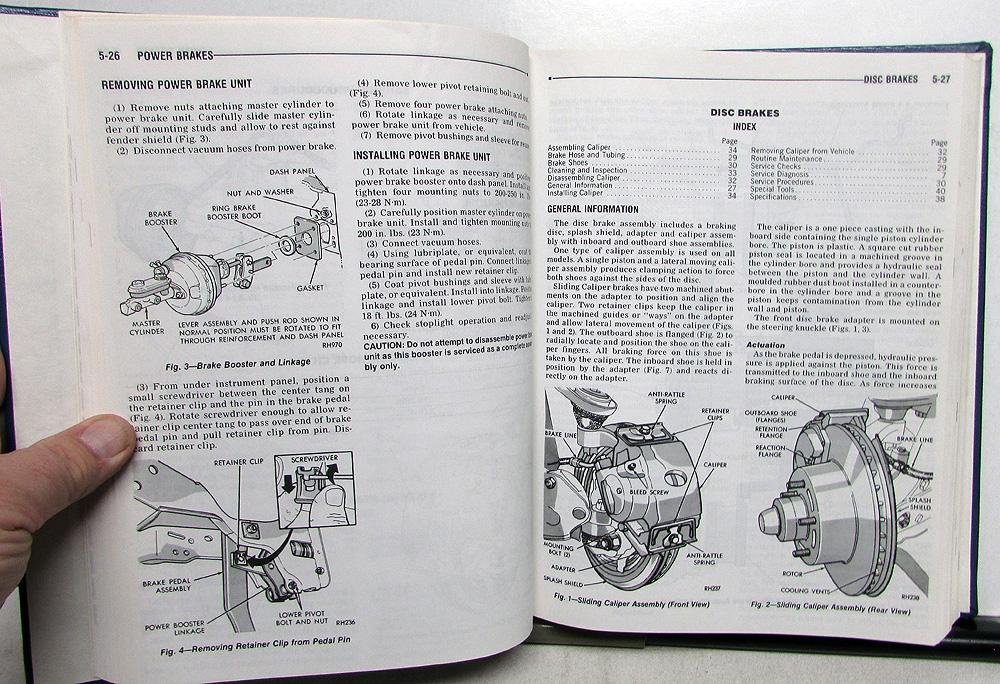

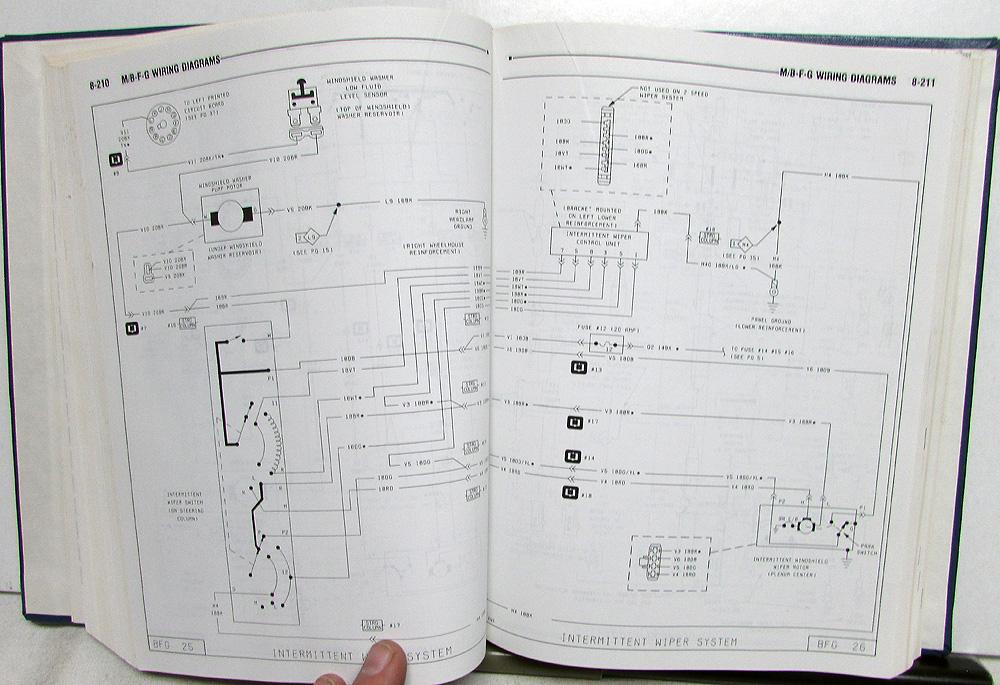

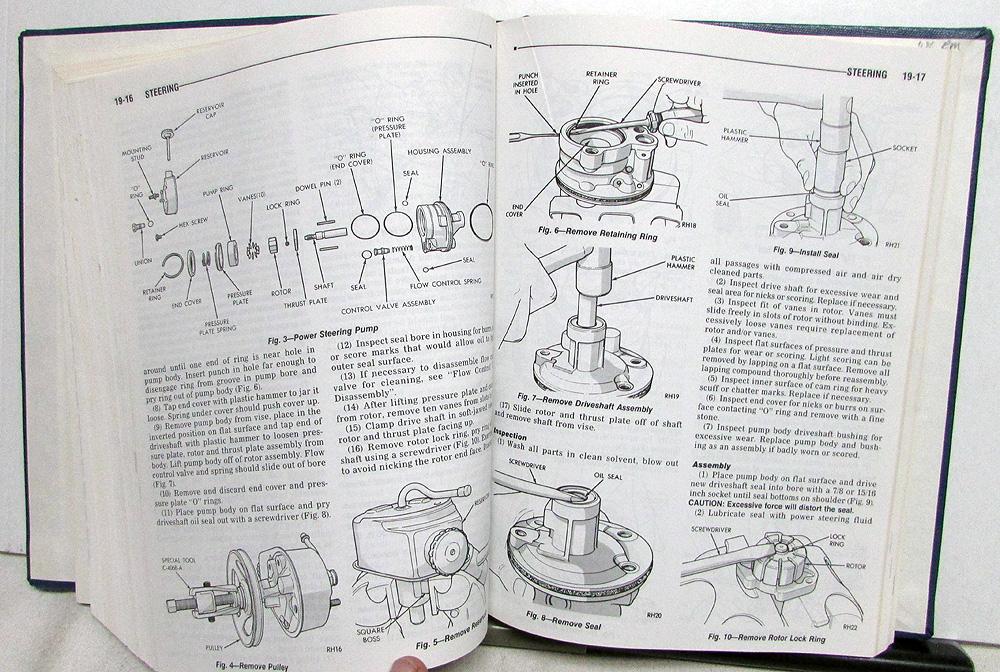

Very informative and useful tool for the Rear Wheel Drive Car Owner that is in very good condition with minor wear and blemishing [see photos]. This is a very rare hardback Library edition from the Detroit Library.  81-270-6001
